EEU-FC2A330 系列
panasonic
径向引线铝电解电容，33微法，100伏，105℃
EEU-FC2A330系列 是一款高端铝电解电容器产品线，专为各类电子应用提供卓越性能、可靠性和长效寿命而设计。该系列电容器采用先进材料与制造工艺，确保满足现代电子系统的严苛要求。凭借其高容量、低阻抗和出色的热稳定性特性，EEU-FC2A330系列成为电源电路、能量存储及滤波应用的理想选择。
本系列产品的核心优势在于采用高品质电解液和铝箔材料，赋予其优异的电气特性。电容器标称容量为33µF，额定电压达100V，兼具中低压应用场景的适应性。其低等效串联电阻（ESR）设计显著提升能效并减少高频电路中的发热量。工作温度范围宽广（-40°C至+105°C），确保在恶劣环境下仍保持稳定性能。

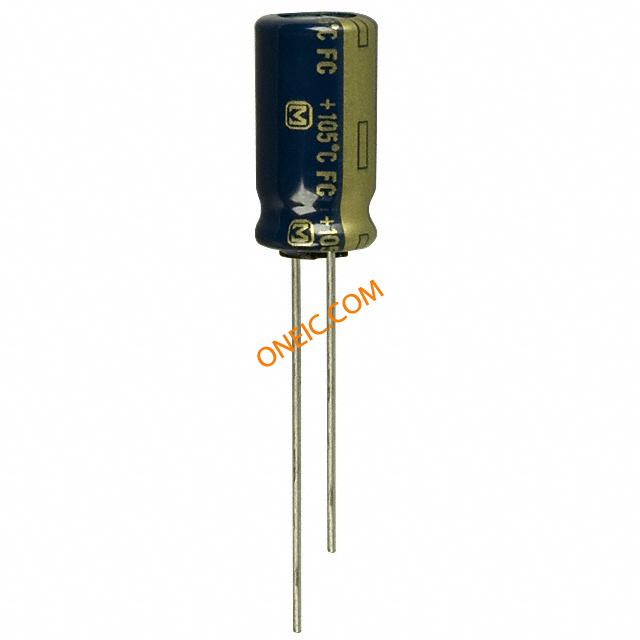

EEU-FC2A330系列采用紧凑坚固的圆柱形铝壳径向引线结构，便于印刷电路板（PCB）安装。内置泄压安全机制可有效应对过压状况，进一步提升可靠性。其强化结构设计能耐受工业及汽车电子环境中常见的机械应力、湿度与振动等影响因素。
该系列典型应用包括对能量存储稳定性要求严苛的电源设备、逆变器、电机驱动器和音响器材，同时广泛应用于汽车电子、可再生能源系统及工业自动化领域。无论是消费级电子产品还是重型工业设备，EEU-FC2A330系列始终如一的高性能表现，使其成为全球工程师与设计师信赖的核心元器件。
系列图片（15 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
EEU-FC2A330 - 型号列表共 9 个型号
| 制造商零件编号 | 价格/库存 | Lead Spacing | Series | Operating Temperature Range | Voltage Rating | Capacitance | Mounting | Capacitance Value | Voltage | Tolerance | Ripple Current | Lifetime | Product Height | Lead Pitch For Radial | Operating Temperature | Termination Style | Standard Package | rohs | Product Diameter | RoHS | Case Diameter | Case Length | Product | Packaging | Factory Pack Quantity | Dimensions | Load Life | Type | ESR | Unit Pack | MOQ | Lead Diameter | EU RoHS | Maximum Operating Temperature | Leakage Current | Lifetime | Product Height | Lead Pitch For Radial | Ripple Current | Product Diameter | Operating Temp Range | Rad Hardened | Failure Rate | Lead Diameter (nom) | Construction | Tolerance (+ or -) | DCL | Lead Spacing (nom) | Mounting Style | Size (mm) | Product Length (mm) | Product Depth (mm) | Product Height (mm) | Product Diameter (mm) | Termination | メーカ | 末端様式 | ケースの直径 | ケースの長さ | リード間隔 | 製品 | パッケージ化 | シリーズ | 工場パックの数量 | Product Range | Capacitance Tolerance | Diameter | Height | Capacitor Terminals | Life Time @ Temperature | Operating Temperature Min | Operating Temperature Max | Impedance | Lead Diameter | No. of Pins | Ripple Current AC | Weight (kg) | Tariff No. | Product Category | Brand/Series | Case Size | Current, Ripple | Diameter, Lead | Life | Material, Element | Temperature Range | Voltage, Rating | External Length / Height | Impedance Frequency | Impedance Temperature | Operating Life Temperature | Operating Lifetime | Ripple Current Frequency | Ripple Current Temperature | Terminal Type | Tolerance + | Tolerance - | Voltage Rating V DC | CaseSize | Material,Element | Temperature,Operating,Maximum | Temperature,Operating,Minimum | Voltage,Rating | 製品カテゴリ | 静電容量 | 公差 | 定格電圧 | 動作温度範囲 |
|---|
 EEU-FC2A330LB Cap Aluminum 33uF 100V 20% (8 X 15mm) Radial 5mm 340mA 2000 hr 105°C Ammo Pack panasonic | 询价 | 5 mm | FC | - 55 C to + 105 C | 100 VDC | 33 uF | Through Hole | 33 uF | 100 Vdc | 20 % | 340 mA | 2000 h | 15 mm | 5 mm | -55 to 105 °C | Radial | Ammo Pack | Lead free / RoHS Compliant | 8 mm | RoHS Compliant | 8 mm | 15 mm | General Purpose Electrolytic Capacitors | Ammo | 1000 | 8 mm Dia. x 15 mm L | 2000 h | Radial Lead Type | 450 mOhms | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
EEU-FC2A330B Cap Aluminum 33uF 100V 20% (10 X 12.5mm) Radial 5mm 306mA 3000 hr 105°C Ammo Pack panasonic | 询价 | 5 mm | FC | - 55 C to + 105 C | 100 V | 33 uF | Through Hole | 33 uF | 100 Vdc | 20 % | 306 mA | 3000 h | 12.5 mm | 5 mm | -55 to 105 °C | Radial | Ammo Pack | Lead free / RoHS Compliant | 10 mm | RoHS Compliant | 10 mm | 12.5 mm | General Purpose Electrolytic Capacitors | Ammo | 500 | 10 mm Dia. x 12 mm L | 3000 h | Electrolytic | 530 mOhms | - | - | 0.6 | Compliant | 105 | 33@2Min | 3000 | 12.5 | 5 | 306 | 10 | -55C to 105C | No | Not Required | 0.6 mm | Radial | 20% | 33 uA | 5 mm | Through Hole | 10 X 12.5 | Not Required mm | Not Required mm | 12.5 mm | 10 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 3.5 mm | FC | - 55 C to + 105 C | 100 VDC | 33 uF | Through Hole | 33 uF | 100 Vdc | 20 % | 340 mA | 2000 h | 8 mm | 3.5 mm | -55 to 105 °C | Radial | Ammo Pack | Lead free / RoHS Compliant | - | RoHS Compliant | 8 mm | 15 mm | General Purpose Electrolytic Capacitors | Bulk | 1000 | 8 mm Dia. x 15 mm L | 2000 h | Radial Lead Type | 450 mOhms | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Panasonic | Radial | 8 mm | 15 mm | 3.5 mm | General Purpose Electrolytic Capacitors | Bulk | FC | 1000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | :5mm | :FC | :-55°C to +105°C | :100V | :33µF | Through Hole | 33 uF | 100 Vdc | 20 % | 306 mA | 3000 h | 12.5 mm | 5 mm | -55 to 105 °C | Radial | Bulk | RoHS Compliant Part | 10 mm | - | - | - | - | - | - | - | - | - | - | 200 | 20000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Radial | - | - | - | - | - | - | - | - | - | :PANASONIC - FC Series | :± 20% | :10mm | :12.5mm | :Radial Leaded | :3000 hours @ 105°C | :-55°C | :105°C | :0.42ohm | :0.6mm | :2 | :306mA | 0.01 | 85322200 | - | - | - | - | - | - | - | - | - | :12.5mm | :100kHz | :20°C | :105°C | :3000h | :100kHz | :105°C | :Wire Ended | :20% | :20% | :100V | 10mmDia.x12.5mmL | AluminumElectrolytic | 105°C | –55°C | 100VDC | - | - | - | - | - |
 | 询价 | 5 mm | FC | - 55 C to + 105 C | 100 V | 33 uF | Through Hole | 33 uF | 100 Vdc | 20 % | 306 mA | 3000 h | 12.5 mm | 5 mm | -55 to 105 °C | Radial | Bulk | Lead free / RoHS Compliant | 10 mm | RoHS Compliant | 10 mm | 12.5 mm | High Temp Electrolytic Capacitors | Bulk | 200 | 10 mm Dia. x 12.5 mm L | 3000 h | Electrolytic | 530 mOhms | - | - | 0.6 | Compliant | 105 | 33@2Min | 3000 | 12.5 | 5 | 306 | 10 | -55C to 105C | No | Not Required | 0.6 mm | Radial | 20% | 33@2Min uA | 5 mm | Through Hole | 10 X 12.5 | Not Required mm | Not Required mm | 12.5 mm | 10 mm | Radial | Panasonic | Radial | 10 mm | 12.5 mm | 5 mm | High Temp Electrolytic Capacitors | Bulk | FC | 200 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Aluminum Electrolytic Capacitors - Leaded | FC Series | 10 mm Dia. x 12.5 mm L | 0.306 A | 0.6 mm | 3000 Hours | Aluminum Electrolytic | –55 to 105 °C | 100 VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | アルミニウム電解キャパシタ - リード線付き | 33 uF | 20 % | 100 V | - 55 C to + 105 C |
 | 询价 | 3.5 mm | FC | - 55 C to + 105 C | 100 V | 33 uF | Through Hole | 33 uF | 100 Vdc | 20 % | 340 mA | 2000 h | 15 mm | 3.5 mm | -55 to 105 °C | Radial | Bulk | Lead free / RoHS Compliant | 8 mm | RoHS Compliant | 8 mm | 15 mm | General Purpose Electrolytic Capacitors | Bulk | 200 | 8 mm Dia. x 15 mm L | 2000 h | Electrolytic | 450 mOhms | - | - | 0.6 | Compliant | 105 | 33@2Min | 2000 | 15 | 3.5 | 340 | 8 | -55C to 105C | No | Not Required | 0.6 mm | Radial | 20% | 33@2Min uA | 3.5 mm | Through Hole | 8 X 15 | Not Required mm | Not Required mm | 15 mm | 8 mm | Radial | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Aluminum Electrolytic Capacitors - Leaded | FC Series | 8 mm Dia. x 15 mm L | 0.34 A | 0.6 mm | 2000 Hours | Aluminum Electrolytic | –55 to 105 °C | 100 VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 500 | 20000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | :3.5mm | :FC | :-55°C to +105°C | :100V | :33µF | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 200 | 21000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :PANASONIC - FC Series | :± 20% | :8mm | :15mm | :Radial Leaded | :2000 hours @ 105°C | :-55°C | :105°C | :0.45ohm | :0.6mm | :2 | :340mA | 0.001 | 85322200 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1000 | 20000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
共 9 个型号
