EEU-EB1J4 系列

panasonic

高温应用径向铝电解电容器

EEU-EB1J4系列 是一款高端铝电解电容器产品线，专为各类电子应用提供卓越性能、可靠性和长寿命而设计。该系列电容器以满足现代电子设备的严苛要求为开发目标，具有高容值、低等效串联电阻（ESR）和优异的温度稳定性等特点。凭借其耐久性和高效能表现，EEU-EB1J4系列成为电源电路、储能系统及其他高性能应用的理想选择。

本系列的核心优势在于采用先进电解液技术，可确保电容长期保持稳定性并维持低漏电流。其工作温度范围宽广（通常为-40°C至+105°C），能适应存在剧烈温度波动的恶劣环境。同时，该产品具有出色的纹波电流处理能力，这对高频开关和功率转换应用至关重要。

EEU-EB1J4系列采用紧凑高效的圆柱形设计，便于高密度电路板集成。产品提供多规格容值及电压等级，为设计人员根据具体需求选择最优元件提供灵活性。其坚固结构可有效抵御振动和机械应力，特别适用于汽车电子、工业设备及通信装置等场景。

该系列典型应用包括对储能与滤波有严格要求的电源、逆变器、电机驱动及可再生能源系统，同时也广泛应用于音频放大器、LED照明等需要高性能和长使用寿命的消费电子领域。EEU-EB1J4系列融合先进技术、坚固结构和多功能表现，是工程师构建高性能电子系统时值得信赖的电容解决方案。

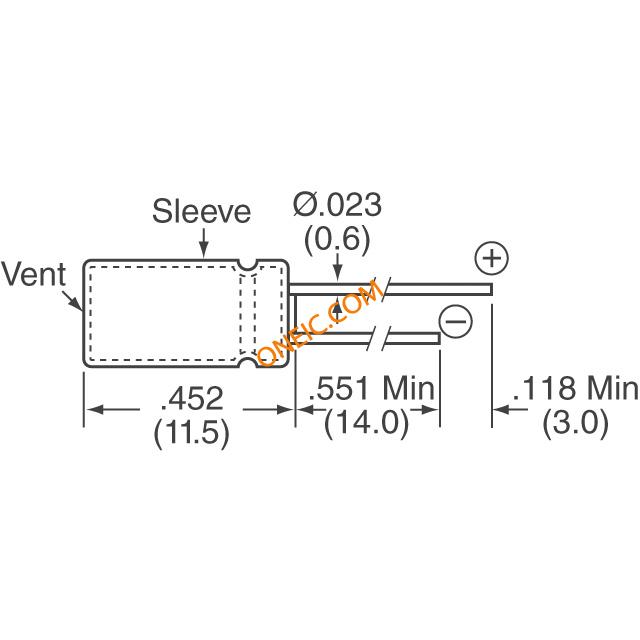

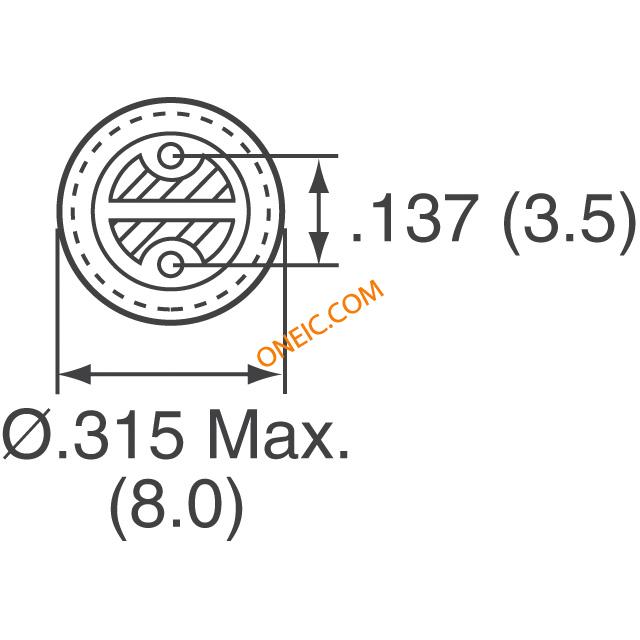

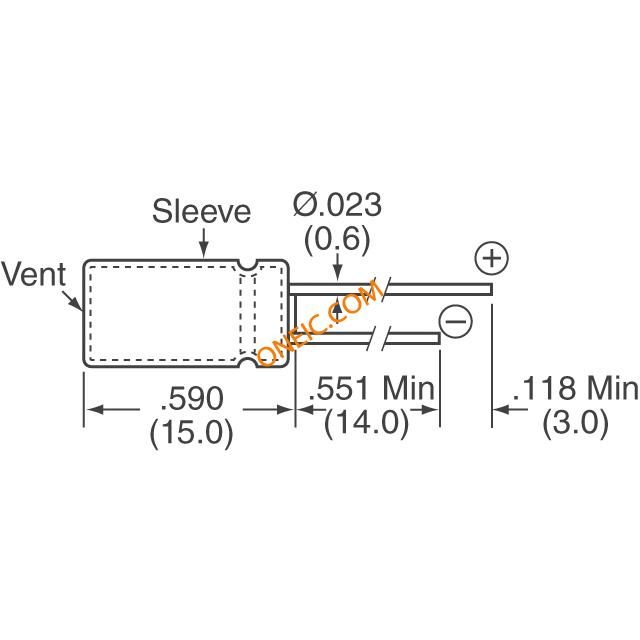

系列图片（25 张）

常见问答

内容由 AI 生成，仅供参考

加载中...

EEU-EB1J4 - 型号列表共 26 个型号

制造商零件编号	价格/库存	Capacitance	Voltage Rating	Operating Temperature Range	Lead Spacing	Packaging	Mounting	Voltage	Tolerance	Ripple Current	Lifetime	Capacitance Value	Product Diameter	Product Height	Operating Temperature	Termination Style	Standard Package	Type	RoHS	Case Diameter	Case Length	Product	Load Life	Series	Factory Pack Quantity	rohs	Dimensions	Lead Pitch For Radial	Unit Pack	MOQ	Operating Temp Range	Rad Hardened	Failure Rate	Lead Diameter (nom)	Construction	Tolerance (+ or -)	DCL	Lead Spacing (nom)	Mounting Style	Size (mm)	Product Length (mm)	Product Depth (mm)	Product Height (mm)	Product Diameter (mm)	Dissipation Factor DF	Lead Diameter	EU RoHS	Maximum Operating Temperature	Leakage Current	Lifetime	Product Height	Lead Pitch For Radial	Ripple Current	Product Diameter	Brand/Series	Case Size	Current, Ripple	Diameter, Lead	Life	Material, Element	Temperature Range	Termination	Voltage, Rating	Product Range	Capacitance Tolerance	Diameter	Height	Capacitor Terminals	Life Time @ Temperature	Operating Temperature Min	Operating Temperature Max	MSL	Ripple Current AC	Weight (kg)	Tariff No.	メーカ	静電容量	公差	定格電圧	動作温度範囲	末端様式	ケースの直径	ケースの長さ	リード間隔	製品	パッケージ化	シリーズ	工場パックの数量	Voltage Rating DC	Package / Case	Leakage Current	Seated Plane Height	散逸係数 DF	負荷寿命	リップル電流	Lead Style	电容	容差	操作温度	纹波电流	不同温度时的使用寿命	额定电压	Body dimensions	Capacitor type	Gross weight	Operating temperature	Operating voltage	Multiplicity	Terminal pitch	Collective package [pcs]	spg

7 EEU-EB1J4R7 Cap Aluminum 4.7uF 63V 20% (5 X 15mm) Radial 2mm 30mA 7000 hr 105°C Bulk panasonic	询价	4.7 uF	63 V	- 40 C to + 105 C	2 mm	Bulk	Through Hole	63 Vdc	20 %	30 mA	7000 h	4.7 uF	5 mm	15 mm	-40 to 105 °C	Radial	Bulk	Electrolytic	RoHS Compliant	5 mm	15 mm	General Purpose Electrolytic Capacitors	7000 hr	EB	200	Lead free / RoHS Compliant	5 mm Dia. x 15 mm L	2 mm	-	-	-40C to 105C	No	Not Required	0.5 mm	Radial	20%	3 uA	2 mm	Through Hole	5 X 15	Not Required mm	Not Required mm	15 mm	5 mm	0.12	0.5	Compliant	105	3@2Min	7000	15	2	30	5	EB Series	5 mm Dia. x 15 mm L	0.03 A	0.5 mm	7000 Hours	Aluminum Electrolytic	–40 to 105 °C	Radial	63 VDC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 EEU-EB1J4R7S Cap Aluminum 4.7uF 63V 20% (5 X 11mm) Radial 2mm 23mA 5000 hr 105°C Bulk panasonic	询价	4.7 uF	63 V	- 40 C to + 105 C	2 mm	Bulk	Through Hole	63 Vdc	20 %	23 mA	5000 h	4.7 uF	5 mm	11 mm	-40 to 105 °C	Radial	Bulk	Radial Lead Type	RoHS Compliant	5 mm	11 mm	High Temp Electrolytic Capacitors	5000 h	EB	200	Lead free / RoHS Compliant	5 mm Dia. x 11 mm L	2 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	EB Series	5 mm Dia. x 11 mm L	0.023 A	0.5 mm	5000 Hours	Aluminum Electrolytic	–40 to 105 °C	Radial	63 VDC	-	-	-	-	-	-	-	-	-	-	-	-	Panasonic	4.7 uF	20 %	63 V	- 40 C to + 105 C	Radial	5 mm	11 mm	2 mm	High Temp Electrolytic Capacitors	Bulk	EB	200	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEU-EB1J470BJ Cap Aluminum 47uF 63V 20% (8 X 15mm) Radial 94mA 10000h 105°C panasonic	询价	47 uF	63 VDC	- 40 C to + 105 C	3.5 mm	Reel	Through Hole	63 Vdc	20 %	94 mA	10000 h	47 uF	8 mm	15 mm	-40 to 105 °C	Radial	Ammo Pack	Radial Lead Type	RoHS Compliant	8 mm	15 mm	General Purpose Electrolytic Capacitors	10000 h	EB	1000	Lead free / RoHS Compliant	8 mm Dia. x 15 mm L	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEU-EB1J470SB Cap Aluminum 47uF 63V 20% (8 X 11.5mm) Radial 5mm 80mA 5000 hr 105°C Ammo Pack panasonic	询价	47 uF	63 VDC	- 40 C to + 105 C	5 mm	Reel	Through Hole	63 Vdc	20 %	80 mA	5000 h	47 uF	8 mm	11.5 mm	-40 to 105 °C	Radial	Ammo Pack	Electrolytic	RoHS Compliant	8 mm	11.5 mm	General Purpose Electrolytic Capacitors	5000 h	EB	1000	Lead free / RoHS Compliant	8 mm Dia. x 11.5 mm L	5 mm	-	-	-40C to 105C	No	Not Required	0.6 mm	Radial	20%	29.61 uA	5 mm	Through Hole	8 X 11.5	Not Required mm	Not Required mm	11.5 mm	8 mm	0.12	0.6	Compliant	105	29.61@2Min	5000	11.5	5	80	8	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	63 V	Radial, Can	3 uA	15.5 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEU-EB1J471B Cap Aluminum 470uF 63V 20% (12.5 X 25mm) Radial 5mm 454mA 10000 hr 105°C Ammo Pack panasonic	询价	470 uF	63 VDC	- 40 C to + 105 C	5 mm	Reel	Through Hole	63 Vdc	20 %	454 mA	10000 h	470 uF	12.5 mm	25 mm	-40 to 105 °C	Radial	Ammo Pack	Radial Lead Type	RoHS Compliant	12.5 mm	25 mm	General Purpose Electrolytic Capacitors	10000 h	EB	500	Lead free / RoHS Compliant	12 mm Dia. x 25 mm L	5 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	0.12	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	63 V	Radial, Can	3 uA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEU-EB1J4R7SH Cap Aluminum 4.7uF 63V 20% (5 X 11mm) Radial 2.5mm 23mA 5000 hr 105°C Ammo Pack panasonic	询价	4.7 uF	63 VDC	- 40 C to + 105 C	2.5 mm	Reel	Through Hole	63 Vdc	20 %	23 mA	5000 h	4.7 uF	5 mm	11 mm	-40 to 105 °C	Radial	Ammo Pack	Radial Lead Type	RoHS Compliant	5 mm	11 mm	General Purpose Electrolytic Capacitors	5000 h	EB	2000	Lead free / RoHS Compliant	5 mm Dia. x 11 mm L	2.5 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEU-EB1J4R7B Cap Aluminum 4.7uF 63V 20% (5 X 15mm) Radial 5mm 30mA 7000h 105°C Ammo Pack panasonic	询价	4.7 uF	63 VDC	- 40 C to + 105 C	5 mm	Reel	Through Hole	63 Vdc	20 %	30 mA	7000 h	4.7 uF	5 mm	15 mm	-40 to 105 °C	Radial	Ammo Pack	Radial Lead Type	RoHS Compliant	5 mm	15 mm	General Purpose Electrolytic Capacitors	7000 h	EB	2000	Lead free / RoHS Compliant	5 mm Dia. x 15 mm L	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEU-EB1J4R7H Cap Aluminum 4.7uF 63V 20% (5 X 15mm) Radial 2.5mm 30mA 7000 hr 105°C Ammo Pack panasonic	询价	4.7 uF	63 VDC	- 40 C to + 105 C	2.5 mm	Reel	Through Hole	63 Vdc	20 %	30 mA	7000 h	4.7 uF	5 mm	15 mm	-40 to 105 °C	Radial	Ammo Pack	Radial Lead Type	RoHS Compliant	5 mm	15 mm	General Purpose Electrolytic Capacitors	7000 h	EB	2000	Lead free / RoHS Compliant	5 mm Dia. x 15 mm L	2.5 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEU-EB1J4R7SB Cap Aluminum 4.7uF 63V 20% (5 X 11mm) Radial 5mm 23mA 5000 hr 105°C Ammo Pack panasonic	询价	4.7 uF	63 VDC	- 40 C to + 105 C	5 mm	Reel	Through Hole	63 Vdc	20 %	23 mA	5000 h	4.7 uF	5 mm	11 mm	-40 to 105 °C	Radial	Ammo Pack	Radial Lead Type	RoHS Compliant	5 mm	11 mm	General Purpose Electrolytic Capacitors	5000 h	EB	2000	Lead free / RoHS Compliant	5 mm Dia. x 11 mm L	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 EEU-EB1J471 Cap Aluminum 470uF 63V 20% (12.5 X 25mm) Radial 5mm 454mA 10000h 105°C Bulk panasonic	询价	470 uF	63 V	- 40 C to + 105 C	5 mm	Bulk	Through Hole	63 Vdc	20 %	454 mA	10000 h	470 uF	12.5 mm	25 mm	-40 to 105 °C	Radial	Bulk	Electrolytic	RoHS Compliant	12.5 mm	25 mm	General Purpose Electrolytic Capacitors	10000 hr	EB	200	Lead free / RoHS Compliant	12.5 mm Dia. x 25 mm L	5 mm	-	-	-40C to 105C	No	Not Required	0.6 mm	Radial	20%	296.1@2Min uA	5 mm	Through Hole	12.5 X 25	Not Required mm	Not Required mm	25 mm	12.5 mm	0.12	0.6	Compliant	105	296.1@2Min	10000	25	5	454	12.5	EB Series	12.5 mm Dia. x 25 mm L	0.454 A	0.6 mm	10000 Hours	Aluminum Electrolytic	–40 to 105 °C	Radial	63 VDC	-	-	-	-	-	-	-	-	-	-	-	-	Panasonic	470 uF	20 %	63 V	- 40 C to + 105 C	Radial	12.5 mm	25 mm	5 mm	General Purpose Electrolytic Capacitors	Bulk	EB	200	-	-	-	-	0.12	10000 hr	454 mA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEU-EB1J470B Cap Aluminum 47uF 63V 20% (8 X 15mm) Radial 5mm 94mA 10000 hr 105°C Ammo Pack panasonic	询价	47 uF	63 VDC	- 40 C to + 105 C	5 mm	Reel	Through Hole	63 Vdc	20 %	94 mA	10000 h	47 uF	8 mm	15 mm	-40 to 105 °C	Radial	Ammo Pack	Radial Lead Type	RoHS Compliant	8 mm	15 mm	General Purpose Electrolytic Capacitors	10000 h	EB	1000	Lead free / RoHS Compliant	8 mm Dia. x 15 mm L	5 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 EEU-EB1J470 Cap Aluminum 47uF 63V 20% (8 X 15mm) Radial 3.5mm 94mA 10000 hr 105°C Bulk panasonic	询价	47 uF	63 V	- 40 C to + 105 C	3.5 mm	Bulk	Through Hole	63 Vdc	20 %	94 mA	10000 h	47 uF	8 mm	15 mm	-40 to 105 °C	Radial	Bulk	Electrolytic	RoHS Compliant	8 mm	15 mm	General Purpose Electrolytic Capacitors	10000 hr	EB	200	Lead free / RoHS Compliant	8 mm Dia. x 15 mm L	3.5 mm	-	-	-40C to 105C	No	Not Required	0.6 mm	Radial	20%	29.61@2Min uA	3.5 mm	Through Hole	8 X 15	Not Required mm	Not Required mm	15 mm	8 mm	0.12	0.6	Compliant	105	29.61@2Min	10000	15	3.5	94	8	EB Series	8 mm Dia. x 15 mm L	0.094 A	0.6 mm	10000 Hours	Aluminum Electrolytic	–40 to 105 °C	Radial	63 VDC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Straight	47µF	±20%	-40°C ~ 105°C	94mA	10000 Hrs @ 105°C	63V	-	-	-	-	-	-	-	-	-
2 EEUEB1J470S Cap Aluminum 47uF 63V 20% (8 X 11.5mm) Radial 3.5mm 80mA 5000h 105°C Bulk panasonic	询价	:47µF	:63V	:-40°C to +105°C	:3.5mm	:-	Through Hole	63 Vdc	20 %	80 mA	5000 h	47 uF	8 mm	11.5 mm	-40 to 105 °C	Radial	Bulk	-	-	-	-	-	-	-	-	-	-	3.5 mm	200	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:PANASONIC - EB Series	:± 20%	:8mm	:11.5mm	:Radial Leaded	:5000 hours @ 105°C	:-40°C	:105°C	:-	:94mA	0.01	85322200	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEU-EB1J470SJ Cap Aluminum 47uF 63V 20% (8 X 11.5mm) Radial 3.5mm 80mA 5000h 105°C Bulk panasonic	询价	47 uF	63 VDC	- 40 C to + 105 C	3.5 mm	Bulk	Through Hole	63 Vdc	20 %	80 mA	5000 h	47 uF	8 mm	11.5 mm	-40 to 105 °C	Radial	Ammo Pack	Radial Lead Type	RoHS Compliant	8 mm	11.5 mm	General Purpose Electrolytic Capacitors	5000 h	EB	1000	Lead free / RoHS Compliant	8 mm Dia. x 11.5 mm L	3.5 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 EEU-EB1J470S Cap Aluminum 47uF 63V 20% (8 X 11.5mm) Radial 3.5mm 80mA 5000h 105°C Bulk panasonic	询价	47 uF	63 V	- 40 C to + 105 C	3.5 mm	Bulk	Through Hole	63 Vdc	20 %	80 mA	5000 h	47 uF	8 mm	11.5 mm	-40 to 105 °C	Radial	Bulk	Electrolytic	RoHS Compliant	8 mm	11.5 mm	High Temp Electrolytic Capacitors	5000 h	EB	200	Lead free / RoHS Compliant	8 mm Dia. x 11.5 mm L	3.5 mm	-	-	-40C to 105C	No	Not Required	0.6 mm	Radial	20%	29.61@2Min uA	3.5 mm	Through Hole	8 X 11.5	Not Required mm	Not Required mm	11.5 mm	8 mm	-	0.6	Compliant	105	29.61@2Min	5000	11.5	3.5	80	8	EB Series	8 mm Dia. x 11.5 mm L	0.08 A	0.6 mm	5000 Hours	Aluminum Electrolytic	–40 to 105 °C	Radial	63 VDC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EEUEB1J4R7 EB/63V/4,7uF/5x15mm/105°C/7000h PANASONIC	询价	:4.7µF	:63V	:-40°C to +105°C	:2mm	:-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	200	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:PANASONIC - EB Series	:± 20%	:5mm	:15mm	:Radial Leaded	:7000 hours @ 105°C	:-40°C	:105°C	:-	:30mA	0.01	85322200	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EEUEB1J4R7B EB/63V/4,7uF/5x15mm/105°C/7000h PANASONIC	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2000	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EEUEB1J4R7H EB/63V/4,7uF/5x15mm/105°C/7000h PANASONIC	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2000	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEUEB1J4R7S EB/63V/4,7uF/5x11mm/105°C/5000h PANASONIC	询价	4700000 pF	:63V	:-40°C to +105°C	:2mm	Bulk	-	63VDC	-	23 mA	5000 hr	-	-	-	-	-	-	Electrolytic	-	-	-	-	-	-	-	-	-	-	200	20000	-40C to 105C	No	Not Required	0.5 mm	Radial	20%	3@2Min uA	2 mm	Through Hole	5 X 11	Not Required mm	Not Required mm	11 mm	5 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:PANASONIC - EB Series	:± 20%	:5mm	:11mm	:Radial Leaded	:5000 hours @ 105°C	:-40°C	:105°C	:-	:23mA	0.01	85322200	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EEUEB1J4R7SB EB/63V/4,7uF/5x11mm/105°C/5000h PANASONIC	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2000	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EEUEB1J4R7SH EB/63V/4,7uF/5x11mm/105°C/5000h PANASONIC	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2000	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 EEUEB1J470 EB/63V/47uF/8x15mm/105°C/10000h PANASONIC	询价	:47µF	:63V	:-40°C to +105°C	:3.5mm	:-	THT	-	±20%	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	200	18000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:PANASONIC - EB Series	:± 20%	:8mm	:15mm	:Radial Leaded	:10000 hours @ 105°C	:-40°C	:105°C	:-	:80mA	0.01	85322200	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Ø8 x 15mm	electrolytic	1.37 g	-40...105°C	63V	1	3.5mm	200	200
EEUEB1J470B EB/63V/47uF/8x15mm/105°C/10000h PANASONIC	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1000	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EEUEB1J470SB EB/63V/47uF/8x11,5mm/105°C/5000h PANASONIC	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1000	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 EEUEB1J471 EB/63V/470uF/12,5x25mm/105°C/10000h PANASONIC	询价	:470µF	:63V	:-40°C to +105°C	:5mm	:-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	200	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:PANASONIC - EB Series	:± 20%	:12.5mm	:25mm	:Radial Leaded	:10000 hours @ 105°C	:-40°C	:105°C	:-	:454mA	0.01	85322200	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EEUEB1J471B EB/63V/470uF/12,5x25mm/105°C/10000h PANASONIC	询价	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	500	20000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

共 26 个型号
