EEF-HD0 系列
高性能贴片式铝聚合物电容器
EEF-HD0系列 是一款高性能铝电解电容器产品线，专为满足现代电子应用的严苛要求而设计。该系列电容器以卓越的耐久性、高容量和坚固结构著称，能在各种工作条件下提供稳定可靠的性能，尤其适用于需要长使用寿命及高温高电压环境下稳定运行的应用场景。
本系列的核心优势在于采用先进电解液配方和高纯度铝材，确保实现低等效串联电阻（ESR）与高纹波电流承载能力，使其成为电源电路设计的理想选择——这类应用对能效和热管理有着极高要求。其工作温度范围宽广（通常为-40°C至+105°C），可保证在工业及消费类环境中均保持稳定性能。
EEF-HD0系列采用紧凑坚固的圆柱形铝壳径向引线结构，便于印刷电路板（PCB）安装。提供多种容量值与额定电压选项，可灵活适用于电力电子领域的能量存储、滤波和去耦等多样化需求。电容器还配备防爆阀设计，能在过压情况下避免灾难性故障，显著提升关键系统应用的可靠性与安全性。
典型应用场景包括：
- 开关电源（SMPS）
- 逆变器
- 电机驱动
- 太阳能逆变器/风力发电机等可再生能源系统 在汽车电子、工业自动化和通信设备等高可靠性要求的领域亦有广泛应用。其卓越的高纹波电流耐受能力和超长使用寿命，使其成为工程师优化电子系统能效与耐久性的首选方案。
综上所述，EEF-HD0系列通过先进材料、创新设计和严格测试，为工业、汽车及消费电子领域的高性能储能与电源管理需求，提供了值得信赖的解决方案。

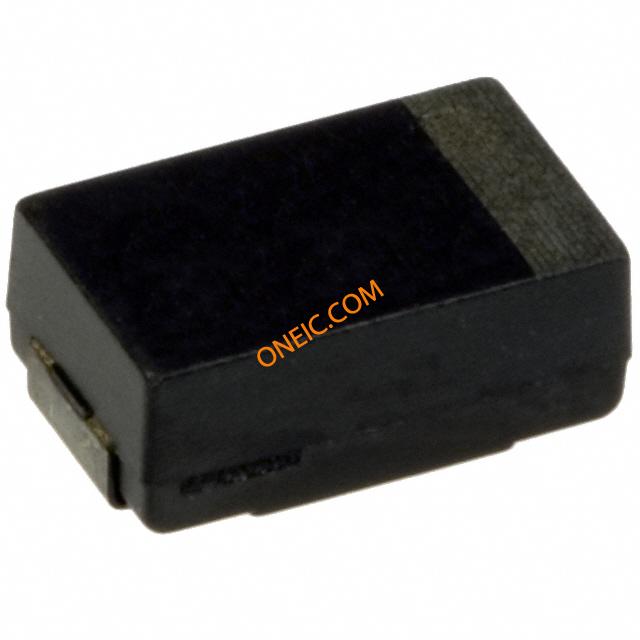

系列图片（5 张）
常见问答
EEF-HD0 - 型号列表共 7 个型号
| 制造商零件编号 | 价格/库存 | Mounting | Capacitance Value | Voltage | Tolerance | Equivalent Series Resistance | Ripple Current | Lifetime | Product Length | Product Height | Product Depth | Operating Temperature | Standard Package | rohs | Packaging | Construction | Factory Pack Quantity | Product | ESR | Product Type | Voltage Rating | Series | Operating Temperature Range | Termination Style | Height | Capacitance | Tradename | Case Code - in | Case Height | Package / Case | Case Width | Dissipation Factor DF | RoHS | Type | Product Length | EU RoHS | Maximum Operating Temperature | Leakage Current | Equivalent Series Resistance Type | Product Depth | Equivalent Series Resistance | Lifetime | Product Height | Ripple Current | メーカ | 静電容量 | 公差 | 定格電圧 | 動作温度範囲 | 末端様式 | ケースの幅 | ケースの高さ | パッケージ化 | ケースコード（インチ） | ケースコード（mm） | 寸法 | 散逸係数 DF | 高さ | パッケージ/ケース | 製品 | リップル電流 | シリーズ | 工場パックの数量 | Life |
|---|
 EEF-HD0K680R Cap Aluminum 68uF 8V 20% (7.3 X 4.3 X 2.8mm) SMD 0.015 Ohm 2500mA 1000 hr 125°C Embossed T/R panasonic | 询价 | Surface Mount | 68 uF | 8 Vdc | 20 % | 0.015 Ohm | 2500 mA | 1000 h | 7.3 mm | 2.8 mm | 4.3 mm | -40 to 125 °C | Tape & Reel | Lead free / RoHS Compliant | Embossed Tape and Reel | Flat | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Polymer | 7.3 | Compliant | 125 | 54.4@2Min | Low | 4.3 | 0.015 | 1000 | 2.8 | 2500 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
EEF-HD0E181R Cap Aluminum 180uF 2.5V 20% (7.3 X 4.3 X 2.8mm) SMD 0.015 Ohm 2500mA 1000 hr 125°C Embossed T/R panasonic | 询价 | Surface Mount | 180 uF | 2.5 Vdc | 20 % | 0.015 Ohm | 2500 mA | 1000 h | 7.3 mm | 2.8 mm | 4.3 mm | -40 to 125 °C | Tape & Reel | Lead free / RoHS Compliant | Reel | Flat | 2000 | Organic Polymer Aluminum - SMD Capacitors | 15 mOhms | Molded | 2.5 V | HD | - 40 C to + 125 C | SMD/SMT | 3.1 mm | 180 uF | SP-Cap | 2917 | 3.1 mm | 2917 (7343 metric) | 4.3 mm | 0.1 | RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
EEF-HD0J101R Cap Aluminum 100uF 6.3V 20% (7.3 X 4.3 X 2.8mm) SMD 0.015 Ohm 2500mA 1000 hr 125°C Embossed T/R panasonic | 询价 | Surface Mount | 100 uF | 6.3 Vdc | 20 % | 0.015 Ohm | 2500 mA | 1000 h | 7.3 mm | 2.8 mm | 4.3 mm | -40 to 125 °C | Tape & Reel | Lead free / RoHS Compliant | - | Flat | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
EEF-HD0G121R Cap Aluminum 120uF 4V 20% (7.3 X 4.3 X 2.8mm) SMD 0.015 Ohm 2500mA 1000 hr 125°C Embossed T/R panasonic | 询价 | Surface Mount | 120 uF | 4 Vdc | 20 % | 0.015 Ohm | 2500 mA | 1000 h | 7.3 mm | 2.8 mm | 4.3 mm | -40 to 125 °C | Tape & Reel | Lead free / RoHS Compliant | Reel | - | 2000 | Organic Polymer Aluminum - SMD Capacitors | 15 mOhms | Molded | 4 V | HD | - 40 C to + 125 C | SMD/SMT | 3.1 mm | 120 uF | SP-Cap | 2917 | 3.1 mm | 2917 (7343 metric) | 4.3 mm | 0.1 | RoHS Compliant | Flat | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
EEF-HD0E151R Cap Aluminum 150uF 2.5V 20% (7.3 X 4.3 X 2.8mm) SMD 0.015 Ohm 2500mA 1000 hr 125°C Embossed T/R panasonic | 询价 | Surface Mount | 150 uF | 2.5 Vdc | 20 % | 0.015 Ohm | 2500 mA | 1000 hr | 7.3 mm | 2.8 mm | 4.3 mm | -40 to 125 °C | Tape & Reel | Lead free / RoHS Compliant | Reel | - | 2000 | Organic Polymer Aluminum - SMD Capacitors | 15 mOhms | Molded | 2.5 V | HD | - 40 C to + 125 C | SMD/SMT | 3.1 mm | 150 uF | SP-Cap | 2917 | 3.1 mm | 2917 (7343 metric) | 4.3 mm | 0.1 | RoHS Compliant | Flat | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 EEF-HD0D181R Cap Aluminum 180uF 2V 20% (7.3 X 4.3 X 2.8mm) SMD 0.015 Ohm 2500mA 1000 hr 125°C Embossed T/R panasonic | 询价 | Surface Mount | 180 uF | 2 Vdc | 20 % | 0.015 Ohm | 2500 mA | 1000 h | 7.3 mm | 2.8 mm | 4.3 mm | -40 to 125 °C | Tape & Reel | Lead free / RoHS Compliant | Reel | Flat | 2000 | Organic Polymer Aluminum - SMD Capacitors | 15 mOhms | Molded | 2 V | HD | - 40 C to + 125 C | SMD/SMT | 3.1 mm | 180 uF | SP-Cap | 2917 | 3.1 mm | 2917 (7343 metric) | 4.3 mm | 0.1 | RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 EEF-HD0D221R Cap Aluminum 220uF 2V 20% (7.3 X 4.3 X 2.8mm) SMD 0.015 Ohm 2500mA 1000 hr 125°C Embossed T/R panasonic | 询价 | Surface Mount | 220 uF | 2 Vdc | 20 % | 0.015 Ohm | 2500 mA | 1000 h | 7.3 mm | 2.8 mm | 4.3 mm | -40 to 125 °C | Tape & Reel | Lead free / RoHS Compliant | Reel | Flat | 2000 | Organic Polymer Aluminum - SMD Capacitors | 15 mOhms | Molded | 2 V | HD | - 40 C to + 125 C | SMD/SMT | 3.1 mm | 220 uF | SP-Cap | 2917 | 3.1 mm | 2917 (7343 metric) | 4.3 mm | 0.1 | RoHS 認証 | - | - | - | - | - | - | - | - | - | - | - | Panasonic | 220 uF | 20 % | 2 V | - 40 C to + 125 C | SMD/SMT | 4.3 mm | 3.1 mm | Reel | 2917 | 7343 | 4.3 mm W x 3.1 mm H | 0.1 | 3.1 mm | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | 2.5 A | SP-Caps | 2000 | NRND: 新デザインには推奨しません。 |
