CKG45NX7T2 系列
tdk
多种规格多层陶瓷电容器
CKG45NX7T2系列代表了一款高度先进的多层陶瓷电容器(MLCC)产品线，专为满足现代电子应用不断演进的需求而设计。该系列电容器凭借卓越的稳定性和性能表现脱颖而出，采用X7R介电材料，可在-55°C至+125°C宽温范围内保持±15%的可靠电容精度，这使其特别适合需要在变化温度条件下保持稳定性能的应用场景。
该系列的核心优势在于其紧凑型设计，在保持高电容值的同时实现了高效的空间利用率。产品提供多种电容值和额定电压选项，便于工程师根据具体电路需求选择最优元件。标准化封装尺寸确保与自动化组装工艺的兼容性，有效提升电子设备的整体可制造性。
CKG45NX7T2系列特别适用于消费电子、汽车系统和通信设备中的电源管理、去耦、滤波及时序电路等多样化应用场景。其卓越的可靠性和性能表现，使其成为高频应用中信号完整性要求严苛场景的理想选择。此外，该系列电容器还可应用于工业设备、医疗仪器等需要耐受严苛环境的耐用型元件领域。
综上所述，CKG45NX7T2系列以高电容稳定性、紧凑型结构和跨行业适用性的三重优势著称。通过将该电容器集成到电子设计中，工程师能够实现卓越的性能与可靠性，满足当今尖端应用的严苛要求。无论是在移动设备、汽车电子还是工业机械领域，CKG45NX7T2系列都能提供出色的解决方案，成为现代电子系统不可或缺的核心元件。

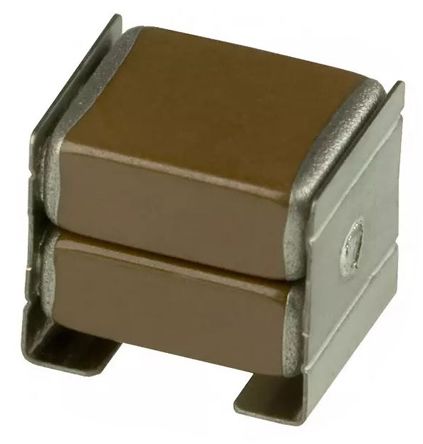

系列图片（5 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
CKG45NX7T2 - 型号列表共 15 个型号
| 制造商零件编号 | 价格/库存 | Capacitance | Tolerance | Packaging | Mounting Type | Voltage - Rated | Temperature Coefficient | Size / Dimension | Applications | Operating Temperature | Standard Package | Thickness (Max) | Features | rohs | Other Names | Package / Case | Lead Style | RoHS | Voltage Rating | Temperature Coefficient / Code | Operating Temperature Range | Product | Termination Style | Part # Aliases | Capacitance - nF | Dimensions | Package/Case | Series | Case Length | Case Height | Case Width | Type | Product Range | Capacitance Tolerance | Dielectric Characteristic | Capacitor Case Style | Operating Temperature Min | Operating Temperature Max | MSL | SVHC | Capacitor Terminals | Weight (kg) | Tariff No. | Unit Pack | MOQ | Capacitance - pF |
|---|
 | 询价 | 2.2 uF | 20 % | Reel | - | - | - | - | - | - | - | - | - | - | - | - | - | RoHS Compliant | 250 V | X7T | - 55 C to + 125 C | Automotive MLCCs | SMD/SMT | CKG45NX7T2E225M500JH | 2200 nF | 3.5 mm W x 5 mm L x 5 mm H | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 0.47 uF | 20 % | Reel | - | - | - | - | - | - | - | - | - | - | - | - | - | RoHS Compliant | 630 V | X7T | - 55 C to + 125 C | Automotive MLCCs | SMD/SMT | CKG45NX7T2J474M500JH | 470 nF | 3.5 mm W x 5 mm L x 5 mm H | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 470000 pF |
| 询价 | 1 uF | 20 % | Reel | - | - | - | - | - | - | - | - | - | - | - | - | - | RoHS Compliant | 450 V | X7T | - 55 C to + 125 C | Automotive MLCCs | SMD/SMT | CKG45NX7T2W105M500JH | 1000 nF | 3.5 mm W x 5 mm L x 5 mm H | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | 2.2µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 250V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-7099-1 | - | - | RoHS Compliant | 250 V | X7T | - 55 C to + 125 C | General Type MLCCs | SMD/SMT | CKG45NX7T2E225M | - | - | Stacked SMD, 2 L-Lead | CKG | 5 mm | 5 mm | 3.5 mm | Mega Cap Multilayer Ceramic Chip Capacitor | :TDK - CKG Series | :± 20% | :X7T | :1812 [4532 Metric] | :-55°C | :125°C | :- | :No SVHC (20-Jun-2013) | :SMD | 0.0001 | 85322400 | 1000 | 1000 | - |
| 询价 | 0.47µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 630V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-7101-1 | - | - | RoHS Compliant | 630 V | X7T | - 55 C to + 125 C | General Type MLCCs | SMD/SMT | CKG45NX7T2J474M | - | - | Stacked SMD, 2 L-Lead | CKG | 5 mm | 5 mm | 3.5 mm | Mega Cap Multilayer Ceramic Chip Capacitor | :TDK - CKG Series | :± 20% | :X7T | :1812 [4532 Metric] | :-55°C | :125°C | :- | :No SVHC (20-Jun-2013) | :SMD | 0.0001 | 85322400 | 1000 | 1000 | - |
| 询价 | 1.0µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 450V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-7100-1 | - | - | RoHS Compliant | 450 V | X7T | - 55 C to + 125 C | General Type MLCCs | SMD/SMT | CKG45NX7T2W105M | - | - | Stacked SMD, 2 L-Lead | CKG | 5 mm | 5 mm | 3.5 mm | Mega Cap Multilayer Ceramic Chip Capacitor | :TDK - CKG Series | :± 20% | :X7T | :1812 [4532 Metric] | :-55°C | :125°C | :- | :No SVHC (20-Jun-2013) | :SMD | 0.0001 | 85322400 | - | - | - |
 | 询价 | 1.5µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 250V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-10422-2 | Stacked SMD, 2 L-Lead | L-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 2.2µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 250V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-10423-2 | Stacked SMD, 2 L-Lead | L-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 0.33µF | ±20% | Cut Tape (CT) | Surface Mount, MLCC | 630V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-10425-1 | Stacked SMD, 2 L-Lead | L-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 0.47µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 630V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-10426-2 | Stacked SMD, 2 L-Lead | L-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 1.0µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 450V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-10427-2 | Stacked SMD, 2 L-Lead | L-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 0.68µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 450V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-10429-2 | Stacked SMD, 2 L-Lead | L-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 1.5µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 250V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-10421-2 | Stacked SMD, 2 L-Lead | L-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 0.33µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 630V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-10424-2 | Stacked SMD, 2 L-Lead | L-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 0.68µF | ±20% | Tape & Reel (TR) | Surface Mount, MLCC | 450V | X7T | 0.197" L x 0.138" W (5.00mm x 3.50mm) | SMPS Filtering, Bypass, Decoupling | -55°C ~ 125°C | 1,000 | 0.217" (5.50mm) | Low ESL (Stacked) | Lead free / RoHS Compliant | 445-10428-2 | Stacked SMD, 2 L-Lead | L-Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
共 15 个型号
