共模扼流圈 - 型号列表

共 256 个型号

电感量

其他名称

初始电阻（最小）

直流电阻（DCR）

最大额定电流

尺寸/外形

电流

高度（最大）

标准包装数量

总体尺寸

直径

工作温度

RoHS

量程（°/s）

测试频率

封装形式

制造商零件编号库存价格RoHS电感量包装方式封装形式尺寸/外形工作温度产品SVHC海关税号量程（°/s）测试频率最大额定电流初始电阻（最小）重量端接样式总体尺寸类型其他名称标准包装数量电流滤波器类型直流电阻（DCR）高度（最大）安装类型线路数量直径宽度
SC-05-30J
3
SC-05-30J

AC FILTER T/H COMMON MODE SC-J Common Mode Filters / Chokes 5amp 3mH INDUCTOR, COMMON MODE, 3000UH, THD

Yageo Corporation

-RoHS Compliant3mHBulkVertical, 4 PC Pin1.339" L x 0.906" W (34.00mm x 23.00mm)-25°C ~ 105°CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SC-J Series100 kHz5 A70 mOhms0.001Radial:34mm x 23mm x 33mmStandard Common Mode Filters399-10652505APower Line70 mOhm1.299" (33.00mm)Through Hole234 mm-
SS11V-08083-CH
2
SS11V-08083-CH

Common Mode Filters / Chokes 0.8amp 8.3mH INDUCTOR, COMMON MODE, 8300UH, THD

Yageo Corporation

-RoHS Compliant8.3 mHBulk22 mm14.5 mm W x 22 mm L x 21.5 mm H- 25 C to + 120 CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SS11V-CH Series1 kHz800 mA740 mOhms0.001Radial:22mm x 14.5mm x 21.5mmStandard Common Mode Filters---------14.5 mm
SC-02-50J
3
SC-02-50J

AC FILTER T/H COMMON MODE SC-J Common Mode Filters / Chokes 2amp 5mH INDUCTOR, COMMON MODE, 5000UH, THD

Yageo Corporation

-RoHS Compliant5mHBulkVertical, 4 PC Pin0.984" L x 0.787" W (25.00mm x 20.00mm)-25°C ~ 105°CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SC-J Series100 kHz2 A120 mOhms0.001Radial:20mm x 20mm x 27mmStandard Common Mode Filters399-10650802APower Line120 mOhm1.063" (27.00mm)Through Hole225 mm-
SC-02-10J
3
SC-02-10J

AC FILTER T/H COMMON MODE SC-J Common Mode Filters / Chokes 2amp 1mH INDUCTOR, COMMON MODE, 1000UH, THD

Yageo Corporation

-RoHS Compliant1mHBulkVertical, 4 PC Pin0.984" L x 0.787" W (25.00mm x 20.00mm)-25°C ~ 105°CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SC-J Series100 kHz2 A100 mOhms0.001Radial:20mm x 20mm x 27mmStandard Common Mode Filters399-10647802APower Line100 mOhm1.063" (27.00mm)Through Hole225 mm-
SS11V-03550-CH
2
SS11V-03550-CH

Common Mode Filters / Chokes 0.3amp 55mH INDUCTOR, COMMON MODE, 55000UH, THD

Yageo Corporation

-RoHS Compliant55 mHBulk22 mm14.5 mm W x 22 mm L x 21.5 mm H- 25 C to + 120 CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SS11V-CH Series1 kHz300 mA4.1 Ohms0.001Radial:22mm x 14.5mm x 21.5mmStandard Common Mode Filters---------14.5 mm
SC-10-30J
3
SC-10-30J

AC FILTER T/H COMMON MODE SC-J Common Mode Filters / Chokes 10amp 3mH INDUCTOR, COMMON MODE, 3000UH, THD KEMET SC 系列 共模滤波器 , 10 A最大电流

Yageo Corporation

-RoHS Compliant3mHBulkVertical, 4 PC Pin1.339" L x 0.945" W (34.00mm x 24.00mm)-25°C ~ 105°CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SC-J Series100 kHz10 A30 mOhms0.001Radial:34mm x 24mm x 33mmStandard Common Mode Filters399-106575010APower Line30 mOhm1.299" (33.00mm)Through Hole234 mm-
SS11V-04350-CH
2
SS11V-04350-CH

Common Mode Filters / Chokes 0.4amp 35mH INDUCTOR, COMMON MODE, 35000UH, THD

Yageo Corporation

-RoHS Compliant35 mHBulk22 mm14.5 mm W x 22 mm L x 21.5 mm H- 25 C to + 120 CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SS11V-CH Series1 kHz400 mA2.6 Ohms0.001Radial:22mm x 14.5mm x 21.5mmStandard Common Mode Filters---------14.5 mm
SC-02-20J
3
SC-02-20J

AC FILTER T/H COMMON MODE SC-J Common Mode Filters / Chokes 2amp 2mH INDUCTOR, COMMON MODE, 2000UH, THD

Yageo Corporation

-RoHS Compliant2mHBulkVertical, 4 PC Pin0.984" L x 0.787" W (25.00mm x 20.00mm)-25°C ~ 105°CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SC-J Series100 kHz2 A110 mOhms0.001Radial:20mm x 20mm x 27mmStandard Common Mode Filters399-10648802APower Line110 mOhm1.063" (27.00mm)Through Hole225 mm-
SC-15-05J
4
SC-15-05J

AC FILTER T/H COMMON MODE SC-J Common Mode Filters / Chokes 15amp 0.5mH INDUCTOR, COMMON MODE, 500UH, THD KEMET SC 系列 共模滤波器 , 15 A最大电流

Yageo Corporation

-RoHS Compliant500µHBulkVertical, 4 PC Pin1.339" L x 0.906" W (34.00mm x 23.00mm)-25°C ~ 105°CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SC-J Series100 kHz15 A8 mOhms0.001Radial:34mm x 23mm x 33mmStandard Common Mode Filters399-106585015APower Line8 mOhm1.299" (33.00mm)Through Hole234 mm-
SS11V-06180-CH
2
SS11V-06180-CH

Common Mode Filters / Chokes 0.6amp 18mH INDUCTOR, COMMON MODE, 18000UH, THD

Yageo Corporation

-RoHS Compliant18 mHBulk22 mm14.5 mm W x 22 mm L x 21.5 mm H- 25 C to + 120 CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SS11V-CH Series1 kHz600 mA1.3 Ohms0.001Radial:22mm x 14.5mm x 21.5mmStandard Common Mode Filters---------14.5 mm
SS11V-07120-CH
2
SS11V-07120-CH

Common Mode Filters / Chokes 0.7amp 12mH INDUCTOR, COMMON MODE, 12000UH, THD

Yageo Corporation

-RoHS Compliant12 mHBulk22 mm14.5 mm W x 22 mm L x 21.5 mm H- 25 C to + 120 CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SS11V-CH Series1 kHz700 mA900 mOhms0.001Radial:22mm x 14.5mm x 21.5mmStandard Common Mode Filters---------14.5 mm
SC-02-30J
3
SC-02-30J

AC FILTER T/H COMMON MODE SC-J Common Mode Filters / Chokes 2amp 3mH INDUCTOR, COMMON MODE, 3000UH, THD

Yageo Corporation

-RoHS Compliant3mHBulkVertical, 4 PC Pin0.984" L x 0.787" W (25.00mm x 20.00mm)-25°C ~ 105°CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SC-J Series100 kHz2 A110 mOhms0.001Radial:20mm x 20mm x 27mmStandard Common Mode Filters399-10649802APower Line110 mOhm1.063" (27.00mm)Through Hole225 mm-
SC-15-10J
4
SC-15-10J

AC FILTER T/H COMMON MODE SC-J Common Mode Filters / Chokes 15amp 1mH INDUCTOR, COMMON MODE, 1000UH, THD KEMET SC 系列 共模滤波器 , 15 A最大电流

Yageo Corporation

101: ¥65.646RoHS Compliant1mHBulkVertical, 4 PC Pin1.732" L x 1.181" W (44.00mm x 30.00mm)-25°C ~ 105°CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SC-J Series100 kHz15 A12 mOhms0.001Radial:44mm x 30mm x 44mmStandard Common Mode Filters399-106594015APower Line12 mOhm1.732" (44.00mm)Through Hole244 mm-
SS11V-10062-CH
2
SS11V-10062-CH

Common Mode Filters / Chokes 1amp 6.2mH INDUCTOR, COMMON MODE, 6200UH, THD

Yageo Corporation

-RoHS Compliant6.2 mHBulk22 mm14.5 mm W x 22 mm L x 21.5 mm H- 25 C to + 120 CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SS11V-CH Series1 kHz1 A440 mOhms0.001Radial:22mm x 14.5mm x 21.5mmStandard Common Mode Filters---------14.5 mm
SC-05-10J
3
SC-05-10J

AC FILTER T/H COMMON MODE SC-J Common Mode Filters / Chokes 5amp 1mH INDUCTOR, COMMON MODE, 1000UH, THD

Yageo Corporation

-RoHS Compliant1mHBulkVertical, 4 PC Pin0.984" L x 0.787" W (25.00mm x 20.00mm)-25°C ~ 105°CAC Line Filters:No SVHC (20-Jun-2013)85045095:KEMET - SC-J Series100 kHz5 A50 mOhms0.001Radial:20mm x 20mm x 27mmStandard Common Mode Filters399-10651805APower Line50 mOhm1.063" (27.00mm)Through Hole225 mm-
SS11VL-11050
SS11VL-11050

LINE FILTER 5MH 1.1 IDC SS COIL

Yageo Corporation

-Lead free / RoHS Compliant5mHBulkVertical, 4 PC Pin0.866" L x 0.571" W (22.00mm x 14.50mm)-25°C ~ 120°C-----------399-105456001.1APower Line400 mOhm0.807" (20.50mm)Through Hole2--
SS21V-110067
SS21V-110067

LINE FILTER 6.7MH 1.1 IDC COIL

Yageo Corporation

-Lead free / RoHS Compliant6.7mHBulkVertical, 4 PC Pin0.807" L x 0.650" W (20.50mm x 16.50mm)-25°C ~ 120°C-----------399-105676001.1APower Line450 mOhm1.004" (25.50mm)Through Hole2--
SS21V-130044
SS21V-130044

LINE FILTER 4.4MH 1.3 IDC COIL

Yageo Corporation

-Lead free / RoHS Compliant4.4mHBulkVertical, 4 PC Pin0.807" L x 0.650" W (20.50mm x 16.50mm)-25°C ~ 120°C-----------399-105686001.3APower Line350 mOhm1.004" (25.50mm)Through Hole2--

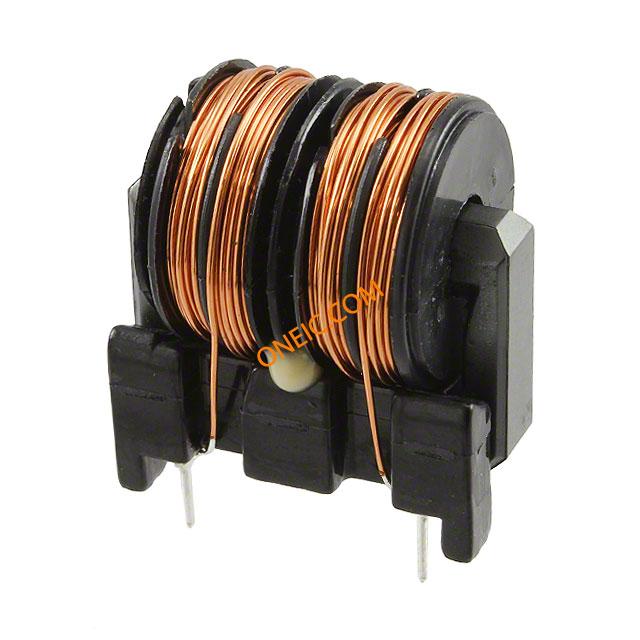

SS30V-R400028
SS30V-R400028

LINE FILTER 2.8MH 4 IDC SS COIL

Yageo Corporation

-Lead free / RoHS Compliant2.8mHBulkVertical, 4 PC Pin1.220" L x 0.886" W (31.00mm x 22.50mm)-25°C ~ 120°C-----------399-105952004APower Line70 mOhm1.339" (34.00mm)Through Hole2--
SS21V-R110100
SS21V-R110100

LINE FILTER 10MH 1.1 IDC SS COIL

Yageo Corporation

-Lead free / RoHS Compliant10mHBulkVertical, 4 PC Pin0.807" L x 0.650" W (20.50mm x 16.50mm)-25°C ~ 120°C-----------399-105766001.1APower Line450 mOhm1.004" (25.50mm)Through Hole2--
