Würth Elektronik GmbH & Co. KG- 高频电感器

伍尔特电子（Würth Elektronik）是全球知名的电子和机电元件制造商，隶属于伍尔特集团，成立于1945年，总部位于德国尼登哈尔。公司专注于EMC和感性元件领域，核心产品包括铁氧体、铁氧体磁珠、电感器、共模扼流圈、变压器和连接器等。通过其MIDCOM部门，伍尔特电子依托遍布全球的ISO认证生产基地和配送中心，服务多元市场。产品线还涵盖PCB装配方案、无线连接模块以及电容、电阻等无源元件。公司秉承“比你更期待”的理念，为客户提供从设计导入到原型开发直至批量生产的强大工程支持。全球120多名技术销售人员确保及时、本地化的服务，同时提供免费设计样品。凭借高质量制造和持续创新，伍尔特电子在EMC元件市场占据重要地位。其元件广泛应用于汽车电子、工业自动化、消费电子和电信基础设施。可靠性的承诺和完善的技术文档，使伍尔特电子成为全球工程师值得信赖的合作伙伴。

MODELS

高频电感器 - 型号列表共 248 个型号

制造商零件编号	价格/库存	Inductance	Tolerance	Packaging	Type	Current Rating	DC Resistance (DCR)	Height - Seated (Max)	Standard Package	Material - Core	Frequency - Self Resonant	Shielding	Supplier Device Package	Size / Dimension	Operating Temperature	Mounting Type	Q @ Freq	Frequency - Test	Other Names	Package/Case	rohs	Product Range	Inductance Tolerance	Inductor Case Style	Self Resonant Frequency Min	DC Resistance Max	DC Current Rating	Inductor Construction	SVHC	Weight (kg)	Tariff No.	RoHS	Maximum DC Current	Maximum DC Resistance	Dimensions	Operating Temperature Range	Self Resonant Frequency	Q Minimum	Termination Style	Package / Case	Case Height	Case Length	Case Width	Product	Series	Test Frequency	Product Category	Factory Pack Quantity	Core Material	Depth	Height	Length	Maximum Operating Temperature	Maximum Self Resonant Frequency	Minimum Operating Temperature	Minimum Quality Factor	メーカ	インダクタンス	公差	最大 DC 電流	最大 DC 抵抗	動作温度範囲	自己共振周波数	Q 最小値	パッケージ/ケース	寸法	末端様式	ケースの高さ	ケースの長さ	ケースの幅	パッケージ化	製品	シリーズ	テスト周波数	タイプ	製品カテゴリ	工場パックの数量	Current - Saturation	遮蔽	External Depth	External Length / Height	External Width	Operating Temperature Max	Operating Temperature Min	Life	Shielded
7 744761051C Fixed Inductors 5.1nH, 700mA DCR MAX=0.15 +/-5% Wurth Electronics	询价	5.1 nH	5 %	Reel	SMD Wirewound Ceramic Inductor	700mA	150 mOhm Max	0.043" (1.10mm)	3,000	Ceramic	5.7GHz	Unshielded	0603 (1608 Metric)	0.065" L x 0.045" W (1.65mm x 1.15mm)	-40°C ~ 125°C	Surface Mount	18 @ 250MHz	250MHz	732-1750-2	0603 (1608 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0603 [1507 Metric]	:5.7GHz	:0.15ohm	:700mA	:Wirewound	:No SVHC (20-Jun-2013)	0.035	85045095	RoHS Compliant	700 mA	0.15 Ohms	1.15 mm W x 1.65 mm L x 0.9 mm H	- 40 C to + 125 C	5700 MHz	18	SMD/SMT	0603 (1608 metric)	0.9 mm	1.65 mm	1.15 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	1.15mm	0.9mm	1.65mm	+125°C	5700MHz	-40°C	18	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6 744761233A Fixed Inductors 330nH 100mA DCR MAX=2.3 +/-5% Wurth Electronics	询价	330 nH	5 %	Reel	SMD Wirewound Ceramic Inductor	150mA	2 Ohm Max	0.043" (1.10mm)	3,000	Ceramic	500MHz	Unshielded	0603 (1608 Metric)	0.065" L x 0.045" W (1.65mm x 1.15mm)	-40°C ~ 125°C	Surface Mount	25 @ 100MHz	100MHz	732-1773-2	0603 (1608 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0603 [1507 Metric]	:500MHz	:2ohm	:150mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0333	85045095	RoHS Compliant	150 mA	2 Ohms	1.15 mm W x 1.65 mm L x 0.9 mm H	- 40 C to + 125 C	500 MHz	25	SMD/SMT	0603 (1608 metric)	0.9 mm	1.65 mm	1.15 mm	Surface Mount Ceramic Inductors	WE-KI	100 MHz	Fixed Inductors	-	Ceramic	1.05mm	1.05mm	1.6mm	+125°C	500MHz	-40°C	25	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 744765147A 固定インダクタ 47nH, 100mA DCR MAX=0.83 +/-5% Wurth Electronics	询价	47nH	±5%	Tape & Reel (TR)	Wirewound	100mA	830 mOhm Max	0.024" (0.60mm)	3,000	Ceramic	2.1GHz	Unshielded	0402 (1005 Metric)	0.040" L x 0.022" W (1.00mm x 0.55mm)	-40°C ~ 125°C	Surface Mount	26 @ 200MHz	200MHz	732-1742-2	0402 (1005 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0402 [1005 Metric]	:2.1GHz	:0.83ohm	:100mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0216	85045095	RoHS 認証	100mA	0.83Ω	1 x 0.55 x 0.5mm	- 40 C to + 125 C	2100 MHz	26	SMD/SMT	0402 (1005 metric)	0.5 mm	1 mm	0.55 mm	Surface Mount Ceramic Inductors	WE-KI	200 MHz	Fixed Inductors	3000	Ceramic	0.55mm	0.5mm	1mm	+125°C	2100MHz	-40°C	26	Wurth Electronics	47 nH	5 %	100 mA	830 mOhms	- 40 C to + 125 C	2100 MHz	26	0402 (1005 metric)	0.55 mm W x 1 mm L x 0.5 mm H	SMD/SMT	0.5 mm	1 mm	0.55 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	200 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	3000	-	-	-	-	-	-	-	-	-
6 744762168A 固定インダクタ 68nH, 1000mA DCR MAX=0.15 +/-5% Wurth Electronics	询价	68nH	±5%	Tape & Reel (TR)	Wirewound	1A	150 mOhm Max	0.075" (1.90mm)	2,000	Ceramic	1.3GHz	Unshielded	1008 (2520 Metric)	0.102" L x 0.083" W (2.60mm x 2.10mm)	-40°C ~ 125°C	Surface Mount	60 @ 350MHz	100MHz	732-1818-2	1008 (2520 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:1008 [2520 Metric]	:1.3GHz	:0.15ohm	:1A	:Wirewound	:No SVHC (20-Jun-2013)	0.0002	85045095	RoHS 認証	1 A	150 mOhms	2 mm W x 2.5 mm L x 1.6 mm H	- 40 C to + 125 C	1300 MHz	60	SMD/SMT	1008 (2520 metric)	1.6 mm	2.5 mm	2 mm	Surface Mount Ceramic Inductors	WE-KI	350 MHz	Fixed Inductors	2000	-	-	-	-	-	-	-	-	Wurth Electronics	68 nH	5 %	1000 mA	150 mOhms	- 40 C to + 125 C	1300 MHz	60	1008 (2520 metric)	2 mm W x 2.5 mm L x 1.6 mm H	SMD/SMT	1.6 mm	2.5 mm	2 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	350 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	2000	-	-	-	-	-	-	-	-	-
7 744765111A 固定インダクタ 11nH, 640mA DCR MAX=0.12 +/-5% Wurth Electronics	询价	11nH	±5%	Tape & Reel (TR)	Wirewound	640mA	120 mOhm Max	0.024" (0.60mm)	3,000	Ceramic	3.68GHz	Unshielded	0402 (1005 Metric)	0.040" L x 0.022" W (1.00mm x 0.55mm)	-40°C ~ 125°C	Surface Mount	26 @ 250MHz	250MHz	732-1724-2	0402 (1005 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0402 [1005 Metric]	:3.68GHz	:0.12ohm	:640mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0216	85045095	RoHS 認証	640mA	0.12Ω	1 x 0.55 x 0.5mm	- 40 C to + 125 C	3680 MHz	26	SMD/SMT	0402 (1005 metric)	0.5 mm	1 mm	0.55 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	0.55mm	0.5mm	1mm	+125°C	3680MHz	-40°C	26	Wurth Electronics	11 nH	5 %	640 mA	120 mOhms	- 40 C to + 125 C	3680 MHz	26	0402 (1005 metric)	0.55 mm W x 1 mm L x 0.5 mm H	SMD/SMT	0.5 mm	1 mm	0.55 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	250 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	3000	-	-	-	-	-	-	-	-	-
5 744762112A 固定インダクタ 12nH, 1000mA DCR MAX=0.08 +/-5% Wurth Electronics	询价	12nH	±5%	Tape & Reel (TR)	Wirewound	1A	80 mOhm Max	0.075" (1.90mm)	2,000	Ceramic	3.6GHz	Unshielded	1008 (2520 Metric)	0.102" L x 0.083" W (2.60mm x 2.10mm)	-40°C ~ 125°C	Surface Mount	60 @ 500MHz	100MHz	732-1809-2	1008 (2520 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:1008 [2520 Metric]	:3.6GHz	:0.08ohm	:1A	:Wirewound	:No SVHC (20-Jun-2013)	0.0002	85045095	RoHS 認証	1 A	80 mOhms	2 mm W x 2.5 mm L x 1.6 mm H	- 40 C to + 125 C	3600 MHz	60	SMD/SMT	1008 (2520 metric)	1.6 mm	2.5 mm	2 mm	Surface Mount Ceramic Inductors	WE-KI	500 MHz	Fixed Inductors	2000	-	-	-	-	-	-	-	-	Wurth Electronics	12 nH	5 %	1000 mA	80 mOhms	- 40 C to + 125 C	3600 MHz	60	1008 (2520 metric)	2 mm W x 2.5 mm L x 1.6 mm H	SMD/SMT	1.6 mm	2.5 mm	2 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	500 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	2000	-	-	-	-	-	-	-	-	-
6 744762282A 固定インダクタ 820nH, 180mA DCR MAX=2.3 +/-5% Wurth Electronics	询价	820nH	±5%	Tape & Reel (TR)	Wirewound	180mA	2.3 Ohm Max	0.075" (1.90mm)	2,000	Ceramic	350MHz	Unshielded	1008 (2520 Metric)	0.102" L x 0.083" W (2.60mm x 2.10mm)	-40°C ~ 125°C	Surface Mount	45 @ 100MHz	25MHz	732-1831-2	1008 (2520 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:1008 [2520 Metric]	:350MHz	:2.3ohm	:180mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0002	85045095	RoHS 認証	180 mA	2.3 Ohms	2 mm W x 2.5 mm L x 1.6 mm H	- 40 C to + 125 C	350 MHz	45	SMD/SMT	1008 (2520 metric)	1.6 mm	2.5 mm	2 mm	Surface Mount Ceramic Inductors	WE-KI	100 MHz	Fixed Inductors	2000	-	-	-	-	-	-	-	-	Wurth Electronics	820 nH	5 %	180 mA	2.3 Ohms	- 40 C to + 125 C	350 MHz	45	1008 (2520 metric)	2 mm W x 2.5 mm L x 1.6 mm H	SMD/SMT	1.6 mm	2.5 mm	2 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	100 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	2000	-	-	-	-	-	-	-	-	-
7 744761133C 固定インダクタ 33nH, 600mA DCR MAX=0.2 +/-5% Wurth Electronics	询价	33nH	±5%	Tape & Reel (TR)	Wirewound	600mA	200 mOhm Max	0.043" (1.10mm)	3,000	Ceramic	2.3GHz	Unshielded	0603 (1608 Metric)	0.065" L x 0.045" W (1.65mm x 1.15mm)	-40°C ~ 125°C	Surface Mount	36 @ 250MHz	250MHz	732-1760-2	0603 (1608 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0603 [1507 Metric]	:2.3GHz	:0.2ohm	:600mA	:Wirewound	:No SVHC (20-Jun-2013)	0.035	85045095	RoHS 認証	600mA	0.2Ω	1.65 x 1.15 x 0.9mm	- 40 C to + 125 C	2300 MHz	36	SMD/SMT	0603 (1608 metric)	0.9 mm	1.65 mm	1.15 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	1.15mm	0.9mm	1.65mm	+125°C	2300MHz	-40°C	36	Wurth Electronics	33 nH	5 %	600 mA	200 mOhms	- 40 C to + 125 C	2300 MHz	36	0603 (1608 metric)	1.15 mm W x 1.65 mm L x 0.9 mm H	SMD/SMT	0.9 mm	1.65 mm	1.15 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	250 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	3000	-	-	-	-	-	-	-	-	-
7 744765051A 固定インダクタ 5.1nH, 800mA DCR MAX=0.083 +/-5% Wurth Electronics	询价	5.1nH	±5%	Tape & Reel (TR)	Wirewound	800mA	83 mOhm Max	0.024" (0.60mm)	3,000	Ceramic	5.8GHz	Unshielded	0402 (1005 Metric)	0.040" L x 0.022" W (1.00mm x 0.55mm)	-40°C ~ 125°C	Surface Mount	23 @ 250MHz	250MHz	732-1714-2	0402 (1005 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0402 [1005 Metric]	:5.8GHz	:0.083ohm	:800mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0216	85045095	RoHS 認証	800mA	0.083Ω	1 x 0.55 x 0.5mm	- 40 C to + 125 C	5800 MHz	23	SMD/SMT	0402 (1005 metric)	0.5 mm	1 mm	0.55 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	0.55mm	0.5mm	1mm	+125°C	5800MHz	-40°C	23	Wurth Electronics	5.1 nH	5 %	800 mA	83 mOhms	- 40 C to + 125 C	5800 MHz	23	0402 (1005 metric)	0.55 mm W x 1 mm L x 0.5 mm H	SMD/SMT	0.5 mm	1 mm	0.55 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	250 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	3000	-	-	-	-	-	-	-	-	-
7 744765020A 固定インダクタ 2nH, 1040mA DCR MAX=0.07+/-0,2nH Wurth Electronics	询价	2nH	±0.2nH	Tape & Reel (TR)	Wirewound	1.04A	70 mOhm Max	0.024" (0.60mm)	3,000	Ceramic	6GHz	Unshielded	0402 (1005 Metric)	0.040" L x 0.022" W (1.00mm x 0.55mm)	-40°C ~ 125°C	Surface Mount	16 @ 250MHz	250MHz	732-1705-2	0402	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 0.2nH	:0402 [1005 Metric]	:6GHz	:0.07ohm	:1.04A	:Wirewound	:No SVHC (20-Jun-2013)	0.0216	85045095	RoHS 認証	1040mA	0.07Ω	1 x 0.55 x 0.5mm	- 40 C to + 125 C	6000 MHz	16	SMD/SMT	0402 (1005 Metric)	0.5 mm	1 mm	0.55 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	0.55mm	0.5mm	1mm	+125°C	6000MHz	-40°C	16	Wurth Electronics	2 nH	0.2 nH	1040 mA	70 mOhms	- 40 C to + 125 C	6000 MHz	16	0402 (1005 metric)	0.55 mm W x 1 mm L x 0.5 mm H	SMD/SMT	0.5 mm	1 mm	0.55 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	250 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	3000	-	-	-	-	-	-	-	-	-
7 744765115A 固定インダクタ 15nH, 560mA DCR MAX=0.172 +/-5% Wurth Electronics	询价	15nH	±5%	Tape & Reel (TR)	Wirewound	560mA	172 mOhm Max	0.024" (0.60mm)	3,000	Ceramic	3.28GHz	Unshielded	0402 (1005 Metric)	0.040" L x 0.022" W (1.00mm x 0.55mm)	-40°C ~ 125°C	Surface Mount	26 @ 250MHz	250MHz	732-1727-2	0402 (1005 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0402 [1005 Metric]	:3.28GHz	:0.172ohm	:560mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0216	85045095	RoHS 認証	560mA	0.172Ω	1 x 0.55 x 0.5mm	- 40 C to + 125 C	3280 MHz	26	SMD/SMT	0402 (1005 metric)	0.5 mm	1 mm	0.55 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	0.55mm	0.5mm	1mm	+125°C	3280MHz	-40°C	26	Wurth Electronics	15 nH	5 %	560 mA	172 mOhms	- 40 C to + 125 C	3280 MHz	26	0402 (1005 metric)	0.55 mm W x 1 mm L x 0.5 mm H	SMD/SMT	0.5 mm	1 mm	0.55 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	250 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	3000	-	-	-	-	-	-	-	-	-
7 74479887247 固定インダクタ 750mA 530mOhms Unshielded 4.7uH Wurth Electronics	询价	4.7µH	±20%	Tape & Reel (TR)	Multilayer	750mA	530 mOhm	0.047" (1.20mm)	3,000	Ferrite	50MHz	Shielded	1008 (2520 Metric)	0.098" L x 0.079" W (2.50mm x 2.00mm)	-40°C ~ 125°C	Surface Mount	26 @ 1MHz	1MHz	732-2508-2	1008 (2520 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-PMI Series	:± 20%	:1008 [2520 Metric]	:50MHz	:0.53ohm	:750mA	:Multilayer	:No SVHC (20-Jun-2013)	0.0001	85045095	RoHS 認証	850mA	530mΩ	2.5 x 2 x 1mm	-	-	-	-	-	-	-	-	-	-	-	-	-	Ferrite	2mm	1mm	2.5mm	+125°C	50MHz	-40°C	26	Wurth Electronics	4.7 uH	20 %	750 mA	530 mOhms	- 40 C to + 125 C	50 MHz	26	2.5 mm x 2.5 mm	2.5 mm W x 2.5 mm L x 1 mm H	SMD/SMT	1 mm	2.5 mm	2.5 mm	Reel	SMD Power Inductors	WE-PMI	1 MHz	Power Multilayer Inductor	-	-	850mA	Unshielded	:2mm	:1mm	:2.5mm	:125°C	:-40°C	製造中止	Yes
8 744765127A 固定インダクタ 27nH, 400mA DCR MAX=0.298 +/-5% Wurth Electronics	询价	27nH	±5%	Tape & Reel (TR)	Wirewound	400mA	298 mOhm Max	0.024" (0.60mm)	3,000	Ceramic	2.48GHz	Unshielded	0402 (1005 Metric)	0.040" L x 0.022" W (1.00mm x 0.55mm)	-40°C ~ 125°C	Surface Mount	26 @ 250MHz	250MHz	732-1735-2	0402 (1005 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0402 [1005 Metric]	:2.48GHz	:0.298ohm	:400mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0216	85045095	RoHS 認証	400mA	0.298Ω	1 x 0.55 x 0.5mm	- 40 C to + 125 C	2480 MHz	26	SMD/SMT	0402 (1005 metric)	0.5 mm	1 mm	0.55 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	0.55mm	0.5mm	1mm	+125°C	2480MHz	-40°C	26	Wurth Electronics	27 nH	5 %	400 mA	298 mOhms	- 40 C to + 125 C	2480 MHz	26	0402 (1005 metric)	0.55 mm W x 1 mm L x 0.5 mm H	SMD/SMT	0.5 mm	1 mm	0.55 mm	Reel	Surface Mount Ceramic Inductors	WE-KI	250 MHz	SMD Wirewound Ceramic Inductor	固定インダクタ	3000	-	-	-	-	-	-	-	-	-

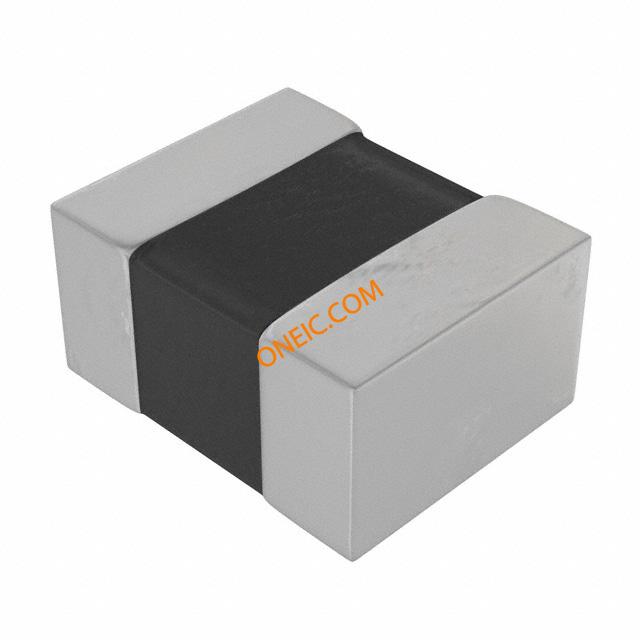

5 74479776247 固定インダクタ Pwr Multlayr Inductr 4.7uH 20% 1000mA Wurth Electronics	询价	4.7µH	±20%	Tape & Reel (TR)	Multilayer	1A	160 mOhm	0.039" (1.00mm)	3,000	Ferrite	45MHz	Shielded	0806 (2016 Metric)	0.079" L x 0.063"W (2.00mm x 1.60mm)	-40°C ~ 125°C	Surface Mount	10 @ 1MHz	1MHz	732-2956-2	0806 (2016 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-PMI Series	:± 20%	:0806 [2016 Metric]	:45MHz	:0.16ohm	:1A	:Multilayer	:No SVHC (20-Jun-2013)	0.0003	85045095	RoHS 認証	140mA	160mΩ	2 x 1.6 x 1mm	- 40 C to + 125 C	45 MHz	15	SMD/SMT	0806 (2016 metric)	1 mm	2 mm	1.6 mm	SMD Power Inductors	WE-PMI	1 MHz	-	-	Ferrite	1.6mm	1mm	2mm	+125°C	45MHz	-40°C	10	Wurth Electronics	4.7 uH	20 %	1000 mA	160 mOhms	- 40 C to + 125 C	45 MHz	15	0806 (2016 metric)	1.6 mm W x 2 mm L x 1 mm H	SMD/SMT	1 mm	2 mm	1.6 mm	Reel	SMD Power Inductors	WE-PMI	1 MHz	Power Multilayer Inductor	-	-	140mA	Shielded	-	-	-	-	-	-	Yes
5 74479887222 固定インダクタ 850mA 400mOhms Unshielded 2.2uH Wurth Electronics	询价	2.2µH	±20%	Tape & Reel (TR)	Multilayer	850mA	400 mOhm	0.047" (1.20mm)	3,000	Ferrite	70MHz	Shielded	1008 (2520 Metric)	0.098" L x 0.079" W (2.50mm x 2.00mm)	-40°C ~ 125°C	Surface Mount	19 @ 1MHz	1MHz	732-2507-2	1008 (2520 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-PMI Series	:± 20%	:1008 [2520 Metric]	:70MHz	:0.4ohm	:850mA	:Multilayer	:No SVHC (20-Jun-2013)	0.0001	85045095	RoHS 認証	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Wurth Electronics	2.2 uH	20 %	850 mA	400 mOhms	- 40 C to + 125 C	70 MHz	19	2.5 mm x 2.5 mm	2.5 mm W x 2.5 mm L x 1 mm H	SMD/SMT	1 mm	2.5 mm	2.5 mm	Reel	SMD Power Inductors	WE-PMI	1 MHz	Power Multilayer Inductor	-	-	1.1A	Unshielded	:2mm	:1mm	:2.5mm	:125°C	:-40°C	製造中止	-
7 744765136A 固定インダクタ 36nH, 320mA DCR MAX=0.403 +/-5% Wurth Electronics	询价	36nH	±5%	Tape & Reel (TR)	Wirewound	320mA	403 mOhm Max	0.024" (0.60mm)	3,000	Ceramic	2.32GHz	Unshielded	0402 (1005 Metric)	0.040" L x 0.022" W (1.00mm x 0.55mm)	-40°C ~ 125°C	Surface Mount	26 @ 250MHz	250MHz	732-1738-2	0402 (1005 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0402 [1005 Metric]	:2.32GHz	:0.403ohm	:320mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0216	85045095	RoHS Compliant	320mA	0.403Ω	1 x 0.55 x 0.5mm	- 40 C to + 125 C	2320 MHz	26	SMD/SMT	0402 (1005 metric)	0.5 mm	1 mm	0.55 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	0.55mm	0.5mm	1mm	+125°C	2320MHz	-40°C	26	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 74479887310 固定インダクタ 500mA 700mOhms Unshielded 10uH Wurth Electronics	询价	10µH	±20%	Tape & Reel (TR)	Multilayer	500mA	700 mOhm	0.047" (1.20mm)	3,000	Ferrite	30MHz	Shielded	1008 (2520 Metric)	0.098" L x 0.079" W (2.50mm x 2.00mm)	-40°C ~ 125°C	Surface Mount	35 @ 1MHz	1MHz	732-2510-2	1008 (2520 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-PMI Series	:± 20%	:1008 [2520 Metric]	:30MHz	:0.7ohm	:500mA	:Multilayer	:No SVHC (20-Jun-2013)	0.0001	85045095	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	350mA	-	:2mm	:1mm	:2.5mm	:125°C	:-40°C	-	-
6 744761120C 固定インダクタ 20nH, 700mA DCR MAX=0.12 +/-5% Wurth Electronics	询价	20nH	±5%	Tape & Reel (TR)	Wirewound	700mA	120 mOhm Max	0.043" (1.10mm)	3,000	Ceramic	3.1GHz	Unshielded	0603 (1608 Metric)	0.065" L x 0.045" W (1.65mm x 1.15mm)	-40°C ~ 125°C	Surface Mount	35 @ 250MHz	250MHz	732-1758-2	0603 (1608 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0603 [1507 Metric]	:3.1GHz	:0.12ohm	:700mA	:Wirewound	:No SVHC (20-Jun-2013)	0.035	85045095	RoHS Compliant	700mA	0.12Ω	1.65 x 1.15 x 0.9mm	- 40 C to + 125 C	3100 MHz	35	SMD/SMT	0603 (1608 metric)	0.9 mm	1.65 mm	1.15 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	1.15mm	0.9mm	1.65mm	+125°C	3100MHz	-40°C	35	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 744765024A 固定インダクタ 2.4nH, 790mA DCRMAX=0.068+/-0,2nH Wurth Electronics	询价	2.4nH	±0.2nH	Tape & Reel (TR)	Wirewound	790mA	68 mOhm Max	0.024" (0.60mm)	3,000	Ceramic	6GHz	Unshielded	0402 (1005 Metric)	0.040" L x 0.022" W (1.00mm x 0.55mm)	-40°C ~ 125°C	Surface Mount	16 @ 250MHz	250MHz	732-1707-2	0402 (1005 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 0.2nH	:0402 [1005 Metric]	:6GHz	:0.068ohm	:790mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0216	85045095	RoHS Compliant	790mA	0.068Ω	1 x 0.55 x 0.5mm	- 40 C to + 125 C	6000 MHz	16	SMD/SMT	0402 (1005 metric)	0.5 mm	1 mm	0.55 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	0.55mm	0.5mm	1mm	+125°C	6000MHz	-40°C	16	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
7 744765056A 固定インダクタ 5.6nH, 760mA DCR MAX=0.083 +/-5% Wurth Electronics	询价	5.6nH	±5%	Tape & Reel (TR)	Wirewound	760mA	83 mOhm Max	0.024" (0.60mm)	3,000	Ceramic	5.8GHz	Unshielded	0402 (1005 Metric)	0.040" L x 0.022" W (1.00mm x 0.55mm)	-40°C ~ 125°C	Surface Mount	23 @ 250MHz	250MHz	732-1715-2	0402 (1005 Metric)	Lead free / RoHS Compliant	:WURTH ELEKTRONIK - WE-KI Series	:± 5%	:0402 [1005 Metric]	:5.8GHz	:0.083ohm	:760mA	:Wirewound	:No SVHC (20-Jun-2013)	0.0216	85045095	RoHS Compliant	760mA	0.083Ω	1 x 0.55 x 0.5mm	- 40 C to + 125 C	5800 MHz	23	SMD/SMT	0402 (1005 metric)	0.5 mm	1 mm	0.55 mm	Surface Mount Ceramic Inductors	WE-KI	250 MHz	Fixed Inductors	3000	Ceramic	0.55mm	0.5mm	1mm	+125°C	5800MHz	-40°C	23	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

第 1 / 13 页
