滑动式DIP开关 - 型号列表
共 20 个型号| 制造商零件编号 | 库存 | 价格 | 位数 | 其他名称 | 标准包装数量 | 电路 | 触点额定值 @ 电压 | 方向 | 致动器类型 | 安装类型 | 执行器水平位置 | 可清洗 | RoHS | SVHC | 海关税号 | 接触电阻 | 最大触点电流 | 绝缘电阻 | 深度 | 间距 | 宽度 | 长度 | 重量 | 材料（通用） | 外壳镀层 | 连接器颜色 | 按钮样式/尺寸 | 开关驱动电平 | 典型触点布局 | 第一连接器安装类型 | 开关类型 | 工作温度 | 触点额定电流 | 封装形式 | 触头材料 | 机械寿命 | 接触镀层 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

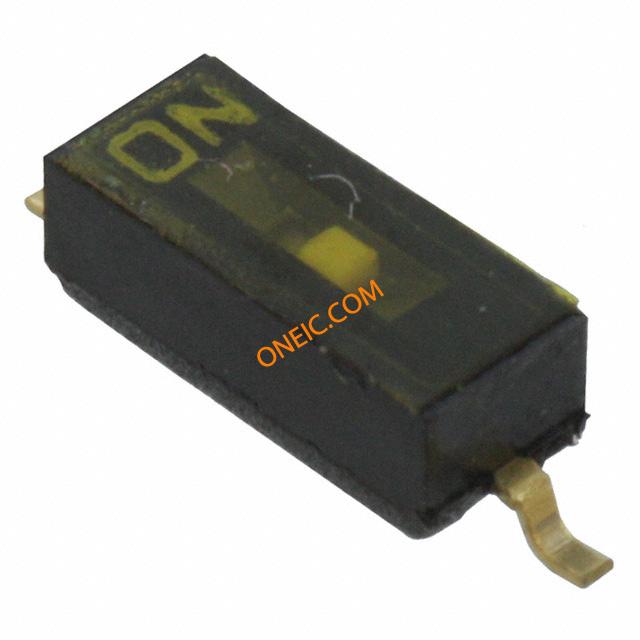

 | 2212 | 1: ¥21.08 | 1 | 732-3851-2 | 3,000 | SPST | 0.025A @ 24VDC | Top Actuated | Standard | Surface Mount | Flush | Yes | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

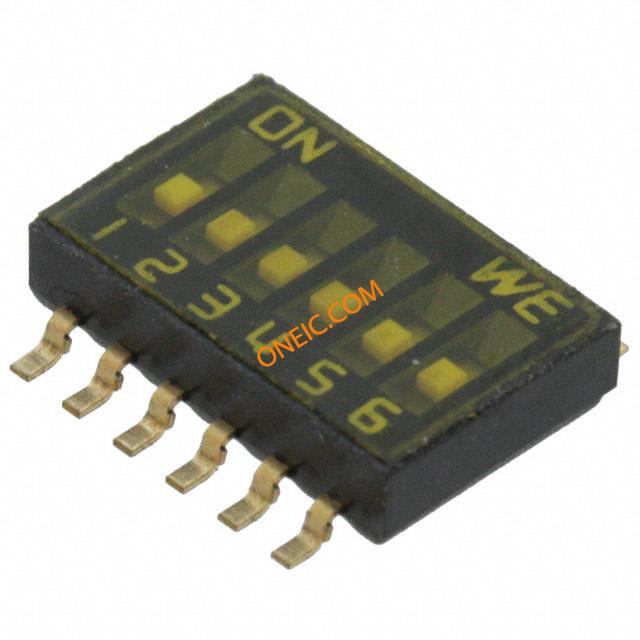

 DIP SWITCH 1.27 MM PITCH 6 POL DIP SWITCH 1.27MM PITCH 6POL 24V SWITCH, DIP, 6 WAY, COMPACT W/TAPE Wurth Electronics Inc | 274 | 1: ¥38.896 | 6 | 732-3856-2 | 2,000 | SPST | 0.025A @ 24VDC | Top Actuated | Standard | Surface Mount | Flush | Yes | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85365011 | :50mohm | :25mA | :100Mohm | :5.6mm | :1.27mm | :8.66mm | :2mm | 0.001 | :PPS / PA46 | :Gold | :Black | :Flat | :Flat | :SPST | :SMD | :DIP | :85°C | - | - | - | - | - |

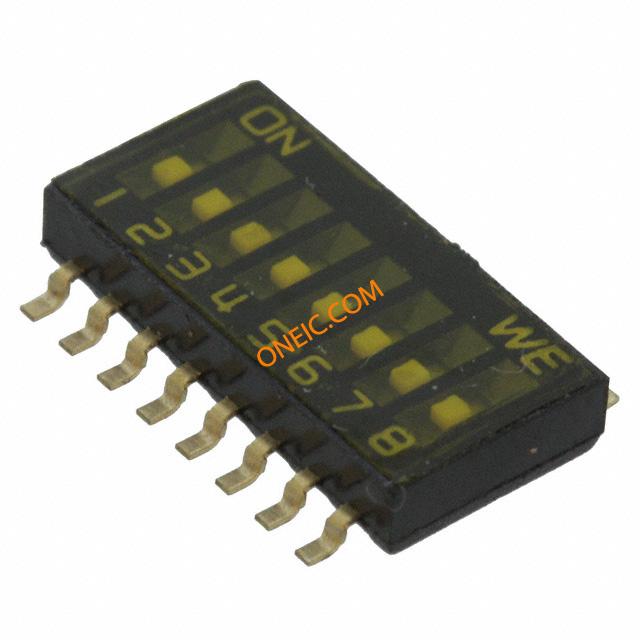

 DIP SWITCH 1.27 MM PITCH 8 POL DIP SWITCH 1.27MM PITCH 8POL 24V DIP Switch 8 pole 1.27mm Flat actuator SWITCH, DIP, 8 WAY, COMPACT W/TAPE Wurth Electronics Inc | 10 | 1: ¥40.1415 | 8 | 732-3857-2 | 2,000 | SPST | 0.025A @ 24VDC | Top Actuated | Standard | Surface Mount | Flush | Yes | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85365011 | :50mohm | :25mA | :100Mohm | :5.6mm | :1.27mm | :11.2mm | :2mm | 0.001 | :PPS / PA46 | :Gold | :Black | :Flat | :Flat | 8P | :SMD | :DIP | +85°C | 25 mA | DIP | Copper Alloy | 2000Cycles | - |
 | 1711 | 1: ¥31.008 | 12 | 732-3859-2 | 2,000 | SPST | 0.025A @ 24VDC | Top Actuated | Standard | Surface Mount | Flush | Yes | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

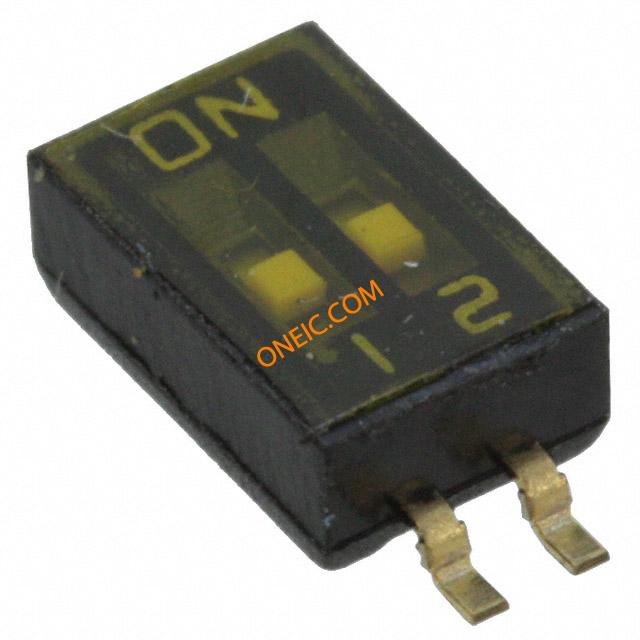

 DIP SWITCH 1.27 MM PITCH 2 POL DIP SWITCH 1.27MM PITCH 2POL 24V DIP Switch 2 pole 1.27mm Flat actuator SWITCH, DIP, 2 WAY, COMPACT W/TAPE Wurth Electronics Inc | 1628 | 1: ¥28.424 | 2 | 732-3852-2 | 3,000 | SPST | 0.025A @ 24VDC | Top Actuated | Standard | Surface Mount | Flush | Yes | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85365011 | :50mohm | :25mA | :100Mohm | :5.6mm | :1.27mm | :3.58mm | :2mm | 0.001 | :PPS / PA46 | :Gold | :Black | :Flat | :Flat | 2P | :SMD | :DIP | +85°C | 25 mA | DIP | Copper Alloy | 2000Cycles | :Gold |
 | 72 | 1: ¥33.873 | 3 | 732-3853-2 | 3,000 | SPST | 0.025A @ 24VDC | Top Actuated | Standard | Surface Mount | Flush | Yes | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 DIP SWITCH 1.27 MM PITCH 4 POL DIP SWITCH 1.27MM PITCH 4POL 24V DIP Switch 4 pole 1.27mm Flat actuator SWITCH, DIP, 4 WAY, COMPACT W/TAPE Wurth Electronics Inc | 128 | 1: ¥37.6215 | 4 | 732-3854-2 | 2,000 | SPST | 0.025A @ 24VDC | Top Actuated | Standard | Surface Mount | Flush | Yes | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85365011 | :50mohm | :25mA | :100Mohm | :5.6mm | :1.27mm | :6.12mm | :2mm | 0.001 | :PPS / PA46 | :Gold | :Black | :Flat | :Flat | 4P | :SMD | :DIP | +85°C | 25 mA | DIP | Copper Alloy | 2000Cycles | - |

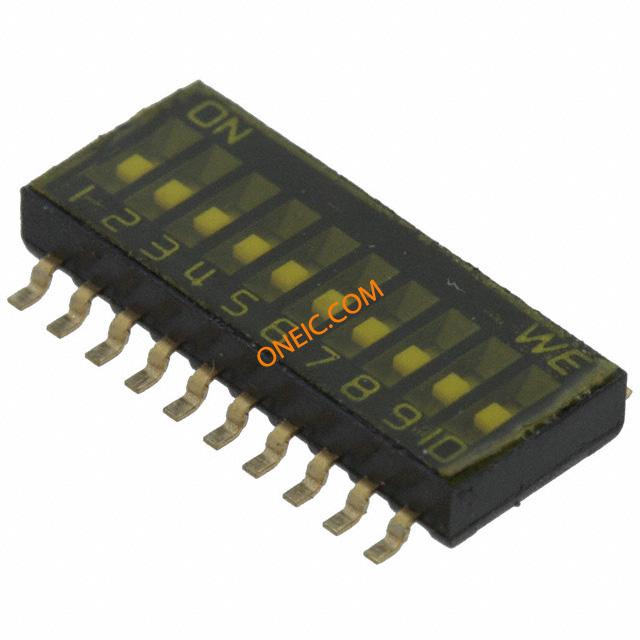

 DIP SWITCH 1.27 MM PITCH 10 POL DIP SWITCH 1.27MM 10 POL 24V DIP Switch 10 pole 1.27mm Flat actuator SWITCH, DIP, 10 WAY, COMPACT W/TAPE Wurth Electronics Inc | 185 | 1: ¥50.864 | 10 | 732-3858-2 | 2,000 | SPST | 0.025A @ 24VDC | Top Actuated | Standard | Surface Mount | Flush | Yes | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85365011 | :50mohm | :25mA | :100Mohm | :5.6mm | :1.27mm | :13.74mm | :2mm | 0.001 | :PPS / PA46 | :Gold | :Black | :Flat | :Flat | 10P | :SMD | :DIP | +85°C | 25 mA | DIP | Copper Alloy | 2000Cycles | - |

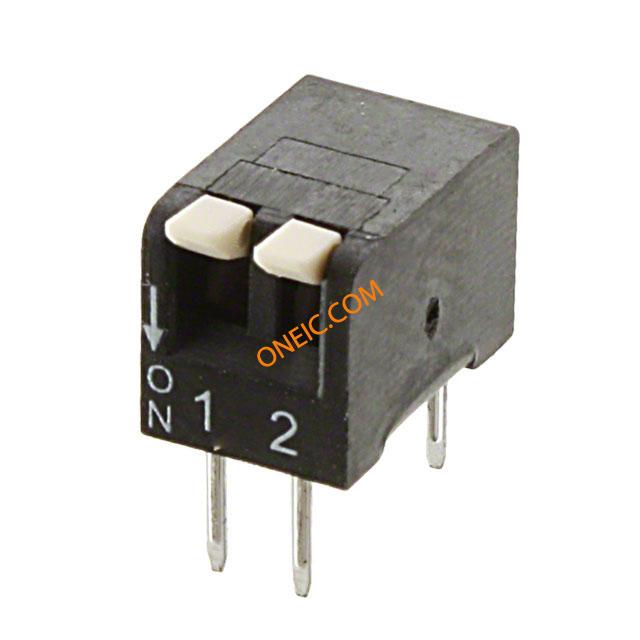

 | 99 | 1: ¥16.864 | 2 | 732-3842-5 | 85 | SPST | 0.025A @ 24VDC | Side Actuated | Piano | Through Hole | Flush | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

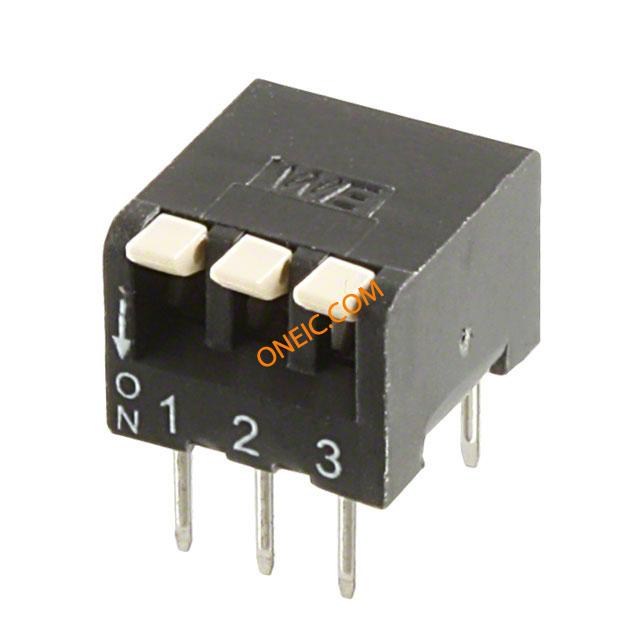

 | 32 | 1: ¥17.68 | 3 | 732-3843-5 | 61 | SPST | 0.025A @ 24VDC | Side Actuated | Piano | Through Hole | Flush | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

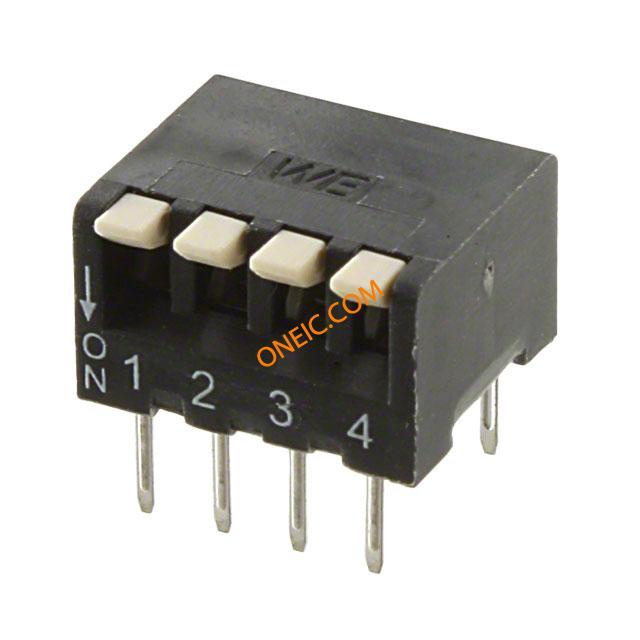

 | 46 | 1: ¥18.156 | 4 | 732-3844-5 | 47 | SPST | 0.025A @ 24VDC | Side Actuated | Piano | Through Hole | Flush | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

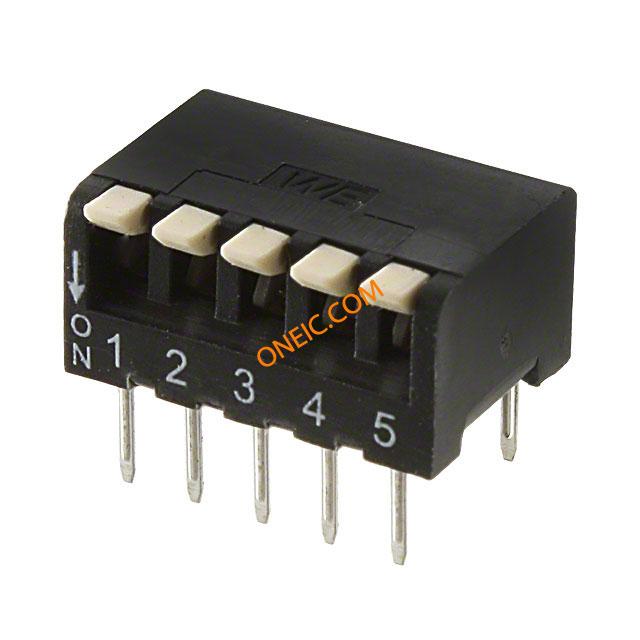

 | 15 | 1: ¥21.692 | 5 | 732-3845-5 | 38 | SPST | 0.025A @ 24VDC | Side Actuated | Piano | Through Hole | Flush | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

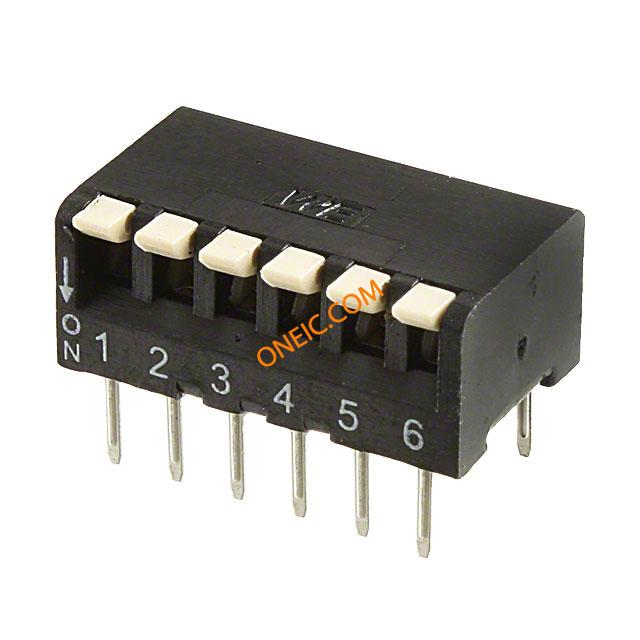

 | 16 | 1: ¥26.384 | 6 | 732-3846-5 | 32 | SPST | 0.025A @ 24VDC | Side Actuated | Piano | Through Hole | Flush | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

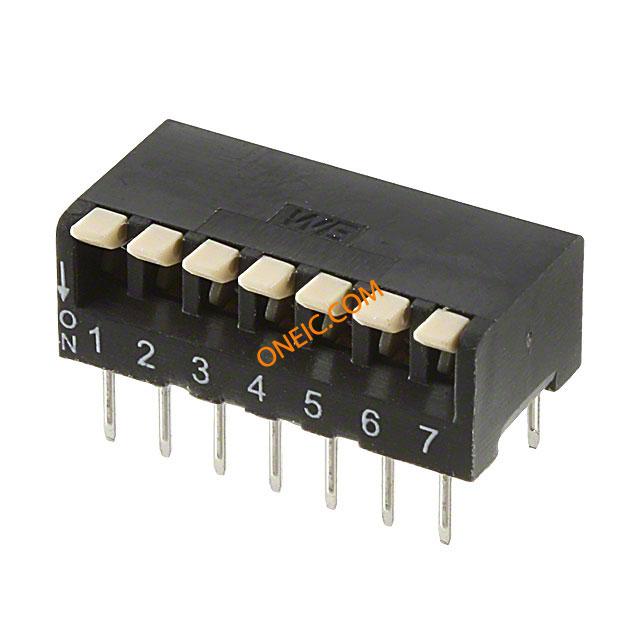

 | 10 | 1: ¥27.812 | 7 | 732-3847-5 | 28 | SPST | 0.025A @ 24VDC | Side Actuated | Piano | Through Hole | Flush | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

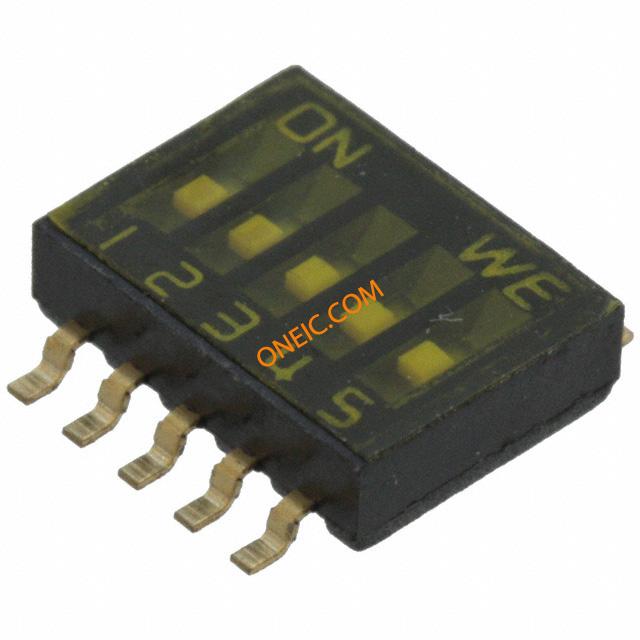

 | 24 | 1: ¥33.9255 | 5 | 732-3855-2 | 2,000 | SPST | 0.025A @ 24VDC | Top Actuated | Standard | Surface Mount | Flush | Yes | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

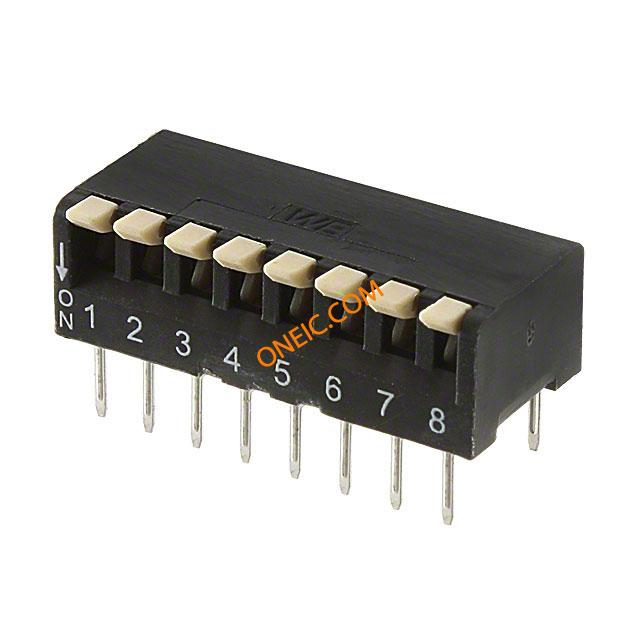

 | 13 | 1: ¥28.492 | 8 | 732-3848-5 | 24 | SPST | 0.025A @ 24VDC | Side Actuated | Piano | Through Hole | Flush | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 30 | 1: ¥29.716 | 10 | 732-3849-5 | 20 | SPST | 0.025A @ 24VDC | Side Actuated | Piano | Through Hole | Flush | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

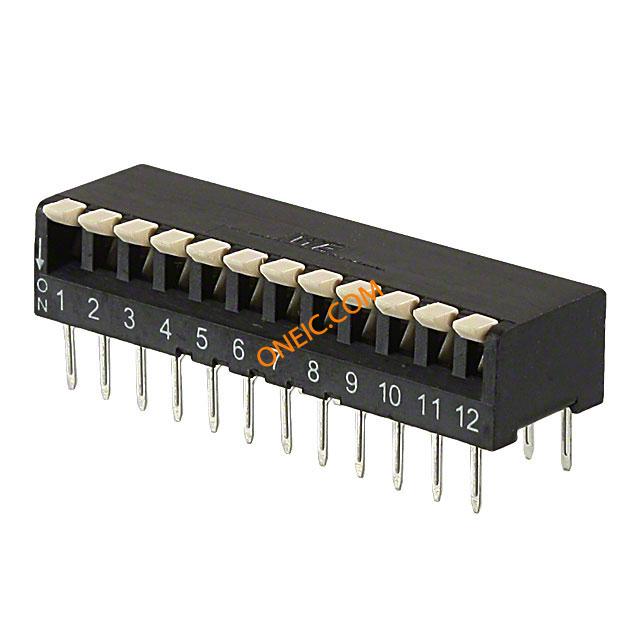

 | 10 | 1: ¥30.804 | 12 | 732-3850-5 | 16 | SPST | 0.025A @ 24VDC | Side Actuated | Piano | Through Hole | Flush | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 333 | 1: ¥18.12 | :4 | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85365011 | :50mohm | :25mA | :100Mohm | :7.99mm | :2.54mm | :11.16mm | :9.6mm | 0.001 | :PPS / HTN / PA46 | :Tin | :Red | :Flat | :Flat | :SPST | :Through Hole | :DIP | :85°C | - | - | - | - | - |
 | 438 | 1: ¥24.684 | :4 | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85365011 | :50mohm | :25mA | :100Mohm | :9.4mm | :2.54mm | :11.16mm | :6.5mm | 0.001 | :PBT / PA66 | :Tin | :Black | :Flat | :Flat | :SPST | :SMD | :DIP | :85°C | - | - | - | - | - |
