Wolfspeed, Inc.- LED照明模块

Wolfspeed, Inc. 是一家领先的美国半导体公司，专注于宽禁带碳化硅（SiC）和氮化镓（GaN）技术。公司前身为成立于1987年的 Cree, Inc.，率先实现了碳化硅材料的商业化应用。总部位于北卡罗来纳州达勒姆，Wolfspeed 于2015年从 Cree 功率与射频业务更名，并在2021年出售LED业务后转型为纯粹的宽禁带半导体企业。其核心业务涵盖碳化硅衬底、外延片、功率器件以及射频 GaN-on-SiC 解决方案。功率产品线包括业界领先的 C3M 系列 SiC MOSFET、肖特基二极管、功率模块和栅极驱动板，广泛应用于电动汽车、快充桩、数据中心和光伏逆变器等领域。射频产品则提供高性能 GaN HEMT 与 MMIC，服务于 5G 基站、国防雷达和卫星通信。Wolfspeed 在纽约州马西运营着全球首座且规模最大的 200mm 碳化硅晶圆厂，彰显其制造领先地位。作为全球最大的碳化硅晶圆衬底供应商，Wolfspeed 在碳化硅功率器件市场占据技术主导。凭借从衬底到器件的垂直整合能力，以及与主要汽车 OEM 和一级供应商的长期战略合作，Wolfspeed 成为推动电动汽车变革和高效电源系统发展的关键核心力量。

LED照明模块 - 型号列表

共 3,422 个型号

制造商零件编号	库存	标准包装数量	系列	RoHS	光通量	视角	宽度	高度	长度	包装方式	灯颜色	安装样式	照明颜色	显色指数（CRI）	输出电流	供电电压	最大额定电流	光效 @ 测试电流	光通量 @ 85°C, 测试电流	色温 (K)	工作温度	发光面（LES）	颜色	尺寸/外形	类型	配置	LED正向电流	LED正向电压	25°C时测试电流下的光通量	安装类型	封装形式	封装热阻	光通量 @ 电流/温度
CXA2590-0000-000R0YX427H LED XLAMP CXA WHITE Wolfspeed, Inc.	-	100	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CXA2590-0000-000R0YX430F LED XLAMP CXA WHITE Wolfspeed, Inc.	-	100	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XQDAWT-02-0000-00000PBE7 LED HB XLAMP XQD SERIES High Power LEDs - White White, 93.9lm Wolfspeed, Inc.	-	250	XQ-D	RoHS Compliant	93.9 lm	145°	1.6 mm	1.6 mm	1.6 mm	Tape & Reel (TR)	3000 K	SMD/SMT	Warm White	85	350mA	3.1V	700mA	89 lm/W	82 lm	3000K (2850K ~ 3250K)	-	-	-	-	-	-	350 mA	3.1 V	97 lm (94 lm ~ 100 lm)	Surface Mount	2-SMD, No Lead	7.5°C/W	165 lm
CXA1304-0000-000C0HB40E2 LED ARRAY XLAMP CXA1304 WHITE High Power LEDs - White WHITE, 410lm Wolfspeed, Inc.	-	20	*	RoHS Compliant	410 lm	115 deg	13.35 mm	1.15 mm	13.35 mm	Tube	5700 K	SMD/SMT	Cool White	80	400mA	9V	1A	118 lm/W	425 lm (410 lm ~ 440 lm)	5700K	- 40 C	6.00mm Diameter	White, Cool	13.35mm L x 13.35mm W	Chip On Board (COB)	Square	400 mA	9 V	-	-	-	-	-
CXA1304-0000-000F00C20E1 LED XLAMP CXA WHITE High Power LEDs - White WHITE, 440lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	440 lm	115 deg	13.35 mm	1.15 mm	13.35 mm	Tray	6500 K	SMD/SMT	Cool White	70	200mA	18V	500mA	127 lm/W	458 lm (440 lm ~ 475 lm)	6500K	- 40 C	6.00mm Diameter	White, Cool	13.35mm L x 13.35mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
CXA1304-0000-000F0HC20E3 LED XLAMP CXA WHITE High Power LEDs - White WHITE, 440lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	440 lm	115 deg	13.35 mm	1.15 mm	13.35 mm	Tray	5000 K	SMD/SMT	Cool White	80	200mA	18V	500mA	127 lm/W	458 lm (440 lm ~ 475 lm)	5000K	- 40 C	6.00mm Diameter	White, Cool	13.35mm L x 13.35mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
CXA1304-0000-000F0Y9435F LED XLAMP CXA WHITE High Power LEDs - White WHITE, 290lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	308 lm	115 deg	13.35 mm	1.15 mm	13.35 mm	Tray	3500 K	SMD/SMT	Warm White	93	200mA	18V	500mA	89 lm/W	319 lm (308 lm ~ 330 lm)	3500K 4-Step MacAdam Ellipse	- 40 C	6.00mm Diameter	White, Warm	13.35mm L x 13.35mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
CXA1304-0000-000N00A227H XLAMP CXA 1304 LED High Power LEDs - White Warm White, 2700K 368lm, 100mA, 80CRI Wolfspeed, Inc.	-	100	*	RoHS Compliant	330 lm	115 deg	13.35 mm	1.15 mm	13.35 mm	Tray	2700 K	SMD/SMT	Warm White	80	100mA	37V	250mA	93 lm/W	343 lm (330 lm ~ 355 lm)	2700K 2-Step MacAdam Ellipse	- 40 C	6.00mm Diameter	White, Warm	13.35mm L x 13.35mm W	Chip On Board (COB)	Square	100 mA	37 V	-	-	-	-	-
CXA1304-0000-000N00B450H XLAMP CXA 1304 LED High Power LEDs - White Cool White, 5000K 457lm, 100mA, 75CRI Wolfspeed, Inc.	-	100	*	RoHS Compliant	410 lm	115 deg	13.35 mm	1.15 mm	13.35 mm	Tray	5000 K	SMD/SMT	Cool White	70	100mA	37V	250mA	115 lm/W	425 lm (410 lm ~ 440 lm)	5000K 2-Step MacAdam Ellipse	- 40 C	6.00mm Diameter	White, Cool	13.35mm L x 13.35mm W	Chip On Board (COB)	Square	100 mA	37 V	-	-	-	-	-

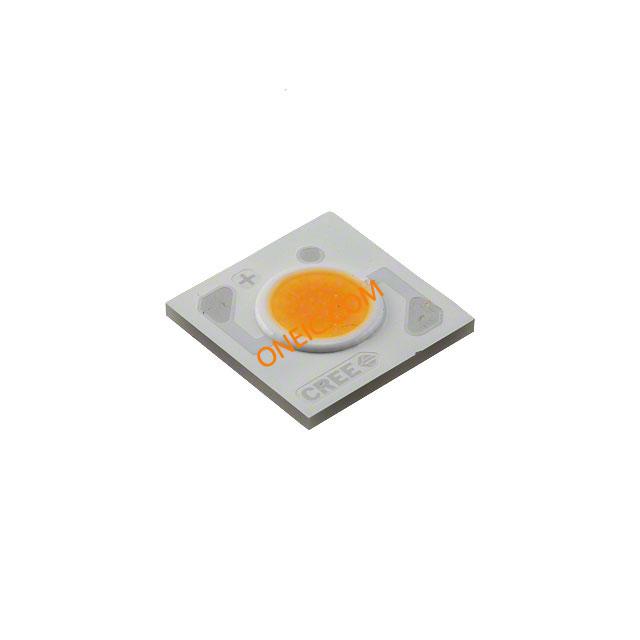

CXA1310-0000-000N0HJ450H LED XLAMP CXA WHITE Wolfspeed, Inc.	-	100	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CXA1310-0000-000N0HJ457F LED XLAMP CXA WHITE Wolfspeed, Inc.	-	100	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CXA1310-0000-000N0HJ465F LED XLAMP CXA WHITE Wolfspeed, Inc.	-	100	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CXA1507-0000-000F00G40E5 LED XLAMP CXA WHITE High Power LEDs - White WHITE, 840lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	840 lm	115 deg	15.85 mm	1.7 mm	15.85 mm	Tray	4000 K	SMD/SMT	Neutral White	70	400mA	18V	750mA	121 lm/W	870 lm (840 lm ~ 900 lm)	4000K	- 40 C	8.90mm Diameter	White, Neutral	15.85mm L x 15.85mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
CXA1507-0000-000F0HG20E3 LED XLAMP CXA WHITE High Power LEDs - White WHITE, 780lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	780 lm	115 deg	15.85 mm	1.7 mm	15.85 mm	Tray	5000 K	SMD/SMT	Cool White	80	400mA	18V	750mA	113 lm/W	810 lm (780 lm ~ 840 lm)	5000K	- 40 C	8.90mm Diameter	White, Cool	15.85mm L x 15.85mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
CXA1507-0000-000F0HG265F LED XLAMP CXA WHITE High Power LEDs - White WHITE, 780lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	780 lm	115 deg	15.85 mm	1.7 mm	15.85 mm	Tray	6500 K	SMD/SMT	Cool White	80	400mA	18V	750mA	113 lm/W	810 lm (780 lm ~ 840 lm)	6500K 4-Step MacAdam Ellipse	- 40 C	8.90mm Diameter	White, Cool	15.85mm L x 15.85mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
CXA1507-0000-000F0HG40E1 LED XLAMP CXA WHITE High Power LEDs - White WHITE, 840lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	840 lm	115 deg	15.85 mm	1.7 mm	15.85 mm	Tray	6500 K	SMD/SMT	Cool White	80	400mA	18V	750mA	121 lm/W	870 lm (840 lm ~ 900 lm)	6500K	- 40 C	8.90mm Diameter	White, Cool	15.85mm L x 15.85mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
CXA1507-0000-000F0HG450H LED XLAMP CXA WHITE High Power LEDs - White WHITE, 840lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	840 lm	115 deg	15.85 mm	1.7 mm	15.85 mm	Tray	5000 K	SMD/SMT	Cool White	80	400mA	18V	750mA	121 lm/W	870 lm (840 lm ~ 900 lm)	5000K 2-Step MacAdam Ellipse	- 40 C	8.90mm Diameter	White, Cool	15.85mm L x 15.85mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
CXA1507-0000-000F0UD440F LED XLAMP CXA WHITE High Power LEDs - White WHITE, 550lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	550 lm	115 deg	15.85 mm	1.7 mm	15.85 mm	Tray	4000 K	SMD/SMT	Neutral White	90	-	-	-	-	-	-	- 40 C	-	-	-	-	-	-	-	-	-	-	-	-
CXA1507-0000-000F0UE240H LED XLAMP CXA WHITE High Power LEDs - White WHITE, 590lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	590 lm	115 deg	15.85 mm	1.7 mm	15.85 mm	Tray	4000 K	SMD/SMT	Neutral White	90	400mA	18V	750mA	85 lm/W	613 lm (590 lm ~ 635 lm)	4000K 2-Step MacAdam Ellipse	- 40 C	8.90mm Diameter	White, Neutral	15.85mm L x 15.85mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
CXA1507-0000-000F0UE40E3 LED XLAMP CXA WHITE High Power LEDs - White WHITE, 635lm Wolfspeed, Inc.	-	100	*	RoHS Compliant	635 lm	115 deg	15.85 mm	1.7 mm	15.85 mm	Tray	5000 K	SMD/SMT	Cool White	90	400mA	18V	750mA	91 lm/W	658 lm (635 lm ~ 680 lm)	5000K	- 40 C	8.90mm Diameter	White, Cool	15.85mm L x 15.85mm W	Chip On Board (COB)	Square	-	-	-	-	-	-	-
