Weidmüller Holding AG & Co. KG- 模数转换器

魏德米勒是全球工业联接领域的德国先行者，1948年创立，总部位于德国代特莫尔德。公司专注于在自动化与工业环境中实现电源、信号和数据的可靠传输。其核心产品组合包括全面的接线端子、印刷电路板连接器和重载连接器。魏德米勒还提供电子接口模块、继电器模块和浪涌保护设备，构建完整的联接链条。先进的传感器-执行器布线与工业以太网解决方案彰显其迈向智能制造的步伐。集团供应高品质的手动与电动工具，以及定制化机柜和标识系统，支持安装与维护。魏德米勒在全球80多个国家设有生产制造基地和销售办事处，服务于机械、流程和楼宇自动化客户。公司在接线端子技术领域占据全球市场领先份额，以设立安全高效电气连接的标准而闻名。对可持续创新的持续关注推动其开发应对未来工业挑战的解决方案。2013年，集团员工达4600人，这一数字已随全球业务拓展而增长。

模数转换器 - 型号列表

共 8 个型号

制造商零件编号	库存	价格	标准包装数量	系列	RoHS	标准	IEC标准	IEC 61000-4-2	标准编号	符合性声明	精度	频率	隔离	量程（°/s）	输出电流	输入数量	供电电压	输出数量	输入电阻	输入输出比	上升/下降时间（典型）	平均整流电流 Io	宽度	高度	长度	重量	连接器类型	安装导轨	宽度（英寸）	高度（英寸）	长度（英寸）	包装数量	类型	ETIM 6*0	GTIN（EAN）	工程数据	固件版本	防护等级	工作温度	负载电压	输出端	频率 - 输出3	ET（伏秒积）	电流	输入偏置电流	最小输入电压	输入失调电压（最大）	信号类型	额定电压
1165861001 RS/D 8-I -EA CONVERTER DA weidmuller	10	1: ¥1,286.968	1	*	Conform	DIN EN 50178	27-21-01-90	EN 61000-6	30-21-18-01	Declaration of Conformity	± 1 LSB	27-23-02-08	Without isolation	0.5 mm²	0...20 mA (as source)	8-bit (1-bit signed)	24 V DC	1	50 kΩ per input	8 bit / analogue	≤ 30 µs	25 mA (plus output current)	35 mm	72 mm	70 mm	57.4 g	Screw connection	TS 35, TS 32	1.378 inch	2.835 inch	2.756 inch	instruction sheet.pdf	RS D8-I 0...20MA	EC002653	4032248272372	EPLAN	RS-SERIES, DA converter, Rated control voltage:	27-23-02-08	0 °C...50 °C	≤ 500 Ω	-	-	-	max. 0.08 mA	-	-	-	-	-
1168561001 RS I-D8 4..20 MA -EA CONVERTER AD weidmuller	10	1: ¥1,974.108	1	*	Conform	DIN EN 50178	27-21-01-90	EN 61000-6	30-21-18-01	Declaration of Conformity	± 1 LSB	27-23-02-08	Without isolation	0.5 mm²	≤ 25 mA (as source)	1	24 V DC	8-bit (1-bit signed)	≥ 51 Ω	Analogue / 8 bit	≤ 4 µs	35 mA (plus output current)	35 mm	72 mm	70 mm	75 g	Screw connection	TS 35, TS 32	1.378 inch	2.835 inch	2.756 inch	instruction sheet.pdf	RS I-D8 4...20MA	EC002653	4032248103843	EPLAN	RS-SERIES, AD converter, Rated control voltage:	27-23-02-08	0 °C...50 °C	-	17 V = H, 0 V = L	5 kHz at full scale (sinus)	EC002498	-	4...20 mA	-	-	-	-
1123361001 RS/D 8-U -EA CONVERTER DA weidmuller	10	1: ¥1,083.784	1	*	Conform	DIN EN 50178	27-21-01-90	EN 61000-6	30-21-18-01	Declaration of Conformity	± 1 LSB	27-23-02-08	Without isolation	0.5 mm²	≤ 10 mA max. current	8-bit (1-bit signed)	24 V DC	1	50 kΩ per input	8 bit / analogue	≤ 30 µs	25 mA (plus output current)	35 mm	72 mm	70 mm	74 g	Screw connection	TS 35, TS 32	1.378 inch	2.835 inch	2.756 inch	instruction sheet.pdf	RS D8-U +-10V	EC002653	4032248103911	EPLAN	RS-SERIES, DA converter, Rated control voltage:	27-23-02-08	0 °C...50 °C	≥ 1 kΩ	-	-	-	-	-	-10...+10 V	≤ 20 mV	MSB: H = positive; L = negative	-
1160761001 RS-A D8-U 0 TO +10V -EA Digital To Analog Converter With 8-Bit CONVERTER DA weidmuller	10	1: ¥1,930.996	1	*	Conform	DIN EN 50178	27-21-01-90	EN 61000-6	30-21-18-01	Declaration of Conformity	± 1 LSB	27-23-02-08	Without isolation	0.5 mm²	≤ 10 mA max. current	8-bit (1-bit signed)	24 V DC	1	50 kΩ per input	8 bit / analogue	≤ 30 µs	25 mA (plus output current)	35 mm	72 mm	70 mm	72 g	Screw connection	TS 35, TS 32	1.378 inch	2.835 inch	2.756 inch	instruction sheet.pdf	RS D8-U 0...10V	EC002653	4032248101245	EPLAN	RS-SERIES, DA converter, Rated control voltage:	27-23-02-08	0 °C...50 °C	≥ 1 kΩ	-	-	-	-	-	0...10 V	≤ 20 mV	-	-
1169261001 RS D8-I 4...20MA -EA CONVERTER DA weidmuller	10	1: ¥1,981.86	1	*	Conform	DIN EN 50178	27-21-01-90	EN 61000-6	30-21-18-01	Declaration of Conformity	± 1 LSB	27-23-02-08	Without isolation	0.5 mm²	4...20 mA (as source)	8-bit (1-bit signed)	24 V DC	1	50 kΩ per input	8 bit / analogue	≤ 30 µs	25 mA (plus output current)	35 mm	72 mm	70 mm	72 g	Screw connection	TS 35, TS 32	1.378 inch	2.835 inch	2.756 inch	instruction sheet.pdf	RS D8-I 4...20MA	EC002653	4032248103928	EPLAN	RS-SERIES, DA converter, Rated control voltage:	27-23-02-08	0 °C...50 °C	≤ 500 Ω	-	-	-	4 mA	-	-	-	-	-
1122361001 RS U-D8 + - 10V -EA CONVERTER AD weidmuller	10	1: ¥1,897.812	1	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1160561001 RS/I-D 8 -EA CONVERTER AD weidmuller	10	1: ¥1,296.624	1	*	Conform	DIN EN 50178	27-21-01-90	EN 61000-6	30-21-18-01	Declaration of Conformity	± 1 LSB	27-23-02-08	Without isolation	0.5 mm²	≤ 25mA (as source)	1	24 V DC	8-bit (1-bit signed)	50 kΩ per input	Analogue / 8 bit	≤ 4 µs	35 mA (plus output current)	35 mm	72 mm	70 mm	60.9 g	Screw connection	TS 35, TS 32	1.378 inch	2.835 inch	2.756 inch	instruction sheet.pdf	RS I-D8 0...20MA	EC002653	4032248160594	EPLAN	RS-SERIES, AD converter, Rated control voltage:	27-23-02-08	0 °C...50 °C	-	17 V = H, 0 V = L	5 kHz at full scale (sinus)	EC002498	-	0...20 mA	-	-	-	-

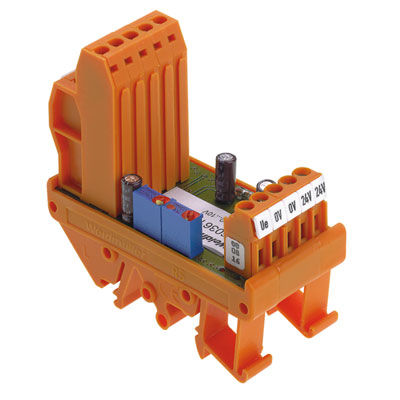

1160361001 RS/U-D 8 -EA Analog Signal Processing CONVERTER AD weidmuller	10	1: ¥1,439.492	1	*	Conform	DIN EN 50178	27-21-01-90	EN 61000-6	30-21-18-01	Declaration of Conformity	± 1 LSB	27-23-02-08	Without isolation	0.5 mm²	≤ 25mA (as source)	1	24 V DC	8-bit (1-bit signed)	≥ 400 kΩ	Analogue / 8 bit	≤ 4 µs	35 mA (plus output current)	35 mm	72 mm	70 mm	72 g	Screw connection	TS 35, TS 32	1.378 inch	2.835 inch	2.756 inch	instruction sheet.pdf	RS U-D8 0...10V	EC002653	4032248103836	EPLAN	RS-SERIES, AD converter, Rated control voltage:	27-23-02-08	0 °C...50 °C	-	17 V = H, 0 V = L	5 kHz at full scale (sinus)	EC002498	-	-	-	-	-	0...10 V
