Weidmüller Holding AG & Co. KG- 圆形连接器系统

魏德米勒是全球工业联接领域的德国先行者，1948年创立，总部位于德国代特莫尔德。公司专注于在自动化与工业环境中实现电源、信号和数据的可靠传输。其核心产品组合包括全面的接线端子、印刷电路板连接器和重载连接器。魏德米勒还提供电子接口模块、继电器模块和浪涌保护设备，构建完整的联接链条。先进的传感器-执行器布线与工业以太网解决方案彰显其迈向智能制造的步伐。集团供应高品质的手动与电动工具，以及定制化机柜和标识系统，支持安装与维护。魏德米勒在全球80多个国家设有生产制造基地和销售办事处，服务于机械、流程和楼宇自动化客户。公司在接线端子技术领域占据全球市场领先份额，以设立安全高效电气连接的标准而闻名。对可持续创新的持续关注推动其开发应对未来工业挑战的解决方案。2013年，集团员工达4600人，这一数字已随全球业务拓展而增长。

MODELS

圆形连接器系统 - 型号列表共 57 个型号

制造商零件编号	价格/库存	Type	Body Orientation	Standard Package	Gender	rohs	Mounting Type	Termination Method	Mounting	Ingress Protection	Voltage - Rated	Termination	Shell Size - Insert	Connector Type	Packaging	Operating Temperature	Fastening Type	Current Rating	Number of Positions	Orientation	Contact Finish	Features	Net weight	Version	GTIN (EAN)	eClass 7*1	UNSPSC	eClass 5*1	ETIM 4*0	ETIM 5*0	eClass 9*0	eClass 6*2	eClass 8*1	ETIM 6*0	ROHS	ETIM 3*0	Housing main material	Rated current	Temperature range of housing	eClass 9*1	Protection degree	Rated voltage	No* of poles	Shell Material, Finish	Number of Contacts	Convert To (Adapter End)	Color	Convert From (Adapter End)	Pollution severity	Group outlet - plug-in connector	Tightening torque	Shield connection	Contact surface	Single outlet 2 - plug-in connector	Single outlet 1 - plug-in connector	Contact material, pin	Contact material, socket	Series	Accessory Type	Other Names	Engineering data	For Use With/Related Products	Descriptive text accessories	Descriptive text ordering data	Fire behaviour	Material	Cable gland	Core cross-section	connection thread	Operating temperature range, max	Operating temperature range, min	Insulation resistance
1783420000 Conn Sensor Actuator Adapter (SKT/SKT)/PL 12 POS Y Style 1 Port weidmuller	询价	Sensor Actuator Adapter	Y Style	Bulk	(PL/PL)/RCP	Lead free / RoHS Compliant	Free Hanging (In-Line)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Distributor, Dust Tight, Water Resistant, Y-Shaped	18 g	Y-plug	4032248183357	27-44-01-02	30-21-18-10	27-26-07-01	EC002635	EC002635	27-44-01-02	27-26-07-02	27-44-01-02	EC002925	Conform	EC002062	PBT	4 A	-25…+90 °C	27-44-01-06	IP67	24 V	4	-	12	Circular, Female Sockets, 4 Pos, M8 (2)	Black	Circular, Male Pins, 4 Pos, M12	3	M12 pin	M8: 0.5 - 0.6 Nm, M12: 0.8 - 1.2 Nm	No	Au (Gold)	M8 socket	M8 socket	CuZn	CuZn	-	-	-	EPLAN, Zuken E3.S	-	-	-	-	-	-	-	-	-	-	-
9455640000 Conn Sensor Actuator M 4 POS Screw ST 4 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	PL	Lead free / RoHS Compliant	-	Screw	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*	*	SAIS-5/7 SHIELDED	-	*	-	-	-	-	-	-	-	-	-	-
1784770000 Conn Sensor Actuator F 5 POS Screw ST Cable Mount 5 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	PL	Lead free / RoHS Compliant	-	Screw	Cable Mount	-	-	-	-	-	-	-	-	-	-	-	-	-	13 g	Protected component assemblies, SAI Active, Accessories, Sensor/Actuator plug-in connector	4032248191857	27-24-26-92	30-21-18-10	27-26-07-01	EC002556	EC002556	27-24-26-92	27-24-26-92	27-24-26-92	EC002556	Conform	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*	-	SAIEND PB M12 5P B-C	-	-	Terminating plug PB in M12 plug	Other versions on request	-	-	-	-	-	-	-	-
9457550000 Conn Sensor Actuator M 4 POS Screw ST Cable Mount 4 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	PL	Lead free / RoHS Compliant	Free Hanging (In-Line)	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	250V	Screw	M12-4	Plug, Male Pins	Bulk	-25°C ~ 85°C	Threaded	4A	4	A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1783410000 Conn Sensor Actuator Adapter (SKT/SKT)/PL 15 POS Y Style 1 Port weidmuller	询价	Sensor Actuator Adapter	Y Style	Bulk	(PL/PL)/RCP	Lead free / RoHS Compliant	Free Hanging (In-Line)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Distributor, Dust Tight, Water Resistant, Y-Shaped	21.5 g	Y connector	4032248183340	27-44-01-02	30-21-18-10	27-26-07-01	EC002635	EC002635	27-44-01-02	27-26-07-02	27-44-01-02	EC002925	Conform	EC002062	PBT	4 A	-25…+90 °C	27-44-01-06	IP67	24 V	5	-	15	Circular, Female Sockets, 5 Pos, M12 (2)	Black	Circular, Male Pins, 5 Pos, M12	3	M12 pin	M12: 0.8 - 1.2 Nm	No	Au (Gold)	M12 socket	M12 socket	CuZn	CuSn	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1783430000 Conn Sensor Actuator Adapter (SKT/SKT)/PL 15 POS Y Style 1 Port weidmuller	询价	Sensor Actuator Adapter	Y Style	Bulk	(PL/PL)/RCP	Lead free / RoHS Compliant	Free Hanging (In-Line)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Distributor, Dust Tight, Water Resistant, Y-Shaped	23 g	Y-plug	4032248183364	27-44-01-02	30-21-18-10	27-26-07-01	EC002635	EC002635	27-44-01-02	27-26-07-02	27-44-01-02	EC002925	Conform	EC002062	PBT	4 A	-25…+90 °C	27-44-01-06	IP67	24 V	5	-	15	Circular, Female Sockets, 5 Pos, M12 (2)	Black	Circular, Male Pins, 5 Pos, M12	3	M12 pin	M12: 0.8 - 1.2 Nm	No	Au (Gold)	M12 socket	M12 socket	CuZn	CuZn	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1784790000 Conn Sensor Actuator PIN 5 POS Screw ST Cable Mount 5 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	RCP	Lead free / RoHS Compliant	Free Hanging (In-Line)	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	125V	Screw	M12-5	Plug, Male Pins	Bulk	-25°C ~ 85°C	Threaded	4A	5	B	Gold	Shielded	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Brass	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1803850000 Conn Sensor Actuator PIN 4 POS Screw ST Cable Mount 4 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	RCP	Lead free / RoHS Compliant	Free Hanging (In-Line)	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	30V	Screw	M8-4	Plug, Male Pins	Bulk	-25°C ~ 85°C	Threaded	4A	4	-	Gold	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1803910000 Conn Sensor Actuator F 4 POS Screw RA Cable Mount 4 Terminal 1 Port weidmuller	询价	Sensor Actuator	Right Angle	Bulk	PL	Lead free / RoHS Compliant	Free Hanging (In-Line), Right Angle	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	250V	Screw	M12-4	Receptacle, Female Sockets	Bulk	-25°C ~ 85°C	Threaded	4A	4	A	Gold	Shielded	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Brass	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1803920000 Conn Sensor Actuator F 5 POS Screw RA Cable Mount 5 Terminal 1 Port weidmuller	询价	Sensor Actuator	Right Angle	Bulk	PL	Lead free / RoHS Compliant	Free Hanging (In-Line), Right Angle	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	125V	Screw	M12-5	Receptacle, Female Sockets	Bulk	-25°C ~ 85°C	Threaded	4A	5	A	Gold	Shielded	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Brass	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1807230000 Conn Sensor Actuator F 4 POS Screw ST Cable Mount 4 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	PL	Lead free / RoHS Compliant	Free Hanging (In-Line)	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	250V	Screw	M12-4	Receptacle, Female Sockets	Bulk	-25°C ~ 85°C	Threaded	4A	4	A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1826880000 Conn Sensor Actuator Adapter (SKT/SKT)/PL 15 POS Y Style 1 Port weidmuller	询价	Sensor Actuator Adapter	Y Style	Bulk	(PL/PL)/RCP	Lead free / RoHS Compliant	Free Hanging (In-Line)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Distributor, Dust Tight, Water Resistant, Y-Shaped	22.9 g	Y connector	4032248330393	27-44-01-02	30-21-18-10	27-26-07-01	EC002635	EC002635	27-44-01-02	27-26-07-02	27-44-01-02	EC002925	Conform	EC002062	PBT	4 A	-25…+90 °C	27-44-01-06	IP67	24 V	5	-	15	Circular, Female Sockets, 5 Pos, M12 (2)	Black	Circular, Male Pins, 5 Pos, M12	3	M12 pin	M12: 0.8 - 1.2 Nm	No	-	M12 socket	M12 socket	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1836970000 Conn Sensor Actuator PIN 8 POS Screw ST Cable Mount 8 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	RCP	Lead free / RoHS Compliant	Free Hanging (In-Line)	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	60V	Screw	M12-8	Plug, Male Pins	Bulk	-25°C ~ 85°C	Threaded	2A	8	A	Gold	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1784060001 Conn Sensor Actuator PIN 4 POS IDT ST Cable Mount 4 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	RCP	Lead free / RoHS Compliant	Free Hanging (In-Line)	IDT	Cable Mount	IP67 - Dust Tight, Waterproof	32V	IDC	M8-4	Plug, Male Pins	Bulk	-25°C ~ 85°C	Threaded	4A	4	-	Tin	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Brass	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1836960000 Conn Sensor Actuator F 8 POS Screw ST Cable Mount 8 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	PL	Lead free / RoHS Compliant	Free Hanging (In-Line)	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	60V	Screw	M12-8	Receptacle, Female Sockets	Bulk	-25°C ~ 85°C	Threaded	2A	8	A	Gold	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1807240000 Conn Sensor Actuator F 4 POS Screw RA Cable Mount 4 Terminal 1 Port weidmuller	询价	Sensor Actuator	Right Angle	Bulk	PL	Lead free / RoHS Compliant	Free Hanging (In-Line), Right Angle	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	250V	Screw	M12-4	Receptacle, Female Sockets	Bulk	-25°C ~ 85°C	Threaded	4A	4	A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1859140000 Conn M23 Circular/M12 Circular M/F ST 1/8 Port weidmuller	询价	M23 Circular/M12 Circular	Straight	Bulk	-	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Passive Distributor	-	-	-	-	-	-	-	-	-	-	-	-	-

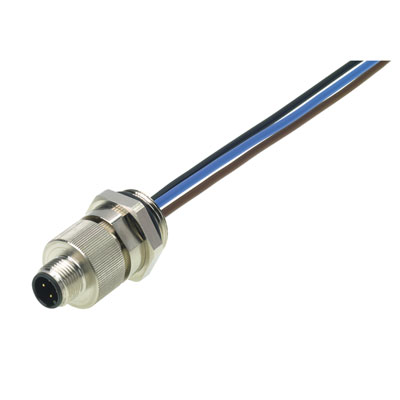

9455650000 Conn Sensor Actuator PIN 4 POS Screw ST Cable Mount 4 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	RCP	-	-	Screw	Cable Mount	-	-	-	-	-	-	-	-	-	-	-	-	-	66 g	Locating plug-in connector, M12, {Reference (AttributeDefinition) not found: A845_1030981}, No. of poles: 4	4008190076467	27-24-26-08	26-12-16-03	27-25-02-01	EC001604	EC001604	27-24-26-08	27-24-26-08	27-24-26-08	EC002599	Conform	EC000516	CuZn, nickel-plated	4 A	-40 … +85 ° C	27-06-03-08	IP67	250 V	4	-	-	-	-	-	-	-	-	-	CuZnAu	-	-	-	-	-	-	-	-	-	-	-	V2	Cu Zn	PG 13.5	1.5 mm²	M12	85 °C	-40 °C	1012 Ω
1784050001 Conn Sensor Actuator F 4 POS IDT ST Cable Mount 4 Terminal 1 Port weidmuller	询价	Sensor Actuator	Straight	Bulk	PL	Lead free / RoHS Compliant	Free Hanging (In-Line)	IDT	Cable Mount	IP67 - Dust Tight, Waterproof	32V	IDC	M8-4	Receptacle, Female Sockets	Bulk	-25°C ~ 85°C	Threaded	4A	4	-	Tin	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Brass	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1807330000 Conn Sensor Actuator F 5 POS Screw RA Cable Mount 5 Terminal 1 Port weidmuller	询价	Sensor Actuator	Right Angle	Bulk	PL	Lead free / RoHS Compliant	Free Hanging (In-Line), Right Angle	Screw	Cable Mount	IP67 - Dust Tight, Waterproof	125V	Screw	M12-5	Receptacle, Female Sockets	Bulk	-25°C ~ 85°C	Threaded	4A	5	A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

第 1 / 3 页

Weidmüller Holding AG & Co. KG- 圆形连接器系统

圆形连接器系统 - 型号列表共 57 个型号
