Wachendorff Automation GmbH & Co. KG 是一家专注于工业自动化与传感器技术的德国制造商。公司创立于1978年，总部位于德国盖森海姆，拥有四十余年开发坚固精密测量元器件的经验。Wachendorff的核心业务围绕旋转编码器、倾角仪和工业数字显示器，广泛应用于机械、包装、可再生能源和移动自动化等严苛领域。其产品组合涵盖增量式和绝对式旋转编码器，提供轴型、空心轴和盲孔空心轴等多种安装方式，接口包括并行、串行及CANopen、PROFIBUS等现场总线协议。此外，公司还生产坚固的倾角仪用于倾斜测量、多轴加速度传感器以及拉线式编码器，可在恶劣环境中完成直线位置反馈。其数字显示产品包括可编程面板仪表和大尺寸工业监视器，具有高可读性并能直接与编码器等传感器集成。Wachendorff还提供联轴器、测量轮和连接电缆等全面附件，确保系统无缝集成。凭借德国工程的高品质，Wachendorff在全球编码器市场中占据稳固的细分地位，通过快速定制和产品的长期供应能力与行业领先者展开竞争。公司在欧洲、亚洲和美洲设有销售办事处，服务全球客户，持续为工业4.0与工业物联网应用投入传感器创新研发。

MODELS

专用传感器与换能器 - 型号列表共 38 个型号

制造商零件编号	价格/库存	Maximum Operating Temperature	Minimum Operating Temperature	Encoder Technology	IP Rating	Maximum Revolutions	Output Signal Type	Overall Height	Pulses Per Revolution	Supply Voltage	Switching Frequency	For Use With	Accessory Type	Diameter	Flange type	Revolution speed	Pulse frequency	Load current	ø shaft	Length	Housing Material	Connection	Operating temperature	Pulses	Operating voltage	Shaft load capacity	Output	Dimensions ø x L	Protection rating	Clamping force, variable	Resolution	Description	附件类型	使用于
2 WDG58B-4096-ABN-G24-K3 Wachendorff Incremental HTL Rotary Encoder, 8000rpm, 4096ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	HTL	83mm	4096ppr	10 → 30 V dc	200 kHz	-	-	58	Clamp	10000	max.200 kHz	max.40 mA	10	53	Aluminium (Al)	Cable 2 m, Radial	-10...+70 °C	4096	10...30 VDC	60 Naxial (58A)	Push-Pull	58 x 53 mm	IP 65	-	-	-	-	-

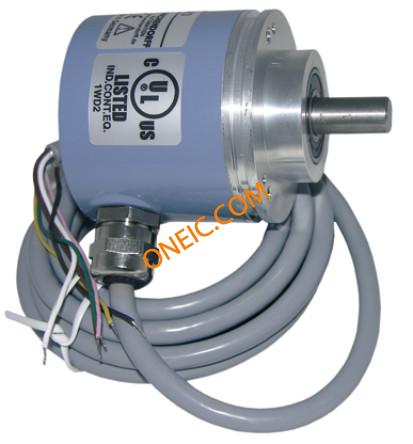

WDG58B-500-ABN-G24-K3 Wachendorff Incremental HTL Rotary Encoder, 8000rpm, 500ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	HTL	83mm	500ppr	10 → 30 V dc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WDG58B-360-ABN-G24-K3 Wachendorff Incremental HTL Rotary Encoder, 8000rpm, 360ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	HTL	83mm	360ppr	10 → 30 Vdc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

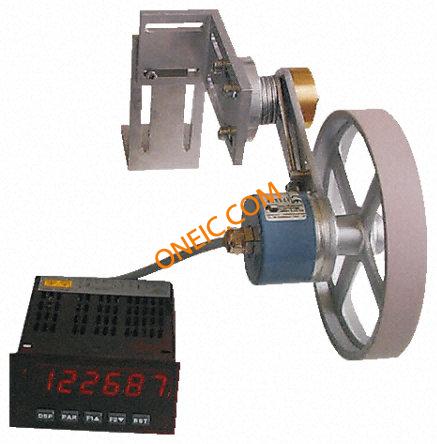

2 WDGMA10000 Wachendorff Spring Arm Wachendorff	询价	-	-	-	-	-	-	-	-	-	-	-	Spring Arm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	20	1	Spring arm	-	-
DSPLE000 Wachendorff Protocol converter For Use With Communication Drives Wachendorff	询价	+50°C	0°C	-	-	-	-	-	-	-	-	Communication Drives	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 WDG58B-100-ABN-G24-K3 Wachendorff Incremental HTL Rotary Encoder, 8000rpm, 100ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	HTL	83mm	100ppr	10 → 30 V dc	200 kHz	-	-	58	Clamp	10000	max.200 kHz	max.40 mA	10	53	Aluminium (Al)	Cable 2 m, Radial	-10...+70 °C	100	10...30 VDC	60 Naxial (58A)	Push-Pull	58 x 53 mm	IP 65	-	-	-	-	-
WDG58B-2048-ABN-I05-K3 Wachendorff Incremental TTL Inverted Rotary Encoder, 8000rpm, 2048ppr, 4.75 to 5.5V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	TTL Inverted	83mm	2048ppr	4.75 → 5.5 V dc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WDG58B-3600-ABN-I05-K3 Wachendorff Incremental TTL Inverted Rotary Encoder, 8000rpm, 3600ppr, 4.75 to 5.5V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	TTL Inverted	83mm	3600ppr	4.75 → 5.5 V dc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WDG58B-60-ABN-G24-K3 Wachendorff Incremental HTL Rotary Encoder, 8000rpm, 60ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	HTL	83mm	60ppr	10 → 30 V dc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WDG58B-5000-ABN-G24-K3 Wachendorff Incremental HTL Rotary Encoder, 8000rpm, 5000ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	HTL	83mm	5000ppr	10 → 30 V dc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

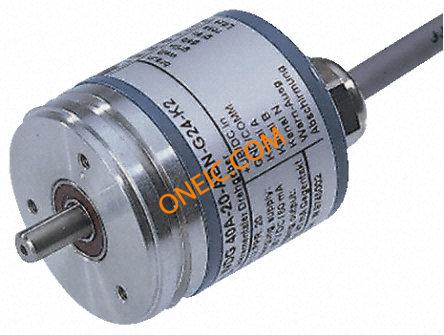

40A200ABNG24K2 Wachendorff Incremental HTL Rotary Encoder, 12000rpm, 200ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	12000rpm	HTL	55mm	200ppr	10 → 30 Vdc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WDG58B-5000-ABN-I05-K3 Wachendorff Incremental TTL Inverted Rotary Encoder, 8000rpm, 5000ppr, 4.75 to 5.5V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	TTL Inverted	83mm	5000ppr	4.75 → 5.5 Vdc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WDG58B-2500-ABN-G24-K3 Wachendorff Incremental HTL Rotary Encoder, 8000rpm, 2500ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	HTL	83mm	2500ppr	10 → 30 V dc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SP-3-00 Wachendorff Clamping Claw Wachendorff	询价	-	-	-	-	-	-	-	-	-	-	WDG 58A, WDG 58B, WDG 58C, WDG 58D, WDG 58K, WDG 63B, WDGA 36A, WDGA 58A, WDGA 58B	Clamping Claw	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
40A50ABNG24K2 Wachendorff Incremental HTL Rotary Encoder, 12000rpm, 50ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	12000rpm	HTL	55mm	50ppr	10 → 30 V dc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
40A500ABNG24K2 Wachendorff Incremental HTL Rotary Encoder, 12000rpm, 500ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	12000rpm	HTL	55mm	500ppr	10 → 30 V dc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PM001601 Wachendorff Cable For Use With WZSG Strain Transducer Wachendorff	询价	-	-	-	-	-	-	-	-	-	-	WZSG Strain Transducer	Cable	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	电缆	WZSG 应力变换器
WDG58B-2500-ABN-I05-K3 Wachendorff Incremental TTL Inverted Rotary Encoder, 8000rpm, 2500ppr, 4.75 to 5.5V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	TTL Inverted	83mm	2500ppr	4.75 → 5.5 V dc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WDG58B-2048-ABN-G24-K3 Wachendorff Incremental HTL Rotary Encoder, 8000rpm, 2048ppr, 10 to 30V dc, IP65, IP67 Wachendorff	询价	+80°C	-20°C	Incremental	IP65, IP67	8000rpm	HTL	83mm	2048ppr	10 → 30 Vdc	200 kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DSPSX000 Wachendorff Protocol converter For Use With Communication Drives Wachendorff	询价	+50°C	0°C	-	-	-	-	-	-	-	-	Communication Drives	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
