Vishay Intertechnology, Inc.- 多圈微调电位器
多圈微调电位器 - 型号列表
共 116 个型号| 制造商零件编号 | 库存 | 价格 | 标准包装数量 | 容差 | 电阻 | 额定功率 | 安装类型 | 电阻材料 | 类型 | 技术 | 调节方式 | 圈数 | 温度系数 | 轴直径 | 工作温度 | RoHS | 包装方式 | 尺寸/外形 | 端接样式 | 功率（瓦） | 电阻值（欧姆） | 海关税号 | 额定电压 | 接触电阻 | 击穿电压 | 电阻公差 | 直流电阻（DCR）（最大） | 锥度 | 重量 | 底座类型 | 端子类型 | 系列 | 典型温度系数 | 最小起订量 | 单位包装 | 产品 | 产品类别 | 工厂包装数量 | 欧盟RoHS | 抗辐射加固 | 军用标准 | 元件类型 | 基极电阻（R1） | 深度 | 高度 | 长度 | 直径 | 引脚直径 | 安装样式 | 总长度 | 已删除 | 失效率 | 产品子类型 | NEMA 机架尺寸 | 额定电压值 | 扭矩 | 本体尺寸 | 包装数量 | 连接器间距 | 导体材料 | SPG | 原理图 | 特性 | 单元数量 | 类型属性 | 防护等级 | 其他名称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Res Cermet Trimmer 500 Ohm 10% 1/4W 14(Elec)/15(Mech)Turn 1.8mm (6.8 X 5 X 7.8mm) Pin Thru-Hole Tube Trimmer Resistors - Through Hole 1/4 SQ V/ADJ 500 Res Cermet Trimmer 500 Ohm 10% 0.25W(1/4W) 14(Elec)/15(Mech)Turn 1.8mm (6.8 X 5 X 7.8mm) Pin Thru-Hole Tube T63YB top adj cermet pcb pot,500R 0.25W TRIMMER, POT, 500R, 15TURN, THD 6MMM/TCERMETTRIM500R Potentiometer: mounting; multiturn; 500Ω; 250mW; ±10%; linear vishay / roederstein | 10 | 1: ¥28.4445 | Rail / Tube | 10 % | 500 Ohm | 1/4 W | Through Hole | :Cermet | Trimmer | Cermet | Top Crossed | 14(Elec)|15(Mech) Turns | 100 PPM / C | 1.8 mm | -55 to 155 °C | RoHS Compliant By Exemption | Tube | 5 mm W x 6.8 mm L x 6.8 mm H | Pin | - | - | 85334010 | 250 V | :2% | :1000V | 500Ω | :500ohm | Linear | 0.0005 | :Through Hole | :PCB Terminals | T63 | :100ppm/°C | 500 | 50 | Trimmer Resistors - Multi Turn | Trimmer Resistors - Through Hole | 500 | Compliant | No | Not Required | Cermet | :Radial Leaded | 5mm | 7.8mm | 6.8mm | Not Required mm | :0.45mm | Through Hole | 6.8 mm | Compliant | Not Required | Multi-Turn | :IP67 | 250V | 1Ncm | 6.8 x 6.8 x 5mm | 10 | 2.5x2.5mm | cermet | 10 | see | linear | 1 | 1/4" | IP67 | - |
 Res Cermet Trimmer 100K Ohm 10% 1/4W 11(Elec)/13(Mech)Turn 1.5mm (4.8 X 5.1 X 3.7mm) J-Hook SMD T/R TRIMMER, SMD, 11 TURN 100K vishay / dale | 325 | 1: ¥45.30 | Tape & Reel | 10 % | 100 KOhm | 1/4 W | Surface Mount | :Cermet | Trimmer | Cermet | :Side | 11(Elec)|13(Mech) Turns | :-100ppm/°C to +200ppm/°C | 1.5 mm | -55 to 125 °C | - | - | - | - | - | - | 85334010 | :200V | :3% | :600V | :± 10% | :100kohm | :Log (Audio) | 0.001001 | :SMD | :Surface Mount (SMD, SMT) | :TSM4 | :200ppm/°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

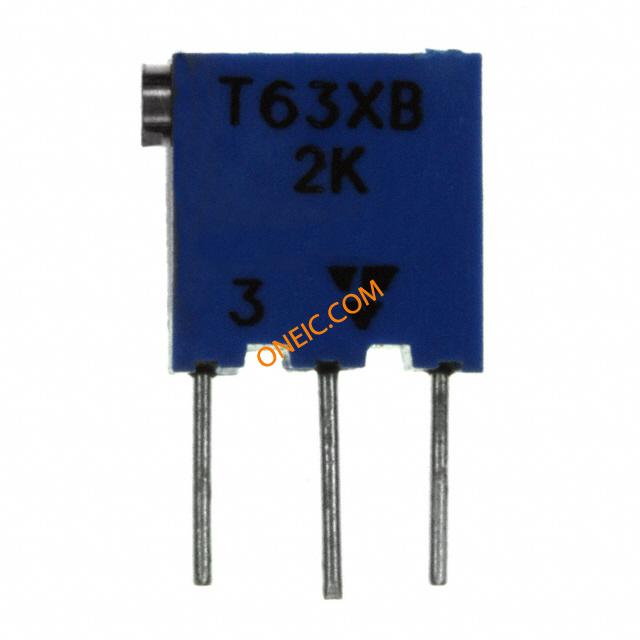

 Res Cermet Trimmer 2K Ohm 10% 1/4W 14(Elec)/15(Mech)Turn 1.8mm (7.5 X 5 X 6.8mm) Pin Thru-Hole Tube Res Cermet Trimmer 2K Ohm 10% 0.25W(1/4W) 14(Elec)/15(Mech)Turn 1.8mm (7.5 X 5 X 6.8mm) Pin Thru-Hole Tube TRIMMER 2K OHM 0.25W TH T63XB side adj cermet pcb pot,2K 0.25W Trimmer Resistors - Through Hole 1/4SQ H/ADJ 2K TRIMMER, POT, 2K, 15TURN, THD 6MMM/TCERMETTRIM2K Potentiometer: mounting; multiturn; 2kΩ; 250mW; ±10%; linear; T63XB Vishay 74X 系列 14（电气）、15（机械） 转 通孔 微调电阻器, 带 针接端, 2kΩ ±10%, 1/4W, ±100ppm/°C vishay / roederstein | 417 | 1: ¥18.12 | Rail / Tube | 10 % | 2 KOhm | 1/4 W | Through Hole | Cermet | Trimmer | Cermet | Side Adjustment | 14(Elec)|15(Mech) Turns | ±100ppm/°C | 1.8 mm | -55 to 155 °C | Lead free / RoHS Compliant | Tube | Square - 0.268" L x 0.197" W x 0.268" H (6.80mm x 5.00mm x 6.80mm) | Pin | 0.25W, 1/4W | 2k | 85334010 | 250 V | :2% | :1000V | 2kΩ | :2kohm | Linear | 0.0005 | :Through Hole | :PCB Terminals | T63 | :100ppm/°C | 100 | 50 | Trimmer Resistors - Multi Turn | Trimmer Resistors - Through Hole | 50 | Compliant | No | Not Required | Cermet | :Radial Leaded | 5mm | 6.8mm | 7.5mm | Not Required mm | :0.45mm | Through Hole | 7.5 mm | Compliant | Not Required | Multi-Turn | :IP67 | 250V | 1Ncm | 6.8 x 6.8 x 5mm | 50 | 2.5x2.5mm | cermet | 50 | see | linear | 1 | 1/4" | IP67 | T63XB-2.0K |
Res Cermet Trimmer 200 Ohm 10% 1/4W 11(Elec)/13(Mech)Turn 1.5mm (4.8 X 5.1 X 3.7mm) J-Hook SMD T/R TRIMMER, SMD, 11 TURN 200R vishay / dale | 368 | 1: ¥27.18 | Tape & Reel | 10 % | 200 Ohm | 1/4 W | Surface Mount | :Cermet | Trimmer | Cermet | :Side | 11(Elec)|13(Mech) Turns | :-100ppm/°C to +200ppm/°C | 1.5 mm | -55 to 125 °C | - | - | - | - | - | - | 85334010 | :200V | :3% | :600V | :± 10% | :200ohm | :Log (Audio) | 0.001001 | :SMD | :Surface Mount (SMD, SMT) | :TSM4 | :200ppm/°C | 500 | 500 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

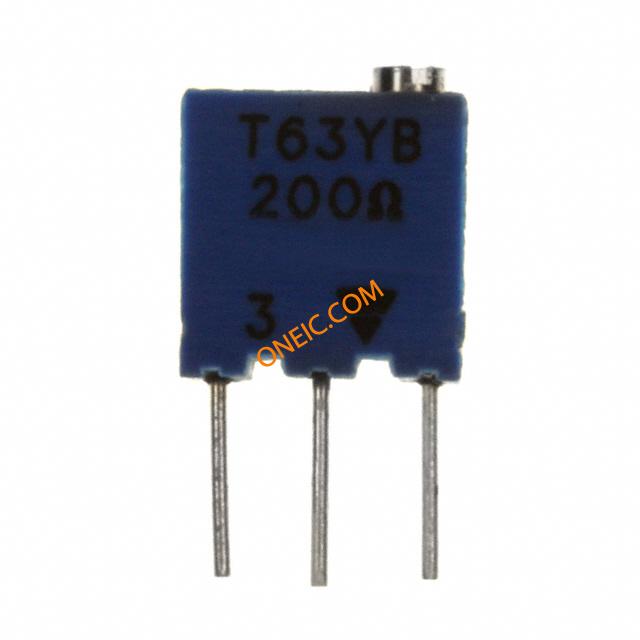

 Res Cermet Trimmer 200 Ohm 10% 1/4W 14(Elec)/15(Mech)Turn 1.8mm (6.8 X 5 X 7.8mm) Pin Thru-Hole Tube Res Cermet Trimmer 200 Ohm 10% 0.25W(1/4W) 14(Elec)/15(Mech)Turn 1.8mm (6.8 X 5 X 7.8mm) Pin Thru-Hole Tube TRIMMER 200 OHM 0.25W TH T63YB top adj cermet pcb pot,200R 0.25W Trimmer Resistors - Through Hole 1/4 SQ V/ADJ 200 TRIMMER, POT, 200R, 15TURN, THD 6MMM/TCERMETTRIM200R Vishay T63YB 系列 14（电气）、15（机械） 转 通孔 微调电阻器, 带 针接端, 200Ω ±10%, 1/4W, ±100ppm/°C vishay / roederstein | 487 | 1: ¥18.12 | Rail / Tube | 10% | 200 Ohms | 1/4W | Through Hole | Cermet | Trimmer | Cermet | Top Adjustment | 13 | ±100ppm/°C | 1.8 mm | +155°C | Lead free / RoHS Compliant | Tube | Square - 0.268" L x 0.197" W x 0.268" H (6.80mm x 5.00mm x 6.80mm) | Pin | 0.25W, 1/4W | 200 | 85334010 | 250 V | :2% | :1000V | 200Ω | :200ohm | Linear | 0.0005 | :Through Hole | :PCB Terminals | T63 | :100ppm/°C | 500 | 50 | Trimmer Resistors - Multi Turn | Trimmer Resistors - Through Hole | 500 | Compliant | No | Not Required | Cermet | :Radial Leaded | 5mm | 7.8mm | 6.8mm | Not Required mm | :0.45mm | Through Hole | 6.8 mm | Compliant | Not Required | Multi-Turn | :IP67 | - | - | - | - | - | - | - | - | - | - | - | - | T63YB-200 |

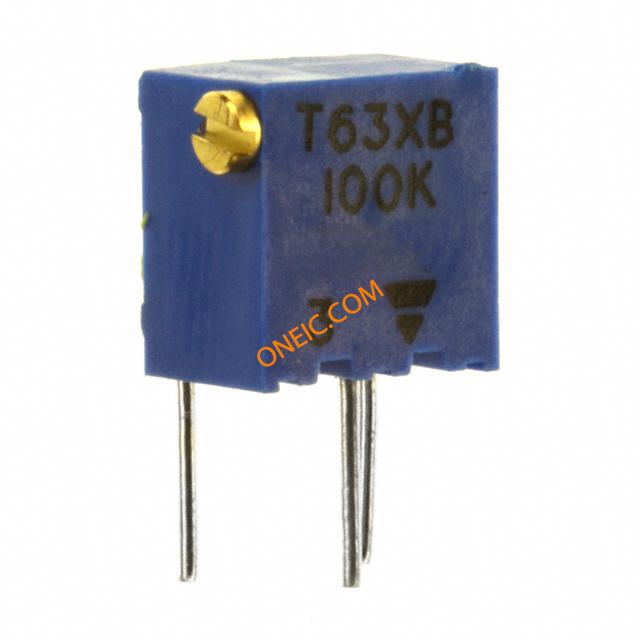

 Res Cermet Trimmer 100K Ohm 10% 1/4W 14(Elec)/15(Mech)Turn 1.8mm (7.5 X 5 X 6.8mm) Pin Thru-Hole Tube Res Cermet Trimmer 100K Ohm 10% 0.25W(1/4W) 14(Elec)/15(Mech)Turn 1.8mm (7.5 X 5 X 6.8mm) Pin Thru-Hole Tube TRIMMER 100K OHM 0.25W TH T63XB side adj cermet pcb pot,100K 0.25W Trimmer Resistors - Through Hole 1/4SQ H/ADJ 100K TRIMMER, POT, 100K, 15TURN, THD 6MMM/TCERMETTRIM100K Potentiometer: mounting; multiturn; 100kΩ; 250mW; ±10%; linear Vishay 74X 系列 14（电气）、15（机械） 转 通孔 微调电阻器, 带 针接端, 100kΩ ±10%, 1/4W, ±100ppm/°C vishay / dale | 437 | 1: ¥18.12 | Rail / Tube | 10 % | 100 KOhm | 1/4 W | Through Hole | Cermet | Trimmer | Cermet | Side Adjustment | 14(Elec)|15(Mech) Turn | ±100ppm/°C | 1.8 mm | -55 to 155 °C | Lead free / RoHS Compliant | Tube | Square - 0.268" L x 0.197" W x 0.268" H (6.80mm x 5.00mm x 6.80mm) | Pin | 0.25W, 1/4W | 100k | 85334010 | 250 V | :2% | :1000V | 100kΩ | :100kohm | Linear | 0.0005 | :Through Hole | :PCB Terminals | T63 | :100ppm/°C | 100 | 50 | Trimmer Resistors - Multi Turn | Trimmer Resistors - Through Hole | 50 | Compliant | No | Not Required | Cermet | :Radial Leaded | 5mm | 6.8mm | 7.5mm | Not Required mm | :0.45mm | Through Hole | 7.5 mm | Compliant | Not Required | Multi-Turn | :IP67 | 250V | 1Ncm | 6.8 x 6.8 x 5mm | 10 | 2.5x2.5mm | cermet | 10 | see | linear | 1 | 1/4" | IP67 | T63XB-100K |
 Res Metal Foil Trimmer 10 Ohm 10% 1/4W 21(Mech)Turn 2.29mm (9.53 X 4.32 X 12.7mm) Pin Thru-Hole Foam Pack/Box TRIMMER 10 OHM 0.25W PC PIN vishay precision group | 10 | 1000: ¥88.2912 | Bulk | 10 % | 10 Ohm | 1/4 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Top Adjustment | 21(Mech) Turn | ±20ppm/°C | 2.29 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.375" x 0.170" Face x 0.420" H (9.53mm x 4.32mm x 10.67mm) | PC Pin | 0.25W, 1/4W | 10 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 20 Ohm 5% 1/2W 25Turn 3.18mm (33.53 X 4.95 X 8.26mm) Lead Wire Foam Pack/Box TRIMMER 20 OHM 0.5W LEADS vishay precision group | 10 | 1000: ¥89.1072 | Bulk | 5 % | 20 Ohm | 1/2 W | Chassis Mount | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 25 Turns | ±20ppm/°C | 3.18 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.325" x 0.195" Face x 1.250" L (8.26mm x 4.95mm x 31.75mm) | Wire Leads | 0.5W, 1/2W | 20 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 2K Ohm 5% 1/2W 25Turn 3.18mm (33.53 X 4.95 X 8.26mm) Lead Wire Foam Pack/Box TRIMMER 2K OHM 0.5W LEADS vishay precision group | 10 | 1000: ¥89.1072 | Bulk | 5 % | 2 KOhm | 1/2 W | Chassis Mount | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 25 Turns | ±10ppm/°C | 3.18 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.325" x 0.195" Face x 1.250" L (8.26mm x 4.95mm x 31.75mm) | Wire Leads | 0.5W, 1/2W | 2k | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 10 Ohm 10% 1/4W 21(Mech)Turn 2.29mm (11.56 X 4.32 X 10.67mm) Pin Thru-Hole Foam Pack/Box TRIMMER 10 OHM 0.5W PC PIN vishay precision group | 10 | 1000: ¥88.2912 | Bulk | 10 % | 10 Ohm | 1/4 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 21(Mech) Turn | ±20ppm/°C | 2.29 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.420" x 0.170" Face x 0.375" L (10.67mm x 4.32mm x 9.53mm) | PC Pin | 0.25W, 1/4W | 10 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 250 Ohm 10% 1/2W 25Turn 3.18mm (33.53 X 4.95 X 8.26mm) Pin Thru-Hole Foam Pack/Box TRIMMER 250 OHM 0.5W PC PIN vishay precision group | 10 | 1000: ¥78.8868 | Bulk | 10 % | 250 Ohm | 1/2 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 25 Turns | ±10ppm/°C | 3.18 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.325" x 0.195" Face x 1.250" L (8.26mm x 4.95mm x 31.75mm) | PC Pin | 0.5W, 1/2W | 250 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Res Metal Foil Trimmer 20K Ohm 5% 3/4W 26(Mech)Turn 2.79mm (20.57 X 4.83 X 6.86mm) Pin Thru-Hole Bulk TRIMMER 20K OHM 0.75W PC PIN vishay precision group | 10 | 1000: ¥41.5616 | Bulk | 5 % | 20 KOhm | 3/4 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 26(Mech) Turn | ±15ppm/°C | 2.79 mm | - | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.270" x 0.190" Face x 0.750" L (6.86mm x 4.83mm x 19.05mm) | PC Pin | 0.75W, 3/4W | 20k | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 20 Ohm 5% 1/4W 21(Mech)Turn 2.29mm (9.53 X 4.32 X 12.7mm) Pin Thru-Hole Foam Pack/Box TRIMMER 20 OHM 0.25W PC PIN vishay precision group | 10 | 1000: ¥88.2912 | Bulk | 5 % | 20 Ohm | 1/4 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Top Adjustment | 21(Mech) Turn | ±20ppm/°C | 2.29 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.375" x 0.170" Face x 0.420" H (9.53mm x 4.32mm x 10.67mm) | PC Pin | 0.25W, 1/4W | 20 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 2.5K Ohm 5% 1/2W 25Turn 3.18mm (33.53 X 4.95 X 8.26mm) Lead Wire Foam Pack/Box TRIMMER 2.5K OHM 0.5W LEADS vishay precision group | 10 | 1000: ¥89.1072 | Bulk | 5 % | 2.5 KOhm | 1/2 W | Chassis Mount | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 25 Turns | ±10ppm/°C | 3.18 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.325" x 0.195" Face x 1.250" L (8.26mm x 4.95mm x 31.75mm) | Wire Leads | 0.5W, 1/2W | 2.5k | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 2K Ohm 10% 1/2W 25(Elec)Turn 3.18mm (33.53 X 4.95 X 8.26mm) Pin Thru-Hole Foam Pack/Box TRIMMER 2K OHM 0.5W PC PIN vishay precision group | 10 | 1000: ¥78.8868 | Bulk | 10 % | 2 KOhm | 1/2 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 25(Elec) Turn | ±10ppm/°C | 3.18 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.325" x 0.195" Face x 1.250" L (8.26mm x 4.95mm x 31.75mm) | PC Pin | 0.5W, 1/2W | 2k | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 200 Ohm 5% 1/4W 21(Mech)Turn 2.29mm (9.53 X 4.32 X 12.7mm) Pin Thru-Hole Foam Pack/Box TRIMMER 200 OHM 0.25W PC PIN vishay precision group | 10 | 1000: ¥88.2912 | Bulk | 5 % | 200 Ohm | 1/4 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Top Adjustment | 21(Mech) Turn | ±10ppm/°C | 2.29 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.375" x 0.170" Face x 0.420" H (9.53mm x 4.32mm x 10.67mm) | PC Pin | 0.25W, 1/4W | 200 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 5 Ohm 10% 1/4W 21(Mech)Turn 2.29mm (9.53 X 4.32 X 12.7mm) Pin Thru-Hole Foam Pack/Box TRIMMER 5 OHM 0.25W PC PIN vishay precision group | 10 | 1000: ¥88.2912 | Bulk | 10 % | 5 Ohm | 1/4 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Top Adjustment | 21(Mech) Turn | ±20ppm/°C | 2.29 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.375" x 0.170" Face x 0.420" H (9.53mm x 4.32mm x 10.67mm) | PC Pin | 0.25W, 1/4W | 5 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 1K Ohm 5% 1/2W 25Turn Lead Wire Panel Mount Foam Pack/Box TRIMMER 1K OHM 0.5W LEADS vishay precision group | 10 | 1000: ¥100.8576 | Bulk | 5 % | 1 KOhm | 1/2 W | Panel Mount | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 25 Turn | ±10ppm/°C | - | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.400" x 0.300" Face x 1.250" L (10.16mm x 7.62mm x 31.75mm) | Wire Leads | 0.5W, 1/2W | 1k | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 500 Ohm 5% 1/2W 25Turn 3.18mm Pin Thru-Hole Foam Pack/Box TRIMMER 500 OHM 0.5W PC PIN vishay precision group | 10 | 1000: ¥82.8852 | Bulk | 5 % | 500 Ohm | 1/2 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 25 Turn | ±10ppm/°C | 3.18 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.325" x 0.195" Face x 1.250" L (8.26mm x 4.95mm x 31.75mm) | PC Pin | 0.5W, 1/2W | 500 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Res Metal Foil Trimmer 50 Ohm 5% 1/2W 25Turn 3.18mm Pin Thru-Hole Foam Pack/Box TRIMMER 50 OHM 0.5W PC PIN vishay precision group | 10 | 1000: ¥82.8852 | Bulk | 5 % | 50 Ohm | 1/2 W | Through Hole | Metal Foil | Trimmer | Metal Foil | Side Adjustment | 25 Turn | ±10ppm/°C | 3.18 mm | -55 to 150 °C | Contains lead / RoHS non-compliant | Bulk | Rectangular - 0.325" x 0.195" Face x 1.250" L (8.26mm x 4.95mm x 31.75mm) | PC Pin | 0.5W, 1/2W | 50 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
