TRACO Electronic AG- 单输出AC-DC转换器

TRACO Electronic AG 是一家总部位于瑞士巴尔（Baar）的电源制造公司。拥有超过 35 年的研发经验，已成为全球电源转换领域值得信赖的领导厂商。以 TRACO Power 为注册商标，公司专注于设计和生产高质量的 DC/DC 与 AC/DC 电源模块。核心业务是为工业自动化、医疗设备和交通运输等严苛行业提供最佳电源解决方案。其 DC/DC 转换器产品线包括高隔离 TEN 系列、经济型 TMR 系列和超紧凑 TEL 系列等热门系列。AC/DC 电源方面，提供 TXL 系列封闭式电源和 TMPS 系列 DIN 导轨安装电源。产品以高效率、高可靠性和严格符合国际安全标准而著称。公司在坚固型工业电源模块这一细分市场处于领先地位，特别重视耐用性和品质。通过全球分销网络，TRACO 为 50 多个国家的客户提供从快速样品到批量生产的服务。公司持续创新，致力于开发满足不断变化的能效法规的紧凑型电源解决方案。

单输出AC-DC转换器 - 型号列表

共 102 个型号

制造商零件编号	库存	价格	噪声	效率	额定功率	额定电压	电源调整率	负载调整率	输出电流	深度	宽度	长度	重量	动作时间	工作温度	最高温度限值	供电电压	海关税号	认证机构	输出类型	最大功率	输出数量	最小输入电压	高度	冷却的封装	应用	频率	供电类型	安装类型	尺寸/外形	类型	最大频率	功率（瓦）	最大额定电流	输出电压（最大）	电压负载调整率	输出电压（最小/固定）	工作寿命	相位差	输出电流2	输出电压2（可调范围）

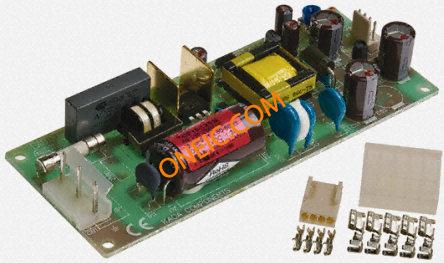

3 TOF 15-24SM SMPSU w/PCB terminal, 24Vdc 16W CONVERTER, AC/DC, 24V, 0.7A/15W, OPEN TRACOPOWER	154	1: ¥379.61	±1%	78%	15W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	0.7A	20mm	50mm	125mm	90g	250000h	-10°C	+60°C	:110V AC, 230V AC	85044082	:cUL, EN, IEC, UL	:Fixed	:15W	1	:85V to 264V	:20mm	Open Frame	:General Purpose	:63Hz	:Open Frame	:Chassis	-	-	-	-	-	-	-	-	-	-	-	-
2 TSP 600-124 EX DIN Rail PSU, 24Vdc, 25A, 600W TRACOPOWER 开关模式 DIN 导轨和面板安装电源 , 87%效能, 132V ac输入, 25A输出, 28V dc输出 TRACOPOWER	13	1: ¥2,716.91	200mV Pk-Pk	87%	600W	187 → 264 V ac, 85 → 132 V ac	±0.5%	±0.5%	25A	125mm	125mm	165mm	2.8kg	900000h	-25°C	+70°C	132V 交流	-	-	-	-	-	-	-	-	-	-	-	-	165 x 125 x 125mm	Switch Mode	-	87%	25 A	28V 直流	±0.5%	24V 直流	900000h	-	-	-

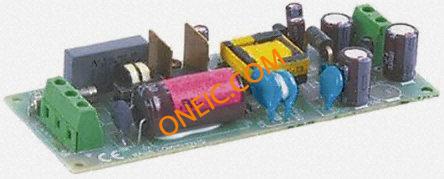

3 TOF 10-05S SMPSU w/screw terminal, 5Vdc 10W PSU, OPEN, 10W, 5V/2A TRACOPOWER	10	1: ¥227.80	±1%	78%	10W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	2A	20mm	50mm	105mm	75g	250000h	-10°C	+60°C	:47Hz	85044082	:CE, UL	:Fixed	:10W	1	:85V to 264V	:20mm	Open Frame	:General Purpose	:63Hz	:Switch Mode	:Chassis	-	-	:63Hz	-	-	-	-	-	-	-	-	-

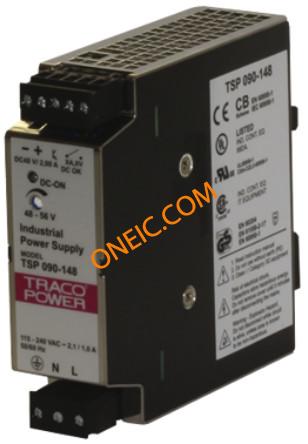

2 TSP 090-148 DIN Rail PSU, 48Vdc, 2A, 96W TRACOPOWER 开关模式 DIN 导轨和面板安装电源, 2A输出 TRACOPOWER	13	1: ¥892.75	200mV Pk-Pk	87%	96W	85 → 263V ac	±0.5%	±0.5%	3.75A	110mm	35mm	110mm	0.5kg	1800000h	-25°C	+70°C	264V 交流	-	-	-	-	-	-	-	-	-	-	-	-	110 x 35 x 110mm	Switch Mode	-	87%	2 A	56V 直流	±0.5%	48V 直流	1800000h	-	-	-
3 TOF 15-24S SMPSU w/screw terminal, 24Vdc 16W PSU, OPEN, 15W, 24V/0.7A TRACOPOWER	158	1: ¥369.75	±1%	78%	15W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	0.7A	20mm	50mm	125mm	90g	250000h	-10°C	+60°C	:47Hz	85044082	:CE, UL	:Fixed	:15W	1	:85V to 264V	:20mm	Open Frame	:General Purpose	:63Hz	:Switch Mode	:Chassis	-	-	:63Hz	-	-	-	-	-	-	-	-	-

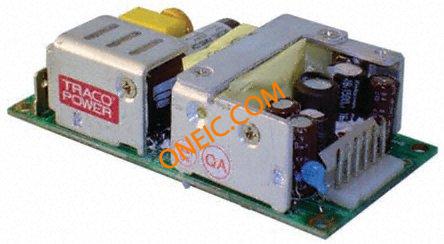

3 TOP 60124 Power Supply,Switch Mode,24V,2.7A,64W AC/DC, 24V, 2.7A TRACOPOWER 64W 单输出嵌入式开关模式电源 SMPS , 110 → 370 V dc, 90 → 264 V ac输入, 24V dc输出, 2.7A输出 TRACOPOWER	346	1: ¥267.23	±1%	80 → 88%	64W	110 → 370 V dc, 90 → 264 V ac	±0.5%	±2%	2.7A	30mm	50.8mm	101.6mm	205g	400000h	-10°C	+70°C	-	85044090	:-	:Fixed	:64W	1	:90V to 264V	:30mm	Open Frame	:Industrial	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 TOF 10-12S SMPSU w/screw terminal, 12Vdc 10W PSU, OPEN, 10W, 12V0.9A TRACOPOWER	10	1: ¥227.80	±1%	78%	10W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	0.9A	20mm	50mm	105mm	75g	250000h	-10°C	+60°C	:47Hz	85044082	:CE, UL	:Fixed	:10W	1	:85V to 264V	:20mm	Open Frame	:General Purpose	:63Hz	:Switch Mode	:Chassis	-	-	:63Hz	-	-	-	-	-	-	-	-	-

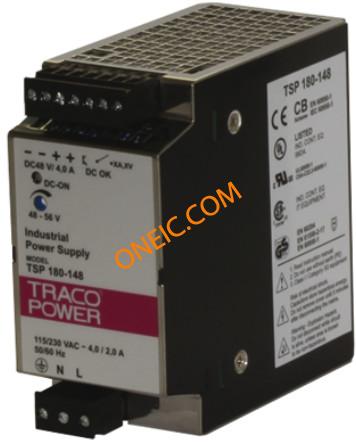

2 TSP 180-148 DIN Rail PSU, 48Vdc, 4A, 192W TRACOPOWER 开关模式 DIN 导轨和面板安装电源, 4A输出 TRACOPOWER	15	1: ¥1,362.79	200mV Pk-Pk	87%	180W	187 → 264 V ac, 85 → 132 V ac	±0.5%	±0.5%	4A	110mm	54mm	110mm	0.7kg	900000h	-25°C	+70°C	132V 交流	-	-	-	-	-	-	-	-	-	-	-	-	110 x 54 x 110mm	Switch Mode	-	87%	4 A	56V 直流	±0.5%	48V 直流	900000h	-	-	-
2 TSP 360-124 EX DIN Rail PSU, 24Vdc, 15A, 360W TRACOPOWER 开关模式 DIN 导轨和面板安装电源 , 87%效能, 132V ac输入, 15A输出, 28V dc输出 TRACOPOWER	10	1: ¥1,757.96	200mV Pk-Pk	87%	360W	187 → 264 V ac, 85 → 132 V ac	±0.5%	±0.5%	15A	125mm	80mm	125mm	1.1kg	900000h	-25°C	+70°C	132V 交流	-	-	-	-	-	-	-	-	-	-	-	-	125 x 80 x 125mm	Switch Mode	-	87%	15 A	28V 直流	±0.5%	24V 直流	900000h	-	-	-

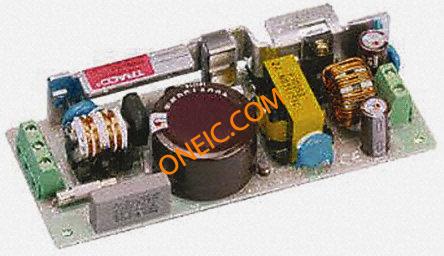

3 TOF 30-05S SMPSU w/screw terminal, 5Vdc 30W PSU, OPEN, 30W, 5V/6A TRACOPOWER	10	1: ¥401.20	±1%	78%	30W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	6A	25mm	55mm	133mm	170g	250000h	-10°C	+60°C	:47Hz	85044082	:CE, UL	:Fixed	:30W	1	:85V to 264V	:25mm	Open Frame	:General Purpose	:63Hz	:Switch Mode	:Chassis	-	-	:63Hz	-	-	-	-	-	-	-	-	-
3 TOP 60148 Power Supply,Switch Mode,48V,1.35A,64W AC/DC, 48V, 1.35A TRACOPOWER 64W 单输出嵌入式开关模式电源（SMPS） , 110 → 370 V dc, 90 → 264 V ac输入, 48V dc输出, 1.35A输出 TRACOPOWER	10	1: ¥364.25	±1%	80 → 88%	64W	110 → 370 V dc, 90 → 264 V ac	±0.5%	±2%	1.35A	30mm	50.8mm	101.6mm	205g	400000h	-10°C	+70°C	-	85044090	:-	:Fixed	:64W	1	:90V to 264V	:30mm	Open Frame	:Industrial	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TSL 480-124P TSL univ input DIN rail SMPS,24-28V 480W TRACOPOWER	15	1: ¥3,796.10	50mV Pk-Pk	88%	480W	187 → 264 V ac, 93 → 132 V ac	±0.2%	±0.3%	20A	125mm	125mm	220mm	2500g	287000h	-25°C	+70°C	-	-	-	-	-	-	-	-	-	-	-	-	-	220 x 125 x 125mm	Switch Mode	-	-	-	-	-	-	-	-	-	-

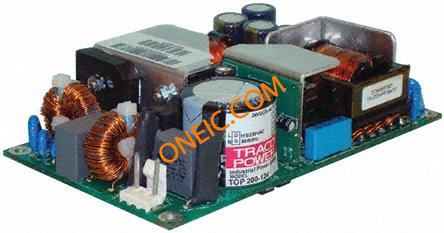

3 TOP 200-124 Power Supply,Switch Mode,24V,8.3A,200W PSU, AC/DC, 8A, 200W, OPEN TRACOPOWER 200W 单输出嵌入式开关模式电源 SMPS , 85 → 265V ac输入, 24V dc输出, 8.3A输出, 92%效能, 开放式封装 TRACOPOWER	10	1: ¥785.95	120mV Pk-Pk	92%	200W	85 → 265V ac	±1%	±1%	8.3A	34mm	76.2mm	127mm	315g	800000h	-25°C	+70°C	:120V AC, 240V AC	85044082	:-	:Fixed	:200W	1	:85V to 264V	:34mm	Open Frame	:Industrial	:63Hz	:Open Frame	-	-	-	-	-	-	-	-	-	-	-	-	-
3 TOF 10-24S SMPSU w/screw terminal, 24Vdc 12W PSU, OPEN, 10W, 24V/0.5A TRACOPOWER	177	1: ¥330.31	±1%	78%	10W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	0.5A	20mm	50mm	105mm	75g	250000h	-10°C	+60°C	:47Hz	85044082	:CE, UL	:Fixed	:10W	1	:85V to 264V	:20mm	Open Frame	:General Purpose	:63Hz	:Switch Mode	:Chassis	-	-	:63Hz	-	-	-	-	-	-	-	-	-

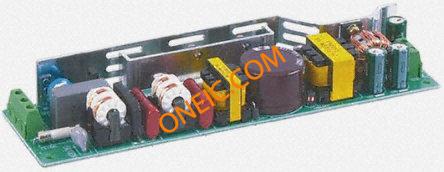

3 TOF 50-12S SMPSU w/screw terminal, 12Vdc 51W PSU, OPEN, 50W, 12V/4.3A TRACOPOWER	80	1: ¥724.71	±1%	78%	50W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	4.3A	25mm	55mm	195mm	245g	250000h	-10°C	+60°C	:47Hz	85044082	:CE, UL	:Fixed	:50W	1	:85V to 264V	:25mm	Open Frame	:General Purpose	:63Hz	:Switch Mode	:Chassis	-	-	:63Hz	-	-	-	-	-	-	-	-	-
2 TSP 360-124 WR DIN Rail PSU, 24Vdc, 15A, 360W TRACOPOWER 开关模式 DIN 导轨和面板安装电源 , 88%效能, 132V ac输入, 15A输出, 28V dc输出 TRACOPOWER	10	1: ¥2,408.90	150mV Pk-Pk	88%	360W	187 → 550 V ac, 85 → 132 V ac	±0.5%	±0.5%	15A	125mm	80mm	125mm	1.1kg	350000h	-25°C	+70°C	132V 交流	-	-	-	-	-	-	-	-	-	-	-	-	125 x 80 x 125mm	Switch Mode	-	88%	15 A	28V 直流	±0.5%	24V 直流	350000h	1	-	-
3 TOF 30-12S SMPSU w/screw terminal, 12Vdc 30W PSU, OPEN, 30W, 12V/2.5A TRACOPOWER	100	1: ¥581.74	±1%	78%	30W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	2.5A	25mm	55mm	133mm	170g	250000h	-10°C	+60°C	:47Hz	85044082	:CE, UL	:Fixed	:30W	1	:85V to 264V	:25mm	Open Frame	:General Purpose	:63Hz	:Switch Mode	:Chassis	-	-	:63Hz	-	-	-	-	-	-	-	-	-
3 TOP 60254 Power Supply,Switch Mode,5V/24V,55W AC/DC, 5V/6A, 24V/1.5A TRACOPOWER 55W 2输出嵌入式开关模式电源 SMPS , 110 → 370 V dc, 90 → 264 V ac输入, 5 V dc, 24 V dc输出 TRACOPOWER	77	1: ¥297.88	±1 %, 100 mV Pk-Pk	80 → 88%	55W	110 → 370 V dc, 90 → 264 V ac	±0.5%	±3 %, ±5 %	1.4 A, 6 A	30mm	50.8mm	101.6mm	205g	400000h	-10°C	+70°C	-	85044090	:-	:Fixed	:55W	2	:90V to 264V	:30mm	Open Frame	:Industrial	-	-	-	-	-	-	-	-	-	-	-	-	-	:1.5A	:24V

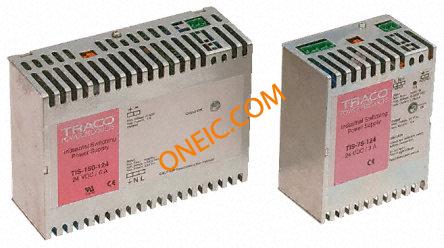

TIS 75-124 TIS DIN rail univ input SMPSU,24V 75W TRACOPOWER 开关模式 DIN 导轨和面板安装电源, 3A输出 TRACOPOWER	41	1: ¥887.31	50mV Pk-Pk	85%	75W	187 → 264 V ac, 93 → 132 V ac	±0.2%	±1%	3A	114.6mm	56.7mm	90mm	0.48kg	420000h	-25°C	+70°C	132V 交流	-	-	-	-	-	-	-	-	-	-	-	DIN 导轨	90 x 56.7 x 114.6mm	Switch Mode	-	85%	3 A	28V 直流	±1%	24V 直流	420000h	-	-	-

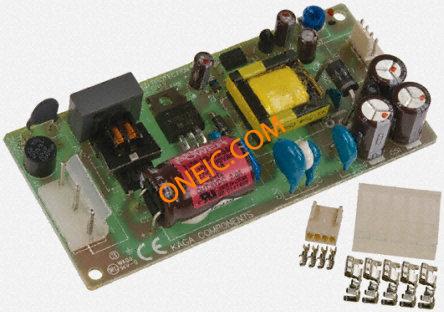

3 TOF 10-12SM SMPSU w/PCB terminal, 12Vdc 10W CONVERTER, AC/DC, 12V, 0.9A/10W, OPEN TRACOPOWER	186	1: ¥315.52	±1%	78%	10W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	0.9A	20mm	50mm	105mm	75g	250000h	-10°C	+60°C	:110V AC, 230V AC	85044082	:cUL, EN, IEC, UL	:Fixed	:10W	1	:85V to 264V	:20mm	Open Frame	:General Purpose	:63Hz	:Open Frame	:Chassis	-	-	-	-	-	-	-	-	-	-	-	-
