Traco Electronic- DC-DC转换器

Traco Electronic AG 是一家瑞士高品质电源转换产品制造商，成立于1944年，总部位于瑞士巴尔。公司设计、制造和销售广泛的DC/DC转换器、AC/DC电源及定制电源解决方案，应用覆盖工业、医疗、交通和能源领域。主打产品系列包括TMR稳压型DC/DC转换器、TEL高隔离系列、THN超宽输入系列以及TEN PCB板载隔离模块。Traco 还以TPC系列导轨安装式AC/DC电源和TXL系列通用工业电源而闻名。公司高度重视品质，产品符合IEC/EN/UL 62368-1安全标准、医疗级IEC 60601-1以及铁路级EN 50155等国际认证。Traco Electronic 通过分销商和代表处网络覆盖全球50多个国家，提供本地化技术支持。在电源市场中，Traco 占据稳固的细分市场地位，尤其以紧凑、高可靠且工作温度范围为-40°C至+85°C的模块著称。持续的研发投入使 Traco 不断推出先进的数字电源解决方案和高效率设计，以满足日益发展的工业需求。作为可靠性和工程卓越的代名词，Traco Electronic 仍然是设计师寻求稳健电源转换元器件的首选品牌。

DC-DC转换器 - 型号列表

共 531 个型号

制造商零件编号	库存	价格	抗辐射加固	额定电压	输出电流	输出数量	共模瞬态抗扰度（最小）	深度	高度	安装样式	总长度	位数	结工作温度	输出功率	封装形式	隔离	类型	效率	额定功率	尺寸	系列	工作温度	输出端	库存状态	输入端	转换器类型	击穿电压	开关频率	绝缘电阻	重量	包装数量	尺寸/外形	SPG	单元数量	纹波	供电电压	输出电流1	输出电流2	最小负载要求	最小输入电压	静态电流 (Iq)	每极负载侧连接方式	宽度	长度	连接方式	已删除

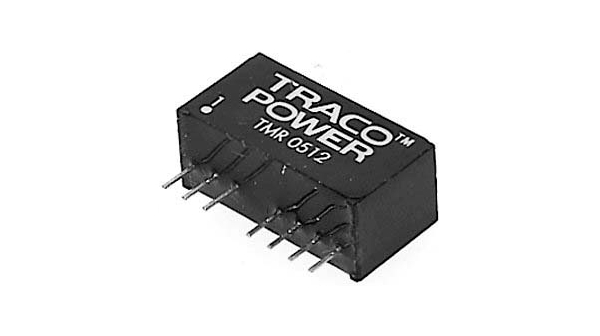

TMR 2423 Module DC-DC 2-OUT 15V/-15V 0.065A/-0.065A 2W 7-Pin SIP Converter: DC/DC; 2W; Uin:18÷36V; Uout:15VDC; Uout2:-15VDC; SIP8 DC/DC converter 18...36 VDC 15 VDC, TMR 2423, Traco Power TRACO ELECTRONIC AG	-		No	24 V	0.065/-0.065 A	2	Industrial	9.2 mm	11.1 mm	Through Hole	21.8 mm	7	85C	2 W	SIP	-	Step Down	80%	2W	21.8 x 9.2 x 11.1 mm	TMR2	-40...85°C	-	-	-	DC/DC	1kV	650kHz	1000MΩ	4.8 g	10	see	10	1	<50 mVpp	±0.50% max.	65 mA	-65mA	10	-15V DC	1 mAmax.	±0.75% max.	9.2	21.8	THD	-
TON15-2413WISM Module DC-DC 1-OUT 15V 1A 15W 6-Pin SMD TON15-2413WISM from Traco Power, 15 Watt, Single Output TRACO ELECTRONIC AG	20	1: ¥220.592	No	24 V	1 A	1	Industrial	27.94 mm	8.5 mm	Surface Mount	23.88 mm	6	85C	15 W	SMD	Isolated	Step Down	86.00%	15 Watt	1.10 x 0.94 x 0.335	TRACO POWERTON15-WISM	-40 ~ +85°C	15.0V @ 1.00A	Please Call	24/48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEN8-1211 Module DC-DC 1-OUT 5V 1.5A 8W 9-Pin Metal DIP TEN8-1211 from Traco Power, 8 Watt, Single Output TRACO ELECTRONIC AG	-		No	12 V	1.5 A	1	Industrial	20.3 mm	10.2 mm	Through Hole	32 mm	9	85C	8 W	Metal DIP	Isolated	Step Down	83.00%	8 Watt	1.25 x 0.8 x 0.4"	TRACO POWERTEN8	-40 ~ +85°C	5.0V @ 1.50A	5	12/24/48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEN4-2422 DC/DC Power Supply Dual-OUT 12V/-12V 0.165A/-0.165A 4W 8-Pin Metal DIP TRACO ELECTRONIC AG	30	1: ¥165.512	No	24 V	0.165/-0.165 A	2	Commercial	20 mm	10 mm	Through Hole	32 mm	8	75C	4 W	Metal DIP	Isolated	Step Down	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEP75-4815WI Module DC-DC 1-OUT 24V 3.2A 75W 9-Pin TEP75-4815WI from Traco Power, 75 Watt, Single Output TRACO ELECTRONIC AG	-		No	48 V	3.2 A	1	Commercial	57.9 mm	12.7 mm	Screw	61 mm	9	75C	75 W	-	Isolated	Step Down	87.00%	75 Watt	2.40 x 2.28 x 0.50"	TRACO POWERTEP75-WI	-40 ~ +75°C	24.0V @ 3.20A	3	12/24/48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Compliant
TSM0515S Module DC-DC 1-OUT 15V 0.065A 1W 8-Pin SOIC TRACO ELECTRONIC AG	-		No	5 V	0.065 A	1	Industrial	8.3 mm	7.8 mm	Surface Mount	12.7 mm	8	85C	1 W	SOIC	Isolated	Step Up	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEN Module DC-DC 2-OUT 15V/-15V 0.1A/-0.1A 3W 8-Pin PDIP Module DC-DC 1-OUT 5V 12A 60W 8-Pin TEN 5-2421 TEN 5-2410 TEN 3-0511 Module DC-DC 1-OUT 3.3V 2A 8W 9-Pin PDIP Module DC-DC 2-OUT 12V/-12V 0.625A/-0.625A 15W 6-Pin Module DC-DC 1-OUT 3.3V 1.2A 6W 7-Pin Metal DIP Module DC-DC 2-OUT 15V/-15V 1A/-1A 25W/30W 7-Pin TRACO ELECTRONIC AG	-		No	24 V	0.1/-0.1 A	2	Industrial	20.3 mm	10.2 mm	Through Hole	32 mm	8	85C	3 W	PDIP	Isolated	Step Down	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TSR1-24120 Module DC-DC 1-OUT 12V 1A 3-Pin SIP TSR1-24120 from Traco Power, 1 Watt, Single Output TRACO ELECTRONIC AG	-		No	24 V	1 A	1	Industrial	7.6 mm	10.2 mm	Through Hole	11.7 mm	3	85C	-	SIP	Isolated	Step Down	95.00%	1 Amp	0.46 x 0.40 x 0.30"	TRACO POWERTSR1	-40 ~ +85°C	12.0V @ 1.00A	378	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TSM-0505S Module DC-DC 1-OUT 5V 0.2A 1W 8-Pin SOIC TRACO ELECTRONIC AG	-		No	5 V	0.2 A	1	Industrial	8.3 mm	7.8 mm	Surface Mount	12.7 mm	8	85C	1 W	SOIC	Isolated	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMH2405S DC/DC Power Supply Single-OUT 5V 0.4A 2W 5-Pin SIP TMH2405S from Traco Power, 2 Watt, Single Output TRACO ELECTRONIC AG	-		No	24 V	0.4 A	1	Commercial	7.5 mm	10.2 mm	Through Hole	19.5 mm	5	75C	2 W	SIP	Isolated	Step Down	77.00%	2 Watt	0.77 x 0.40 x 0.3"	TRACO POWERTMH	-40 ~ +85°C	5.0V @ 0.40A	4	5/12/24	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEN5-1222 Module DC-DC 2-OUT 12V/-12V 0.25A/-0.25A 6W 8-Pin Metal DIP TEN5-1222 from Traco Power, 5 Watt, Dual Output TRACO ELECTRONIC AG	-		No	12 V	0.25/-0.25 A	2	Industrial	20 mm	10 mm	Through Hole	32 mm	8	85C	6 W	Metal DIP	Isolated	Step Down	84.00%	5 Watt	1.25 x 0.8 x 0.4"	TRACO POWERTEN5	-40 ~ +85°C	12.0V @ 0.25A;-12.0V @ 0.25A	Please Call	5/12/24/48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEL3-0522 Module DC-DC 2-OUT 12V/-12V 0.125A/-0.125A 3W 12-Pin PDIP TEL3-0522 from Traco Power, 3 Watt, Dual Output TRACO ELECTRONIC AG	-		No	5 V	0.125/-0.125 A	2	Industrial	20 mm	10.2 mm	Through Hole	32 mm	12	85C	3 W	PDIP	Isolated	-	74.00%	3 Watt	1.26 x 0.79 x 0.40"	TRACO POWERTEL3	-40 ~ +85°C	12.0V @ 0.13A;-12.0V @ 0.13A	4	5/12/24/48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 TMA1212S Module DC-DC 1-OUT 12V 0.08A 1W 4-Pin SIP Converter: DC/DC; 1W; Uin:12V; 12VDC; Iout:80mA; SIP; 100kHz TMA1212S from Traco Power, 1 Watt, Single Output TRACO ELECTRONIC AG	-		No	12 V	0.08 A	1	Industrial	6.1 mm	10.2 mm	Through Hole	19.5 mm	4	85C	1 W	SIP	Isolated	-	80%	1W	0.77 x 0.40 x 0.28"	TMA	-40...85°C	12.0V @ 0.08A	406	5/12/15/24	DC/DC	1kV	100kHz	1000MΩ	2.1 g	44	see	44	1	-	-	-	-	-	-	-	-	-	-	-	-
TMR3-2411 Module DC-DC 1-OUT 5V 0.6A 3W 7-Pin SIP TRACO ELECTRONIC AG	-		No	24 V	0.6 A	1	Industrial	9.2 mm	11.1 mm	Through Hole	21.8 mm	7	85C	3 W	SIP	Isolated	Step Down	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEN3-4811WI Module DC-DC 1-OUT 5V 0.6A 3W 8-Pin PDIP TEN3-4811WI from Traco Power, 3 Watt, Single Output TRACO ELECTRONIC AG	-		No	48 V	0.6 A	1	Industrial	20 mm	10.2 mm	Through Hole	32 mm	8	85C	3 W	PDIP	Isolated	Step Down	80.00%	3 Watt	1.25 x 0.79 x 0.40"	TRACO POWERTEN3-WI	-40 ~ +75°C	5.0V @ 0.60A	Please Call	12/24/48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEN3-0523 Module DC-DC 2-OUT 15V/-15V 0.1A/-0.1A 3W 24-Pin PDIP TEN3-0523 from Traco Power, 3 Watt, Dual Output TRACO ELECTRONIC AG	-		No	5 V	0.1/-0.1 A	2	Industrial	20.3 mm	10.2 mm	Through Hole	32 mm	24	85C	3 W	PDIP	Isolated	-	75.00%	3 Watt	1.25 x 0.8 x 0.4"	TRACO POWERTEN3	-40 ~ +85°C	15.0V @ 0.10A;-15.0V @ 0.10A	6	5/12/24/48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEN5-2423 Module DC-DC 2-OUT 15V/-15V 0.2A/-0.2A 6W 8-Pin Metal DIP TEN5-2423 from Traco Power, 5 Watt, Dual Output TRACO ELECTRONIC AG	10	1: ¥220.00	No	24 V	0.2/-0.2 A	2	Industrial	20 mm	10 mm	Through Hole	32 mm	8	85C	6 W	Metal DIP	Isolated	Step Down	86.00%	5 Watt	1.25 x 0.8 x 0.4"	TRACO POWERTEN5	-40 ~ +85°C	15.0V @ 0.20A;-15.0V @ 0.20A	10	5/12/24/48	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMR3-1211 Module DC-DC 1-OUT 5V 0.6A 3W 7-Pin SIP TRACO ELECTRONIC AG	-		No	12 V	0.6 A	1	Industrial	9.2 mm	11.1 mm	Through Hole	21.8 mm	7	85C	3 W	SIP	Isolated	Step Down	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TEN4-2423 DC/DC Power Supply Dual-OUT 15V/-15V 0.13A/-0.13A 4W 8-Pin Metal DIP TRACO ELECTRONIC AG	-		No	24 V	0.13/-0.13 A	2	Commercial	20 mm	10 mm	Through Hole	32 mm	8	75C	4 W	Metal DIP	Isolated	Step Down	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TME0505S Module DC-DC 1-OUT 5V 0.2A 1W 4-Pin SIP Converter: DC/DC; 1W; Uin:5V; Uout:5VDC; Iout:200mA; SIP4; 90kHz TME0505S from Traco Power, 1 Watt, Single Output TRACO ELECTRONIC AG	-		No	5 V	0.2 A	1	Industrial	6 mm	10.2 mm	Through Hole	11.5 mm	4	85C	1 W	SIP	Isolated	-	70%	1W	0.45 x 0.40 x 0.28"	TME	-40...85°C	5.0V @ 0.20A	2	3.3/5/12/24	DC/DC	1kV	90kHz	1000MΩ	1.3 g	10	see	10	1	-	-	-	-	-	-	-	-	-	-	-	-
