Molex - Temp Flex- 扁平排线

莫仕（Molex, LLC）是一家全球领先的电子、电气和光纤连接解决方案制造商，总部位于美国伊利诺伊州莱尔。公司成立于1938年，现为科氏工业集团旗下子公司，是全球最大的私人控股企业之一。其核心业务涵盖连接器、电缆组件、天线、开关及应用工具，服务于汽车、数据通信、工业、医疗和消费电子等众多行业。2010年莫仕收购的Temp-Flex品牌，专注于高性能特种电线电缆产品，特别是微波同轴电缆、柔性微型同轴电缆和高温电缆。这些电缆以精确性、低损耗和可靠性著称，广泛应用于手术器械、航空航天系统和高速测试设备等严苛领域。莫仕提供丰富的连接器产品系列，如Micro-Lock、Micro-Fit、Nano-Fit和SlimStack等，以满足日益小型化和高速化的需求。公司在全球40多个国家和地区拥有超过80家制造工厂，建立了强大的全球供应链，并为客户提供工程与设计服务。在连接器行业，莫仕市场地位稳固，长期位列全球顶级连接器制造商，与泰科电子、安费诺和JST等竞争。其技术优势体现在先进的信号完整性能力、微型化专长以及针对恶劣环境的高可靠性互连解决方案。通过持续创新和像Temp-Flex这样的战略收购，莫仕不断增强从芯片到板级再到系统的端到端连接能力。

扁平排线 - 型号列表

共 57 个型号

制造商零件编号	库存	价格	电缆类型	导线线规	长度	RoHS	导体数量	间距	护套（绝缘）材料	颜色	工作温度	产品	包装方式	导体绞线	额定电压	导体材料	核心类型	形状	屏蔽类型	导体类型	外径（标称值）	电缆绝缘材料	绝缘颜色	连接器间距	连接器颜色	外径	横截面形状	绝缘材料 - 材质	核心数/总线宽度	线规或范围 - AWG	非扩张内径	其他名称	标准包装数量	认证机构	电压	屏蔽	线缆护套颜色	带状电缆宽度	带状电缆厚度	第一导体标记	额定等级	触点数	电缆对数	绝缘材料 - 类型
F3007S-26-025-85 CABLE 30AWG 26 COND 100FT CABLE 30AWG 26 COND 5FT CABLE 30AWG 26 COND 10FT CABLE 30AWG 26 COND 25FT CABLE 30AWG 26 COND 50FT FEP Ribbon Cable 30awg 26 way 30m Molex - Temp Flex	-		Flat Cable	30 AWG	100' (30.5m)	Lead free / RoHS Compliant	26	0.025" (0.64mm)	Fluorinated Ethylene-Propylene (FEP)	Natural	-55°C ~ 200°C	-	-	7 Strands / 38 AWG	150V	Copper, Silver Coated	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	MTF1012-100	1	UL Style 20726	150V	Unshielded	Natural	0.650" (16.51mm)	0.024" (0.61mm)	Blue	UL Style 20726	-	-	-
F3007S-30-025-85 CABLE 30AWG 30 COND 100FT CABLE 30AWG 30 COND 5FT CABLE 30AWG 30 COND 10FT CABLE 30AWG 30 COND 25FT CABLE 30AWG 30 COND 50FT FEP Ribbon Cable 30awg 30 way 30m Molex - Temp Flex	-		Flat Cable	30 AWG	100' (30.5m)	Lead free / RoHS Compliant	30	0.025" (0.64mm)	Fluorinated Ethylene-Propylene (FEP)	Natural	-55°C ~ 200°C	-	-	7 Strands / 38 AWG	150V	Copper, Silver Coated	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	MTF1013-100	1	UL Style 20726	150V	Unshielded	Natural	0.750" (19.05mm)	0.024" (0.61mm)	Blue	UL Style 20726	-	-	-
F3007S-40-025-85 CABLE 30AWG 40 COND 100FT CABLE 30AWG 40 COND 5FT CABLE 30AWG 40 COND 10FT CABLE 30AWG 40 COND 25FT CABLE 30AWG 40 COND 50FT FEP Ribbon Cable 30awg 40 way 30m Molex - Temp Flex	-		Flat Cable	30 AWG	100' (30.5m)	Lead free / RoHS Compliant	40	0.025" (0.64mm)	Fluorinated Ethylene-Propylene (FEP)	Natural	-55°C ~ 200°C	-	-	7 Strands / 38 AWG	150V	Copper, Silver Coated	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	MTF1014-100	1	UL Style 20726	150V	Unshielded	Natural	1.000" (25.40mm)	0.024" (0.61mm)	Blue	UL Style 20726	-	-	-
2 39A-504-LS Cable CAT 5e FTP LSZH 332.1 305m Box Molex Premise Networks 305m 紫色双绞线 5e 类以太网电缆, F/UTP屏蔽 Molex, LLC	-		Twisted Pair	24	305m	-	-	-	-	-	-	-	-	Solid	-	-	1/24	双绞线	F/UTP	实心	6.2mm	LSZH	紫色	1/24	Purple	6.2mm	0.2 mm	LSZH	1	24 AWG	24 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-
2 39.A0360 Grey PVC Powercat Cat5e UTP cable,305m Molex Premise Networks 305m 灰色双绞线 5e 类以太网电缆, U/UTP屏蔽 Molex, LLC	-		Twisted Pair	24	305m	-	-	-	-	-	-	-	-	Solid	-	-	1/24	双绞线	U/UTP	实心	5.2mm	PVC	灰色	1/24	Grey	5.2mm	0.2 mm	PVC	1	24 AWG	24 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-

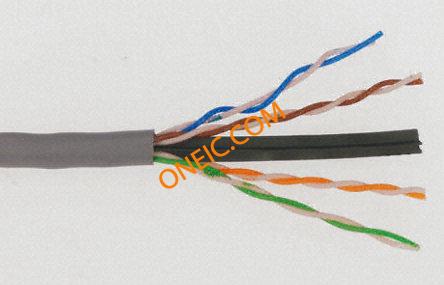

2 CAA-00326 POWERCAT 6 UTP CABLE PVC 500m reel Molex Premise Networks 500m 灰色双绞线 6 类网线 , U/UTP屏蔽 Molex, LLC	-		Twisted Pair	23	500m	-	-	-	-	-	-	-	-	Solid	-	-	1/23	双绞线	U/UTP	实心	6.5mm	PVC	灰色	1/23	Grey	6.5mm	0.26 mm	PVC	1	23 AWG	23 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-
2 39-504-5E POWERCAT 5e UTP CABLE LSZH 305m Box Molex Premise Networks 305m 紫色双绞线 5e 类以太网电缆, U/UTP屏蔽 Molex, LLC	-		Twisted Pair	24	305m	-	-	-	-	-	-	-	-	Solid	-	-	1/24	双绞线	U/UTP	实心	5.2mm	LSZH	紫色	1/24	Purple	5.2mm	0.2 mm	LSZH	1	24 AWG	24 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-
F3007S-50-025-85 Flat Cables 50C 30AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥73.44	Ribbon Cable, IDC	30	1 ft	RoHS Compliant	50	0.635 mm	Fluorinated Ethylene Propylene (FEP)	Gray	+ 200 C	Ribbon Cable	Spool	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F3007S-60-025-85 Flat Cables 60C 30AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥88.128	Ribbon Cable, IDC	30	1 ft	RoHS Compliant	60	0.635 mm	Fluorinated Ethylene Propylene (FEP)	Gray	+ 200 C	Ribbon Cable	Spool	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F3007S-68-025-85 Flat Cables 68C 30AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥106.624	Ribbon Cable, IDC	30	1 ft	RoHS Compliant	68	0.635 mm	Fluorinated Ethylene Propylene (FEP)	Gray	+ 200 C	Ribbon Cable	Spool	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F3007S-80-025-85 Flat Cables 80C 30AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥117.504	Ribbon Cable, IDC	30	1 ft	RoHS Compliant	80	0.635 mm	Fluorinated Ethylene Propylene (FEP)	Gray	+ 200 C	Ribbon Cable	Spool	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F2807S-60-050-55 Flat Cables 60C 28AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥124.304	Ribbon Cable, IDC	28	1 ft	RoHS Compliant	60	0.05 in	Fluorinated Ethylene Propylene (FEP)	Blue	+ 200 C	Ribbon Cable	Reel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F3007S-100-025-85 Flat Cables 100C 30AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥146.88	Ribbon Cable, IDC	30	1 ft	RoHS Compliant	100	0.635 mm	Fluorinated Ethylene Propylene (FEP)	Gray	+ 200 C	Ribbon Cable	Spool	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F2807S-10-050-R Flat Cables 10C 28AWG FEP RIBBON MULTI-COLOR PER FT Temp-Flex	891	1: ¥25.024	Flat Cable	28	-	RoHS Compliant	10	0.05 in	Fluorinated Ethylene Propylene (FEP)	Red	-	Ribbon Cable	-	-	300 V	Silver Plated Copper	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	10	7	-
F3007S-20-025-85 Flat Cables 20C 30AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥29.376	Ribbon Cable, IDC	30	1 ft	RoHS Compliant	20	0.635 mm	Fluorinated Ethylene Propylene (FEP)	Gray	+ 200 C	Ribbon Cable	Spool	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F2807S-15-050-55 Flat Cables 15C 28AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥31.144	Ribbon Cable, IDC	28	1 ft	RoHS Compliant	15	0.05 in	Fluorinated Ethylene Propylene (FEP)	Blue	+ 200 C	Ribbon Cable	Spool	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F2807S-16-050-1 Flat Cables 16C 28AWG FEP RED PRICED PER FT Temp-Flex	630	1: ¥33.32	Ribbon Cable, IDC	28	-	RoHS Compliant	16	0.05 in	Fluorinated Ethylene Propylene (FEP)	-	-	Ribbon Cable	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	16	7 x 36	Fluorinated Ethylene Propylene (FEP)
F28H19S-20-050-N Flat Cables 20C 28AWG FEP RIBBON HIGH FLEX, PER FT Temp-Flex	492	1: ¥48.552	Ribbon Cable	28	-	RoHS Compliant	20	-	-	-	-	Ribbon Cable	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	20	-	-
F2807S-26-050-55 Flat Cables 26C 28AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥53.856	Ribbon Cable, IDC	28	1 ft	RoHS Compliant	26	0.05 in	Fluorinated Ethylene Propylene (FEP)	Blue	+ 200 C	Ribbon Cable	Spool	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F2807S-34-050-55 Flat Cables 34C 28AWG FEP RIBBON PRICED PER FT Temp-Flex	10	1: ¥70.448	Ribbon Cable, IDC	28	1 ft	RoHS Compliant	34	0.05 in	Fluorinated Ethylene Propylene (FEP)	Blue	+ 200 C	Ribbon Cable	Spool	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
