Teledyne Technologies Incorporated- 音频和电源连接器

Teledyne Technologies Incorporated 是一家领先的高端电子元器件、仪器仪表和数字成像解决方案供应商，成立于1960年，总部位于美国加利福尼亚州千橡市。公司最初专注于航空航天与国防领域，现已发展为服务于多个需要先进技术和高可靠性的工业增长市场，包括深海油气勘探、海洋研究、环境监测、工厂自动化和医疗成像等。其核心业务部门包括数字成像、仪器仪表、航空航天与国防电子以及工程系统。在数字成像领域，公司提供先进的CMOS和CCD图像传感器、相机及视觉系统，知名子品牌包括Teledyne DALSA、Teledyne e2v和Teledyne Princeton Instruments等。仪器仪表产品线涵盖Teledyne LeCroy示波器等测试测量设备，以及Teledyne Hastings真空计等精密监测仪器，广泛应用于科研和工业领域。针对恶劣环境应用，Teledyne Reynolds和Teledyne Impulse等品牌提供高可靠性连接器和电缆组件，满足航空航天、石油天然气和海洋作业的严苛要求。在国防电子方面，公司生产卫星通信子系统、机载信息管理系统等关键任务设备，具备深厚的技术积累。Teledyne拥有强大的研发体系，设有客户与公司共同资助的应用研究中心，推动新产品开发和技术创新。公司通过精准并购和运营卓越战略，持续扩大规模并提升盈利能力，2012年销售额达21.3亿美元，此后不断拓展市场版图。Teledyne凭借高进入壁垒和差异化产品，在高性能成像传感器、海洋仪器和航空航天电子等利基市场占据领先地位，竞争格局优越。

MODELS

音频和电源连接器 - 型号列表共 139 个型号

制造商零件编号	价格/库存	RoHS	Equipment Type	Type	Standard Package	Color	Bandwidth	Tip Style	Resistance - Input	Voltage - Max	Attenuation Value	Capacitance - Input	Cable Length	Packaging	Includes	Series	Voltage Rating	Probe type	Multiplicity	Test accessories type	Gross weight	Band	rohs	Design	Collective package [pcs]	spg	Input: Impedance F	Input impedance Ohm	Life	Other Names	VAC max	Input impedance	Cable length	Division ratio	Attenuator	Max input voltage	Length	Features	Lead length	Part # Aliases	Safety standard EN 61010	Rise Time	Transformation ratio	颜色	带宽	类型	电压 - 最大值	系列	电缆长度	Differential input voltage	Description/Function	Accessory Type	Product	Connection	电容 - 输入	电阻 - 输入	衰减值	Weight	Power supply	Rise time	Hook, Pincer Opening	Hook Type	Quantity	For Use With/Related Products	Suitable for	AC current measuring range	DC current measuring range	Max conductor ø	AAC max	Dimensions
4 ADP305 Test Probes 1,400 V, 100 MHz High-Volt Probe Teledyne LeCroy	询价	RoHS Compliant By Exemption	High Voltage Probe	Oscilloscope Probe	1	-	20 MHz, 100 MHz	Conical	8M	CAT III 1000V	100:1, 1000:1	6pF	78.740" (2000.00mm)	-	Case, Clips, Manual, Hook and Loop Strap, Plunger Hook Tip, Spade Terminal	ADP	1400 V	active, differential, high voltage	1	oscilloscope probe	0.3 kg	≤100MHz	Not applicable / Not applicable	Differential	1	1	6	8	New At Mouser	-	-	4MΩ/1pF	2m	-	100:1/1000:1	1kV	-	-	-	-	CAT III 1000 V	-	-	-	-	-	-	-	-	±700 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 DXC100A Test Probes Passive Dif Probe Pr Selectable, 250 MHz Teledyne LeCroy	询价	RoHS Compliant By Exemption	Passive Probes	Oscilloscope Probe	1	Black / Gray, Red / Gray	100 MHz	Conical	1M	500V	10:1, 100:1	15pF, 26pF	47.244" (1200.00mm)	-	-	DXC	500 V	-	-	-	-	-	Lead free by exemption / RoHS Compliant	-	-	-	-	-	New At Mouser	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PK400-1 Test Probes LG GRP PRB .10 PITCH W/CLR CODE LD Teledyne LeCroy	询价	RoHS Compliant By Exemption	Oscilloscope Probes	Probe Kit	1	Multiple	-	Spear	-	-	-	-	-	Bulk	-	-	-	-	-	-	-	-	Not applicable / Not applicable	-	-	-	-	-	-	PK4001	-	-	-	-	-	-	2.54 mm	Color coded set of 10	-	-	-	-	-	-	-	-	-	-	-	-	Large gripper probe set for 2.54 mm pin pitch	-	-	-	-	-	-	-	-	-	0.100" (2.54mm)	Pincer	10	-	-	-	-	-	-	-
3 WSXS-I2CBUS TD Test Accessories - Other I2C BUS TRGR & DECDE OPT FOR WSXS OSC Teledyne LeCroy	询价	RoHS Compliant By Exemption	Test Equipment	Oscilloscope	1	-	-	-	-	-	-	-	-	Bulk	-	Wavesurf	-	-	-	-	-	-	Not applicable / Not applicable	-	-	-	-	-	-	WSXSI2CBUSTD	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Software - I2Cbus	Accessories	-	-	-	-	-	-	-	-	-	-	WaveSurfer Series Oscilloscopes	LeCroy WaveSurfer MXS-B	-	-	-	-	-
MINI2EXP Test Accessories - Other Teledyne LeCroy	询价	-	Interface Adapter	-	-	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	New At Mouser	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	PCI Express Mini to ExpressCARD Adapter	Accessories	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 PP007-WR-1 Test Probes Passive Probe 500 MHz, 2.5mm tip Teledyne LeCroy	询价	RoHS Compliant By Exemption	Passive Probes	Oscilloscope Probe	1	Black	500 MHz	Sharp Point	10M	CAT I 400V, CAT II 300V	10:1	9.5pF	51.181" (1300.00mm)	Bulk	Adapters, Adjustment Tool, Coding Rings, Copper Pad, Grounds, IC Caps, Insulating Cap, Manual, Sprung Hook, Tips	PP	400 V	passive	1	oscilloscope probe	0.09 kg	≤500MHz	Not applicable / Not applicable	-	-	-	-	-	New At Mouser	PP007WR1	-	-	-	-	-	-	-	-	-	-	-	-	10:1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 PP011-1 Test Probes 500MHz Passive Probe Teledyne LeCroy	询价	RoHS Compliant By Exemption	Passive Probes	Oscilloscope Probe	1	Black	500 MHz	Sharp Point	10M	CAT I 400V, CAT II 300V	10:1	9.5pF	51.181" (1300.00mm)	Bulk	Adjustment Tool, Caps, Coding Rings, Ground Lead, Manual, Rigid Tip, Sprung Hook	PP	400 V	-	-	-	-	-	Not applicable / Not applicable	Voltage	-	-	9.5	10	New At Mouser	PP0111	400	-	-	10:1	-	-	-	-	1.3 m	-	CAT II 300 V	0.3	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZS1000-QUADPAK Test Probes 1GHZ 0.9PF 1MOHM Set of 4 probes Teledyne LeCroy	询价	RoHS Compliant By Exemption	-	Voltage Probe	1	Black	1GHz	-	1M	20V	10:1	0.9pF	51.181" (1300.00mm)	-	Adapter, Connector, Coding Rings, Copper Pad, Grounds, Hook, Leads, Manual, Tip	-	-	-	-	-	-	-	Lead free by exemption / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 PPE1.2KV Test Probes 10:1/100:1 200/300 MHz 5M Ohm/50M Ohm Teledyne LeCroy	询价	RoHS Compliant By Exemption	High Voltage Probe	Oscilloscope Probe	1	Black and Red	200 MHz, 300 MHz	Sharp Point	50M	CAT I 1200V	10:1, 100:1	6pF	78.740" (2000.00mm)	Bulk	Adapters (BNC, Security), Crocodile Clip, Ground Leads, Sprung Hook, Tips (Insulating, Spring, Straight) Trimming Tool	PPE	1.2 kV	high voltage	1	oscilloscope probe	0.34 kg	≤400MHz	Not applicable / Not applicable	-	1	1	-	-	New At Mouser	PPE12KV	-	50MΩ/6pF	2m	-	10:1/100:1	0.6/1.2kV	-	-	-	STATION WAVE	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 PPE4KV Test Probes 100:1 400 MHz 50M Ohm High-Volt Probe Teledyne LeCroy	询价	RoHS Compliant By Exemption	High Voltage Probe	Oscilloscope Probe	1	Black and Red	400 MHz	Sharp Point	50M	CAT I 4000V	100:1	6pF	78.740" (2000.00mm)	Bulk	Adapters (BNC, Security), Crocodile Clip, Ground Leads, Sprung Hook, Tips (Insulating, Spring, Straight) Trimming Tool	PPE	4 kV	high voltage	1	oscilloscope probe	0.07 kg	≤400MHz	Not applicable / Not applicable	High Voltage	1	1	6	50	New At Mouser	-	4	50MΩ/6pF	2m	100:1	100:1	4kV	-	-	2 m	STATION WAVE	-	-	-	-	-	-	-	-	-	-	-	-	-	BNC Socket	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 PPE6KV Test Probes 1000:1 400 MHz 50M Ohm High-Volt Probe Teledyne LeCroy	询价	RoHS Compliant By Exemption	High Voltage Probe	Oscilloscope Probe	1	Black and Red	400 MHz	Sharp Point	50M	CAT I 6000V	1000:1	6pF	78.740" (2000.00mm)	Bulk	Adapters (BNC, Security), Crocodile Clip, Ground Leads, Sprung Hook, Tips (Insulating, Spring, Straight) Trimming Tool	PPE	6 kV	high voltage	1	oscilloscope probe	0.07 kg	≤400MHz	Not applicable / Not applicable	High Voltage	1	1	6	50	New At Mouser	-	6	50MΩ/6pF	2m	1000:1	100:1	6kV	-	-	2 m	STATION WAVE	-	-	-	-	-	-	-	-	-	-	-	-	-	BNC Socket	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

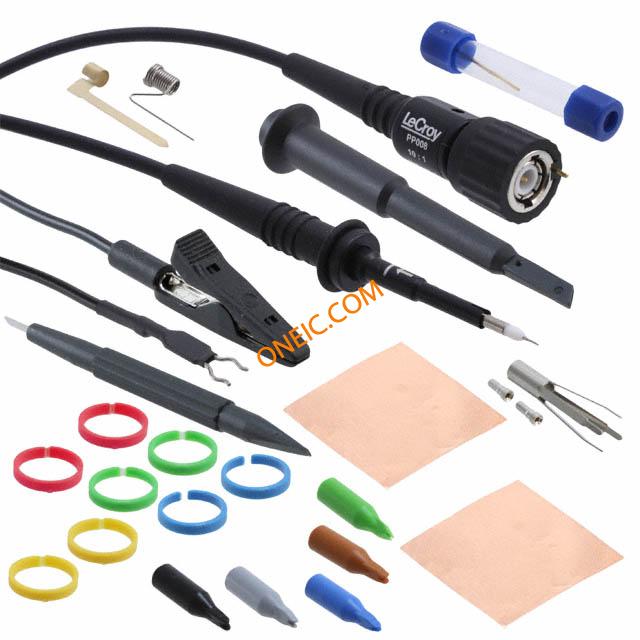

PP008-1 Test Probes 10:1 500MHZ PASV PRB FOR WR XI SRS OSC Teledyne LeCroy	询价	RoHS Compliant By Exemption	Passive Probes	Passive	1	Black	500MHz	Sharp Point	10M	CAT I 400V, CAT II 300V	10:1	9.5pF	51.181" (1300.00mm)	Bulk	Adapters, Adjustment Tool, Coding Rings, Copper Pad, Grounds, IC Caps, Insulating Cap, Manual, Sprung Hook, Tips	WaveSurfer 400, WaveRunner Xi, WaveSurfer Xs	400 V	-	-	-	-	-	-	-	-	-	-	-	-	PP0081	-	-	-	-	-	-	1300 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

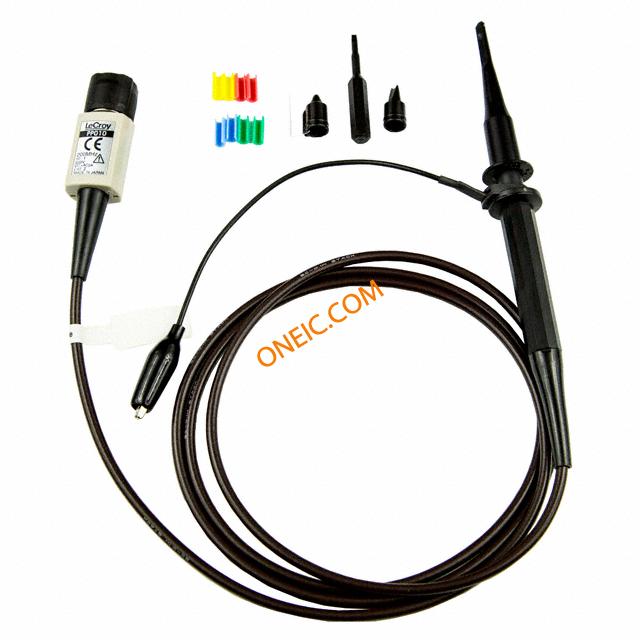

2 PP010-1 Test Probes 10:1 200MHZ PASV PRB FOR WJ SRS Teledyne LeCroy	询价	RoHS Compliant By Exemption	Passive Probes	Passive	1	Black	200MHz	Sharp Point	10M	600V (DC + AC Peak)	10:1	12.5pF	59.055" (1500.00mm)	Bulk	Adjustment Tool, Coding Rings, Grounds, IC Test Tip, Sprung Hook	WaveJet 300A	600 V	-	-	-	-	-	-	Voltage	-	-	9.5	10	-	PP0101	400	-	-	10:1	-	-	1500 mm	-	-	-	-	-	-	Black	200MHz	Passive	600V (DC + AC Peak)	PP	59.055" (1500.00mm)	-	-	-	-	-	12.5pF	10M	10:1	-	-	-	-	-	-	-	-	-	-	-	-	-

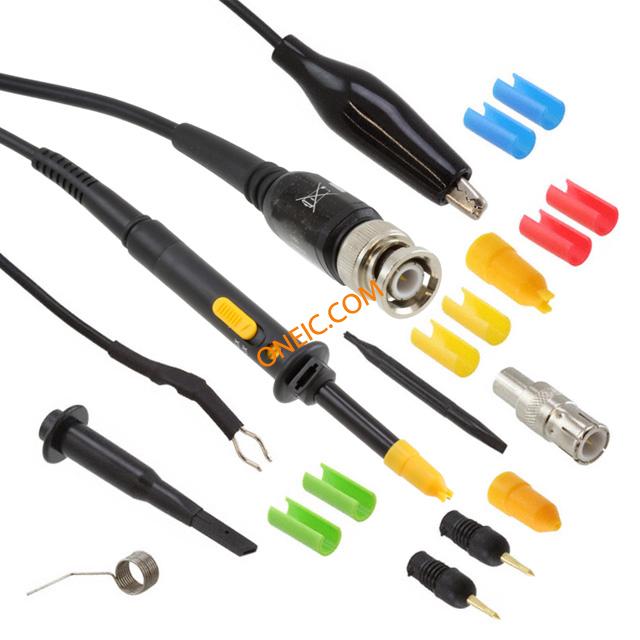

3 PP016 Test Probes 10:1 10MOHM 300MHZ PASV PRB (WA) Teledyne LeCroy	询价	RoHS Compliant By Exemption	Passive Probes	Passive	1	Black	10MHz, 300MHz	Sharp Point	1M, 10M	600V (DC + AC Peak)	1:1, 10:1	46pF, 12pF	47.244" (1200.00mm)	Bulk	Adjustment Tool, BNC Adapter, Code Rings, Ground Attachment and Lead, IC Test Tip, Replacement Tip, Sprung Hook	WaveAce	600 V	passive	1	oscilloscope probe	0.1 kg	≤300MHz	-	Voltage	-	-	12	10	-	-	600	-	-	1:1	-	-	1200 mm	-	-	STATION WAVE	-	-	10:1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

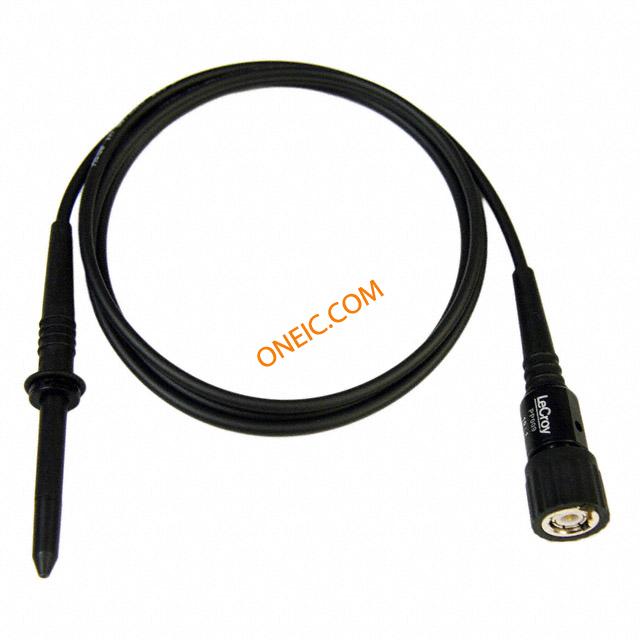

3 PP009-1 Test Probes 10, 500 MHz, 10 M Passive Probe Teledyne LeCroy	询价	RoHS Compliant By Exemption	Passive Probes	Passive	1	Black	500MHz	Sharp Point	10M	CAT I 400V, CAT II 300V	10:1	9.5pF	51.181" (1300.00mm)	Bulk	Adjustment Tool, Caps, Coding Rings, Ground Lead, Manual, Rigid Tip, Sprung Hook	PP	400 V	passive	1	oscilloscope probe	0.2 kg	≤500MHz	-	Voltage	1	1	9.5	10	-	PP0091	400	-	-	10:1	-	-	-	-	1.3 m	-	CAT II 300 V	0.3	10:1	Black	500MHz	Passive	CAT I 400V, CAT II 300V	PP	51.181" (1300.00mm)	-	Recommended for 4, 6, 8 and 17 oscilloscopes	-	-	-	9.5pF	10M	10:1	-	-	-	-	-	-	-	-	-	-	-	-	-

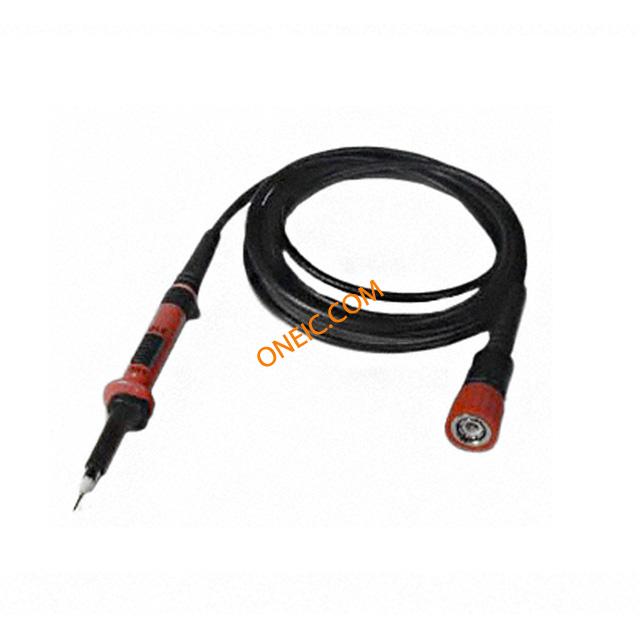

2 PPE2KV Test Probes 100:1 400MHZ 50 MOHMS HI-V PRB Teledyne LeCroy	询价	RoHS Compliant By Exemption	High Voltage Probe	Voltage Probe	1	Black and Red	400MHz	Sharp Point	50M	CAT I 2000V	100:1	6pF	78.740" (2000.00mm)	Bulk	Adapters (BNC, Security), Crocodile Clip, Ground Leads, Sprung Hook, Tips (Insulating, Spring, Straight) Trimming Tool	-	-	high voltage	1	oscilloscope probe	0.57 kg	≤400MHz	-	-	1	1	-	-	-	-	-	50MΩ/6pF	2m	-	100:1	2kV	-	2 meters	-	STATION WAVE	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

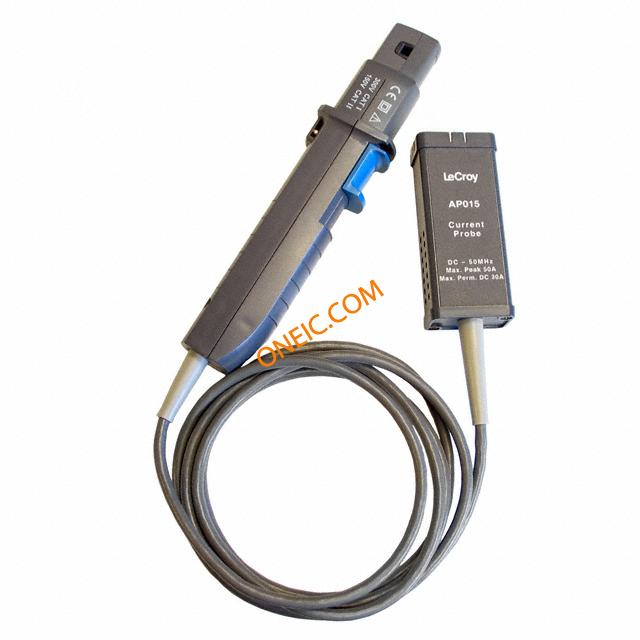

3 AP015 Test Probes 50MHZ CUR PRB Teledyne LeCroy	询价	RoHS Compliant By Exemption	Current Probes	Current Probe	1	Black	50MHz	Flat	-	CAT I 300V, CAT II 150V	-	-	78.740" (2000.00mm)	Bulk	-	-	-	current	1	oscilloscope probe	0.78 kg	≤50MHz	-	Current	1	1	-	-	-	-	-	-	2m	-	-	-	-	2 meters	-	-	CAT I 300 V	7	-	Black	50MHz	Current Probe	CAT I 300V, CAT II 150V	AP	78.740" (2000.00mm)	-	-	-	-	-	-	-	-	300g	from oscilloscope	≤3,5ns	-	-	-	-	-	30A	30A	5	30	-
3 ZD200 Test Probes 200MHZ 3.5 PF 1MOHM ACTV DIFF PRB +-20V Teledyne LeCroy	询价	RoHS Compliant By Exemption	Differential Probes	Active Differential	1	Black and Red	200MHz	Multi Point	1M	-	10:1	3.5pF	-	Bulk	Clips, Grabbers, Leads, Manual, Pin Sets, Tip	-	-	active, differential	1	oscilloscope probe	1.36 kg	≤200MHz	-	Differential	1	1	3.5	1	-	-	20	1MΩ/3,5pF	-	-	-	-	-	200 MHz bandwidth	-	-	-	1.75	-	-	-	-	-	-	-	±20 V	-	-	-	-	-	-	-	-	-	1,75ns	-	-	-	-	-	-	-	-	-	-

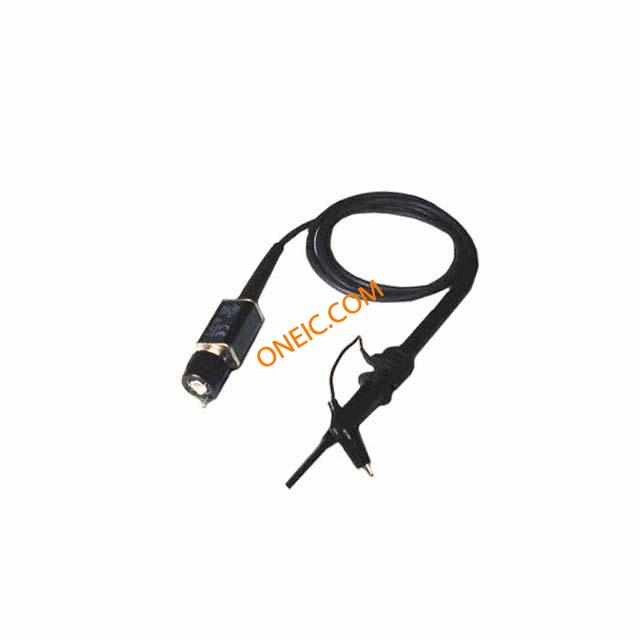

PP006A Test Probes 10:1 500MHZ PASV PRB FOR LT SRS WJ SRS Teledyne LeCroy	询价	RoHS Compliant By Exemption	Passive Probes	Passive	1	Black	500MHz	Sharp Point	10M	600V (DC + AC Peak)	10:1	12pF	47.244" (1200.00mm)	Bulk	Color bands, Ground Leads, IC Insulating Tip, Sprung Hook, Trimmer Tool	WaveJet 300A	600 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1200 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

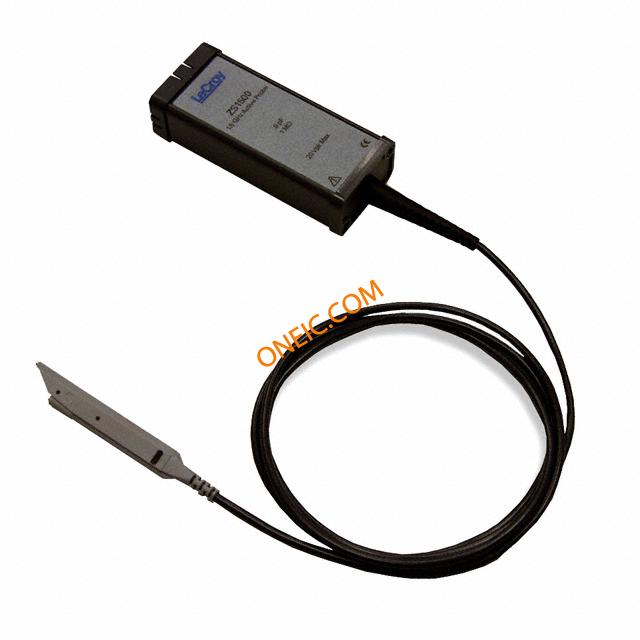

3 ZS1500 Test Probes 1.5GHZ 0.9PF 1MOHM HI IMPDNC ACTV PRB Teledyne LeCroy	询价	RoHS Compliant By Exemption	Active Probe	Voltage Probe	1	Black	1.5GHz	Multi Point	1M	20V	10:1	0.9pF	51.181" (1300.00mm)	Bulk	Adapter, Connector, Coding Rings, Copper Pad, Grounds, Hook, Leads, Manual, Tip	-	-	active	1	oscilloscope probe	0.6 kg	≤1,5GHz	-	Voltage	1	1	0.9	1	-	-	20	1MΩ/0,9pF	1.3m	10:1	10:1	20V	-	1.5 GHz bandwidth	1.3 m	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	100g	from oscilloscope	-	-	-	-	-	-	-	-	-	-	61 x 13 x 8mm
