首页
制造商
Tektronix, Inc.
同轴射频连接器

Tektronix, Inc.- 同轴射频连接器

泰克科技公司（Tektronix, Inc.）是一家全球领先的测试、测量和监测解决方案供应商。公司成立于1946年，总部位于美国俄勒冈州比弗顿。创始人在1946年发明了世界上第一台触发式示波器，奠定了电子测试领域的技术基础。历经数十年发展，泰克已从示波器创新者成长为综合测试方案的提供者。其产品线包括广受欢迎的MSO（混合信号示波器）、DPO（数字荧光示波器）和MDO（混合域示波器）系列，以及信号发生器、频谱分析仪、逻辑分析仪和各类探头。通过收购吉时利（Keithley），泰克还提供精密测量仪器，覆盖半导体材料研究等前沿领域。公司服务于通信、计算机、半导体、汽车、航空航天和教育等多个行业。泰克在全球19个国家设有办事处，始终保持工程领域的信赖。如今，泰克科技是Fortive集团旗下重要品牌，持续巩固其全球顶级测试测量设备供应商的地位。

MODELS

同轴射频连接器 - 型号列表共 13 个型号

制造商零件编号	价格/库存	Connectivity	Connector Type	Diameter	Dimensions	Length	Maximum Frequency	Maximum Measurement Speed	Maximum Operating Temperature	Maximum Power Measurement	Minimum Frequency	Minimum Operating Temperature	Weight	Frequency Range	RoHS	Equipment Type	Frequency Measuring Range	Power Measuring Range	Amplitude Accuracy	External Height	External Width	External Depth	SVHC	Series	Weight (kg)	Tariff No.	PrimaryType	Unit Weight
3 PSM4120 RF Test Equipment USB Power Meter 10MHz-8GHz Tektronix	询价	USB 2.0	Type-N	48mm	48 Dia. x 62mm	62mm	8GHz	2000sps	+50°C	+20dBm	10 MHz	0°C	149g	10 MHz to 8 GHz	RoHS Compliant By Exemption	RF Power Meter	:10MHz to 8GHz	:-60dBm to +20dBm	:± 2.6%	:62mm	:62mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM4000	0.6	90303399	PowerMeter	-
3 PSM5110 RF Test Equipment USB Power Meter 100MHz-8GHz Tektronix	询价	USB 2.0	3.5 mm	48mm	48 Dia. x 62mm	62mm	8GHz	2000sps	+50°C	+20dBm	100 MHz	0°C	110g	100 MHz to 8 GHz	RoHS Compliant By Exemption	RF Power Meter	:100MHz to 8GHz	:-60dBm to +20dBm	:± 2.6%	:62mm	:62mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM5000	0.5	90303399	PowerMeter	-
3 PSM3510 RF Test Equipment USB Power Meter 10MHz-26.5GHz Tektronix	询价	USB 2.0	3.5 mm	48mm	48 Dia. x 74mm	74mm	26.5GHz	2000sps	+50°C	+20dBm	10 MHz	0°C	164g	10 MHz to 26.5 GHz	RoHS Compliant By Exemption	RF Power Meter	:10MHz to 26.5GHz	:-55dBm to +20dBm	:± 2.6%	:74mm	:74mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM3000	0.6	90303399	PowerMeter	-
3 PSM4320 RF Test Equipment USB Power Meter 50MHz-18GHz Tektronix	询价	USB 2.0	Type-N	48mm	48 Dia. x 74mm	74mm	18.6GHz	2000sps	+50°C	+20dBm	50 MHz	0°C	163g	50 MHz to 18.6 GHz	RoHS Compliant By Exemption	RF Power Meter	:50MHz to 18Ghz	:-40dBm to +20dBm	:± 2.6%	:74mm	:74mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM4000	0.6	90303399	PowerMeter	-
3 PSM5120 RF Test Equipment USB Power Meter 100MHz-8GHz Tektronix	询价	USB 2.0	Type-N	48mm	48 Dia. x 62mm	62mm	8GHz	2000sps	+50°C	+20dBm	100 MHz	0°C	149g	100 MHz to 8 GHz	RoHS Compliant By Exemption	RF Power Meter	:100MHz to 8GHz	:-60dBm to +20dBm	:± 2.6%	:62mm	:62mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM5000	0.6	90303399	PowerMeter	-
3 PSM3120 RF Test Equipment USB Power Meter 10MHz-8GHz Tektronix	询价	USB 2.0	Type-N	48mm	48 Dia. x 74mm	74mm	8GHz	2000sps	+50°C	+20dBm	10 MHz	0°C	203g	10 MHz to 8 GHz	RoHS Compliant By Exemption	RF Power Meter	:10MHz to 8GHz	:-55dBm to +20dBm	:± 2.6%	:74mm	:74mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM3000	0.6	90303399	PowerMeter	-
3 PSM4110 RF Test Equipment USB Power Meter 10MHz-8GHz Tektronix	询价	USB 2.0	3.5 mm	48mm	48 Dia. x 62mm	62mm	8GHz	2000sps	+50°C	+20dBm	10 MHz	0°C	110g	10 MHz to 8 GHz	RoHS Compliant By Exemption	RF Power Meter	:10MHz to 8GHz	:-60dBm to +20dBm	:± 2.6%	:62mm	:62mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM4000	0.5	90303399	PowerMeter	-
3 PSM4410 RF Test Equipment USB Power Meter 50MHz-20GHz Tektronix	询价	USB 2.0	3.5 mm	48mm	48 Dia. x 74mm	74mm	20GHz	2000sps	+55°C	+20dBm	50 MHz	0°C	124g	50 MHz to 20 GHz	RoHS Compliant By Exemption	RF Power Meter	:50MHz to 20GHz	:-40dBm to +20dBm	:± 2.6%	:74mm	:74mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM4000	0.6	90303399	PowerMeter	-
3 PSM5320 RF Test Equipment USB Power Meter 50MHz-18GHz Tektronix	询价	USB 2.0	Type-N	48mm	48 Dia. x 74mm	74mm	18.6GHz	2000sps	+50°C	+20dBm	50 MHz	0°C	163g	50 MHz to 18.6 GHz	RoHS Compliant By Exemption	RF Power Meter	:50MHz to 18Ghz	:-40dBm to +20dBm	:± 2.6%	:74mm	:74mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM5000	0.6	90303399	PowerMeter	-
3 PSM3110 RF Test Equipment USB Power Meter 10MHz-8GHz Tektronix	询价	USB 2.0	3.5 mm	48mm	48 Dia. x 74mm	74mm	8GHz	2000sps	+50°C	+20dBm	10 MHz	0°C	164g	10 MHz to 8 GHz	RoHS Compliant By Exemption	RF Power Meter	:10MHz to 8GHz	:-55dBm to +20dBm	:± 2.6%	:74mm	:74mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM3000	0.6	90303399	PowerMeter	-
3 PSM3310 RF Test Equipment USB Power Meter 10MHz-18GHz Tektronix	询价	USB 2.0	3.5 mm	48mm	48 Dia. x 74mm	74mm	18GHz	2000sps	+50°C	+20dBm	10 MHz	0°C	164g	10 MHz to 18 GHz	RoHS Compliant By Exemption	RF Power Meter	:10MHz to 18GHz	:-55dBm to +20dBm	:± 2.6%	:74mm	:74mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM3000	0.6	90303399	PowerMeter	-
3 PSM3320 RF Test Equipment USB Power Meter 10MHz-18GHz Tektronix	询价	USB 2.0	Type-N	48mm	48 Dia. x 74mm	74mm	18GHz	2000sps	+50°C	+20dBm	10 MHz	0°C	203g	10 MHz to 18 GHz	RoHS Compliant By Exemption	RF Power Meter	:10MHz to 18GHz	:-55dBm to +20dBm	:± 2.6%	:74mm	:74mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM3000	0.6	90303399	PowerMeter	-

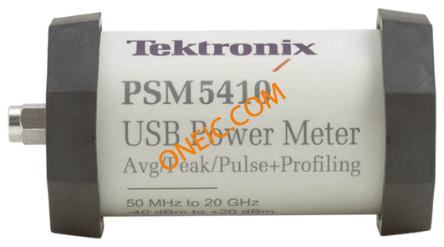

3 PSM5410 RF Test Equipment Power Sensors/Meter RF and Microwave Tektronix	询价	USB 2.0	3.5 mm	48mm	48 Dia. x 74mm	74mm	20GHz	2000sps	+50°C	+20dBm	50 MHz	0°C	124g	50 MHz to 20 GHz	RoHS Compliant By Exemption	RF Power Meter	:50MHz to 20GHz	:-40dBm to +20dBm	:± 2.6%	:74mm	:74mm	:48mm	:Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013)	:PSM5000	0.6	90303399	PowerMeter	5.749999 oz
