TDK Corporation- RFID/NFC组件

TDK株式会社（TDK Corporation）原名为东京电气化学工业株式会社，由加藤与五郎博士和武井武博士于1935年创立，总部位于日本东京，是一家全球领先的电子元器件制造商。公司以铁氧体磁性材料技术起家，奠定了在无源电子元件领域的核心优势。TDK的产品线极为丰富，包括多层陶瓷电容器（MLCC）的CeraLink系列、电感器如CLF、NLV、VLS系列、铁氧体磁珠、变压器及电磁兼容（EMC）元件。通过收购InvenSense和Micronas，TDK还提供MEMS运动传感器和霍尔效应磁性传感器等先进传感器解决方案，以及TDK-Lambda品牌的电源模块产品。公司还积极研发可充电电池，包括下一代固态电池技术。在全球市场中，TDK是电感器和MLCC等无源元件领域的顶尖供应商之一，在多个细分市场占据领先份额。其产品广泛应用于汽车电子、工业设备、智能手机、信息通信基础设施等领域。通过整合EPCOS（现为TDK Electronics）等知名品牌，TDK不断扩展技术版图。TDK致力于微型化、高性能和高可靠性，以满足日益严苛的应用需求。公司凭借强大的全球研发体系和材料科学创新，持续推动电子元器件的技术进步。

RFID/NFC组件 - 型号列表

共 16 个型号

制造商零件编号	库存	价格	工作温度	标准包装数量	封装形式	产品	其他名称	产品类别	RoHS	插入损耗	频率范围	频段（低/高）	回波损耗（低频段/高频段）	低频段衰减（最小/最大 dB）	高频段衰减（最小/最大 dB）	包装方式	安装类型	端接样式	类型	系列	阻抗	频率
B39212B7959P810 SAW Duplexer TDK Corporation	-		-30 to 85 °C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B39941B7953E110 SAW Duplexer TDK Corporation	10	3000: ¥7.31	-30 to 85 °C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B39881B7669A710 SAW Duplexer 9-Pin SMT TDK Corporation	10	9000: ¥2.72	-30 to 85 °C	Tape & Reel	9SMT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B39212B7697E110 SAW Duplexer TDK Corporation	10	3000: ¥4.505	-30 to 85 °C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DPX202700DT-4035B5 DIPLEXER Signal Conditioning .698/1.92MHz IL .31dB typ TDK Corporation	1251	1: ¥6.12	- 40 C to + 85 C	2,000	2 mm x 1.25 mm x 0.9 mm	Diplexers	445-15625-2	Signal Conditioning	Lead free / RoHS Compliant	0.74 dB, 0.75 dB	1572 MHz to 1578 MHz, 1920 MHz to 1990 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	-	-
DPX205850DT-4152B2 DIPLEXER Signal Conditioning .704/2.4GHz IL .65dB typ TDK Corporation	1939	1: ¥6.12	- 40 C to + 85 C	2,000	2 mm x 1.25 mm x 0.9 mm	Diplexers	445-15624-2	Signal Conditioning	Lead free / RoHS Compliant	0.4 dB, 0.65 dB	1572 MHz to 1578 MHz, 5150 MHz to 5850 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	-	-

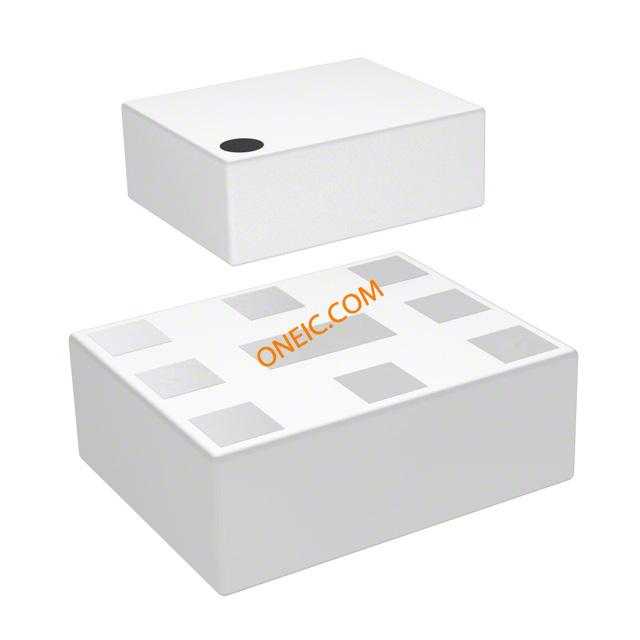

DPX252500DT-5217A1 DIPLEXER Signal Conditioning 1.572/2.4GHz IL .4dB typ TDK Corporation	150	1: ¥0.611	- 40 C to + 85 C	2,000	2.5 mm x 2 mm x 0.9 mm	Diplexers	445-15628-2	Signal Conditioning	Lead free / RoHS Compliant	0.4 dB, 2.1 dB	1572 MHz to 1578 MHz, 2400 MHz to 2500 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	-	-

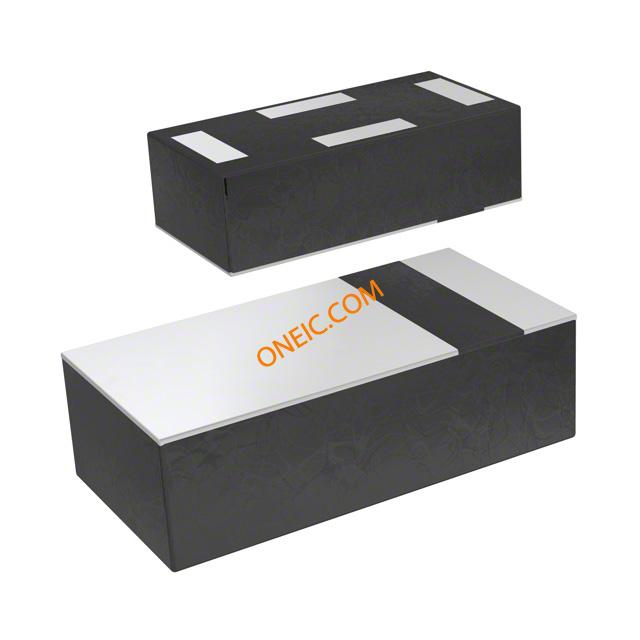

TFSD10055950-5102A2 THIN-FILM DIPLEXER 2.4/5GHZ WLAN Signal Conditioning 2.4/4.9GHz IL 0.43dB typ TDK Corporation	9910	1: ¥10.88	- 40 C to + 85 C	10,000	1 mm x 0.5 mm x 0.3 mm	Diplexers	445-15669-2	Signal Conditioning	Lead free / RoHS Compliant	0.35 dB, 0.35 dB	2400 MHz to 2500 MHz, 4900 MHz to 5950 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Thin-film Diplexer	*	50 Ohms	-
DPX165900DT-8025A1 DIPLEXER 2.4/5GHZ WLAN Signal Conditioning 2.4/4.8GHz IL 0.36dB typ TDK Corporation	3179	1: ¥0.5852	- 40 C to + 85 C	4,000	1.6 mm x 0.8 mm x 0.6 mm	Diplexers	445-15671-1	Signal Conditioning	Lead free / RoHS Compliant	0.36 dB, 0.83 dB	2400 MHz to 2500 MHz, 5100 MHz to 5900 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	-	-
DPX165950DT-8118A1 DIPLEXER 2.4/5GHZ WLAN Signal Conditioning 2.4/4.9GHz IL 0.3dB typ TDK Corporation	2846	1: ¥5.576	- 40 C to + 85 C	4,000	1.6 mm x 0.8 mm x 0.6 mm	Diplexers	445-15631-2	Signal Conditioning	Lead free / RoHS Compliant	0.51 dB, 0.64 dB	2400 MHz to 2500 MHz, 4900 MHz to 5850 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	50 Ohms	2.4 GHz, 5 GHz
DPX165850DT-8117A1 DIPLEXER 2.4/5GHZ WLAN Signal Conditioning 2.4/4.9GHz IL 0.3dB typ TDK Corporation	10	5: ¥0.7904	- 40 C to + 85 C	4,000	1.6 mm x 0.8 mm x 0.6 mm	Diplexers	445-15629-2	Signal Conditioning	Lead free / RoHS Compliant	0.27 dB, 0.45 dB	2400 MHz to 2500 MHz, 4900 MHz to 5850 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	50 Ohms	2.4 GHz, 5 GHz
DPX202170DT-4049A1 DIPLEXER Signal Conditioning .824/1.71GHz IL 0.24dB typ TDK Corporation	10	1: ¥9.198	- 40 C to + 85 C	2,000	2 mm x 1.25 mm x 0.95 mm	Diplexers	445-15619-2	Signal Conditioning	Lead free / RoHS Compliant	0.24 dB, 0.38 dB	824 MHz to 960 MHz, 1710 MHz to 2170 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	-	-
DPX202170DT-4149A1 DIPLEXER Signal Conditioning .824/1.71GHz IL .3dB typ TDK Corporation	1068	5: ¥1.4331	- 40 C to + 85 C	2,000	2 mm x 1.25 mm x 0.9 mm	Diplexers	445-15620-2	Signal Conditioning	Lead free / RoHS Compliant	0.3 dB, 0.5 dB	824 MHz to 960 MHz, 1710 MHz to 2170 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	-	-
DPX202500DT-9032A1 DIPLEXER Signal Conditioning .824/2.4GHz IL .23dB typ TDK Corporation	947	1: ¥6.12	- 40 C to + 85 C	2,000	2 mm x 1.25 mm x 0.9 mm	Diplexers	445-15618-2	Signal Conditioning	Lead free / RoHS Compliant	0.23 dB, 0.66 dB, 1.2 dB, 1.52 dB	2110 MHz to 2170 MHz, 2400 MHz to 2500 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	-	-
DPX205950DT-9126A1 DIPLEXER 2.4/5GHZ WLAN Signal Conditioning 2.4/4.9GHz IL 0.3dB typ TDK Corporation	663	5: ¥0.9236	- 40 C to + 85 C	2,000	2 mm x 1.25 mm x 0.6 mm	Diplexers	445-15635-2	Signal Conditioning	Lead free / RoHS Compliant	0.3 dB, 0.37 dB	2400 MHz to 2500 MHz, 4900 MHz to 5950 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Multilayer Diplexers	*	-	2.4 GHz, 5 GHz
TFSD10055950-5001C1 THIN-FILM DIPLEXER 2.4/5GHZ WLAN Signal Conditioning 2.4/4.9GHz IL 0.5dB typ TDK Corporation	9685	1: ¥10.88	- 40 C to + 85 C	10,000	1 mm x 0.5 mm x 0.3 mm	Diplexers	445-15668-2	Signal Conditioning	Lead free / RoHS Compliant	0.43 dB, 0.49 dB	2400 MHz to 2500 MHz, 4900 MHz to 5950 MHz	*	*	*	*	Reel	Surface Mount	SMD/SMT	Thin-film Diplexer	*	50 Ohms	-

第 1 / 1 页
