Tamura Corporation- 电源变压器

田村制作所（Tamura Corporation）创立于1924年，总部位于日本东京，是电子元件和焊接材料的领先制造商。1951年在美国成立的Microtran Corporation专注于高质量磁性元件，后成为田村全球业务的一部分。公司核心业务涵盖电力电子、磁性元件和化学焊接解决方案。主要产品系列包括电源变压器、音频变压器、电抗器、DC-DC转换器和交流适配器，在商用和军用领域以高可靠性著称。田村还提供焊锡膏、助焊剂和焊锡条等全面焊接材料，支持电子组装行业。在半导体和无源元件市场中，田村于功率磁性元件和定制电感元件方面占据较强地位，服务于汽车、工业和消费电子领域。公司产品设计注重小型化、高效率和环保合规性，体现“以信任连接世界技术”的企业理念。凭借在亚洲和北美的先进制造设施，田村为大批量和特殊需求提供具有成本效益的高质量解决方案。其定制设计技术能力能够根据客户精确要求修改目录产品。田村持续创新节能技术，强化了其在可靠性和性能方面的全球声誉。

电源变压器 - 型号列表

共 179 个型号

制造商零件编号	库存	价格	产品类别	工厂包装数量	RoHS	端接样式	类型	标准包装数量	安装类型	尺寸/外形	安装高度（最大）	初级电压	次级绕组	初级绕组	产品	输出电流	隔离电压	次级满载电压	中心抽头	额定功率	高度	安装样式	最大功率	阻抗	插入损耗	变压器类型	包装方式	频率	宽度	长度	系列	额定电流（每触点）
3FL230-25 Transformers Audio & Signal POWER TRANSFORMER Power Transformers 6VA 230Vac 0.025A Power Transformer Power Transformer 1500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 230V/115V Sec. Flange Mount/Through Hole Transformers Tamura	59	1: ¥33.524	Power Transformers	90	RoHS Compliant	Solder Pin	Low Profile Power Transformer	-	-	-	-	115 VAC, 230 VAC	Dual Secondary Winding	Dual Primary Winding	Power Transformers	-	-	-	-	6 VA	21.6 mm	Through Hole	-	-	-	-	-	50 Hz, 60 Hz	39.6 mm	47.6 mm	3FL	-
4 T1104 TRANSFORMER TELE 600 OHM 0 MADC Power Transformers Pri/Sec 600ohm 1dB@1KHz Telecom Transformer 1500Vrms 46Ohm Prim. DCR 63Ohm Sec. DCR 1dB Through Hole Coupling Transformers Tamura	980	1: ¥32.504	Power Transformers	600/20	RoHS Compliant	PC Pin	Transformers	600	Through Hole	19.81mm L x 16.61mm W	11.91mm	-	-	-	-	-	-	-	-	-	-	-	-	600 Primary, 600 Secondary	1dB Typ.	Data/Voice Coupling	-	-	-	-	-	-

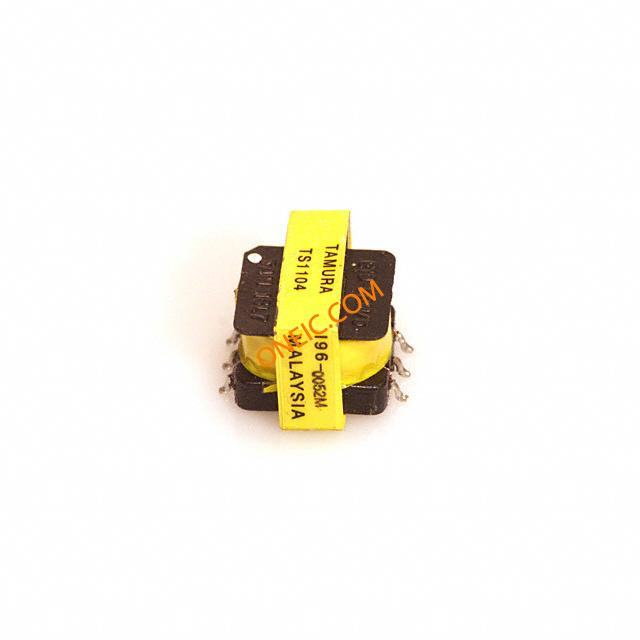

2 TS1104 TRANSF 600 OHM SPLIT OMA -1.0 D Power Transformers Pri/Sec 600ohm 1.5dB@1KHz Telecom Transformer 1:1.06 1500Vrms 46Ohm Prim. DCR 63Ohm Sec. DCR 1.5dB Surface Mount Hybrid - Surface Mount Transformers Tamura	10	135: ¥33.456	Power Transformers	200	In Transition	Gull Wing	Transformers	200	Surface Mount	20.09mm L x 17.50mm W	12.70mm	-	-	-	-	-	-	-	-	-	-	-	-	600 Primary, 600 Secondary	1dB Typ.	Data/Voice Coupling	Reel	-	-	-	-	-

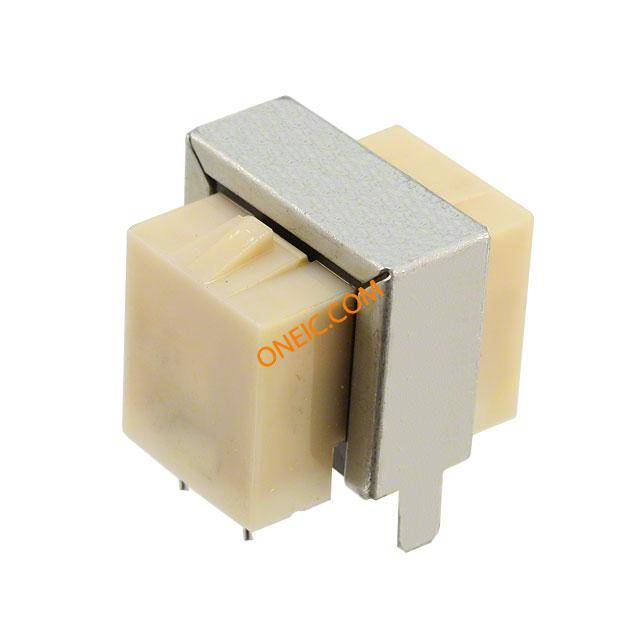

2 10A009 TRANSFORMER PWR F 10VCT .05A XFRMR LAMINATED THRU HOLE Power Transformers 230V 50/60Hz 10VCT 0.05A Power Transformer 4000Vrms Single Prim. Single Sec. 230V Prim. 10V Sec. Through Hole Transformers Tamura	490	1: ¥95.54	Power Transformers	50	In Transition	PC Pin	Laminated Core	50	Through Hole	29.46mm L x 28.45mm W	27.94mm	230V	Single	Single	-	50mA	4000Vrms	10V	Yes	-	-	-	-	-	-	-	-	-	-	-	-	-
5 3FS-212 TRANSFORMER SINGLE 6.3VAC .180A XFRMR LAMINATED 1.1VA THRU HOLE Power Transformers 12.6VAC CT 1.1VA Single Primary Power Transformer 2500Vrms Single Prim. Dual Sec. 115V Prim. 12.6V/6.3V Sec. Through Hole Transformers Tamura	3000	1: ¥30.192	Power Transformers	80	RoHS Compliant	PC Pin	Laminated Core	80	Through Hole	35.56mm L x 31.00mm W	25.40mm	115V	Dual	Single	Power Transformers	Parallel 180mA, Series 90mA	2500Vrms	Parallel 6.3V, Series 12.6V	No	1.1 VA	25.4 mm	Through Hole	1.1 VA	-	-	-	-	-	-	-	-	-
5 3FS-216 TRANSFORMER SINGLE 8VAC .140A XFRMR LAMINATED 1.1VA THRU HOLE Power Transformers 16VCT@0.07A 8V@0.14A Single Primary Power Transformer 2500Vrms Single Prim. Dual Sec. 115V Prim. 16V/8V Sec. Through Hole Transformers Tamura	1037	1: ¥34.544	Power Transformers	80	RoHS Compliant	PC Pin	Laminated Core	80	Through Hole	35.56mm L x 31.00mm W	25.40mm	115V	Dual	Single	Power Transformers	Parallel 140mA, Series 70mA	2500Vrms	Parallel 8V, Series 16V	No	1.1 VA	25.4 mm	Through Hole	1.1 VA	-	-	-	-	-	-	-	-	-
5 3FS-220 TRANSFORMER SINGLE 10VAC .110A XFRMR LAMINATED 1.1VA THRU HOLE Power Transformers 20VCT@.055A 10V@.11A Single Primary Power Transformer 2500Vrms Single Prim. Dual Sec. 115V Prim. 20V/10V Sec. Through Hole Transformers Tamura	555	1: ¥30.192	Power Transformers	80	RoHS Compliant	PC Pin	Laminated Core	80	Through Hole	35.56mm L x 31.00mm W	25.40mm	115V	Dual	Single	Power Transformers	Parallel 110mA, Series 55mA	2500Vrms	Parallel 10V, Series 20V	No	1.1 VA	25.4 mm	Through Hole	1.1 VA	-	-	-	-	-	-	-	-	-
6 3FS-256 TRANSFORMER SINGLE 28VAC .04A XFRMR LAMINATED 1.1VA THRU HOLE Power Transformers 1.1VA 28V@0.04A 56V@0.02A Power Transformer 2500Vrms Single Prim. Dual Sec. 115V Prim. 56V/28V Sec. Through Hole Transformers Tamura	359	1: ¥19.312	Power Transformers	80	RoHS Compliant	PC Pin	Laminated Core	80	Through Hole	35.56mm L x 31.00mm W	25.40mm	115V	Dual	Single	Power Transformers	Parallel 40mA, Series 20mA	2500Vrms	Parallel 28V, Series 56V	No	-	-	-	1.1 VA	-	-	-	-	-	-	-	-	-
5 3FS-210 TRANSFORMER SINGLE 5VAC .220A XFRMR LAMINATED 1.1VA THRU HOLE Power Transformers 10VCT@0.11A 5V@0.22A Single Primary Power Transformer 2500Vrms Single Prim. Dual Sec. 115V Prim. 10V/5V Sec. Through Hole Transformers Tamura	1704	1: ¥34.544	Power Transformers	80	RoHS Compliant	PC Pin	Laminated Core	80	Through Hole	35.56mm L x 31.00mm W	25.40mm	115V	Dual	Single	Power Transformers	Parallel 220mA, Series 110mA	2500Vrms	Parallel 5V, Series 10V	No	1.1 VA	25.4 mm	Through Hole	1.1 VA	-	-	-	-	-	-	-	-	-

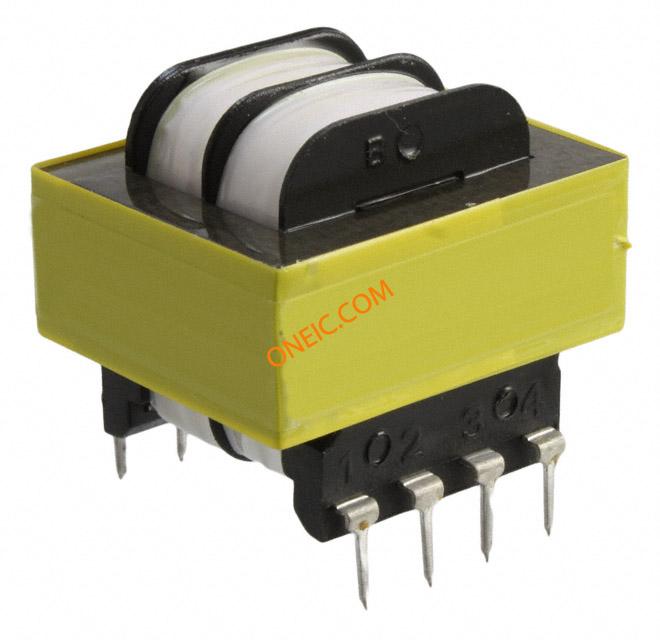

5 3FD-316 TRANSFORMER DUAL 8VAC .30A XFRMR LAMINATED 2.4VA THRU HOLE Power Transformers 16VCT@0.15A 8V@0.3A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 16V/8V Sec. Through Hole Transformers Tamura	2378	1: ¥22.916	Power Transformers	60	RoHS Compliant	PC Pin	Laminated Core	60	Through Hole	35.56mm L x 31.00mm W	38.00mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 300mA, Series 150mA	2500Vrms	Parallel 8V, Series 16V	No	2.4 VA	32 mm	Through Hole	2.4 VA	-	-	-	-	-	-	-	-	0.15 A, 0.3 A

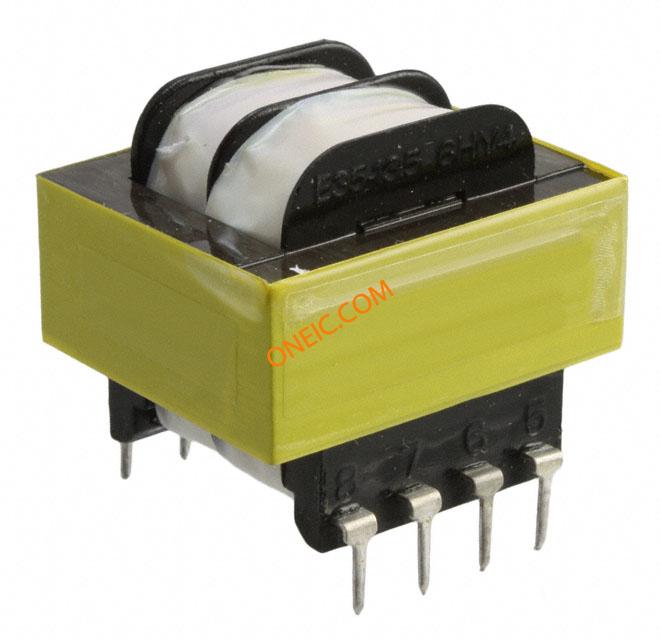

5 3FD-320 TRANSFORMER DUAL 10VAC .240A XFRMR LAMINATED 2.4VA THRU HOLE Power Transformers 20VCT@.12A 10V@.24A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 20V/10V Sec. Through Hole Transformers Tamura	11744	1: ¥25.024	Power Transformers	60	RoHS Compliant	PC Pin	Laminated Core	60	Through Hole	35.56mm L x 31.00mm W	32.10mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 240mA, Series 120mA	2500Vrms	Parallel 10V, Series 20V	No	2.4 VA	32 mm	Through Hole	2.4 VA	-	-	-	Tray	-	-	-	-	-
5 3FD-336 TRANSFORMER DUAL 18VAC .130A XFRMR LAMINATED 2.4VA THRU HOLE Power Transformers 36VCT@.065A 18V@.13A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 36V/18V Sec. Through Hole Transformers Tamura	2637	1: ¥22.916	Power Transformers	60	RoHS Compliant	PC Pin	Laminated Core	60	Through Hole	35.56mm L x 31.00mm W	32.10mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 130mA, Series 65mA	2500Vrms	Parallel 18V, Series 36V	No	2.4 VA	32 mm	Through Hole	2.4 VA	-	-	-	-	-	-	-	-	-
5 3FD-328 TRANSFORMER DUAL 14VAC .170A XFRMR LAMINATED 2.4VA THRU HOLE Power Transformers 28VCT@.085A 14V@.17A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 28V/14V Sec. Through Hole Transformers Tamura	256	1: ¥22.916	Power Transformers	60	RoHS Compliant	PC Pin	Laminated Core	10	Through Hole	35.56mm L x 31.00mm W	38.00mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 170mA, Series 85mA	2500Vrms	Parallel 14V, Series 28V	No	2.4 VA	32 mm	Through Hole	2.4 VA	-	-	-	-	-	-	-	-	-
5 3FD-312 TRANSFORMER DUAL 6.5VAC .40A XFRMR LAMINATED 2.4VA THRU HOLE Power Transformers 12.6VCT@.2A 6.3V@.4A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 12.6V/6.3V Sec. Through Hole Transformers Tamura	39	39: ¥55.216	Power Transformers	60	RoHS Compliant	PC Pin	Laminated Core	60	Through Hole	35.56mm L x 31.00mm W	38.00mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 400mA, Series 200mA	2500Vrms	Parallel 6.3V, Series 12.6V	No	2.4 VA	32 mm	Through Hole	2.4 VA	-	-	-	-	-	-	-	-	-
5 3FD-324 TRANSFORMER DUAL 12VAC .20A XFRMR LAMINATED 2.4VA THRU HOLE Power Transformers 24VCT@0.1A 12V@0.2A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 24V/12V Sec. Through Hole Transformers Tamura	1105	1: ¥22.916	Power Transformers	60	RoHS Compliant	PC Pin	Laminated Core	60	Through Hole	35.56mm L x 31.00mm W	38.00mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 200mA, Series 100mA	2500Vrms	Parallel 12V, Series 24V	No	2.4 VA	32 mm	Through Hole	2.4 VA	-	-	-	-	-	-	-	-	-
5 3FD-310 TRANSFORMER DUAL 5VAC .50A XFRMR LAMINATED 2.4VA THRU HOLE Power Transformers 10VCT@0.25A 5V@0.5A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 10V/5V Sec. Through Hole Transformers Tamura	591	1: ¥35.02	Power Transformers	60	RoHS Compliant	PC Pin	Laminated Core	60	Through Hole	35.56mm L x 31.00mm W	32.10mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 500mA, Series 250mA	2500Vrms	Parallel 5V, Series 10V	No	2.4 VA	32 mm	Through Hole	2.4 VA	-	-	-	-	-	-	-	-	-
5 3FD-348 TRANSFORMER DUAL 24VAC .100A XFRMR LAMINATED 2.4VA THRU HOLE Power Transformers 48VCT@0.05A 24V@0.1A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 48V/24V Sec. Through Hole Transformers Tamura	3258	1: ¥22.916	Power Transformers	60	RoHS Compliant	PC Pin	Laminated Core	60	Through Hole	35.56mm L x 31.00mm W	38.00mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 100mA, Series 50mA	2500Vrms	Parallel 24V, Series 48V	No	2.4 VA	32 mm	Through Hole	2.4 VA	-	-	-	-	-	-	-	-	-

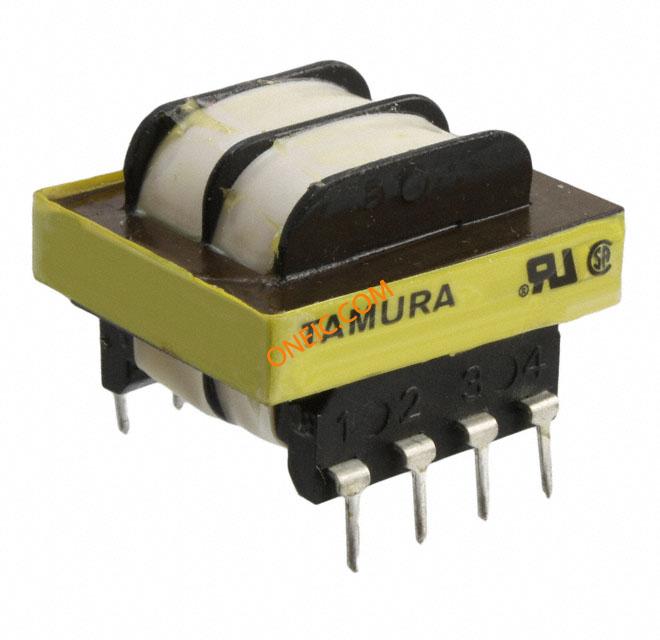

5 3FD-212 TRANSFORMER DUAL 6.3VAC .180A XFRMR LAMINATED 1.1VA THRU HOLE Power Transformers 12.6VAC CT 1.1VA Dual Primary Transformers Tamura	2409	1: ¥31.756	Power Transformers	80	RoHS Compliant	PC Pin	Laminated Core	80	Through Hole	35.56mm L x 31.00mm W	38.00mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 180mA, Series 90mA	2500Vrms	Parallel 6.3V, Series 12.6V	No	1.1 VA	25.4 mm	Through Hole	1.1 VA	-	-	-	-	-	-	-	-	-
5 3FD-216 TRANSFORMER DUAL 8VAC .140A XFRMR LAMINATED 1.1VA THRU HOLE Power Transformers 16VCT@0.07A 8V@0.14A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 16V/8V Sec. Through Hole Transformers Tamura	5345	1: ¥31.756	Power Transformers	80	RoHS Compliant	PC Pin	Laminated Core	80	Through Hole	35.56mm L x 31.00mm W	38.00mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 140mA, Series 70mA	2500Vrms	Parallel 8V, Series 16V	No	1.1 VA	25.4 mm	Through Hole	1.1 VA	-	-	-	-	-	-	-	-	-

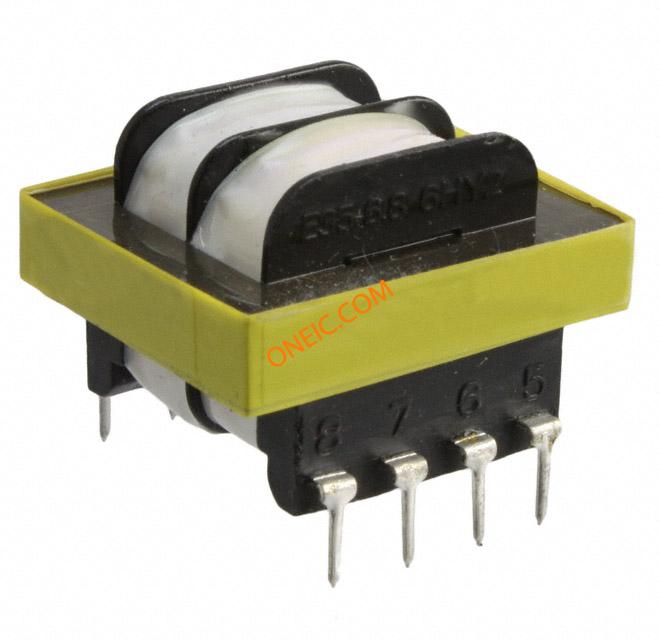

6 3FD-210 TRANSFORMER DUAL 5.0VAC .220A XFRMR LAMINATED 1.1VA THRU HOLE Power Transformers 10VCT@0.11A 5V@0.22A Dual Primary Power Transformer 2500Vrms Dual Prim. Dual Sec. 230V/115V Prim. 10V/5V Sec. Through Hole Transformers Tamura	703	1: ¥31.756	Power Transformers	80	RoHS Compliant	PC Pin	Laminated Core	80	Through Hole	35.56mm L x 31.00mm W	25.40mm	115V, 230V	Dual	Dual	Power Transformers	Parallel 220mA, Series 110mA	2500Vrms	Parallel 5V, Series 10V	No	1.1 VA	25.4 mm	Through Hole	1.1 VA	-	-	-	-	-	-	-	-	-
