Switchcraft公司成立于1946年，总部位于美国伊利诺伊州芝加哥市。作为领先的电子元件制造商，公司专注于高性能连接器、开关、插座及电缆组件的设计与生产。其产品广泛应用于音视频、电信、计算机、医疗、军事、交通及仪器仪表等关键行业。Switchcraft提供超过5,000种标准产品，并擅长快速响应、小批量的定制工程服务。公司拥有两处生产基地：芝加哥185,000平方英尺工厂负责电气与机电组件，邻近的Conxall工厂35,000平方英尺专注于定制电缆组装。核心产品线包括Switchcraft品牌的XLR连接器、莲花座、拨动开关、按钮开关，以及Conxall品牌的圆形防水密封连接器。Switchcraft通过了ISO 9001质量体系认证，产品符合UL、CSA、VDE及多项军规标准。在专业音频和广播领域，公司是公认的行业标准制定者，以坚固耐用的连接方案闻名。2011年加入HEICO集团后，技术研发与市场能力进一步强化。七十余年来，Switchcraft始终是严苛环境连接器和开关领域的行业标杆。

MODELS

连接器外壳 - 型号列表共 54 个型号

制造商零件编号	价格/库存	EU RoHS	Type	Color	Standard Package	rohs	Factory Pack Quantity	Product Category	RoHS	Number of Contacts	Mounting	Body Orientation	Housing Material	Number of Ports	Contact Plating	Gender	Number of Terminals	Contact Material	Mounting Type	Termination	Connector Type	Shell Material, Finish	Contact Finish	Packaging	Operating Temperature	Fastening Type	Current Rating	Number of Positions	Voltage Rating	Termination Style	Standard	Mounting Style	Number of Positions / Contacts	Maximum Operating Temperature	Termination Method	Maximum Voltage Rating	Minimum Operating Temperature	Maximum Current Rating	Product Height	Series	Product Depth	Product Length	Orientation	Product Diameter	Subcategory	Lead Time	Features	Accessory Type	Material	For Use With/Related Products	Height	Length	Tradename	Maximum Bundle Diameter
2 EN3BOOT Standard Circular Connector PROTECTIVE BOOT Switchcraft	询价	Compliant	Boot	Black	1	Lead free / RoHS non-compliant	100	Cable Boots	RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	EN3	-	27.68	-	15.87	Connector Accessories	44 Days	Strain Relief	Boot	Thermoplastic Rubber	EN3® Connectors	1.09 in	0.625 in	EN3	0.434 in
HPCP420PC Loudspeaker Connectors 4 PIN PANEL CON RECT PRINTED CIRCUIT Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange	Solder	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	30A	4	1.5 kV	Solder	Speakon, HPC	PCB	4	85	Solder	1500VAC	-55	30	27.1	HPC	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HPCP41RA Loudspeaker Connectors HPC CON RIGHT ANGLE Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	In Transition	4Power	Panel Mount	Right Angle	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange; Through Hole, Right Angle	Solder	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	30A	4	1.5 kV	Solder	Speakon, HPC	PCB	4	85	Solder	1500VAC	-55	30	-	HPC	32.9	-	Right Angle	-	-	-	-	-	-	-	-	-	-	-

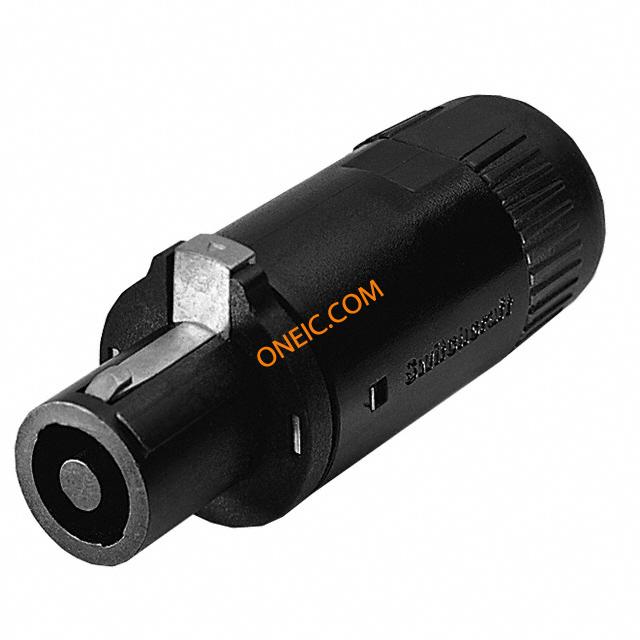

3 HPCI4F Loudspeaker Connectors 4P INLINE .250FASTON Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	100	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Free Hanging (In-Line)	Quick Connect Tab - 0.250" (6.35mm)	Plug, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	26.7	HPC	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HPCP41F1 Loudspeaker Connectors 4 PIN PANEL CON RECT .187 FASTON Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.187" (4.75mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	28.19	HPC	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 HPCC4F Loudspeaker Connectors STRAIGHT CORD PLUG Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	100	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Free Hanging (In-Line)	Quick Connect Tab - 0.250" (6.35mm)	Plug, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	26.7	HPC	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HPCPR41F1 Loudspeaker Connectors 4 PIN PANEL CON RND .187 FASTON Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.187" (4.75mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	28.19	HPC	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HPCP42F Loudspeaker Connectors 4 PIN PANEL CON RECT .250 FASTON Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.250" (6.35mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	26.7	HPC	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HPCPR42F Loudspeaker Connectors 4 PIN PANEL CON RND .250 FASTON Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.250" (6.35mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	26.7	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HPCP420F1 Loudspeaker Connectors HPC PANEL MT 187 Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.187" (4.75mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	28.19	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HPCP420F1S Loudspeaker Connectors HPCP420F1 EPOXY SEA Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4	Panel Mount	Straight	Thermoplastic	1	Silver	PL	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.187" (4.75mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	30.99	-	26.06	33.3	-	-	-	-	-	-	-	-	-	-	-	-
HPCPR41F1S Loudspeaker Connectors HPCPR41F1 EPOXY SEA Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4	Panel Mount	Straight	Thermoplastic	1	Silver	PL	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.187" (4.75mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	-	-	-	33.3	-	50.8	-	-	-	-	-	-	-	-	-	-
HPCP420RAP Loudspeaker Connectors HPC CONN RIGHT ANGLE Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Right Angle	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange; Through Hole, Right Angle	Solder	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	30A	4	1.5 kV	Solder	Speakon, HPC	PCB	4	85	Solder	1500VAC	-55	30	-	-	32.9	-	Right Angle	-	-	-	-	-	-	-	-	-	-	-
HPCP41PC Loudspeaker Connectors HPC SERIES STRAIGHT Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange	Solder	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	30A	4	1.5 kV	Solder	Speakon, HPC	PCB	4	85	Solder	1500VAC	-55	30	27.1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HPCPR410F Loudspeaker Connectors HPC CONN FAST-ON TE Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Straight	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.250" (6.35mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	26.7	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HPCP420RA Loudspeaker Connectors 4 PIN PANEL CON RECT RA PC Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Right Angle	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange; Through Hole, Right Angle	Solder	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	30A	4	1.5 kV	Solder	Speakon, HPC	PCB	4	85	Solder	1500VAC	-55	30	-	-	32.9	-	Right Angle	-	-	-	-	-	-	-	-	-	-	-
HPCPR41FPKG Loudspeaker Connectors HPC ROUND.100 CT SIN Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4	Panel Mount	Straight	Thermoplastic	1	Silver	PL	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.250" (6.35mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	-	-	-	37.2	-	50.8	-	-	-	-	-	-	-	-	-	-
HPCPR41RAP Loudspeaker Connectors HPC CONN RIGHT ANGL Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4Power	Panel Mount	Right Angle	Thermoplastic	1	Silver	F	4	Copper Alloy	Panel Mount, Flange; Through Hole, Right Angle	Solder	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	30A	4	1.5 kV	Solder	Speakon, HPC	PCB	4	85	Solder	1500VAC	-55	30	-	-	32.9	-	Right Angle	-	-	-	-	-	-	-	-	-	-	-
HPCP42F1S Loudspeaker Connectors HPCP42F1 EPOXY SEAL Switchcraft	询价	Compliant	Power	Black	1	Lead free / RoHS Compliant	50	Loudspeaker Connectors	RoHS Compliant	4	Panel Mount	Straight	Thermoplastic	1	Silver	PL	4	Copper Alloy	Panel Mount, Flange	Quick Connect Tab - 0.187" (4.75mm)	Receptacle, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	85	Faston	1500VAC	-55	50	30.99	-	26.06	33.3	-	-	-	-	-	-	-	-	-	-	-	-
HPCI4FPKG Loudspeaker Connectors HPC INLINE ASSEMBLY Switchcraft	询价	Compliant	Speaker Connector	Black	1	Lead free / RoHS Compliant	100	Loudspeaker Connectors	RoHS Compliant	2	Cable Mount	Straight	Thermoplastic	1	Silver	F	2	Copper Alloy	Free Hanging (In-Line)	Quick Connect Tab - 0.250" (6.35mm)	Plug, Non-Gendered	Thermoplastic	Silver	Bulk	-55°C ~ 85°C	Push-Pull	50A	4	1.5 kV	Quick Disconnect	Speakon, HPC	Chassis (Panel)	4	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
