Sullins Connector Solutions, Inc.- RJ45模块化连接器

Sullins Connector Solutions, Inc.（Sullins电子公司），成立于1971年，总部位于加利福尼亚州圣马科斯，是全球领先的高质量连接器与互连解决方案的设计、工程和制造商。公司专注于边缘卡连接器、排针、跳线及定制化连接器产品。其产品线涵盖各类标准和高密度边缘卡连接器，以及多种节距和规格的排针。Sullins服务于广泛的行业，包括工业自动化、医疗设备、电信、军用/航空和消费电子。秉持对品质和可靠性的承诺，所有产品均在ISO 9001认证的工厂中，采用精密模具和严格测试制造。公司以快速的定制设计服务而闻名，能迅速实现独特互连方案的原型制作与生产。Sullins拥有业内最大的可立即发货连接器库存之一，大幅缩短客户交货周期。其全球分销网络确保及时交付和本地化支持。Sullins的边缘卡连接器以其高插拔寿命、坚固的接触设计和性价比著称，成为关键应用的首选。公司持续创新，扩展产品线以满足市场对更高速度、更小尺寸和强固型连接的需求。

RJ45模块化连接器 - 型号列表

共 9 个型号

制造商零件编号	库存	价格	标准包装数量	LED颜色	包装方式	屏蔽	方向	端接方式	安装类型	卡扣方向（或“接线片方向”）	连接器类型	接触镀层	排数	触头材料	壳体材料	接触镀层厚度	产品特性	端口数	板面高度	应用	每插孔芯数	工作温度	屏蔽材料	位置/触点数量	其他名称	RoHS
SMJ400-S88N-DS-01 CONN MOD 8-8 PCB AU SHLD R/A CONN MOD JACK R/A 8P8C SHIELDED Sullins Connector Solutions	-		150	Does Not Contain LED	Tape & Reel (TR)	Shielded, EMI Finger	90° Angle (Right)	Solder	Through Hole	Up	Jack	Gold	1	Phosphor Bronze	Thermoplastic	50µin (1.27µm)	Board Lock	1	-	-	-	-	-	8p8c (RJ45, Ethernet)	S9396-1	Lead free / RoHS Compliant
SMJ401-S88W-DS-01YG CONN MOD 8-8 PCB AU R/A CONN MOD JACK R/A 8P8C SHIELDED Sullins Connector Solutions	-		180	Yellow - Green	Tape & Reel (TR)	Shielded	90° Angle (Right)	Solder	Board Edge, Through Hole	Down	Jack	Gold	1	Phosphor Bronze	Polyamide (PA6T), Nylon 6T, Glass Filled	Flash	Board Lock	1	-	-	-	-	-	8p8c (RJ45, Ethernet)	S9394-1	Lead free / RoHS Compliant

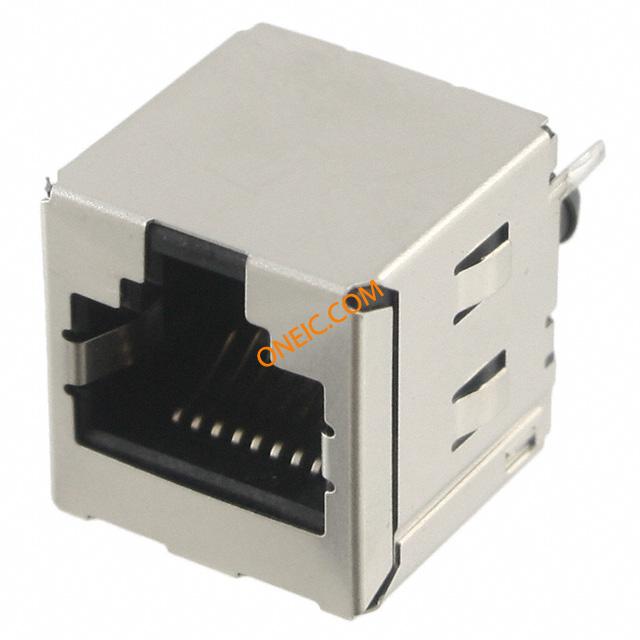

SMJ300-T88N-DS-01 CONN MOD 8-8 PCB AU VERT CONN MOD JACK 8P8C SHIELDED Sullins Connector Solutions	-		81	Does Not Contain LED	Tray	Shielded, EMI Finger	Vertical	Solder	Through Hole	User Selectable	Jack	Gold	1	Phosphor Bronze	Thermoplastic	50µin (1.27µm)	Board Lock	1	-	-	-	-	-	8p8c (RJ45, Ethernet)	-	-
SMJ102-S88I-DS-11 CONN MAGJACK 1PORT 100 BASE-T Sullins Connector Solutions	-		70	Does Not Contain LED	Tray	Shielded, EMI Finger	90° Angle (Right)	Solder	Through Hole	Up	RJ45	Gold	1	Phosphor Bronze	Polyamide (PA46), Nylon 4/6	6µin (0.152µm)	Board Lock	1	0.545" (13.84mm)	10/100 Base-T, AutoMDIX	4	0°C ~ 70°C	Brass	-	-	-
SMJ103-T88I-DS-11 CONN MAGJACK 1PORT 100 BASE-T Sullins Connector Solutions	-		80	Does Not Contain LED	Tray	Shielded	Vertical	Solder	Through Hole	User Selectable	RJ45	Gold	1	Phosphor Bronze	Polybutylene Terephthalate (PBT)	6µin (0.152µm)	Board Lock	1	0.472" (12.00mm)	10/100 Base-T, AutoMDIX	4	0°C ~ 70°C	Brass	-	-	-

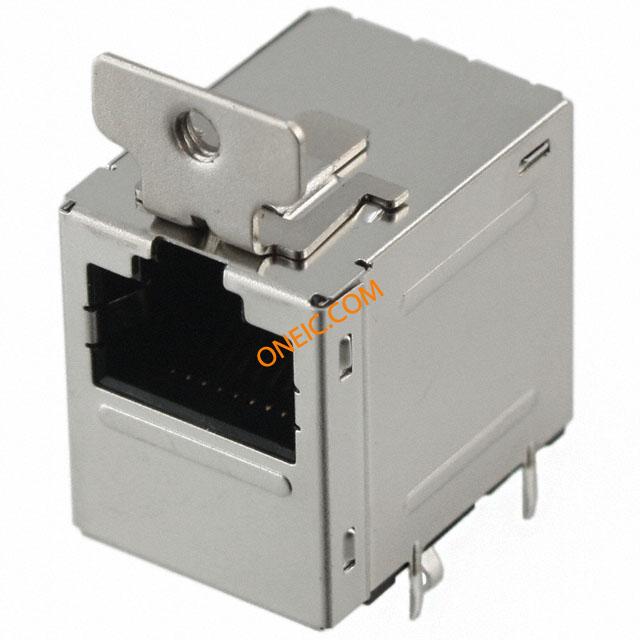

SMJ201-S66C-DS-11 CONN MAGJACK 1PORT 100 BASE-T Sullins Connector Solutions	-		60	Does Not Contain LED	Tray	Shielded	90° Angle (Right)	Solder	Through Hole	Up	RJ45	Gold	1	Phosphor Bronze	Polybutylene Terephthalate (PBT)	30µin (0.76µm)	Board Lock	1	1.186" (30.13mm)	10/100 Base-T, AutoMDIX	4	0°C ~ 70°C	Brass	-	-	-
SMJ200-S00C-DS-11 CONN MAGJACK 1PORT 100 BASE-T Sullins Connector Solutions	-		60	Does Not Contain LED	Tray	Shielded	90° Angle (Right)	Solder	Through Hole	Up	RJ45 with USB A	Gold	1	Phosphor Bronze	Polybutylene Terephthalate (PBT)	30µin (0.76µm)	Board Lock	1	1.186" (30.13mm)	10/100 Base-T, AutoMDIX	4	0°C ~ 70°C	Brass	-	-	-

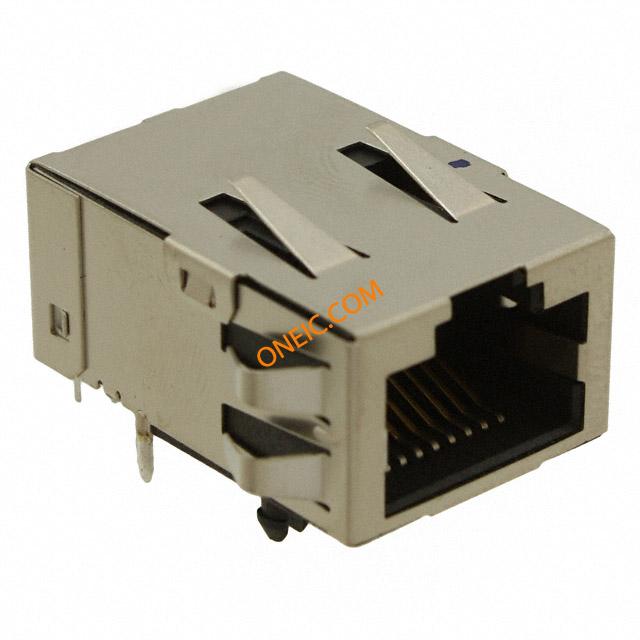

SMJ001-S88N-DS-11 CONN MAGJACK 1PORT 1000 BASE-T Sullins Connector Solutions	-		60	Does Not Contain LED	Tray	Shielded, EMI Finger	90° Angle (Right)	Solder	Through Hole	Up	RJ45	Gold	1	Copper Alloy	Polyamide (PA46), Nylon 4/6	50µin (1.27µm)	Board Lock	1	0.417" (10.60mm)	10/100/1000 Base-T, AutoMDIX	4	-	-	-	-	-
SMJ100-T88I-DS-11 CONN MAGJACK 1PORT 100 BASE-T Sullins Connector Solutions	10	1: ¥20.06	70	Does Not Contain LED	Tray	Shielded	Vertical	Solder	Through Hole	User Selectable	RJ45	Gold	1	Phosphor Bronze	Polybutylene Terephthalate (PBT)	6µin (0.152µm)	Board Lock	1	0.630" (16.00mm)	10/100 Base-T, AutoMDIX	4	0°C ~ 70°C	-	-	-	-
