FPGA开发板

Schneider Electric SE- FPGA开发板
03
FPGA开发板 - 型号列表
共 2 个型号| 制造商零件编号 | 库存 | 价格 | 标准 | 防护类型 | 认证 | 精度 | 电阻 | 传感器类型 | 额定电压 | 电路模式 | 值范围 | 最大额定电流 | 工作频率 | 开关功能/额定值 | 暗电流 Id(最大) | 击穿电压(V(BR)GSS) | LED触发电流(最大) | 动态范围,ADC/DAC(dB)典型值 | 短路电流额定值(SCCR) | 深度 | 宽度 | 高度 | 重量 | 致动器类型 | 电缆端类型 | 连接器类型 | 插头进线方向 | 调节范围 | 触头材料 | 最大压力 | 尺寸/外形 | 接线端子类型 | 绝缘材料 - 材质 | 最大压力(PSI) | 外部壳体材料 | 类型 | 功能 | 产品子类型 | 显示样式 | 测量范围 | 工作高度 | 其他规格 | 应用细节 | 流体类型 | 爆破压力 | 机械寿命 | 抗冲击能力 | 存储接口 | 防护等级 | 防护处理 | 抗振性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Pressure / Force Sensors ELECTRONIC PRESSURE SWITCH 施耐德(SCHNEIDER) 接近开关 Schneider Electric component XMLA070N2S11: pressure switch XMLA 70 bar - fixed scale 1 threshold - 1 C/O Schneider Electric | 10 | 1: ¥2,717.212 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

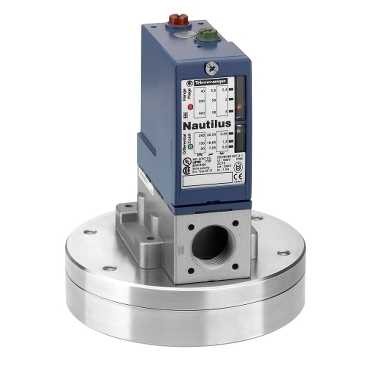

Industrial Pressure / Force Sensors PRESSURE SWITCH XML 施耐德(SCHNEIDER) 限位开关 Schneider Electric component XMLBS02B2S11: pressure switch XMLB 2.5 bar - adjustable scale 2 thresholds - 1 C/O Schneider Electric | 10 | 1: ¥3,476.228 | CECSA C22-2 No 14EN/IEC 60947-5-1UL 508 | Class I conforming to IEC 1140Class I conforming to IEC 536Conforming to NF C 20-030 | BVCCCCSADNVGLLROS (Lloyds register of shipping)RINAULVIT-SEPRO | < 2 % | < 25 mOhm conforming to IEC 255-7 category 3< 25 mOhm conforming to NF C 93-050 method A | Electromechanical pressure sensor | 500 V conforming to EN/IEC 60947-1300 V conforming to CSA C22-2 No 14300 V conforming to UL 508 | Control circuit | 0.2...2.28 bar | 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-11.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-10.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 | <= 120 cyc/mn at > 0 °C | Regulation between 2 thresholds | 0.1 bar (- 0.03 bar, + 0.05 bar) | 6 kV conforming to EN/IEC 60947-1 | 0.22 bar (- 0.03 bar, + 0.05 bar) | 1.45 bar | 10 A cartridge fuse type gG (gl) | 162 mm | 113.5 mm | 113 mm | 3.5 kg | Diaphragm | G 1/4 (female) conforming to ISO 228 | Screw-clamps terminals 1 x 0.2...2 x 2.5 mm ² | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9...13 mm | 0.3...2.5 bar | Silver contacts | 37.5 bar | 2.5 bar | 4 terminals | FPM, FKMSteel | 30 bar | Zinc alloy | Adjustable differential | Snap action | Electromechanical pressure sensor | With | OsiSense XM | Any position | XMLB | 30 bar overpressure | Air (0...160 °C)Fresh water (0...160 °C)Hydraulic oil (0...160 °C)Sea water (0...160 °C) | 67.5 bar | 2000000 cycles | 50 gn conforming to IEC 68-2-27 | -40...70 °C | IP66 conforming to EN/IEC 60529 | TC | 4 gn (f = 30...500 Hz) conforming to IEC 68-2-6 | -25...70 °C |
第 1 / 1 页
1
