电源模块 - 型号列表

共 535 个型号

制造商零件编号	库存	价格	噪声	效率	额定功率	额定电压	电源调整率	负载调整率	输出电流	输出数量	深度	宽度	长度	重量	冷却的封装	动作时间	工作温度	最高温度限值

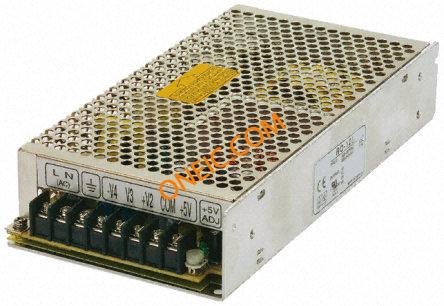

RQ-125D Power Supply,RQ-125D,5/12/24/-12V,124W RS	10	1: ¥455.60	120 mV Pk-Pk, 150 mV Pk-Pk, 80 mV Pk-Pk	82%	124W	176 → 264 V ac, 248 → 373 V dc, 88 → 132 V ac	±0.5 %, ±1 %	±1 %, ±2 %, ±3 %, ±5 %	0.5 A, 2 A, 2.5 A, 8 A	4	38mm	98mm	199mm	0.7kg	Enclosed	203100h	-25°C	+70°C

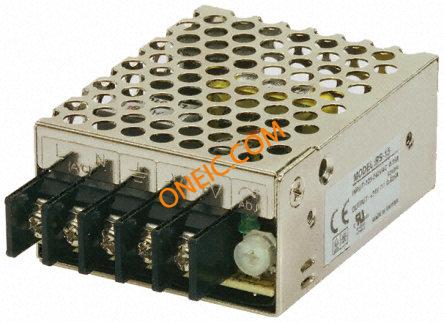

RS-15-48 Power Supply,RS-15-48,SMPS,48V,0.31A,15W RS	10	1: ¥161.84	200mV Pk-Pk	82%	15.024W	120 → 370 V dc, 85 → 264 V ac	±0.5%	±0.5%	0.313A	1	28mm	51mm	62.5mm	0.13kg	Enclosed	1608800h	-20°C	+70°C

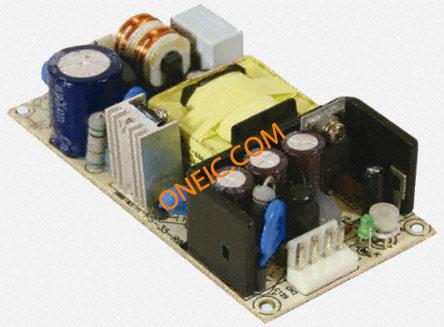

PS-35-3.3 Power Supply,Switchmode,2x4inch, 3.3Vdc RS	10	1: ¥158.78	80mV Pk-Pk	70%	19.8W	127 → 370 V dc, 90 → 264 V ac	±0.5%	±1%	6A	1	24mm	50.8mm	101.6mm	0.124kg	Open Frame	588800h	-20°C	+65°C
RQ-125B Power Supply,RQ-125B,5/12/-5/-12V,120W RS	10	1: ¥455.60	120 mV Pk-Pk, 80 mV Pk-Pk	79%	120W	176 → 264 V ac, 248 → 373 V dc, 88 → 132 V ac	±0.5 %, ±1 %	±1 %, ±2 %, ±3 %, ±6 %	0.5 A, 1 A, 11 A, 4.5 A	4	38mm	98mm	199mm	0.7kg	Enclosed	203100h	-25°C	+70°C

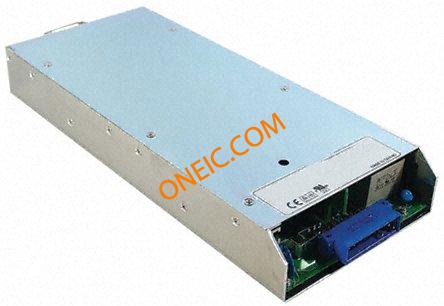

RCP-1000-48 Front End, 1U Rack Power Supply,48V 21A RS	10	1: ¥2,502.40	300mV Pk-Pk	89%	1008W	127 → 370 V dc, 90 → 264 V ac	±0.5%	±0.5%	21A	1	41mm	127mm	295mm	1.91kg	Enclosed	43400h	-20°C	+60°C

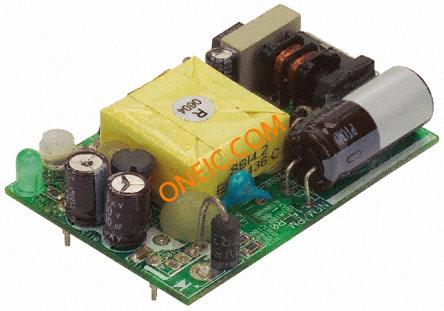

NFM-15-3.3 Power Supply Switch Mode Medical 3.3V RS	10	1: ¥170.00	80mV Pk-Pk	73%	11.55W	120 → 370 V dc, 85 → 264 V ac	±1%	±1%	3.5A	1	22mm	48mm	70mm	0.065kg	Open Frame	499700h	-20°C	+70°C

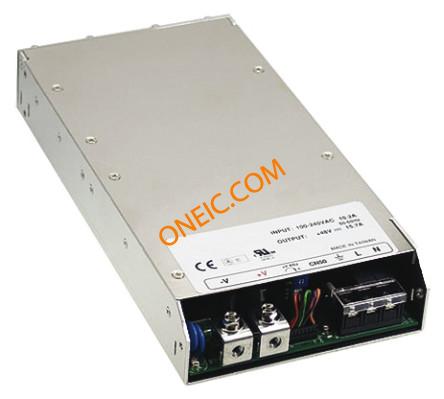

RSP-750-24 Power Supply,Switch Mode,24V,31.3A,751W RS	10	1: ¥2,006.00	150mV Pk-Pk	90.5%	751.2W	127 → 370 V dc, 90 → 264 V ac	±0.5%	±0.5%	31.3A	1	41mm	127mm	250mm	1.64kg	Enclosed	120.8kh	-30°C	+70°C

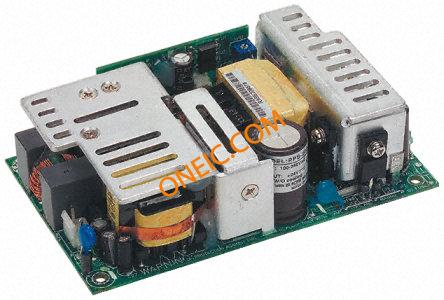

PPT-125C SMPSU, 3x5inch, 5Vdc / 15Vdc / -15Vdc RS	10	1: ¥493.00	100 mV Pk-Pk, 150 mV Pk-Pk	78%	100W	127 → 370 V dc, 90 → 264 V ac	±0.5%	±3 %, ±5 %	0.5 A, 11 A, 2.5 A	3	34.6mm	76.2mm	127mm	0.37kg	Open Frame	94700h	-20°C	+70°C

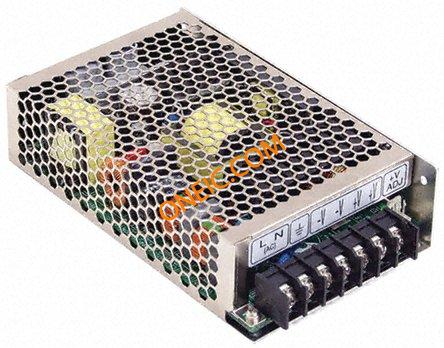

HRP-100-7.5 Power Supply,Switch Mode,7.5V,13.5A,101W RS	10	1: ¥487.90	100mV Pk-Pk	84%	101.3W	120 → 370 V dc, 85 → 264 V ac	±0.5%	±1.5%	13.5A	1	38mm	97mm	159mm	0.38kg	Enclosed	295700h	-40°C	+60°C

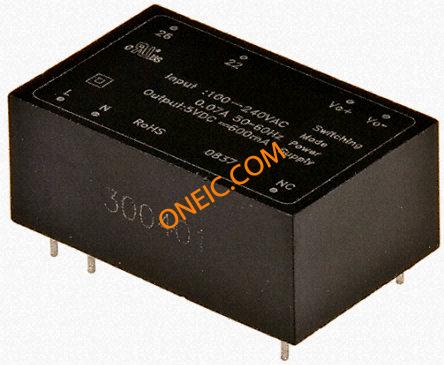

LD03-10B12 Power Supply,Encapsulated,PCB mount,3W RS	10	1: ¥108.80	60mV	76%	3W	110 → 370 V dc, 85 → 264 V ac	±0.5%	±1%	250mA	1	15mm	23mm	37mm	25g	Encapsulated	300000h	-25°C	+70°C

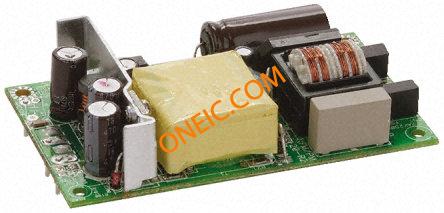

NFM-20-3.3 Power Supply Switch Mode Medical 3.3V RS	10	1: ¥176.80	80mV Pk-Pk	71%	14.85W	120 → 370 V dc, 85 → 264 V ac	±1%	±1.5%	4.5A	1	19.3mm	51mm	89mm	0.09kg	Open Frame	487800h	-20°C	+60°C
RSP-750-27 Power Supply,Switch Mode,27V,27.8A,750W RS	10	1: ¥2,006.00	150mV Pk-Pk	90.5%	750.6W	127 → 370 V dc, 90 → 264 V ac	±0.5%	±0.5%	27.8A	1	41mm	127mm	250mm	1.64kg	Enclosed	120.8kh	-30°C	+70°C
HRPG-200-12 Power Supply,Switch Mode,12V,16.7A,200W RS	10	1: ¥795.60	120mV Pk-Pk	88%	200.4W	120 → 370 V dc, 85 → 264 V ac	±0.3%	±0.5%	16.7A	1	38mm	98mm	199mm	0.77kg	Enclosed	189100h	-40°C	+70°C
PPT-125D SMPSU, 3x5inch, 5Vdc / 24Vdc / 12Vdc RS	10	1: ¥493.00	100 mV Pk-Pk, 120 mV Pk-Pk, 240 mV Pk-Pk	78%	101W	127 → 370 V dc, 90 → 264 V ac	±0.5%	±3 %, ±5 %	0.5 A, 2.5 A, 7 A	3	34.6mm	76.2mm	127mm	0.37kg	Open Frame	94700h	-20°C	+70°C
RT-125D Power Supply,RT-125D,SMPS,5/24/12V,136W RS	10	1: ¥471.58	120 mV Pk-Pk, 150 mV Pk-Pk, 80 mV Pk-Pk	82%	136W	176 → 264 V ac, 248 → 373 V dc, 88 → 132 V ac	±0.5 %, ±1 %	±1 %, ±3 %, ±6 %	2 A, 3 A, 8 A	3	38mm	98mm	199mm	0.7kg	Enclosed	209300h	-25°C	+70°C
PS-35-15 Power Supply,Switchmode,2x4inch, 15Vdc RS	10	1: ¥158.78	150mV Pk-Pk	81%	36W	127 → 370 V dc, 90 → 264 V ac	±0.5%	±0.5%	2.4A	1	24mm	50.8mm	101.6mm	0.124kg	Open Frame	588800h	-20°C	+65°C
HRP-100-3.3 Power Supply,Switch Mode,3.3V,20A,66W RS	10	1: ¥487.90	80mV Pk-Pk	78%	66W	120 → 370 V dc, 85 → 264 V ac	±0.5%	±2%	20A	1	38mm	97mm	159mm	0.38kg	Enclosed	295700h	-40°C	+60°C
RQ-85C Power Supply,RQ-85C,5/15/-5/-15V,82W RS	10	1: ¥420.24	100 mV Pk-Pk, 120 mV Pk-Pk, 80 mV Pk-Pk	77%	82.5W	125 → 373 V dc, 88 → 264 V ac	±0.5 %, ±1 %	±1 %, ±2 %, ±3 %, ±6 %	0.5 A, 2.5 A, 7 A	4	38mm	97mm	159mm	0.6kg	Enclosed	206800h	-25°C	+70°C
PS-35-7.5 Power Supply,Switchmode,2x4inch, 7.5Vdc RS	10	1: ¥158.78	100mV Pk-Pk	80%	35.25W	127 → 370 V dc, 90 → 264 V ac	±0.5%	±1%	4.7A	1	24mm	50.8mm	101.6mm	0.124kg	Open Frame	588800h	-20°C	+65°C
RS-35-48 Switch Mode PSU, 48Vdc 38.4W RS	10	1: ¥203.66	200mV Pk-Pk	88.5%	38.4W	125 → 373 V dc, 88 → 264 V ac	±0.5%	±0.5%	0.8A	1	36mm	82mm	99mm	0.3kg	Enclosed	249000h	-25°C	+70°C
