RS Components Ltd - 射频同轴连接器型号列表

制造商零件编号	库存	价格	安装类型	接触镀层	连接器性别	阻抗	触头材料	端接方式	极性	频率	尺寸	连接器用途	灯泡类型	RoHS	额定电压

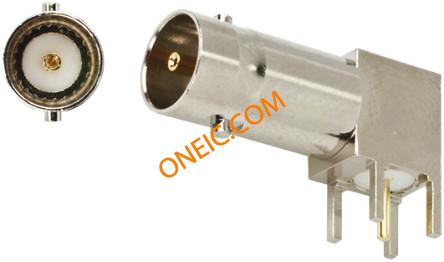

R56-007-00-002632000 MINI BNC jack r/a PCB mount RS	10	1: ¥13.396	Right Angle	Gold	Female	75Ω	Brass	Crimp	Normal	0 → 2GHz	Miniature	-	-	-	-

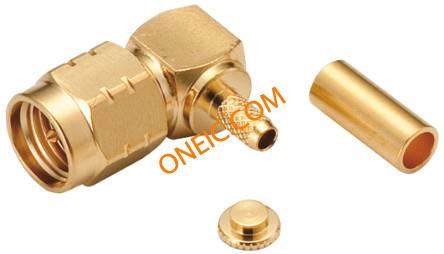

60-02L TGG SMA right-angle plug crimp for RG174/316 RS	10	1: ¥34.748	Right Angle	Gold	Male	-	-	Crimp	Normal	-	Subminiature	-	-	-	-

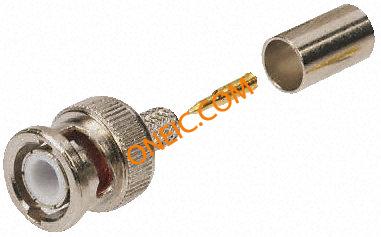

R13-015-01-022611000 Crimp BNC straight jack-RG59 cable,75ohm RS	10	1: ¥11.832	Straight	Gold	Female	75Ω	Brass	Crimp	Normal	-	-	-	-	-	-

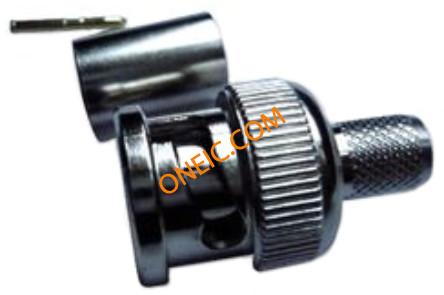

13-10-73 TGZ 1694a BNC straight plug crimp Belden 1694a RS	10	1: ¥14.484	Straight	Gold	Male	75Ω	Brass	Crimp	Normal	0 → 4GHz	-	-	-	-	-
2 R13-010-13-332712000 Crimp BNC straight plug - min RG59 cable CONPAK BNC PLG MIN RG59 RS	10	1: ¥19.6316	Straight	Gold	Male	75Ω	Brass	Crimp	Normal	-	-	-	-	Compliant	-

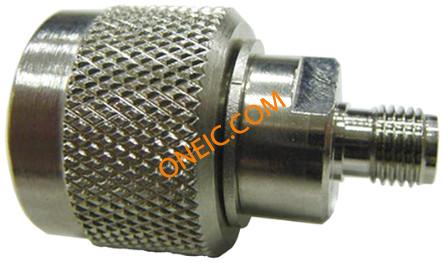

R64-004-00-0026210II N Plug to SMA jack adapter RS	10	1: ¥38.964	Straight	Gold	Male/Female	50Ω	Brass	-	-	0 → 11GHz	Medium	Threaded	-	-	-

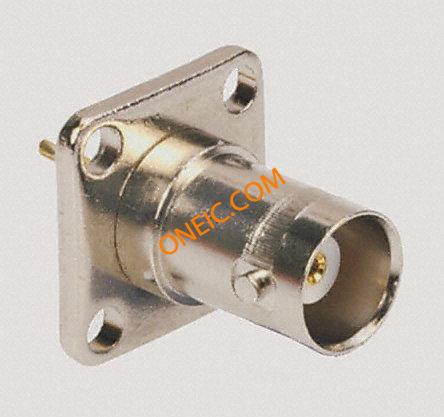

R13-022-00-002611000 NiPt BNC panel skt w/square flange,50ohm RS	10	1: ¥15.30	Straight	Gold	Female	50Ω	Brass	Solder	Normal	-	-	-	-	-	-
60-03L TGG SMA bulkhead jack crimp for RG174/316 RS	10	1: ¥53.176	Straight	Gold	Female	50Ω	Beryllium Copper	Crimp	Normal	0 → 3GHz	Subminiature	-	Yes	-	335 V
R13-029-01-002612000 Std through hole bulkhead socket,75ohm RS	10	1: ¥19.924	Straight	Gold	Female	75Ω	Brass	-	Normal	-	-	-	Yes	-	-

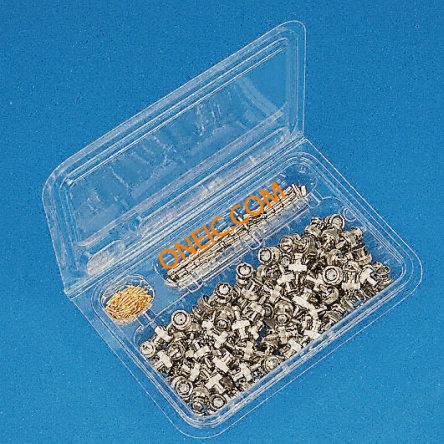

2 R13-010-01-022711000 NiPt BNC crimp plug bulk kit-RG59 cable BNC CRIMP PLG RG59 Crimp BNC straight plug-RG59 cable,75ohm RS	10	1: ¥8.50	Cable Mount	Gold	Male	75Ω	Brass	Crimp	Normal	-	-	-	-	Compliant	-
13-10-73 TGZ 1505a BNC straight plug crimp Belden 1505a RS	10	1: ¥14.688	Straight	Gold	Male	75Ω	Brass	Crimp	Normal	0 → 4GHz	-	-	-	-	-
R13-010-01-112712000 Crimp BNC straight plg-PSF1/2 cable75ohm RS	10	1: ¥15.232	Straight	Gold	Male	75Ω	Brass	Crimp	Normal	-	-	-	-	-	-

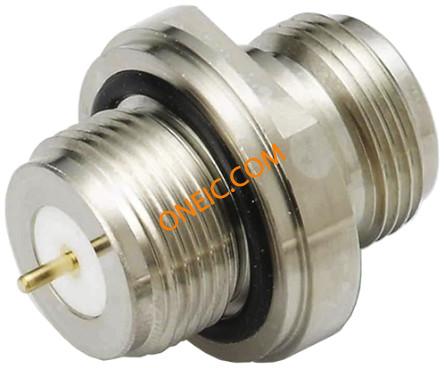

R61-018-00-00B1210JF N straight jack bulkhead front mount RS	10	1: ¥48.348	Straight	Gold	Female	50Ω	Beryllium Copper	Solder Lug	-	0 → 11GHz	Medium	Threaded	Yes	-	-
R13-022-00-002612000 NiPt BNC panel skt w/square flange,75ohm RS	10	1: ¥14.96	Straight	Gold	Female	75Ω	Brass	Solder	Normal	-	-	-	-	-	-
R56-006-00-002632000 MINI BNC jack r/a PCB mount RS	2821	1: ¥20.8012	Right Angle	Gold	Female	75Ω	Phosphor Bronze	-	Normal	0 → 2GHz	Miniature	-	-	-	-

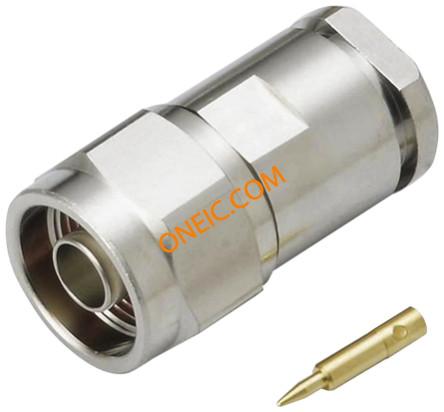

R61-001-00-53B1110JF N straight plug clamp RS	10	1: ¥58.276	Straight	Gold	Male	50Ω	Brass	Clamp	-	0 → 11GHz	Medium	Threaded	-	-	-
R13-014-04-012711000 crimp BNC r/a plg for RG58 cable,50ohm RS	10	1: ¥24.344	Right Angle	Gold	Male	50Ω	Brass	Crimp	Normal	-	-	-	-	-	-
13-10-73 TGZ 1855a BNC straight plug crimp Belden 1855a RS	10	1: ¥14.144	Straight	Gold	Male	75Ω	Brass	Crimp	Normal	0 → 4GHz	-	-	-	-	-
R13-004-05-014711000 RS AgPt clamp BNC straight plg-RG58cable RS	10	1: ¥10.608	Straight	Silver	Male	50Ω	Brass	Clamp	Normal	-	-	-	-	-	-
27-31-2 TGG MCX jack edge mount type RS	2633	1: ¥22.2836	Straight	Gold	Female	50Ω	Beryllium Copper	-	-	0 → 6GHz	-	-	-	-	-

第 1 / 7 页

射频同轴连接器

RS Components Ltd- 射频同轴连接器

射频同轴连接器 - 型号列表

频率

端接方式

尺寸

安装类型

触头材料

连接器性别

阻抗

接触镀层
