RF Monolithics, Inc.
信号变压器阵列

RF Monolithics, Inc.- 信号变压器阵列

RF Monolithics, Inc.（简称RFM）是一家集研发、设计、生产、销售于一体的老牌射频元器件制造商，已有超过30年的行业经验。公司总部曾设在美国德克萨斯州达拉斯市，原为上市公司，于2012年7月1日被日本村田制作所的子公司Murata Electronics North America, Inc.全资收购。核心业务聚焦射频滤波器、谐振器、频率控制器件及低功耗无线模块等产品。1979年通过收购Cirronet公司，进一步完善了无线模块产品线。产品广泛应用于物联网、工业控制、汽车电子和无线通信等领域。RFM致力于驱动下一代无线应用，连接数以亿计的物联网设备。收购后，RFM成为村田集团射频业务的重要组成部分，共享全球制造和技术网络。公司以声表面波（SAW）技术和集成RF模块见长，提供高可靠性的低功耗无线解决方案。凭借深厚的技术积累，RFM在射频元器件市场占有重要地位，至今仍是村田旗下核心射频品牌。

MODELS

信号变压器阵列 - 型号列表共 216 个型号

制造商零件编号	价格/库存	Standard Package	Packaging	Product Category	RoHS	Type	Typical Center Frequency	Maximum Insertion Loss	Mounting	Filter Type	Insertion Loss	Height (Max)	Size / Dimension	Applications	Bandwidth	Frequency	Mounting Type	Package/Case	rohs	Product	Load Impedance	3dB Bandwidth	Operating Temperature Range	Termination Style	Voltage Rating	Pass Band Ripple	Impedance	Other Names	Factory Pack Quantity	插入损耗	大小/尺寸	高度（最大值）	带宽	频率	封装/外壳	应用	Package / Case	Frequency Range

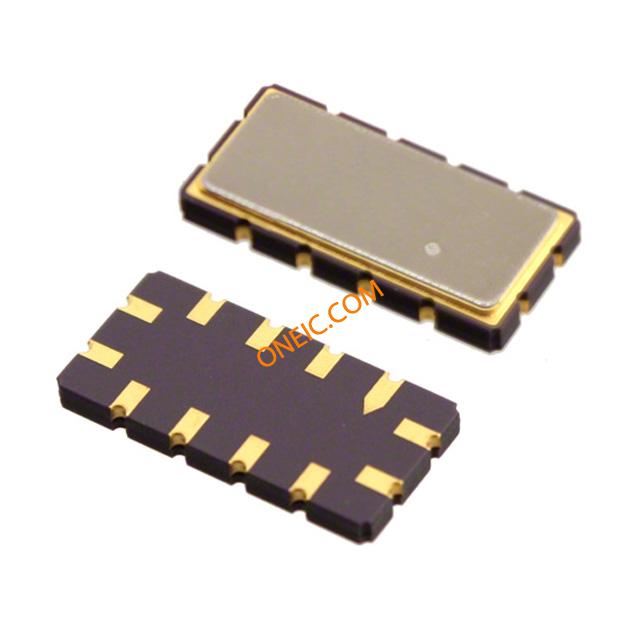

PX1002 SAW Filter 86.85MHzFrequency 25KHz 50Ohm SMD 12Pin SM13365-12 Carrier T/R rfm	询价	Bulk	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	SAW Filter for TDMA IS-54 Receiver IF Applications	86.85 MHz	4 dB	Surface Mount	Band Pass	3dB	0.079" (2.00mm)	0.524" L x 0.256" W (13.31mm x 6.50mm)	Cellular, TDMA	25kHz	86.85MHz Center	Surface Mount	12-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	50 Ohm	25 KHz	-	-	-	1 dB	-	583-1063-2	500	3dB	0.524" L x 0.256" W (13.31mm x 6.50mm)	0.079" (2.00mm)	25kHz	86.85MHz Center	12-SMD, No Lead	Cellular, TDMA	-	-
RF1172 SAW Filter 433.92MHzFrequency 800KHz Thru-Hole 3Pin TO39-3 rfm	询价	Rail / Tube	Tube	Signal Conditioning	RoHS Compliant	Front-End Filter for European Wireless Receivers	433.92 MHz	5 dB	Through Hole	Band Pass	3.5dB	0.125" (3.18mm)	0.370" Dia (9.40mm)	Remote Control	600kHz	433.92MHz Center	Through Hole	TO-205AD, TO-39-3 Metal Can	Lead free / RoHS Compliant	SAW Filters	-	800 KHz	- 40 C to + 85 C	Radial	30 V	-	-	583-1172-2	-	3.5dB	0.370" Dia (9.40mm)	0.125" (3.18mm)	600kHz	433.92MHz Center	TO-205AD, TO-39-3 Metal Can	Remote Control	TO-39-3	-
SF2025B SAW FILTER rfm	询价	500	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	-	-	-	-	Band Pass	13.3dB	0.079" (2.00mm)	0.276" L x 0.197" W (7.00mm x 5.00mm)	SDARS	14.5MHz	259.861MHz Center	Surface Mount	10-SMD, No Lead	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RF1391C SAW Filter 433.42MHzFrequency 750KHz 212Ohm//3.1pF SMD 8Pin SM5050-8 T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	Front-End Filter for Wireless Receivers	433.42 MHz	5 dB	Surface Mount	Band Pass	3dB	0.067" (1.70mm)	0.197" L x 0.197" W (5.00mm x 5.00mm)	Remote Control	600kHz	433.42MHz Center	Surface Mount	8-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	212//3.1 Ohm//pF	750 KHz	- 40 C to + 85 C	SMD/SMT	12 V	-	212 Ohms	-	-	3dB	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.067" (1.70mm)	600kHz	433.42MHz Center	8-SMD, No Lead	Remote Control	-	-
RF1172C SAW Filter 433.92MHzFrequency 800KHz 212Ohm//3.1pF SMD 8Pin SM5050-8 T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	Front-End Filter for European Wireless Receivers	433.92 MHz	5 dB	Surface Mount	Band Pass	3dB	0.067" (1.70mm)	0.197" L x 0.197" W (5.00mm x 5.00mm)	Remote Control	600kHz	433.92MHz Center	Surface Mount	8-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	212Ohm//3.1pF	800 KHz	- 40 C to + 85 C	SMD/SMT	12 V	-	212 Ohms	583-1173-2	-	-	-	-	-	-	-	-	-	-
RF1211C SAW Filter 315MHzFrequency 900KHz 344Ohm//4.9pF SMD 8Pin SM5050-8 T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	Front-End Filter for Domestic Wireless Receivers	315 MHz	5 dB	Surface Mount	Band Pass	1.8dB	0.067" (1.70mm)	0.197" L x 0.197" W (5.00mm x 5.00mm)	Remote Keyless Entry	900kHz	315MHz Center	Surface Mount	8-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	344//4.9 Ohm//pF	900(Typ) KHz	- 40 C to + 85 C	SMD/SMT	12 V	6 dB	344 Ohms	-	-	-	-	-	-	-	-	-	-	-

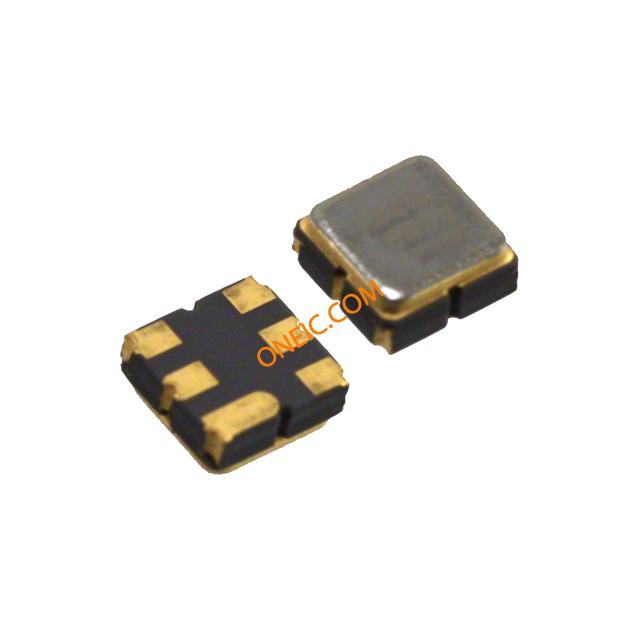

SF2049E SAW Filter 915MHzFrequency 50Ohm SMD 6Pin SM3030-6 Carrier T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	Steep Roll-Off Filter	915 MHz	3.5 dB	Surface Mount	Band Pass	2.2dB	0.054" (1.38mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)	ISM	26MHz	915MHz Center	Surface Mount	6-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	50Ohm	-	- 40 C to + 85 C	SMD/SMT	-	2 dB	-	583-1199-2	500	-	-	-	-	-	-	-	SM3030-6	-
RF1411D SAW Filter 869.2625MHzFrequency 117Ohm//3.7pF SMD 8Pin SM3838-8 T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	Front-End Filter for European Wireless Receivers	869.2625 MHz	4.5 dB	Surface Mount	Band Pass	3.3dB	0.055" (1.40mm)	0.150" L x 0.150" W (3.80mm x 3.80mm)	Remote Control	1.25MHz	869.2625MHz Center	Surface Mount	8-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	117//3.7 Ohm//pF	-	- 45 C to + 85 C	SMD/SMT	12 V	-	117 Ohms	-	-	3.3dB	0.150" L x 0.150" W (3.80mm x 3.80mm)	0.055" (1.40mm)	1.25MHz	869.2625MHz Center	8-SMD, No Lead	Remote Control	-	-
RF3336D SAW Filter 868.35MHzFrequency 900KHz 35.8Ohm//2.19pF SMD 8Pin SM3838-8 T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	SAW Filter for European Wireless Receivers	868.35 MHz	4 dB	Surface Mount	Band Pass	2.7dB	0.055" (1.40mm)	0.150" L x 0.150" W (3.80mm x 3.80mm)	Remote Control	650kHz	868.35MHz Center	Surface Mount	8-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	35.8//2.19 Ohm//pF	900 KHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RF1284 SAW Filter 319.588HzFrequency 800KHz 1490Ohm//7.02pF Thru-Hole 3Pin TO39-3 rfm	询价	Rail / Tube	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	Front-End Filter for European Wireless Receivers	319.588(Max) Hz	3 dB	Through Hole	Band Pass	2dB	0.125" (3.18mm)	0.370" Dia (9.40mm)	Wireless	600kHz	319.508MHz Center	Through Hole	TO-205AD, TO-39-3 Metal Can	Lead free / RoHS Compliant	SAW Filters	1490Ohm//7.02pF	800 KHz	-	-	-	-	-	-	1000	-	-	-	-	-	-	-	-	-
RF3171 SAW Filter 418.08MHzFrequency 800KHz 476Ohm//3.17pF Thru-Hole 3Pin TO39-3 rfm	询价	Rail / Tube	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	SAW Filter for Wireless Receiver in the UK and USA	418.08 MHz	3.5 dB	Through Hole	Band Pass	1.8dB	0.125" (3.18mm)	0.370" Dia (9.40mm)	Remote Control	600kHz	418MHz Center	Through Hole	TO-205AD, TO-39-3 Metal Can	Lead free / RoHS Compliant	SAW Filters	476//3.17 Ohm//pF	800 KHz	-	-	-	-	-	-	1000	-	-	-	-	-	-	-	-	-
RF3210D SAW Filter 303.825MHzFrequency 800KHz 6.63KOhm//2.2pF SMD 8Pin SM3838-8 T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	SAW Filter for Domestic Wireless Receivers	303.825 MHz	2.5 dB	Surface Mount	Band Pass	1.6dB	0.055" (1.40mm)	0.150" L x 0.150" W (3.80mm x 3.80mm)	Wireless	650kHz	303.825MHz Center	Surface Mount	8-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	6.63//2.2 KOhm//pF	800 KHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SF2126E SAW Filter 725MHzFrequency 50Ohm SMD 8Pin SM3030-8 Carrier T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	RF Filter for WIMAX Application	725 MHz	3 dB	Surface Mount	Band Pass	2.6dB	0.055" (1.40mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)	WiMax	50MHz	725MHz Center	Surface Mount	8-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	50 Ohm	-	- 30 C to + 85 C	SMD/SMT	3 V	1.5 dB	50 Ohms	-	-	-	-	-	-	-	-	-	-	700 MHz to 750 MHz
SF2252E SAW Filter 1590MHzFrequency 50Ohm SMD 6Pin SM3030-6 T/R rfm	询价	Tape & Reel	Reel	Signal Conditioning	RoHS Compliant	Low Loss RF Filter	1590 MHz	4 dB	Surface Mount	-	-	-	-	-	-	-	-	-	-	-	50Ohm	-	-	-	-	1.8 dB	-	-	-	-	-	-	-	-	-	-	-	-
RF1353C SAW Filter 345MHzFrequency SMD 8Pin SM5050-8 Carrier T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	SAW Filter for 345 MHz Wireless Applications	345 MHz	4.5 dB	Surface Mount	Band Pass	4.5dB	0.067" (1.70mm)	0.197" L x 0.197" W (5.00mm x 5.00mm)	Wireless	430kHz	345MHz Center	Surface Mount	8-SMD, No Lead	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SF2085A SAW Filter 96MHzFrequency 36MHz SMD 10Pin SMP-53-S Carrier T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	Low Loss Filter	96 MHz	19 dB	Surface Mount	Band Pass	17dB	0.079" (2.00mm)	0.524" L x 0.256" W (13.31mm x 6.50mm)	IF	36MHz	96MHz Center	Surface Mount	10-SMD, No Lead	Lead free / RoHS Compliant	-	-	36(Typ) MHz	-	-	-	1.5 dB	-	-	-	-	-	-	-	-	-	-	-	-
RF1353D SAW Filter 345MHzFrequency Thru-Hole 3Pin TO39-3 rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	SAW Filter for 345 MHz Wireless Applications	345 MHz	4.5 dB	Through Hole	Band Pass	4.5dB	0.059" (1.50mm)	0.150" L x 0.150" W (3.80mm x 3.80mm)	Wireless	430kHz	345MHz Center	Surface Mount	6-SMD, No Lead	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SF1081A SAW Filter 71MHzFrequency 71MHz 50Ohm SMD 10Pin SMP-87 rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	SAW Filter for GSM BTS Receiver IF Applications	71 MHz	8 dB	Surface Mount	Band Pass	6dB	0.079" (2.00mm)	0.870" L x 0.315" W (22.10mm x 8.00mm)	Cellular, GSM	140kHz	71MHz Center	Surface Mount	10-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	50 Ohm	71(Typ) MHz	- 40 C to + 85 C	SMD/SMT	30 V	1.5 dB	50 Ohms	583-1077-2	500	-	-	-	-	-	-	-	-	-

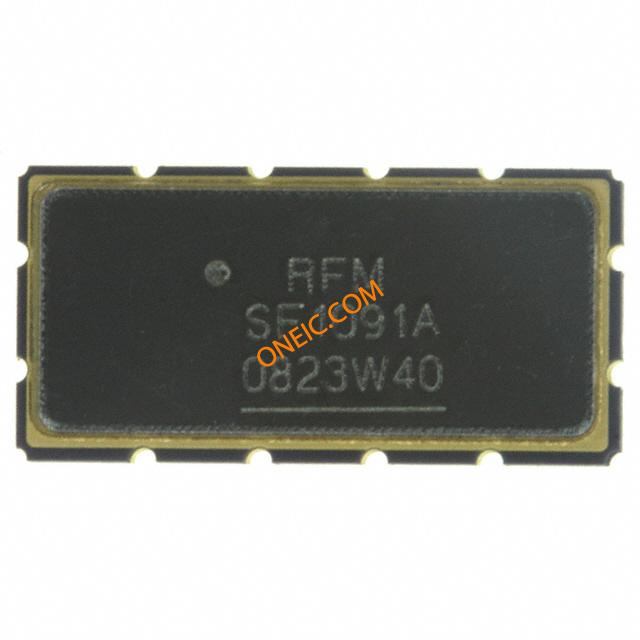

SF1091A SAW Filter 211MHzFrequency 211MHz 50Ohm SMD 12Pin SM13365-12 Carrier T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	SAW Filter for GSM BTS Transmitter Applications	211 MHz	8 dB	Surface Mount	Band Pass	7dB	0.079" (2.00mm)	0.524" L x 0.256" W (13.31mm x 6.50mm)	Cellular, GSM	500kHz	211MHz Center	Surface Mount	12-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	50 Ohm	211(Typ) MHz	- 10 C to + 85 C	SMD/SMT	30 V	-	50 Ohms	583-1079-2	500	-	-	-	-	-	-	-	-	-
SF1120B SAW Filter 298.74MHzFrequency 298.74MHz SMD 10Pin SMP-03 Carrier T/R rfm	询价	Tape & Reel	Tape & Reel (TR)	Signal Conditioning	RoHS Compliant	SAW Filter for GPS	298.74 MHz	12 dB	Surface Mount	Band Pass	12dB	0.079" (2.00mm)	0.276" L x 0.197" W (7.00mm x 5.00mm)	GPS	2.2MHz	298.74MHz Center	Surface Mount	10-SMD, No Lead	Lead free / RoHS Compliant	SAW Filters	-	298.74(Typ) MHz	- 20 C to + 75 C	SMD/SMT	30 V	1 dB	-	-	-	-	-	-	-	-	-	-	-	-
