RECOM Power GmbH- 开关盖
03
开关盖 - 型号列表
共 4 个型号| 制造商零件编号 | 库存 | 价格 | 最小起订量 | 商标名 | 单位包装 | 标准包装数量 | RoHS | 汽车级 | 无铅定义 | 认证机构 | 调光方式 | 效率 | 输出功率 | 功率（瓦） | 额定功率 | 工作模式 | 额定电压 | 输出电流 | 输出数量 | 隔离电压 | 最小输入电压 | 功率因数校正 | 输出电流/通道 | 重量 | 安装类型 | 安装样式 | 面板安装类型 | 尺寸/外形 | 端接样式 | 类型 | 系列 | 产品特性 | 拓扑 | 匹配码 | 应用领域 | 标准交期 | 额定等级 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

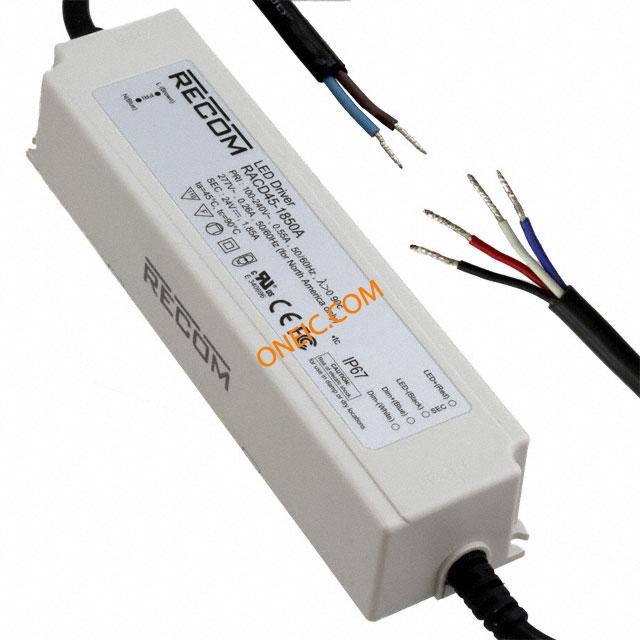

 AC/DC CONVERTER 1A 45W LED SUPPLY CC AC/DC 15-24V 1.85A LED Drivers Power Supplies 45W 90-305Vin 1850mA Recom LED 驱动器 , 15 → 24V, 0.185 → 1.85A, 45W LEDDr Module 45W 1.85A 15-24V RECOM | 10 | 1: ¥316.54 | 1 | LIGHTLINE | 1 | 10 | Lead free / RoHS Compliant | NO | RoHS-conform | CE, UL | Analog, PWM | 89% | 45 W | 45W | 45W | Constant Current (CC) | 90 VAC to 305 VAC | 1850mA | 1 | 3.75kV (3750V) | 15 ~ 24 V | YESYES/NO | 105 mA to 1050 mA | 0.882 lb (400.07g) | Chassis Mount | Screw | Enclosed | 6.85" L x 1.77" W x 1.28" H (174.0mm x 45.0mm x 32.5mm) | Wire Leads | ACDC | RACD45-A | OTP, OVP, SCP | AC DC Converter | RACD45-1850A | Commercial | 11 weeks | IP67 | -40+85° |

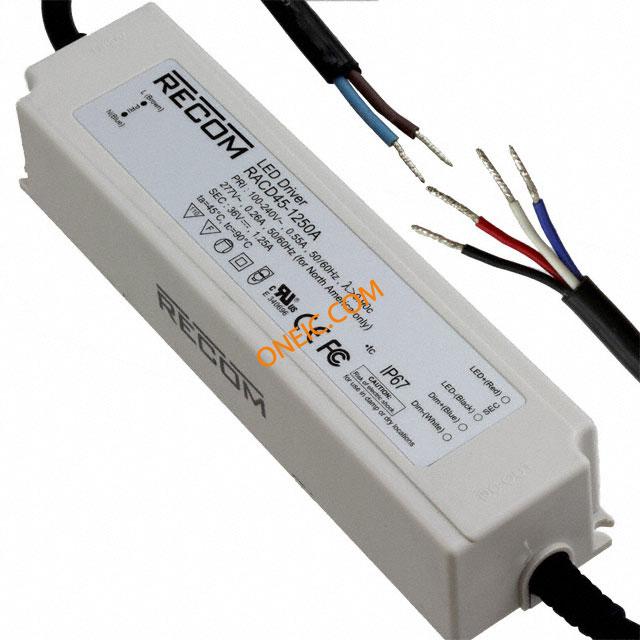

 AC/DC CONVERTER 1A 45W LED SUPPLY CC AC/DC 24-36V 1.25A LED Power Supplies 45W 90-305Vin 1250mA Recom LED 驱动器 , 24 → 36V, 0.125 → 1.25A, 45W RECOM | 14 | 1: ¥299.20 | 1 | LIGHTLINE | 1 | 10 | Lead free / RoHS Compliant | NO | RoHS-conform | CE, UL | Analog, PWM | 89% | 45 W | 45W | 45W | Constant Current (CC) | 90 VAC to 305 VAC | 1250mA | 1 | 3.75kV (3750V) | 24 ~ 36 V | YESYES/NO | 125 mA to 1250 mA | 0.882 lb (400.07g) | Chassis Mount | Screw | Enclosed | 6.85" L x 1.77" W x 1.28" H (174.0mm x 45.0mm x 32.5mm) | Wire Leads | ACDC | RACD45-A | OTP, OVP, SCP | AC DC Converter | RACD45-1250A | Commercial | 11 weeks | IP67 | -40+85° |

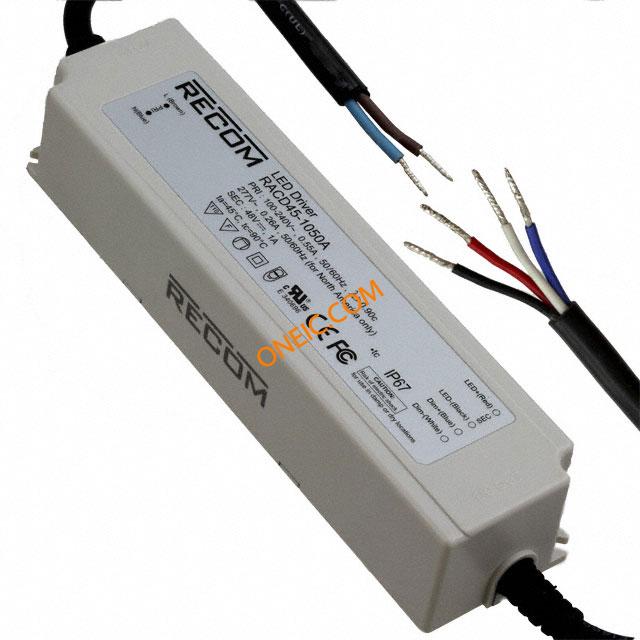

 AC/DC CONVERTER 1A 45W LED SUPPLY CC AC/DC 33-48V 1.05A LED Power Supplies 45W 90-305Vin 1050mA Recom LED 驱动器 , 33 → 48V, 0.105 → 1.05A, 48W LEDDr Module 45W 1A 33-48V RECOM | 350 | 10: ¥277.8004 | 1 | LIGHTLINE | 1 | 10 | Lead free / RoHS Compliant | NO | RoHS-conform | CE, UL | Analog, PWM | 89% | 45 W | 45W | 45W | Constant Current (CC) | 90 VAC to 305 VAC | 1050mA | 1 | 3.75kV (3750V) | 33 ~ 48 V | YESYES/NO | 185 mA to 1850 mA | 0.882 lb (400.07g) | Chassis Mount | Screw | Enclosed | 6.85" L x 1.77" W x 1.28" H (174.0mm x 45.0mm x 32.5mm) | Wire Leads | ACDC | RACD45-A | OTP, OVP, SCP | AC DC Converter | RACD45-1050A | Commercial | 11 weeks | IP67 | -40+85° |

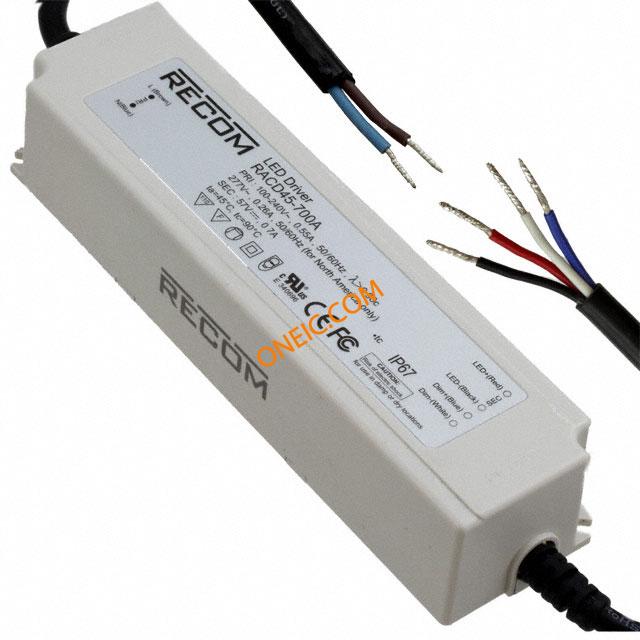

 AC/DC CONVERTER 1A 45W LED SUPPLY CC AC/DC 40-57V 700MA LED Drivers Power Supplies 45W 90-305Vin 700mA Recom LED 驱动器 , 40 → 57V, 0.7 → 0.7A, 40W LEDDr Module 45W 0.7A 40-57V RECOM | 22 | 1: ¥299.20 | 1 | LIGHTLINE | 1 | 10 | Lead free / RoHS Compliant | NO | RoHS-conform | CE, UL | Analog, PWM | 89% | 45 W | 45W | 45W | Constant Current (CC) | 90 VAC to 305 VAC | 700mA | 1 | 3.75kV (3750V) | 40 ~ 57 V | YESYES/NO | 70 mA to 700 mA | 0.882 lb (400.07g) | Chassis Mount | Screw | Enclosed | 6.85" L x 1.77" W x 1.28" H (174.0mm x 45.0mm x 32.5mm) | Wire Leads | ACDC | RACD45-A | OTP, OVP, SCP | AC DC Converter | RACD45-700A | Commercial | 11 weeks | IP67 | -40+85° |
第 1 / 1 页
1
