Powerex, Inc.- 二极管模块

Powerex, Inc.总部位于美国宾夕法尼亚州扬伍德市，是领先的高功率半导体解决方案供应商。公司于1986年由通用电气与三菱电机合资成立，现为三菱电机美国公司的全资子公司。Powerex专注于为严苛应用提供分立、模块化及集成式功率半导体。核心产品包括IGBT模块、智能功率模块（IPM）、压接式晶闸管、整流二极管和定制功率组件。这些产品服务于交流/直流电机控制、替代能源（风能和光伏）、飞行器、工业加热以及医疗电源等多元市场。公司以将先进技术转化为高性价比、高可靠性的解决方案而著称，并拥有强大的工程支持能力。依托硅和碳化硅技术，Powerex提供高效率的功率管理器件。凭借完善的全球分销网络，公司在北美及国际市场保持稳固地位。作为工业功率电子领域的重要参与者，Powerex在封装、热管理和高压设计方面不断创新。其对品质的执着和以客户为中心的研发理念，奠定了其在高功率半导体行业中值得信赖的合作伙伴声誉。

二极管模块 - 型号列表

共 18 个型号

制造商零件编号	库存	价格	包装方式	海关税号	供电电压	反向关断电压（典型）	LED触发电流（最大）	重量	位数	其他规格	标准包装数量	转速	平均整流电流（每二极管）	安装类型	封装形式	供应商器件封装	二极管类型	测试电流	二极管配置	直流反向电压（Vr）（最大）	最小输入电压	反向恢复时间（trr）	RoHS	最大额定电流	峰值反向电压（最大）	有铅工艺兼容	系列	抗辐射加固	峰值脉冲电流（8/20µs）	配置	工作温度
2 ME601615 DIODE MOD 3PH BRDG 1600V 150A RECTIFIER MODULE, 1.6KV, 150A Powerex Inc	10	1: ¥701.012	Bulk	85411000	:1.35V	:1.6kV	:150A	0.445	:Three	:Three Phase Inverter	2	Standard Recovery >500ns, > 200mA (Io)	150A	Chassis Mount	Module	Module	Three Phase	-	-	-	-	-	-	:150A	1600V	-	-	-	-	-	-
2 CS241210 DIODE MOD FST-REC SGL 1200V 100A DIODE MODULE, 1.2KV, 100A, POW-R-BLOK Powerex Inc	557	1: ¥244.62	Bulk	85411000	:1.5V	:1.2kV	:100A	0.077	:Single	:Single	10	Standard Recovery >500ns, > 200mA (Io)	100A (DC)	Chassis Mount	POW-R-BLOK™ Module	POW-R-BLOK™ Module	Standard	20mA @ 1200V	Single	1200V (1.2kV)	1.5V @ 100A	800ns	-	-	-	-	-	-	-	-	-

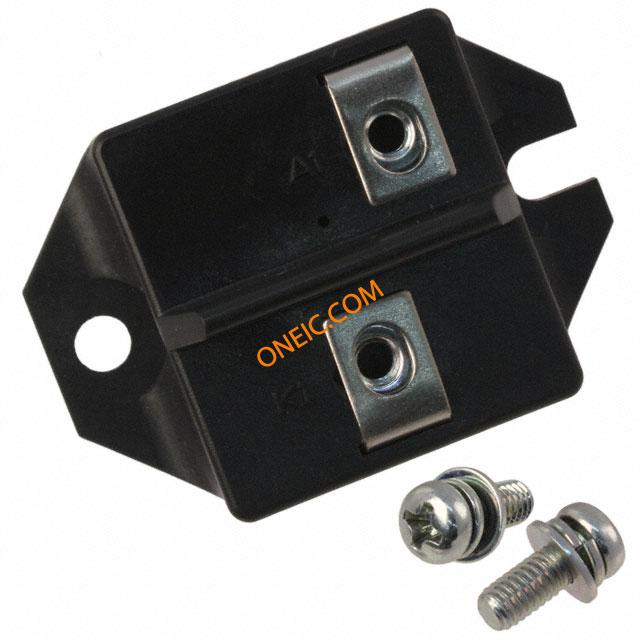

2 CS241250 DIODE MOD FST-REC SGL 1200V 50A DIODE MODULE, 1.2KV, 50A POW-R-BLOK Powerex Inc	10	1: ¥114.376	Bulk	85364900	:1.5V	:1.2kV	:50A	0.082	:Single	:Single	10	Standard Recovery >500ns, > 200mA (Io)	50A (DC)	Chassis Mount	POW-R-BLOK™ Module	POW-R-BLOK™ Module	Standard	10mA @ 600V	Single	1200V (1.2kV)	1.5V @ 50A	800ns	-	-	-	:No	-	-	-	-	-

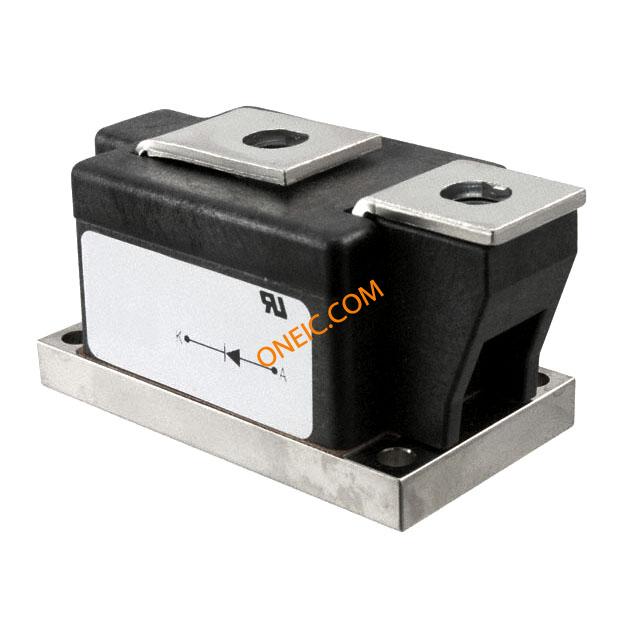

LS410860 DIODE MOD ISO SGL 800V 600A Powerex Inc	44	1: ¥982.328	Bulk	-	-	-	-	-	-	-	1	Standard Recovery >500ns, > 200mA (Io)	600A	Chassis Mount	POW-R-BLOK™ Module	POW-R-BLOK™ Module	Standard	40mA @ 800V	Single	800V	1.19V @ 1800A	-	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-

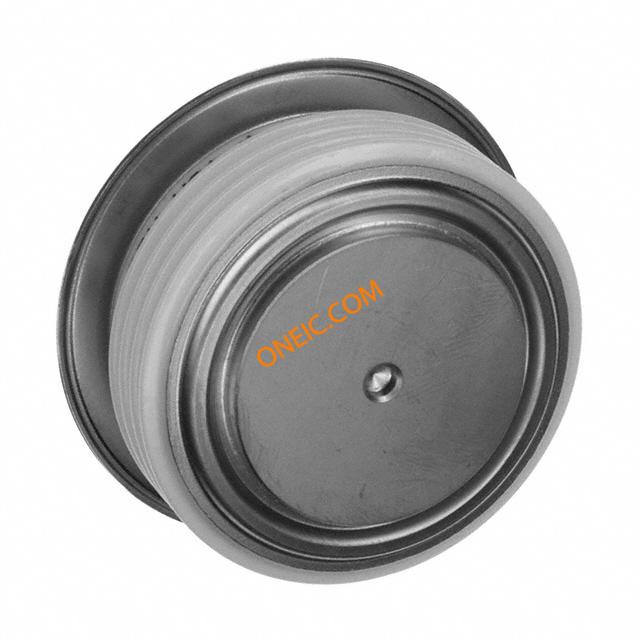

R9G01222XX RECTIFIER 1200V 2200A Powerex Inc	10	1: ¥1,172.0412	Bulk	-	-	-	-	-	-	-	1	Standard Recovery >500ns, > 200mA (Io)	2200A	Chassis Mount	DO-200AB, B-PUK	DO-200AB, B-PUK	Standard	150mA @ 1200V	Single	1200V (1.2kV)	1.1V @ 1500A	15µs	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-
CD411699D DIODE MOD PWR BLOK 100A 1600V RECTIFIER, MOD, 100A, 1.6KV, POW-R-BLOK Powerex Inc	10	1: ¥108.732	:Each	85411000	:1.35V	:1.6kV	:100A	0	:Single	:Dual	7	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*	-	-	-	-
CD410899C DIODE MOD 100A 800V DUAL RECTIFIER, MOD, 100A, 800V, POW-R-BLOK Powerex Inc	101	1: ¥262.74	*	85411000	:1.55V	:800V	:100A	0	:Single	:Dual	6	Standard Recovery >500ns, > 200mA (Io)	100A	*	*	*	Standard	8mA @ 800V	1 Pair Series Connection	800V	-	-	-	-	-	-	-	-	-	-	-
CD411699C DIODE MOD PWR BLOK 100A 1600V Diode 1.6KV 100A 3-Pin RECTIFIER, MOD, 100A, 1.6KV, POW-R-BLOK Powerex Inc	53	1: ¥280.86	Bulk	85411000	1600 V	:1.6kV	:100A	0	3	:Dual	6	Standard Recovery >500ns, > 200mA (Io)	100A	Chassis Mount	Module	*	Standard	8mA @ 1600V	1 Pair Series Connection	1600V (1.6kV)	-	-	-	-	-	-	-	No	2600 A	Dual Series	-40C to 150C
CD411899C DIODE MOD PWR BLOK 100A 1800V RECTIFIER, MOD, 100A, 1.8KV, POW-R-BLOK Powerex Inc	59	1: ¥208.38	Bulk	85411000	:1.55V	:1.8kV	:100A	0	:Single	:Dual	6	Standard Recovery >500ns, > 200mA (Io)	100A	Chassis Mount	Module	*	Standard	8mA @ 1800V	1 Pair Series Connection	1800V (1.8kV)	-	-	-	-	-	-	-	-	-	-	-
CD610816C DIODE MODULE DUAL 160A 800V RECTIFIER, MOD, 160A, 800V, POW-R-BLOK Powerex Inc	10	1: ¥223.856	*	85411000	:1.56V	:800V	:160A	0	:Single	:Dual	4	Standard Recovery >500ns, > 200mA (Io)	160A	*	*	*	Standard	12mA @ 800V	1 Pair Series Connection	800V	-	-	-	-	-	-	-	-	-	-	-
CD611616C DIODE MODULE DUAL 160A 1600V RECTIFIER, MOD, 160A, 1.6KV, POW-R-BLOK Powerex Inc	10	1: ¥362.40	*	85411000	:1.56V	:1.6kV	:160A	0	:Single	:Dual	1	Standard Recovery >500ns, > 200mA (Io)	160A	*	*	*	Standard	12mA @ 1600V	1 Pair Series Connection	1600V (1.6kV)	-	-	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-
CD611816C DIODE MODULE DUAL 160A 1800V RECTIFIER, MOD, 160A, 1.8KV, POW-R-BLOK Powerex Inc	10	1: ¥239.02	*	85411000	:1.56V	:1.8kV	:160A	0	:Single	:Dual	3	Standard Recovery >500ns, > 200mA (Io)	160A	*	*	*	Standard	12mA @ 1800V	1 Pair Series Connection	1800V (1.8kV)	-	-	-	-	-	-	-	-	-	-	-
CD420890C SCR MOD ISO DUAL 90A 800V SCR / RECTIFIER, MOD, 90A, 800V, POW-R-BLOK Powerex Inc	10	1: ¥122.944	:Each	85411000	:1.9V	:800V	:90A	0	:Single	:Dual	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CD421690C SCR MOD ISO DUAL 90A 1600V SCR / RECTIFIER, MOD, 90A, 1.6KV, POW-R-BLOK Powerex Inc	22	1: ¥253.68	:Each	85411000	:1.9V	:1.6kV	:90A	0	:Single	:Dual	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CD421890C SCR MOD ISO DUAL 90A 1800V SCR / RECTIFIER, MOD, 90A, 1.8KV, POW-R-BLOK Powerex Inc	10	1: ¥138.516	:Each	85411000	:1.9V	:1.8kV	:90A	0	:Single	:Dual	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CD431890C SCR MOD ISO DUAL 90A 1800V SCR, MOD, 90A, 1.8KV, POW-R-BLOK Powerex Inc	10	1: ¥150.144	:Each	85411000	:1.9V	:1.8kV	:90A	0	:Single	:Dual	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CD631815C SCR MODULE DUAL 150A 1800V SCR, MOD, 150A, 1.8KV, POW-R-BLOK Powerex Inc	10	1: ¥257.244	:Each	85411000	:1.6V	:1.8kV	:150A	0	:Single	:Dual	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CD2406500N DIODE MOD FAST REC 50A 480V Powerex Inc	-		*	-	-	-	-	-	-	-	3	Fast Recovery = 200mA (Io)	50A (DC)	*	*	*	Standard	20mA @ 480V	1 Pair Series Connection	480V	2.5V @ 50A	200ns	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-
