- Power-One, Inc.
电池与电源管理解决方案
Power-One, Inc.- 电池与电源管理解决方案
02
MODELS电池与电源管理解决方案 - 型号列表共 10 个型号
| 制造商零件编号 | 价格/库存 | Weight | Approvals | Termination Style | Number of Cells | Size / Dimension | Battery Cell Size | Operating Temperature | Power - Max | Charge Current - Max | Standard Package | Voltage - Input | Mounting Type | Type | Voltage - Nominal | Number of Outputs | Product Category | Series | Output Voltage-Channel 1 | Output Type | Isolation Voltage | RoHS | Part # Aliases | Output Current-Channel 1 | Product | Dimensions | Output Power Rating | Mounting Style | Open Frame/Enclosed | Input Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 询价 | 0.77 lb (349.27g) | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.47" L x 1.49" W x 3.54" H (113.60mm x 38.00mm x 90.00mm) | 12V | -10°C ~ 50°C | 49W | 3.6A | 1 | 85 ~ 264 VAC | DIN Rail | Lead Acid | 12.8V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 0.77 lb (349.27g) | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.47" L x 1.49" W x 3.54" H (113.60mm x 38.00mm x 90.00mm) | 24V | -10°C ~ 50°C | 49W | 1.8A | 1 | 85 ~ 264 VAC | DIN Rail | Lead Acid | 25.7V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 0.77 lb (349.27g) | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.47" L x 1.49" W x 3.54" H (113.60mm x 38.00mm x 90.00mm) | 48V | -10°C ~ 50°C | 49W | 900mA | 1 | 85 ~ 264 VAC | DIN Rail | Lead Acid | 51.4V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | 2.6 lbs (1.2kg) | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.47" L x 4.06" W x 5.43" H (113.60mm x 103.00mm x 138.00mm) | 24V | -40°C ~ 60°C | 115W | 4.2A | 1 | 85 ~ 246 VAC | DIN Rail | Lead Acid | 27.3V | 1 | DIN Rail Power Supplies | W | 27.3 V | Isolated | 2.8 kV | RoHS Compliant | LWR1240-6EM1 | 4.2 A | Switching Supplies | 113.6 mm L x 103 mm W | 115 W | DIN Rail | Enclosed | 264 VAC, 350 VDC |
| 询价 | 3.1 lbs (1.4kg) | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.47" L x 4.06" W x 5.43" H (113.60mm x 103.00mm x 138.00mm) | 48V | -40°C ~ 60°C | 230W | 4.2A | 1 | 85 ~ 246 VAC | DIN Rail | Lead Acid | 54.5V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 3.1 lbs (1.4kg) | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.47" L x 4.06" W x 5.43" H (113.60mm x 103.00mm x 138.00mm) | 24V | -40°C ~ 60°C | 230W | 8.4A | 1 | 85 ~ 246 VAC | DIN Rail | Lead Acid | 27.3V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 询价 | 3.1 lbs (1.4kg) | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.47" L x 4.06" W x 5.43" H (113.60mm x 103.00mm x 138.00mm) | 12V | -40°C ~ 60°C | 194W | 14A | 1 | 85 ~ 246 VAC | DIN Rail | Lead Acid | 13.8V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 询价 | * | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.49" L x 7.64" W x 5.43" H (114.00mm x 194.00mm x 138.00mm) | 48V | -40°C ~ 60°C | 343W | 6.3A | 1 | 85 ~ 264VAC | DIN Rail | Lead Acid | 54.5V | 1 | DIN Rail Power Supplies | X | 54.5 V | Isolated | 2.8 kV | RoHS Compliant | LXR1740-6M1 | 6.3 A | Switching Supplies | 113.6 mm L x 194 mm W | 343 W | DIN Rail | Enclosed | 264 VAC, 350 VDC |

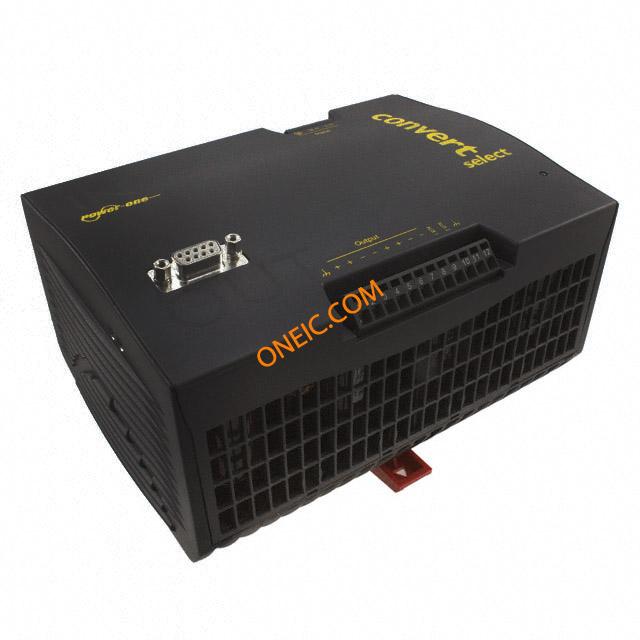

 | 询价 | * | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.49" L x 7.64" W x 5.43" H (114.00mm x 194.00mm x 138.00mm) | 24V | -40°C ~ 60°C | 458W | 16.8A | 1 | 85 ~ 264VAC | DIN Rail | Lead Acid | 27.3V | 1 | DIN Rail Power Supplies | X | 27.3 V | Isolated | 2.8 kV | RoHS Compliant | LXN1240-6M1 | 16.8 A | Switching Supplies | 113.6 mm L x 194 mm W | 458 W | DIN Rail | Enclosed | 264 VAC, 350 VDC |

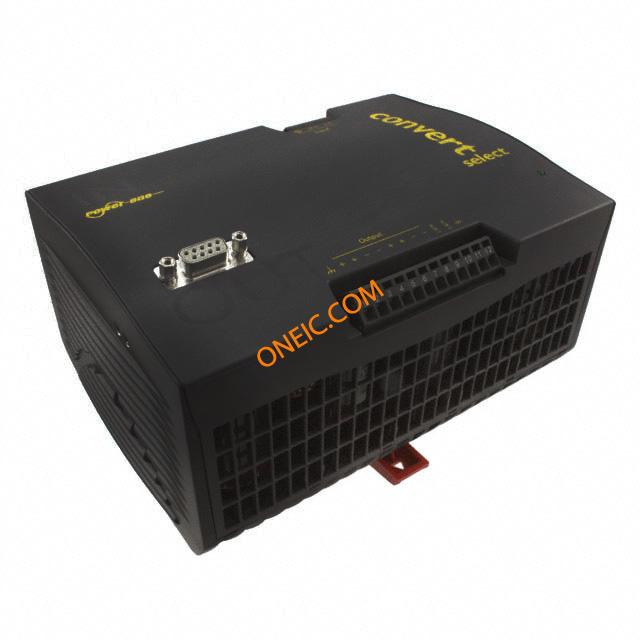

 | 询价 | * | CE, CSA, cUL, IEC, EN, TUV, UL | Terminal Block | 1 | 4.49" L x 7.64" W x 5.43" H (114.00mm x 194.00mm x 138.00mm) | 48V | -40°C ~ 60°C | 458W | 8.4A | 1 | 85 ~ 264VAC | DIN Rail | Lead Acid | 54.5V | 1 | DIN Rail Power Supplies | X | 54.5 V | Isolated | 2.8 kV | RoHS Compliant | LXN1740-6M1 | 8.4 A | - | - | - | - | - | - |
第 1 / 1 页
