Power-One, Inc.- 背板连接器

Power-One, Inc.（宝威电源）成立于1973年，总部位于美国加利福尼亚州卡马里奥。公司是全球十大电能转换与电能管理解决方案提供商之一，专注于将市电交流电转换为各种直流电压。其核心产品线包括AC/DC电源、DC/DC转换器以及可再生能源逆变器，广泛应用于电信、数据通信、工业和新能源领域。代表性产品系列有‘Novum’数字负载点转换器、‘SCP’系列高效整流器，以及‘Trio’和‘Uno’系列太阳能逆变器。Power-One的电源产品以高效率著称，整流器效率常超过95%，处于行业领先。公司在全球高可用性基础设施电源市场拥有重要份额，尤其在欧洲和北美市场地位突出。2013年，ABB集团以约10亿美元收购Power-One，将其并入ABB电力转换业务单元。收购前，Power-One凭借其全面的产品线和高效技术，始终稳固位于全球电能转换市场前列。

背板连接器 - 型号列表

共 42 个型号

制造商零件编号	库存	价格	端接方式	安装类型	触点数	类型	接触镀层	间距	排数	标准包装数量	RoHS	欧盟RoHS	接触电阻	最大额定电流	最小输入电压	深度	高度	壳体材料	总长度	连接器性别	最小供电电压	安装样式	已删除	附件类型	适用产品/相关产品	工作温度	标准包装规格

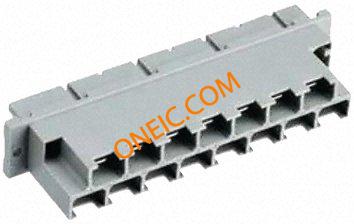

STV-H11-F/CO Conn DIN 41612 F 11 POS 7.62mm Faston ST Panel Mount H11 connector for eurocassette PSUs power-one	10	1: ¥87.04	Faston	Panel Mount	11	DIN 41612	Silver	7.62 mm	1	Bulk	Compliant	Compliant	8 mohm	20 A	500VAC	31.1 mm	10.7 mm	Polybutylene Terephthalate/Polyca...	95 mm	F	500VAC	Panel	Compliant	Connector	Cassette Type Converter	-55C to 125C	-
STV-H11-FSG/CO Conn DIN 41612 F 11 POS 7.62mm Faston ST Panel Mount power-one	-		Faston	Panel Mount	11	DIN 41612	-	7.62 mm	-	Bulk	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
STV-H15S2-F/CO Conn DIN 41626 F 2Power/11Signal POS Solder/Faston ST Panel Mount PARTS/ACC.;highcurrent,soldering+fastontermi power-one	10	1: ¥324.292	Solder/Faston	Panel Mount	2Power/11Signal	DIN 41626	Gold Over Nickel/Silver Over Nickel	-	-	Bulk	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1
STV-H15S4-FSF/CO Conn DIN 41626 F 4Power/7Signal POS Solder/Faston ST Panel Mount PARTS/ACC.;Highcurrent,screwterminals+faston power-one	-		Solder/Faston	Panel Mount	4Power/7Signal	DIN 41626	Gold Over Nickel/Silver Over Nickel	-	-	Bulk	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
STV-H11-FSR/CO Conn DIN 41612 F 11 POS 7.62mm Screw ST Panel Mount power-one	-		Screw	Panel Mount	11	DIN 41612	Silver	7.62 mm	1	Bulk	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
STV-H15-FWS/CO Conn DIN 41612 F 15 POS 10.16mm Solder RA Thru-Hole power-one	-		Solder	Through Hole	15	DIN 41612	Silver	10.16 mm	2	Bulk	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
STV-H15-FSR Conn DIN 41612 F 15 POS 10.16mm Screw ST Panel Mount power-one	-		Screw	Panel Mount	15	DIN 41612	Silver	10.16 mm	2	Bulk	-	Compliant	8	15/Contact	500VAC	14.8	30	Polybutylene Terephthalate/Polyca...	95	F	-	-	-	-	-	-	-
STV-H11-FG/CO Conn DIN 41612 F 11 POS 7.62mm Faston ST Panel Mount power-one	-		Faston	Panel Mount	11	DIN 41612	Gold	7.62 mm	1	Bulk	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
STV-H11-FP/CO Conn DIN 41612 F 11 POS 7.62mm Press Fit ST Thru-Hole PARTS/ACC.;Forbackplane,pressfitterminals power-one	10	20: ¥145.452	Press Fit	Through Hole	11	DIN 41612	Silver	7.62 mm	1	Bulk	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
STV-H15S4-F/CO Conn DIN 41626 F 4Power/7Signal POS Solder/Faston ST Panel Mount PARTS/ACC.;highcurrent,soldering+fastontermi power-one	-		Solder/Faston	Panel Mount	4Power/7Signal	DIN 41626	Gold Over Nickel/Silver Over Nickel	-	-	Bulk	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH11FSCOG Conn DIN 41612 F 11 POS 7.62mm Faston ST Panel Mount power-one	-		Faston	Panel Mount	11	DIN 41612	Silver	7.62 mm	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH15FWSCO Conn DIN 41612 F 15 POS 10.16mm Solder RA Thru-Hole power-one	-		Solder	Through Hole	15	DIN 41612	Silver	10.16 mm	2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH15S4FSRCO Conn DIN 41626 F 4Power/7Signal POS Solder/Faston ST Panel Mount power-one	-		Solder/Faston	Panel Mount	4Power/7Signal	DIN 41626	Gold Over Nickel/Silver Over Nickel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH11FGCOG Conn DIN 41612 F 11 POS 7.62mm Faston ST Panel Mount power-one	-		Faston	Panel Mount	11	DIN 41612	Silver	7.62 mm	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH11FPCO Conn DIN 41612 F 11 POS 7.62mm Press Fit ST Thru-Hole power-one	-		Press Fit	Through Hole	11	DIN 41612	Silver	7.62 mm	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH11FPCOG Conn DIN 41612 F 11 POS 7.62mm Press Fit ST Thru-Hole power-one	-		Press Fit	Through Hole	11	DIN 41612	Silver	7.62 mm	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH15FCO Conn DIN 41612 F 15 POS Faston ST Panel Mount power-one	-		Faston	Panel Mount	15	DIN 41612	Silver	-	2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH11FSCO Conn DIN 41612 F 11 POS 7.62mm Faston ST Panel Mount power-one	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH15FBCO Conn DIN 41612 F 15 POS 10.16mm Solder ST Thru-Hole power-one	-		Solder	Through Hole	15	DIN 41612	Silver	10.16 mm	2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PONSTVH15S4FLSCO Conn DIN 41626 F 4Power/7Signal POS Solder/Faston ST Panel Mount power-one	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

第 1 / 3 页
