松下集团（Panasonic Corporation）成立于1918年，总部位于日本大阪府门真市，是全球领先的电子和工业产品制造商。其电子元器件业务由松下电器产业株式会社负责，提供包括电容器、电阻器、电感器和电路保护器件在内的丰富产品线。松下以其MLCC（片式多层陶瓷电容器）技术闻名，产品广泛应用于汽车、工业和消费电子领域。在半导体方面，松下工业设备解决方案事业部提供功率MOSFET、IGBT和晶闸管等功率半导体，致力于高效能源利用。公司的传感器阵容包括Grid-EYE红外阵列传感器和NaPiOn系列PIR传感器，是楼宇自动化和物联网的重要组件。松下还生产多种继电器、连接器和开关，其品牌产品以高可靠性满足严苛环境下的连接需求。此外，松下开发了MN101和MN103系列等微控制器（MCU），常与自家的电源管理IC配合使用。作为主要的电子元器件供应商，松下在全球被动元件市场中位列前十，尤其在MLCC和电解电容器领域占有重要份额。针对汽车电气化趋势，松下的元器件在电池管理系统、逆变器控制和ADAS模块中发挥着关键作用。凭借强大的研发实力和悠久历史，松下持续在小型化和高温运行方向上推动下一代电子元器件的创新。

安全与限制开关 - 型号列表

共 30 个型号

制造商零件编号	库存	价格	标准包装数量	致动器类型	工作温度	最大额定电流	包装方式	额定电压	操作力	端接样式	RoHS	触点额定电流	端子类型	触头材料	典型触点布局	安装类型	工厂包装数量	连接器类型	系列	电路	开关功能	电气寿命	机械寿命	触点形式	其他名称	超行程	工作高度	产品特性	防护等级	类型

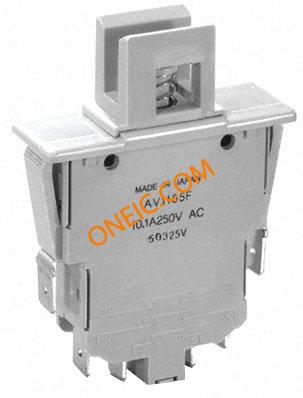

3 AV12853F Basic / Snap Action Switches 2 FormA, 10.1A, QC DPDT-NO Microswitch, 10.1 A @ 250 V ac Electromechanical Switch Safety Interlock Switch 10.1A AV1 SFTY INTRLCK SW 2 FORM A 双刀双掷 - 常开安全互锁开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	40	1: ¥45.628	50	Plunger	+85°C	10.1 A	Bulk	250 V	7.9 N	Quick Connect Terminal	RoHS Compliant By Exemption	10.1 A @ 250 V ac	Tab	Silver Cadmium Oxide	DPDT-NO	-	50	翼片	*	-	-	-	-	DPST	-	-	-	-	-	-

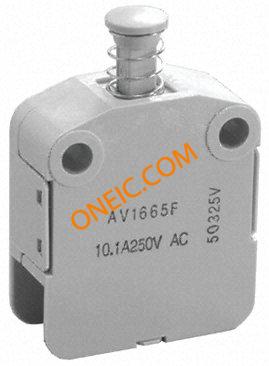

3 AV14653F Basic / Snap Action Switches 1 FormA, 1 Form B 10.1A, QC SPST-NO/NC Microswitch, 10.1 A @ 250 V ac Electromechanical Switch Safety Interlock Switch 10.1A AV1 SFTY INTRLCK SW 1 FORM A/B 单刀单掷 - 常开/常闭安全互锁开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	88	1: ¥53.584	50	Plunger	+85°C	10.1 A	Bulk	250 V	2.9 N	Quick Connect Terminal	RoHS Compliant By Exemption	10.1 A @ 250 V ac	Tab	Silver Cadmium Oxide	SPST-NO/NC	-	50	翼片	*	-	-	-	-	SPST	-	-	-	-	-	-

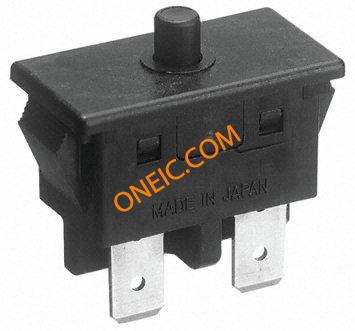

AGX106F Basic / Snap Action Switches AGX(GX)InterlockSwit Switch SPST Microswitch, 10.1 A @ 250 V ac, 6 A @ 30 V dc Switch Safety Interlock Plunger 10.1A 250VAC 30VDC 3.92N Quick Connect 1000000Cycles Panel Mount SW INTERLOCK DOOR SAFETY 10.1A Panasonic Electric Works	1250	1: ¥46.9336	100	Plunger	+85°C	-	Bulk	-	-	-	RoHS Compliant By Exemption	10.1 A @ 250 V ac, 6 A @ 30 V dc	Tab	Silver Cadmium Oxide	SPST	-	100	-	*	-	-	-	-	-	-	-	-	-	-	-
2 AV11853F Basic / Snap Action Switches 3 FormA, 10.1A, QC 3PST-NO Microswitch, 10.1 A @ 250 V ac Electromechanical Switch Safety Interlock Switch 10.1A AV1 SFTY INTRLCK SW 3 FORM A Panasonic Electric Works	110	1: ¥68.476	50	Plunger	+85°C	10.1 A	Bulk	250 V	9.8 N	Quick Connect Terminal	RoHS Compliant By Exemption	10.1 A @ 250 V ac	Tab	Silver Cadmium Oxide	3PST-NO	-	50	-	*	-	-	-	-	3PST	-	-	-	-	-	-
3 AV13653F Basic / Snap Action Switches 2 FormA, 10.1A, QC SW SAFETY INTLOCK DPST 10A 125V DPDT-NO Microswitch, 10.1 A @ 250 V ac Electromechanical Switch Safety Interlock Switch 10.1A 双刀双掷 - 常开安全互锁开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	65	1: ¥47.192	50	Round (Pin Plunger)	-25°C ~ 85°C	10A (AC)	Bulk	125V	800gf	Quick Connect - 0.250" (6.3mm)	Compliant	10.1 A @ 250 V ac	Tab	Silver Cadmium Oxide	DPDT-NO	Chassis Mount	50	翼片	-	DPST-NO	Off-Mom	100,000 Cycles	1,000,000 Cycles	DPST	255-4185	0.083" (2.1mm)	0.500" (12.7mm)	-	-	-
2 AGX105F Basic / Snap Action Switches AGX(GX)InterlockSwit Switch SPST Microswitch, 10.1 A @ 250 V ac, 6 A @ 30 V dc Electromechanical Switch Safety Interlock Switch 10.1A SW INTERLOCK DOOR SAFETY 10.1A 单刀单掷微型开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	22	1: ¥60.248	100	Plunger	+85°C	10.1 A	Bulk	250 V	3.9 N	Quick Connect Terminal	RoHS Compliant By Exemption	10.1 A @ 250 V ac, 6 A @ 30 V dc	Tab	Silver Cadmium Oxide	SPST	-	100	翼片	*	-	-	-	-	-	-	-	-	-	-	-

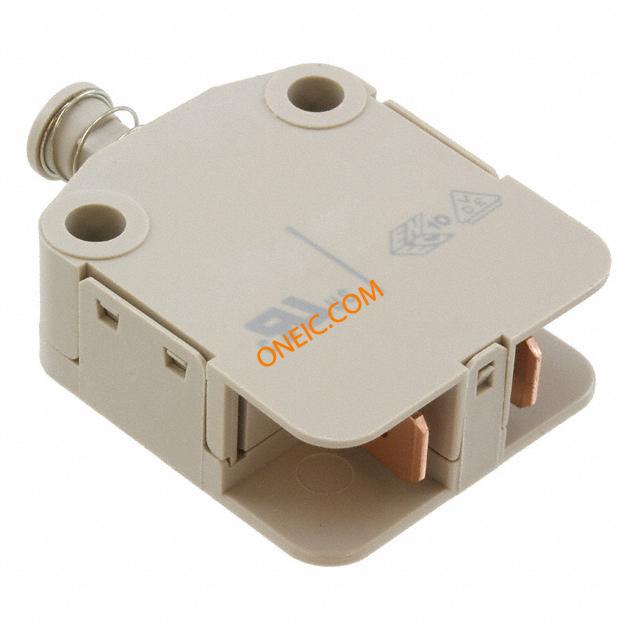

3 AV16653F Basic / Snap Action Switches 1 FormA, 10.1A, QC SW SNAP ACTION SPST 10.1A 125V SPST Microswitch, 10.1 A @ 250 V ac Electromechanical Switch Safety Interlock Switch 10.1A 单刀单掷安全互锁开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	71	1: ¥48.824	100	Round (Pin Plunger)	-25°C ~ 85°C	10A (AC)	Bulk	125V	500gf	Quick Connect - 0.250" (6.3mm)	Compliant	10.1 A @ 250 V ac	Tab	Silver Cadmium Oxide	SPST	Chassis Mount	100	翼片	-	SPST-NO	Off-Mom	100,000 Cycles	1,000,000 Cycles	SPST	255-4186	0.083" (2.1mm)	0.500" (12.7mm)	-	-	-
2 AGX706F Basic / Snap Action Switches AGX(GX)InterlockSwit Switch DPDT-NO Microswitch, 10.1 A @ 250 V ac, 6 A @ 30 V dc Electromechanical Switch Safety Interlock Switch 10.1A SW INTERLOCK DOOR SAFETY 10.1A Switch,doorinterlock,QC 双刀双掷 - 常开微型开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	82	1: ¥79.56	100	Plunger	+85°C	10.1 A @ 250 V 交流	Bulk	-	-	-	RoHS Compliant By Exemption	10.1 A @ 250 V ac, 6 A @ 30 V dc	Tab	Silver Cadmium Oxide	DPDT-NO	-	100	翼片	*	-	-	-	-	-	-	-	-	-	-	-

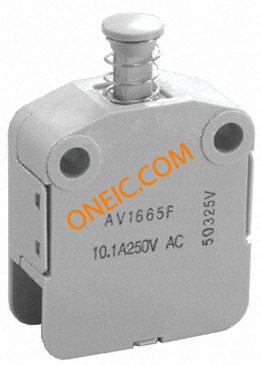

3 AV15653F Basic / Snap Action Switches 1 Form B, 10.1A, QC SPST-NO Microswitch, 10.1 A @ 250 V ac Electromechanical Switch Safety Interlock Switch 10.1A AV1 SFTY INTRLCK SW 1 FORM B 单刀单掷-常闭安全互锁开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	50	2: ¥17.9874	50	Plunger	+85°C	10.1 A @ 250 V 交流	-	-	-	-	Lead free / RoHS Compliant	10.1 A @ 250 V ac	Tab	Silver Cadmium Oxide	SPST-NO	-	-	翼片	*	-	-	-	-	-	-	-	-	-	-	-
2 AGX205F Basic / Snap Action Switches AGX(GX)InterlockSwit Switch DPDT-NO Microswitch, 10.1 A @ 250 V ac, 6 A @ 30 V dc Switch Safety Interlock Plunger 10.1A 250VAC 30VDC 3.92N Quick Connect 1000000Cycles Panel Mount SW INTERLOCK DOOR SAFETY 10.1A 双刀双掷 - 常开微型开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	76	100: ¥51.551	100	Plunger	+85°C	10.1 A	Bulk	250 V	3.9 N	Quick Connect Terminal	RoHS Compliant By Exemption	10.1 A @ 250 V ac, 6 A @ 30 V dc	Tab	Silver Cadmium Oxide	DPDT-NO	Panel	100	翼片	AGX	-	-	-	-	DPST	-	-	-	-	-	Standard

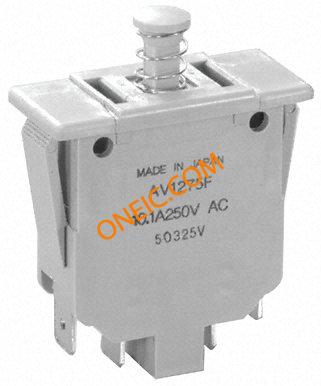

3 AV12753F Basic / Snap Action Switches 2 FormA, 10.1A, QC DPDT-NO Microswitch, 10.1 A @ 250 V ac Electromechanical Switch Safety Interlock Switch 10.1A AV1 SFTY INTRLCK SW 2 FORM A 双刀双掷 - 常开安全互锁开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	126	1: ¥57.37	50	Plunger	+85°C	10.1 A	Bulk	250 V	7.9 N	Quick Connect Terminal	RoHS Compliant By Exemption	10.1 A @ 250 V ac	Tab	Silver Cadmium Oxide	DPDT-NO	-	50	翼片	*	-	-	-	-	DPST	-	-	-	-	-	-
2 AGX206F Basic / Snap Action Switches AGX(GX)InterlockSwit Switch DPDT-NO Microswitch, 10.1 A @ 250 V ac, 6 A @ 30 V dc Electromechanical Switch Safety Interlock Switch 10.1A SW INTERLOCK DOOR SAFETY 10.1A 双刀双掷 - 常开微型开关, 10.1 A @ 250 V 交流 Panasonic Electric Works	67	1: ¥79.56	100	Plunger	+85°C	10.1 A	Bulk	250 V	3.9 N	Quick Connect Terminal	RoHS Compliant By Exemption	10.1 A @ 250 V ac, 6 A @ 30 V dc	Tab	Silver Cadmium Oxide	DPDT-NO	Panel	100	翼片	*	-	-	-	-	DPST	-	-	-	-	-	-
AGX206 SWITCH INTERLOCK DOOR SAFE 10.1A Panasonic Electric Works	97	1: ¥76.16	100	Round (Pin Plunger)	-25°C ~ 85°C	10A (AC), 6A (DC)	Bulk	125V	400gf	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	Panel Mount, Snap-In	-	-	-	DPST-NO	Off-Mom	100,000 Cycles	1,000,000 Cycles	-	-	0.158" (4.0mm)	0.276" (7.0mm)	-	-	-
AGX225 SWITCH INTERLOCK DOOR SAFETY 16A Panasonic Electric Works	174	1: ¥44.608	100	Round (Pin Plunger)	-25°C ~ 85°C	16A (AC)	Bulk	125V	600gf	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	Panel Mount, Snap-In	-	-	-	DPST-NO	Off-Mom	100,000 Cycles	1,000,000 Cycles	-	-	0.079" (2.0mm)	0.189" (4.8mm)	-	-	-
AGX726 SWITCH INTERLOCK DOOR SAFETY 16A Panasonic Electric Works	97	1: ¥77.044	100	Round (Pin Plunger)	-25°C ~ 85°C	16A (AC)	Bulk	125V	600gf	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	Panel Mount, Snap-In	-	-	-	3PST-NO	Off-Mom	100,000 Cycles	1,000,000 Cycles	-	-	0.158" (4.0mm)	0.276" (7.0mm)	-	-	-

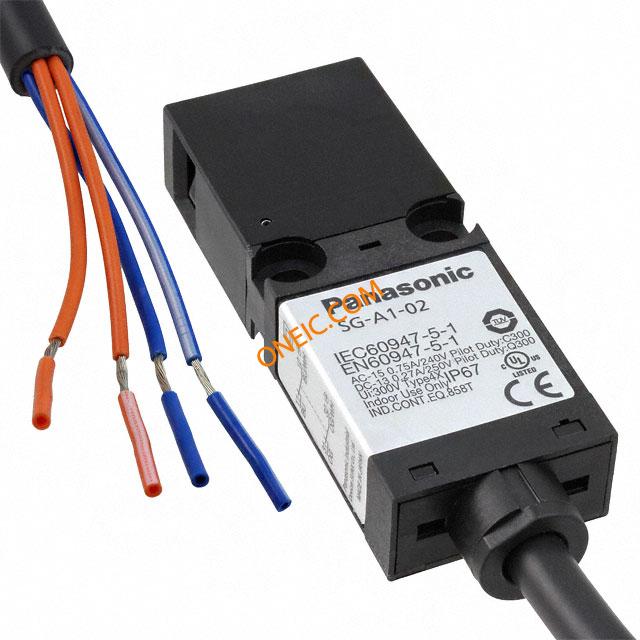

SG-A1-02-5 ULTRA-SLIM SAFETY DOOR SWITCH Panasonic Industrial Automation Sales	10	1: ¥697.952	1	Panel Disconnect	-25°C ~ 70°C	2.5A (AC/DC)	Bulk	125V	6118gf	Cable Leads	-	-	-	-	-	Chassis Mount	-	-	-	DPST-NC	On-Off	100,000 Cycles	1,000,000 Cycles	-	1110-3484	-	-	Cable Length 5m	IP67 - Dust Tight, Waterproof	-

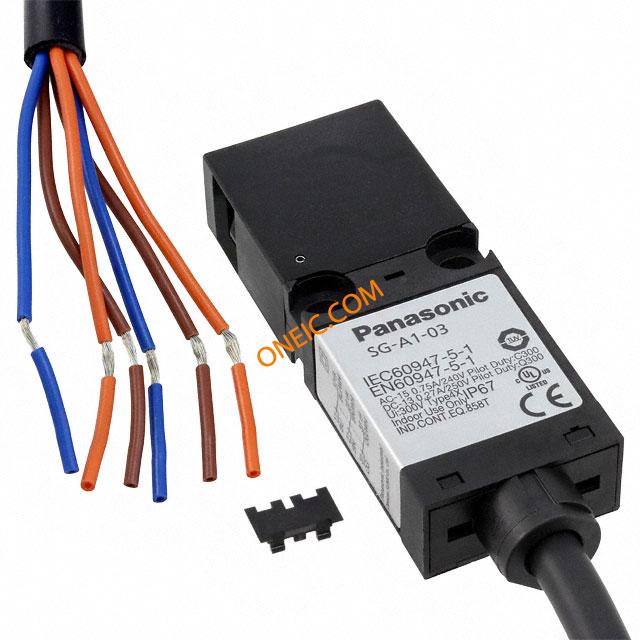

SG-A1-03-5 ULTRA-SLIM SAFETY DOOR SWITCH Panasonic Industrial Automation Sales	10	1: ¥697.952	1	Panel Disconnect	-25°C ~ 70°C	2.5A (AC/DC)	Bulk	125V	6118gf	Cable Leads	-	-	-	-	-	Chassis Mount	-	-	-	3PST-NC	On-Mom	100,000 Cycles	1,000,000 Cycles	-	1110-3486	-	-	Cable Length 5m	IP67 - Dust Tight, Waterproof	-

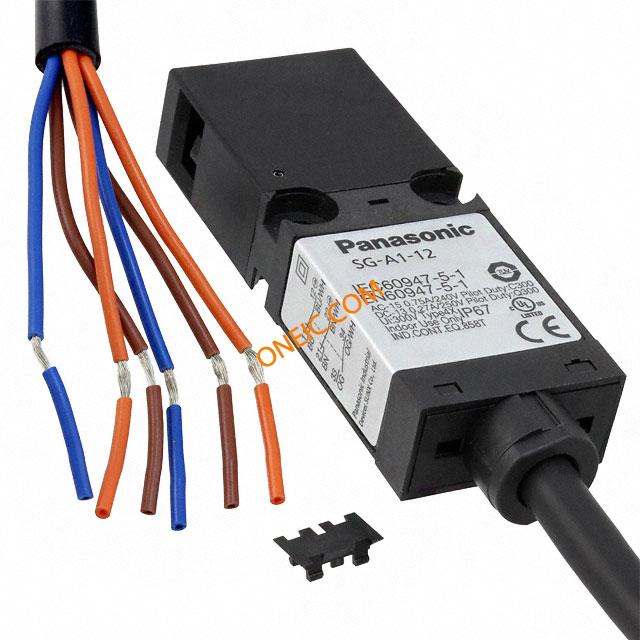

SG-A1-12-5 ULTRA-SLIM SAFETY DOOR SWITCH Panasonic Industrial Automation Sales	10	1: ¥697.952	1	Panel Disconnect	-25°C ~ 70°C	2.5A (AC/DC)	Bulk	125V	6118gf	Cable Leads	-	-	-	-	-	Chassis Mount	-	-	-	DPST-NC + SPST-NO	On-Off, Off-On	100,000 Cycles	1,000,000 Cycles	-	1110-3488	-	-	Cable Length 5m	IP67 - Dust Tight, Waterproof	-

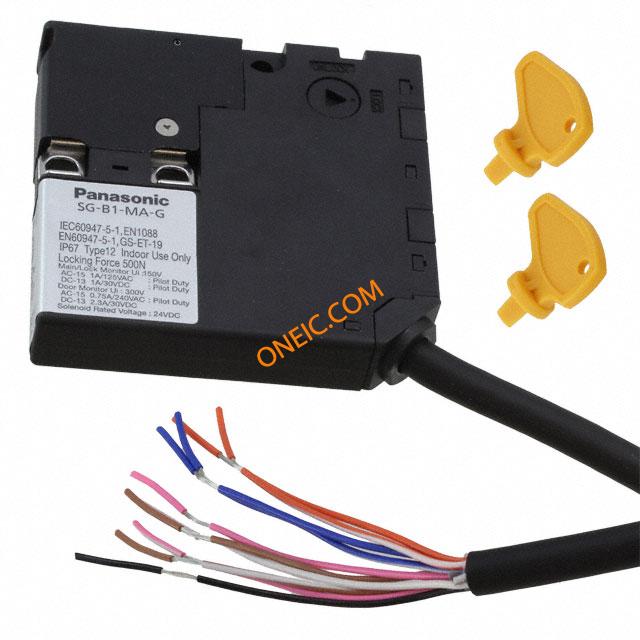

SG-B1-MA-G1 ULTRA-SLIM SFTY DOOR SW W/SOL IN Panasonic Industrial Automation Sales	10	1: ¥2,171.58	1	Panel Disconnect	-25°C ~ 50°C	2A (AC/DC)	Bulk	125V	6118gf	Cable Leads	-	-	-	-	-	Chassis Mount	-	-	-	DPST-NC	On-Off	100,000 Cycles	1,000,000 Cycles	-	1110-3489	-	-	Magnet Lock Solenoid	IP67 - Dust Tight, Waterproof	-

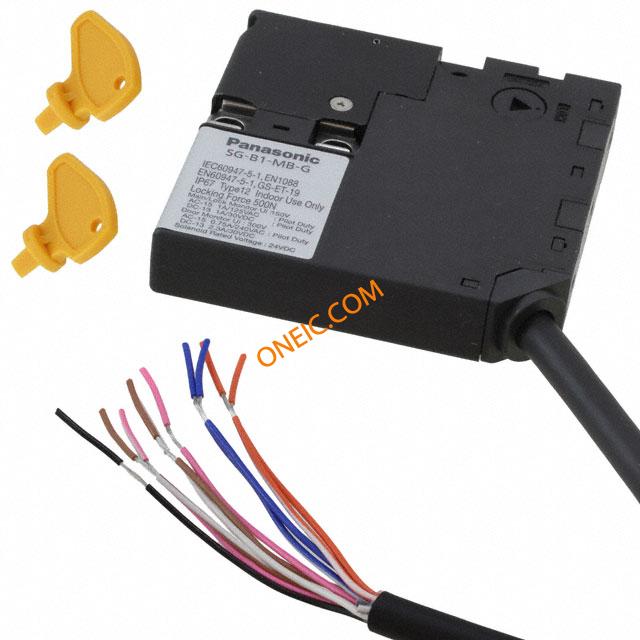

SG-B1-MB-G1 ULTRA-SLIM SFTY DOOR SW W/SOL IN Panasonic Industrial Automation Sales	10	1: ¥2,171.58	1	Panel Disconnect	-25°C ~ 50°C	2A (AC/DC)	Bulk	125V	6118gf	Cable Leads	-	-	-	-	-	Chassis Mount	-	-	-	DPST-NC	On-Off	100,000 Cycles	1,000,000 Cycles	-	1110-3491	-	-	Magnet Lock Solenoid	IP67 - Dust Tight, Waterproof	-
