Panasonic Corporation- 非隔离DC-DC转换器

松下集团（Panasonic Corporation）成立于1918年，总部位于日本大阪府门真市，是全球领先的电子和工业产品制造商。其电子元器件业务由松下电器产业株式会社负责，提供包括电容器、电阻器、电感器和电路保护器件在内的丰富产品线。松下以其MLCC（片式多层陶瓷电容器）技术闻名，产品广泛应用于汽车、工业和消费电子领域。在半导体方面，松下工业设备解决方案事业部提供功率MOSFET、IGBT和晶闸管等功率半导体，致力于高效能源利用。公司的传感器阵容包括Grid-EYE红外阵列传感器和NaPiOn系列PIR传感器，是楼宇自动化和物联网的重要组件。松下还生产多种继电器、连接器和开关，其品牌产品以高可靠性满足严苛环境下的连接需求。此外，松下开发了MN101和MN103系列等微控制器（MCU），常与自家的电源管理IC配合使用。作为主要的电子元器件供应商，松下在全球被动元件市场中位列前十，尤其在MLCC和电解电容器领域占有重要份额。针对汽车电气化趋势，松下的元器件在电池管理系统、逆变器控制和ADAS模块中发挥着关键作用。凭借强大的研发实力和悠久历史，松下持续在小型化和高温运行方向上推动下一代电子元器件的创新。

非隔离DC-DC转换器 - 型号列表

共 29 个型号

制造商零件编号	库存	价格	标准包装数量	最大功率	输出电流	输出数量	最大功率（瓦特）	最小输入电压	包装方式	安装类型	封装形式	类型	效率	尺寸/外形	工作温度	其他名称	产品特性

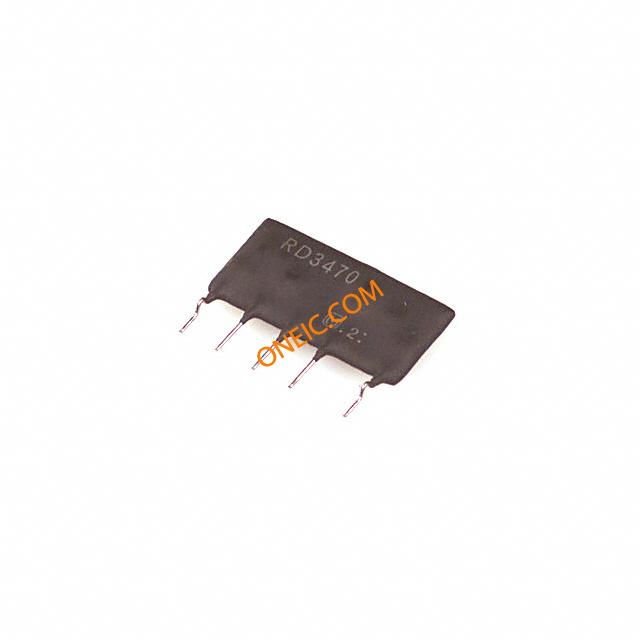

3 EHD-RD3470 CONVERTER DC/DC -32V OUT -100MA Panasonic Electronic Components	249	1: ¥22.984	500	3W	100mA	1	3.2W	-32V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	78%	1.11" L x 0.31" W x 0.70" H (28.2mm x 8.0mm x 17.9mm)	-25°C ~ 80°C	-	-

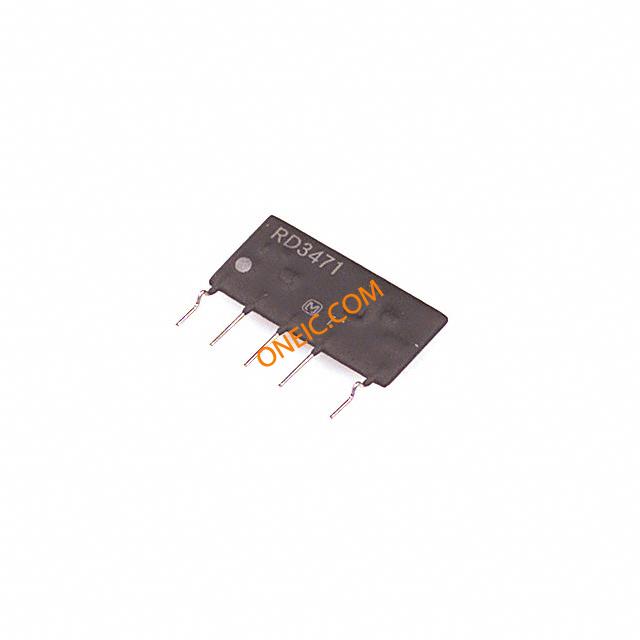

3 EHD-RD3471 CONVERTER DC/DC -32V OUT -150MA Panasonic Electronic Components	229	1: ¥30.60	500	5W	150mA	1	5W	-32V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	80%	1.11" L x 0.35" W x 0.70" H (28.2mm x 9.0mm x 17.9mm)	-25°C ~ 80°C	-	-
3 EHD-RD3363 CONVERTER DC/DC -24V OUT -180MA Panasonic Electronic Components	522	1: ¥24.616	500	4W	180mA	1	4.3W	-24V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	84%	1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm)	-20°C ~ 85°C	-	-

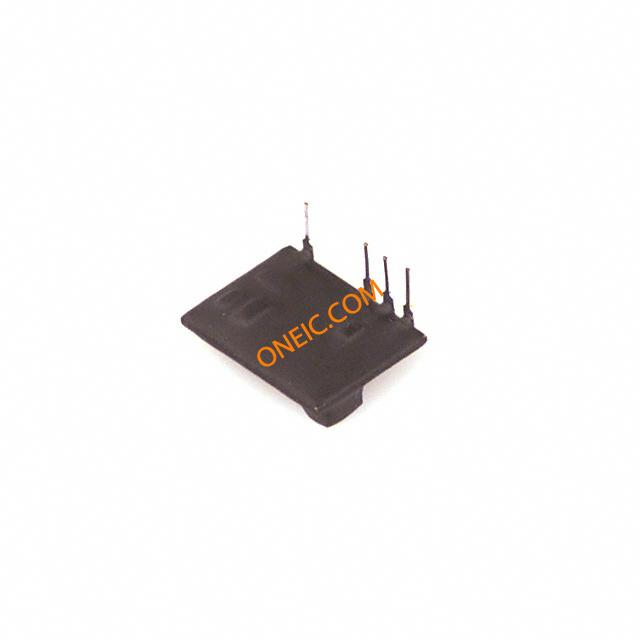

3 EHD-RD3306 CONVERTER DC/DC -5.1V OUT -30MA Panasonic Electronic Components	204	1: ¥35.972	500	1W	30mA	1	0.1W	5.1V	Tray	Through Hole, Right Angle	6-SIP Module (4 Leads)	Non-Isolated PoL Module	46%	0.75" L x 0.59" W x 0.28" H (19.0mm x 15.0mm x 7.0mm)	-25°C ~ 85°C	-	-
3 EHD-RD3323 CONVERTER DC/DC 12V OUTPUT 100MA Panasonic Electronic Components	-		500	1W	100mA	1	1.2W	12V	Tray	Through Hole	10-SIP Module (9 Leads)	Non-Isolated PoL Module	70%	1.20" L x 0.39" W x 0.74" H (30.5mm x 10.0mm x 18.9mm)	-25°C ~ 85°C	-	-
3 EHD-RD3320 CONVERTER DC/DC -12V OUT -200MA Panasonic Electronic Components	215	1: ¥29.036	500	2W	200mA	1	2.4W	12V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	75%	1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm)	-25°C ~ 85°C	-	-

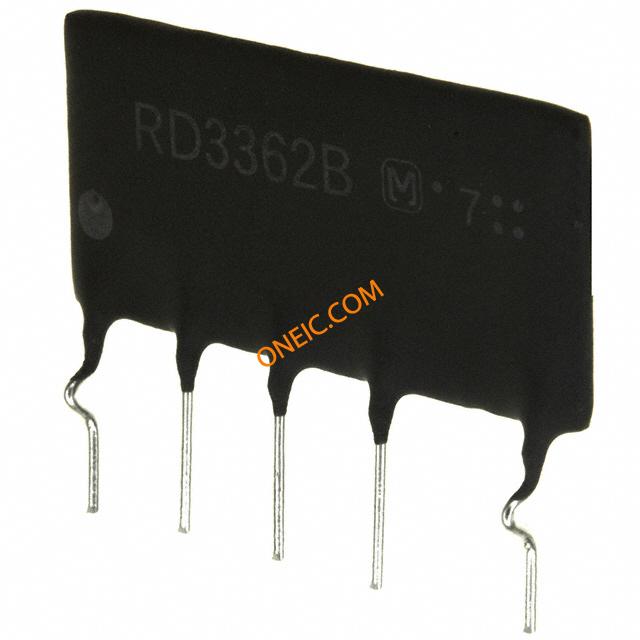

3 EHD-RD3362B CONVERTER DC/DC 24.6V OUT 200MA Panasonic Electronic Components	369	1: ¥38.488	250	5W	200mA	1	5W	24.6V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	84%	1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm)	-20°C ~ 85°C	-	-

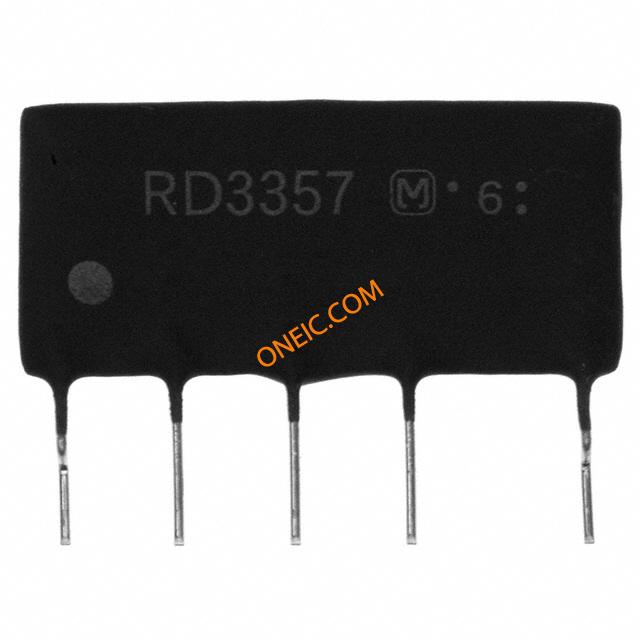

3 EHD-RD3357 CONVERTER DC/DC 20V OUTPUT 200MA Panasonic Electronic Components	10	1: ¥48.824	250	4W	200mA	1	4W	20V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	82%	1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm)	-20°C ~ 70°C	-	-
3 EHD-RD3362A CONVERTER DC/DC 24.6V OUT 200MA Panasonic Electronic Components	341	1: ¥38.216	500	5W	200mA	1	5W	24.6V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	84%	1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm)	-20°C ~ 85°C	-	-
3 EHD-RD3353 CONVERTER DC/DC 20V OUTPUT 100MA Panasonic Electronic Components	124	1: ¥41.276	500	2W	100mA	1	2W	20V	Tray	Through Hole	10-SIP Module (9 Leads)	Non-Isolated PoL Module	75%	1.20" L x 0.39" W x 0.74" H (30.5mm x 10.0mm x 18.9mm)	-25°C ~ 85°C	-	-
3 EHD-RD3364A CONVERTER DC/DC 24V OUTPUT 400MA Panasonic Electronic Components	173	1: ¥43.18	500	9W	400mA	1	9.6W	24V	Tray	Through Hole	15-SIP Module (8 Leads)	Non-Isolated PoL Module	80%	2.24" L x 0.28" W x 0.96" H (57.0mm x 7.0mm x 24.5mm)	-20°C ~ 70°C	-	-

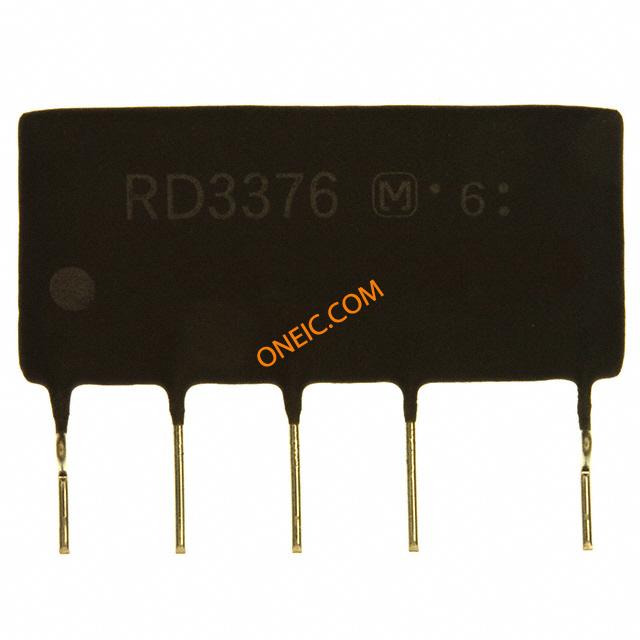

3 EHD-RD3376 CONVERTER DC/DC -12V OUT -250MA Panasonic Electronic Components	118	1: ¥50.932	250	3W	250mA	1	3W	-12V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	-	-	-	-	-

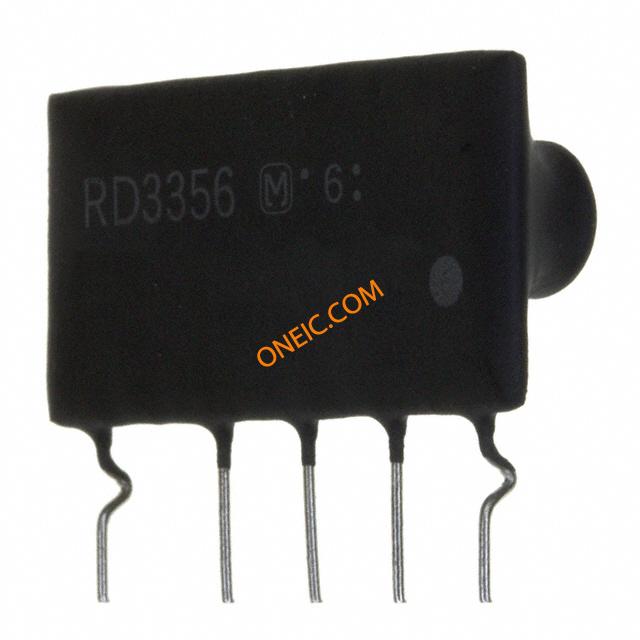

3 EHD-RD3356 CONVERTER DC/DC 20V OUTPUT 80MA Panasonic Electronic Components	248	1: ¥77.52	250	1W	80mA	1	1.6W	20V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	76%	1.20" L x 0.39" W x 0.74" H (30.5mm x 10.0mm x 18.9mm)	-20°C ~ 70°C	-	-

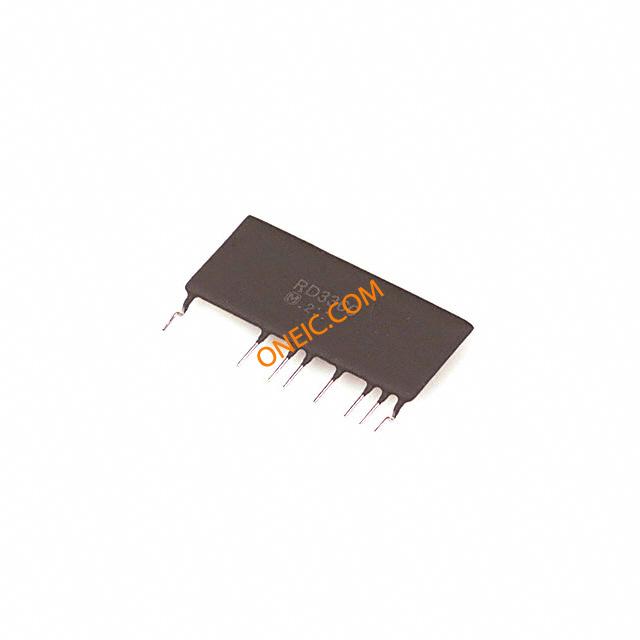

3 EHD-RD3360 CONVERTER DC/DC 24V OUTPUT 100MA Panasonic Electronic Components	27	1: ¥38.896	500	2W	100mA	1	2.4W	24V	Tray	Through Hole	15-SIP Module (8 Leads)	Non-Isolated PoL Module	74%	1.57" L x 0.28" W x 0.87" H (40.0mm x 7.0mm x 22.0mm)	-20°C ~ 90°C	-	-
EUMFD40V28A POWER MODULE DC/DC 24V/28V 400W Panasonic Electronic Components	-		1	400W	16A	1	400W	28V	Bulk	Through Hole	Full Brick	Isolated Module	87%	4.83" L x 2.53" W x 0.55" H (122.6mm x 64.2mm x 13.9mm)	-20°C ~ 100°C	P11405	With Remote On/Off
EUMFD40Y12A POWER MODULE DC/DC 48V/12V 500W Panasonic Electronic Components	-		1	500W	42.5A	1	500W	12V	Bulk	Through Hole	Full Brick	Isolated Module	85%	4.83" L x 2.53" W x 0.55" H (122.6mm x 64.2mm x 13.9mm)	-20°C ~ 100°C	P11406	With Remote On/Off
EUMFD40Y28A POWER MODULE DC/DC 48V/28V 500W Panasonic Electronic Components	-		1	500W	18A	1	500W	28V	Bulk	Through Hole	Full Brick	Isolated Module	90%	4.83" L x 2.53" W x 0.55" H (122.6mm x 64.2mm x 13.9mm)	-20°C ~ 100°C	P11407	With Remote On/Off
3 EHD-RD3324Y CONVERTER DC/DC 12V OUTPUT 200MA Panasonic Electronic Components	-		250	2W	200mA	1	2.4W	12V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	75%	1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm)	-20°C ~ 80°C	-	-
4 EHD-RD3303 CONVERTER DC/DC 5.1V OUT 100MA Panasonic Electronic Components	-		80	1W	100mA	1	0.5W	5.1V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	49%	1.20" L x 0.24" W x 0.49" H (30.5mm x 6.0mm x 12.5mm)	-25°C ~ 85°C	-	-
EHD-RD3324 CONVERTER DC/DC 12V OUTPUT 200MA Panasonic Electronic Components	-		500	2W	200mA	1	2.4W	12V	Tray	Through Hole	10-SIP Module (5 Leads)	Non-Isolated PoL Module	75%	1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm)	-25°C ~ 85°C	-	-
