Panasonic Corporation- 陶瓷电容器

松下集团（Panasonic Corporation）成立于1918年，总部位于日本大阪府门真市，是全球领先的电子和工业产品制造商。其电子元器件业务由松下电器产业株式会社负责，提供包括电容器、电阻器、电感器和电路保护器件在内的丰富产品线。松下以其MLCC（片式多层陶瓷电容器）技术闻名，产品广泛应用于汽车、工业和消费电子领域。在半导体方面，松下工业设备解决方案事业部提供功率MOSFET、IGBT和晶闸管等功率半导体，致力于高效能源利用。公司的传感器阵容包括Grid-EYE红外阵列传感器和NaPiOn系列PIR传感器，是楼宇自动化和物联网的重要组件。松下还生产多种继电器、连接器和开关，其品牌产品以高可靠性满足严苛环境下的连接需求。此外，松下开发了MN101和MN103系列等微控制器（MCU），常与自家的电源管理IC配合使用。作为主要的电子元器件供应商，松下在全球被动元件市场中位列前十，尤其在MLCC和电解电容器领域占有重要份额。针对汽车电气化趋势，松下的元器件在电池管理系统、逆变器控制和ADAS模块中发挥着关键作用。凭借强大的研发实力和悠久历史，松下持续在小型化和高温运行方向上推动下一代电子元器件的创新。

MODELS

陶瓷电容器 - 型号列表共 167 个型号

制造商零件编号	价格/库存	Packaging	Tolerance	Capacitance	Mounting Type	Voltage - Rated	Lead Style	Lead Spacing	Temperature Coefficient	Height - Seated (Max)	Size / Dimension	Applications	Operating Temperature	Standard Package	Package/Case	rohs	Lead Diameter	Type	EU RoHS	Maximum Operating Temperature	Product Diameter	Product Depth	Mounting	Termination Style	Seated Plane Height	Capacitance Value	Lead Pitch For Radial	Voltage	Dielectric	Features	Ratings	Suppression Class	メーカ	製品カテゴリ	RoHS	静電容量	公差	定格電圧	動作温度範囲	末端様式	製品	ケースの直径	リード間隔	パッケージ化	シリーズ	温度係数 / コード	Life	キャパシタンス - nF	キャパシタンス - uF
6 ECK-A3A152KBP セラミックディスクコンデンサ 1500pF 1KV 10% 5mm LS Panasonic	询价	Bulk	10%	1500pF	Through Hole	1000V (1kV)	Formed Leads	0.197" (5.00mm)	Y5P (B)	0.531" (13.50mm)	0.374" Dia (9.50mm)	General Purpose	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.6	Ceramic Disc	Compliant	125	9.5(Max)	4.5(Max)	Through Hole	Radial	13.5(Max)	0.0015uF	5	1000VDC	Y5P	High Voltage	-	-	Panasonic	セラミックディスクコンデンサ	免責による RoHS 準拠	1500 pF	10 %	1 kV	- 25 C to + 125 C	Radial	High Voltage Ceramic Disc Capacitors	9.5 mm	5 mm	Bulk	ECK	Y5P	製造中止	1.5 nF	0.0015 uF
4 ECK-ATS102ME セラミックディスクコンデンサ 1000pF 250V 20% 7.5mm LS Panasonic	询价	Bulk	20%	1000pF	Through Hole	250VAC	Formed Leads	0.295" (7.50mm)	Y5U (E)	0.472" (12.00mm)	0.315" Dia (8.00mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	8(Max)	7(Max)	Through Hole	Radial	12(Max)	0.001uF	7.5	250VAC\|440VAC	Y5U	-	X1Y2	X1/Y2	Panasonic	セラミックディスクコンデンサ	免責による RoHS 準拠	1000 pF	20 %	250 V	- 25 C to + 125 C	Radial	High Voltage Ceramic Disc Capacitors	8 mm	7.5 mm	Bulk	ECK	Y5U	製造中止	1 nF	0.001 uF
6 ECK-A3F391KBP セラミックディスクコンデンサ 390pF 3KV 10% 7.5mm LS Panasonic	询价	Bulk	±10%	390pF	Through Hole	3000V (3kV)	Formed Leads	0.295" (7.50mm)	Y5P (B)	0.512" (13.00mm)	0.354" Dia (9.00mm)	General Purpose	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	High Voltage	-	-	Panasonic	セラミックディスクコンデンサ	免責による RoHS 準拠	390 pF	10 %	3 kV	- 25 C to + 125 C	Radial	High Voltage Ceramic Disc Capacitors	9 mm	7.5 mm	Bulk	ECK	Y5P	製造中止	-	-
4 ECK-ATS472ME セラミックディスクコンデンサ 4700pF 250V 20% 7.5mm LS Panasonic	询价	Bulk	20%	4700pF	Through Hole	250VAC	Formed Leads	0.394" (10.00mm)	Y5U (E)	0.709" (18.00mm)	0.591" Dia (15.00mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	15(Max)	7(Max)	Through Hole	Radial	19(Max)	0.0047uF	10	250VAC\|440VAC	Y5U	-	X1Y2	X1/Y2	Panasonic	セラミックディスクコンデンサ	免責による RoHS 準拠	4700 pF	20 %	250 V	- 25 C to + 125 C	Radial	High Voltage Ceramic Disc Capacitors	15 mm	10 mm	Bulk	ECK	Y5U	製造中止	4.7 nF	0.0047 uF
4 ECK-ATS103MF Ceramic Disc Capacitors .01uF 250V 20% 10mm LS Panasonic	询价	Bulk	20%	10000pF	Through Hole	250VAC	Formed Leads	0.394" (10.00mm)	Y5V (F)	0.827" (21.00mm)	0.669" Dia (17.00mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	17(Max)	7(Max)	Through Hole	Radial	21(Max)	0.01uF	10	250VAC\|440VAC	Y5V	-	X1Y2	X1/Y2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-ATS103MF6 Ceramic Disc Capacitors .01uF 250V 20% 7.5mm LS Panasonic	询价	Bulk	20%	10000pF	Through Hole	250VAC	Formed Leads	0.295" (7.50mm)	Y5V (F)	0.827" (21.00mm)	0.669" Dia (17.00mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	17(Max)	7(Max)	Through Hole	Radial	21(Max)	0.01uF	10	250VAC\|440VAC	Y5V	-	X1Y2	X1/Y2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 ECK-A3F821KBP Ceramic Disc Capacitors 820pF 3KV 10% 7.5mm LS Panasonic	询价	Bulk	10%	820pF	Through Hole	3000V (3kV)	Formed Leads	0.295" (7.50mm)	Y5P (B)	0.591" (15.00mm)	0.433" Dia (11.00mm)	General Purpose	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	11(Max)	6(Max)	Through Hole	Radial	15(Max)	820pF	7.5	3000VDC	Y5P	High Voltage	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-A3D392KBP Ceramic Disc Capacitors 3900pF 2KV 10% 10mm LS Panasonic	询价	Bulk	10%	3900pF	Through Hole	2000V (2kV)	Formed Leads	0.394" (10.00mm)	Y5P (B)	0.866" (22.00mm)	0.709" Dia (18.00mm)	General Purpose	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	18(Max)	5(Max)	Through Hole	Radial	22(Max)	0.0039uF	10	2000VDC	Y5P	High Voltage	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-ATS222ME Ceramic Disc Capacitors 2200pF 250V 20% 7.5mm LS Panasonic	询价	Bulk	20%	2200pF	Through Hole	250VAC	Formed Leads	0.295" (7.50mm)	Y5U (E)	0.531" (13.50mm)	0.374" Dia (9.50mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	9.5(Max)	7(Max)	Through Hole	Radial	13.5(Max)	0.0022uF	7.5	250VAC\|440VAC	Y5U	-	X1Y2	X1/Y2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-ATS102MB セラミックディスクコンデンサ 1000pF 250V 20% 7.5mm LS Panasonic	询价	Bulk	±20%	1000pF	Through Hole	250VAC	Formed Leads	0.295" (7.50mm)	Y5P (B)	0.571" (14.50mm)	0.413" Dia (10.50mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	X1Y2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

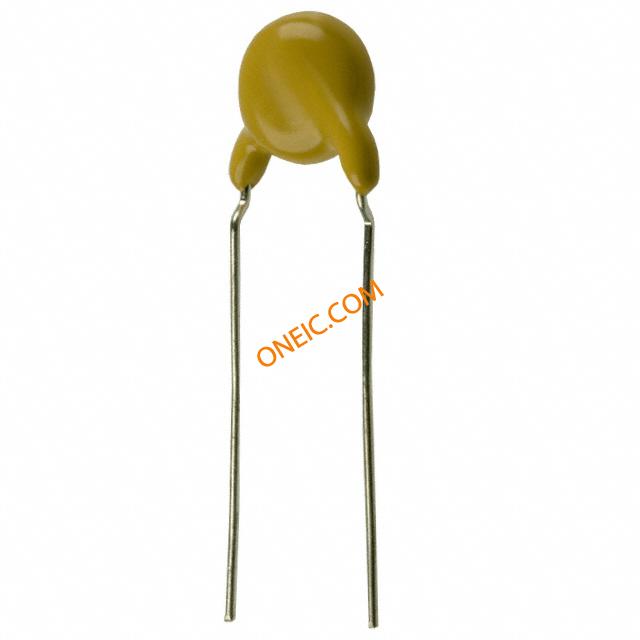

3 ECK-ANA222ME セラミックディスクコンデンサ 2200pF 250V 20% 10mm LS Panasonic	询价	Bulk	20%	2200pF	Through Hole	250VAC	Formed Leads	0.394" (10.00mm)	Y5U (E)	0.591" (15.00mm)	0.433" Dia (11.00mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	11(Max)	8(Max)	Through Hole	Radial	15(Max)	0.0022uF	10	250VAC\|440VAC	Y5U	-	X1Y1	X1/Y1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-A3A562KBP セラミックディスクコンデンサ 5600pF 1KV 10% 10mm LS Panasonic	询价	Bulk	±10%	5600pF	Through Hole	1000V (1kV)	Formed Leads	0.394" (10.00mm)	Y5P (B)	0.827" (21.00mm)	0.669" Dia (17.00mm)	General Purpose	-25°C ~ 125°C	200	Radial, Disc	-	-	-	-	-	-	-	-	-	-	-	-	-	-	High Voltage	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-A3A221KBP セラミックディスクコンデンサ 220pF 1KV 10% 5mm LS Panasonic	询价	Bulk	±10%	220pF	Through Hole	1000V (1kV)	Formed Leads	0.197" (5.00mm)	Y5P (B)	0.394" (10.00mm)	0.236" Dia (6.00mm)	General Purpose	-25°C ~ 125°C	200	Radial, Disc	-	-	-	-	-	-	-	-	-	-	-	-	-	-	High Voltage	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

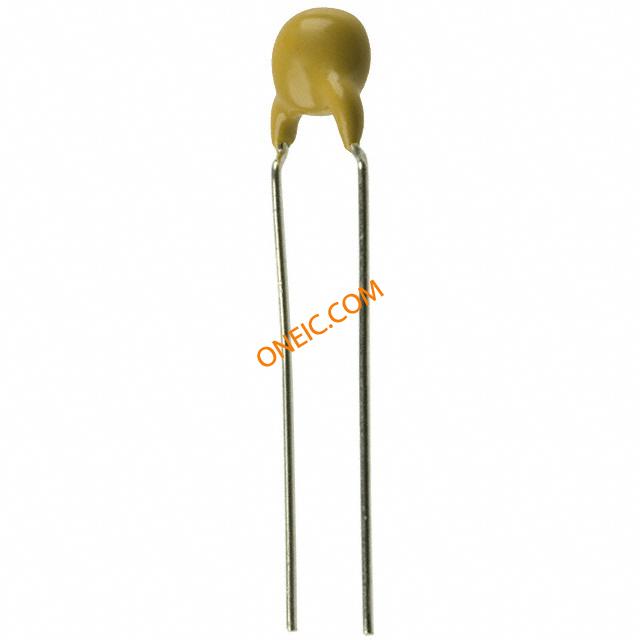

ECK-N3A101KBP Ceramic Disc Capacitors 100pF 1KV 10% 5mm LS Panasonic	询价	Bulk	±10%	100pF	Through Hole	1000V (1kV)	Formed Leads	0.197" (5.00mm)	Y5P (B)	0.394" (10.00mm)	0.236" Dia (6.00mm)	General Purpose	-25°C ~ 105°C	10,000	Radial, Disc	-	-	-	-	-	-	-	-	-	-	-	-	-	-	High Voltage	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-ATS472MF セラミックディスクコンデンサ 4700pF 250V 20% 7.5mm LS Panasonic	询价	Bulk	20%	4700pF	Through Hole	250VAC	Formed Leads	0.295" (7.50mm)	Y5V (F)	0.650" (16.50mm)	0.492" Dia (12.50mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	12.5(Max)	7(Max)	Through Hole	Radial	16.5(Max)	0.0047uF	7.5	250VAC\|440VAC	Y5V	-	X1Y2	X1/Y2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 ECK-ANA102MB Ceramic Disc Capacitors 1000pF 250V 20% 10mm LS Panasonic	询价	Bulk	20%	1000pF	Through Hole	250VAC	Formed Leads	0.394" (10.00mm)	Y5P (B)	0.591" (15.00mm)	0.394" Dia (10.00mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	11(Max)	8(Max)	Through Hole	Radial	15(Max)	0.001uF	10	250VAC\|440VAC	Y5P	-	X1Y1	X1/Y1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 ECK-A3F102KBP Ceramic Disc Capacitors 1000pF 3KV 10% 7.5mm LS Panasonic	询价	Bulk	10%	1000pF	Through Hole	3000V (3kV)	Straight	0.295" (7.50mm)	Y5P (B)	0.650" (16.50mm)	0.492" Dia (12.50mm)	General Purpose	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	12.5(Max)	6(Max)	Through Hole	Radial	16.5(Max)	0.001uF	7.5	3000VDC	Y5P	High Voltage	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-A3A101KBP Cap Ceramic 100pF 1000V Y5P 10% (6 X 4.5mm) Radial 5mm 125°C Bulk Panasonic	询价	Bulk	10%	100pF	Through Hole	1000V (1kV)	Formed Leads	0.197" (5.00mm)	Y5P (B)	0.394" (10.00mm)	0.236" Dia (6.00mm)	General Purpose	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.6	Ceramic Disc	Compliant	125	6(Max)	4.5(Max)	Through Hole	Radial	10(Max)	100pF	5	1000VDC	Y5P	High Voltage	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-ATS471MB Cap Ceramic Suppression X1/Y2 470pF 250VAC/440VAC Y5P 20% (8 X 7mm) Radial 7.5mm 125°C Bulk Panasonic	询价	Bulk	20%	470pF	Through Hole	250VAC	Formed Leads	0.295" (7.50mm)	Y5P (B)	0.472" (12.00mm)	0.315" Dia (8.00mm)	Safety	-25°C ~ 125°C	200	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	8(Max)	7(Max)	Through Hole	Radial	12(Max)	470pF	7.5	250VAC\|440VAC	Y5P	-	X1Y2	X1/Y2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ECK-A3D472KBP Cap Ceramic 0.0047uF 2000V Y5P 10% (25 X 5mm) Radial 10mm 125°C Bulk Panasonic	询价	Bulk	10%	4700pF	Through Hole	2000V (2kV)	Formed Leads	0.394" (10.00mm)	Y5P (B)	1.142" (29.00mm)	0.984" Dia (25.00mm)	General Purpose	-25°C ~ 125°C	100	Radial, Disc	Lead free / RoHS Compliant	0.65	Ceramic Disc	Compliant	125	25(Max)	5(Max)	Through Hole	Radial	29(Max)	0.0047uF	10	2000VDC	Y5P	High Voltage	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
