Ohmite Manufacturing Company- USB连接器与控制器

Ohmite制造公司成立于1925年，是一家全球领先的高功率电阻制造商，总部位于美国伊利诺伊州沃伦维尔。公司拥有超过80年的历史，专注于高电流、高电压、高能量电阻器的设计与制造。产品广泛应用于工业、军事、航天、医疗等要求严苛的领域。主要产品线包括线绕电阻（如270系列）、厚膜电阻（如TGH系列）、陶瓷复合电阻（如OX/OY系列）以及可变电压控制器（如VVP系列）。此外，公司还提供用于电力电子散热管理的多种散热器产品。Ohmite以坚固的工程设计和严格的测试流程确保产品在极端条件下的高精度与高可靠性。作为全球功率电阻市场的资深供应商，Ohmite在该细分领域拥有显著的品牌知名度和技术积累。公司通过全球分销网络与定制化服务，持续满足原始设备制造商和系统集成商的需求。

USB连接器与控制器 - 型号列表

共 51 个型号

制造商零件编号	库存	价格	产品	产品类别	标准包装数量	工厂包装数量	RoHS	容差	电阻	功率（瓦）	额定功率	电阻值（欧姆）	包装方式	封装形式	尺寸/外形	端接样式	端接数	供应商器件封装	类型	系列	产品特性	成分	工作温度	温度系数	宽度	高度	交货时间	子类别	适用产品/相关产品
4 604HR020E Current Sense Resistors - Through Hole 3/8watt .02ohm 3% RES 0.02 OHM 3/8W 3% AXIAL Res Metal Film 0.02 Ohm 3% 0.375W Conformal AXL Ohmite	5393	1: ¥3.468	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	RoHS Compliant	3 %	20 mOhms	0.375W, 3/8W	375 mW	0.02	Bulk	Axial	0.25 mm L	Axial	2	Axial	Two Terminal Metal Element Current Sense	60	Current Sense, Non-Inductive	Metal Element	-	-	-	-	-	-	-
3 605HR020E Current Sense Resistors - Through Hole 1/2watt .02ohm 3% RES 0.02 OHM 1/2W 3% AXIAL Res Metal Film 0.02 Ohm 3% 1/2W Conformal AXL Thru-Hole Ohmite	10	1: ¥3.468	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	RoHS Compliant	3 %	20 mOhms	0.5W, 1/2W	500 mW (1/2 W)	0.02	Bulk	Axial	8.39 mm L	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
2 610FPR002E Current Sense Resistors - Through Hole 1watt 2ohm 1% 4 Terminal RES 0.002 OHM 1W 1% RADIAL Res 0.002 Ohm 1% 1W ±100ppm/°C Conformal RDL Thru-Hole Ohmite	267	1: ¥36.516	4 Terminal	Current Sense Resistors - Through Hole	100	100	RoHS Compliant	1 %	2 mOhms	1W	1 W	0.002	Bulk	Radial	0.2 in W x 1.1 in L x 0.2 in H	Axial	4	Radial Lead	Four Terminal Bare Element	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	0.2 in	0.215" (5.46mm)	-	-	-
2 610FPR015E Current Sense Resistors - Through Hole 1watt 15ohm 1% 4 Terminal RES 0.015 OHM 1W 1% RADIAL Ohmite	10	1: ¥65.688	4 Terminal	Current Sense Resistors - Through Hole	25	100	RoHS Compliant	1 %	15 mOhms	1W	1 W	0.015	Bulk	Radial	0.2 in W x 1.1 in L x 0.2 in H	Axial	4	Radial Lead	Four Terminal Bare Element	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	50 PPM / C	0.2 in	0.215" (5.46mm)	-	-	-

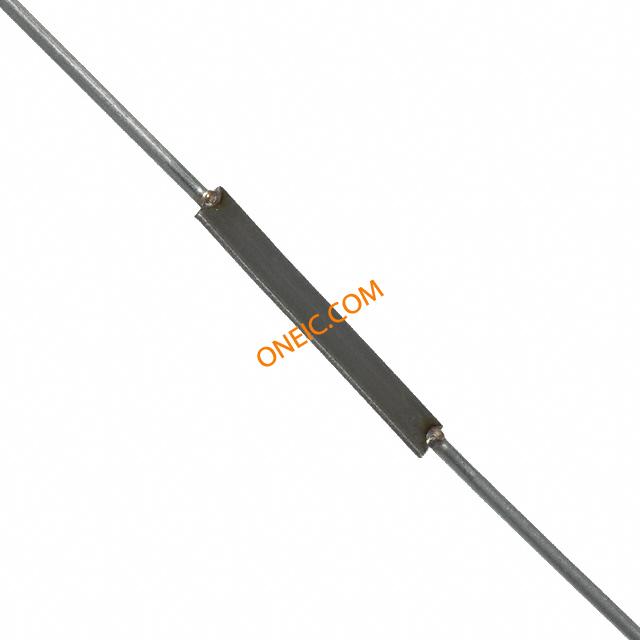

2 615HR020 Current Sense Resistors - Through Hole 1.5watt .02ohm 3% RES 0.02 OHM 1.5W 3% AXIAL Ohmite	10	200: ¥2.856	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	20 mOhms	1.5W	1.5 W	0.02	Bulk	Axial	0.750" L (19.05mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
2 605HR010 Current Sense Resistors - Through Hole 1/2watt .01ohm 3% RES 0.01 OHM 1/2W 3% AXIAL Res Metal Film 0.01 Ohm 3% 0.5W(1/2W) Conformal AXL Ohmite	10	200: ¥2.856	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	10 mOhms	0.5W, 1/2W	500 mW (1/2 W)	0.01	Bulk	Axial	0.355" L (9.02mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
2 607HR005 Current Sense Resistors - Through Hole 3/4watt .005ohm 3% RES 0.005 OHM 3/4W 3% AXIAL Res Metal Film 0.005 Ohm 3% 0.75W(3/4W) Conformal AXL Ohmite	2900	1: ¥3.0464	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	Contains lead / RoHS non-compliant	±3%	5 mOhms	0.75W, 3/4W	750 mW (3/4 W)	0.005	Bulk	Axial	0.320" L (8.13mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	56 Days	Resistor Fixed Single-Through Hole	607HR005E
603HR015 Current Sense Resistors - Through Hole 1/4watt .015ohm 3% RES 0.015 OHM 1/4W 3% AXIAL Res Metal Film 0.015 Ohm 3% 0.25W(1/4W) Conformal AXL Ohmite	10	1: ¥3.332	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No	3 %	15 mOhms	0.25W, 1/4W	250 mW (1/4 W)	0.015	Bulk	Axial	3.94 mm L	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
603HR050E Current Sense Resistors - Through Hole 1/4watt .05ohm 3% RES 0.05 OHM 1/4W 3% AXIAL Res Metal Film 0.05 Ohm 3% 1/4W Conformal AXL Thru-Hole Ohmite	687	1: ¥3.468	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	RoHS Compliant	3 %	50 mOhms	0.25W, 1/4W	250 mW (1/4 W)	0.05	Bulk	Axial	8.39 mm L	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
3 615HR030E Current Sense Resistors - Through Hole 1.5watt .03ohm 3% RES 0.03 OHM 1.5W 3% AXIAL Ohmite	145	1: ¥5.44	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	RoHS Compliant	3 %	30 mOhms	1.5W	1.5 W	0.03	Bulk	Axial	0.75 mm L	Axial	2	Axial	Two Terminal Metal Element Current Sense	60	Current Sense, Non-Inductive	Metal Element	-	-	-	-	-	-	-
603HR015E Current Sense Resistors - Through Hole 1/4watt .015ohm 3% RES 0.015 OHM 1/4W 3% AXIAL Res Metal Film 0.015 Ohm 3% 1/4W Conformal AXL Thru-Hole Ohmite	10	1: ¥3.468	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	RoHS Compliant	3 %	15 mOhms	0.25W, 1/4W	250 mW (1/4 W)	0.015	Bulk	Axial	3.94 mm L	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
2 605HR020 Current Sense Resistors - Through Hole 1/2watt .02ohm 3% RES 0.02 OHM 1/2W 3% AXIAL Res Metal Film 0.02 Ohm 3% 0.5W(1/2W) Conformal AXL Ohmite	11	1: ¥3.0464	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	20 mOhms	0.5W, 1/2W	500 mW (1/2 W)	0.02	Bulk	Axial	0.330" L (8.38mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
630HR025 Current Sense Resistors - Through Hole 3watt .025ohm 3% RES 0.025 OHM 3W 3% AXIAL Res Metal Film 0.025 Ohm 3% 3W Conformal AXL Thru-Hole Ohmite	10	1: ¥3.672	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	25 mOhms	3W	3 W	0.025	Bulk	Axial	1.279" L (32.49mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
603HR005 Current Sense Resistors - Through Hole 1/4watt .005ohm 3% RES 0.005 OHM 1/4W 3% AXIAL Res Metal Film 0.005 Ohm 3% 0.25W(1/4W) Conformal AXL Ohmite	10	200: ¥2.856	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	5 mOhms	0.25W, 1/4W	250 mW (1/4 W)	0.005	Bulk	Axial	0.155" L (3.94mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
2 605HR100 Current Sense Resistors - Through Hole 1/2watt .1ohm 3% RES 0.1 OHM 1/2W 3% AXIAL Res Metal Film 0.1 Ohm 3% 0.5W(1/2W) Conformal AXL Ohmite	10	1: ¥3.74	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	100 mOhms	0.5W, 1/2W	500 mW (1/2 W)	0.1	Bulk	Axial	0.750" L (19.05mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-

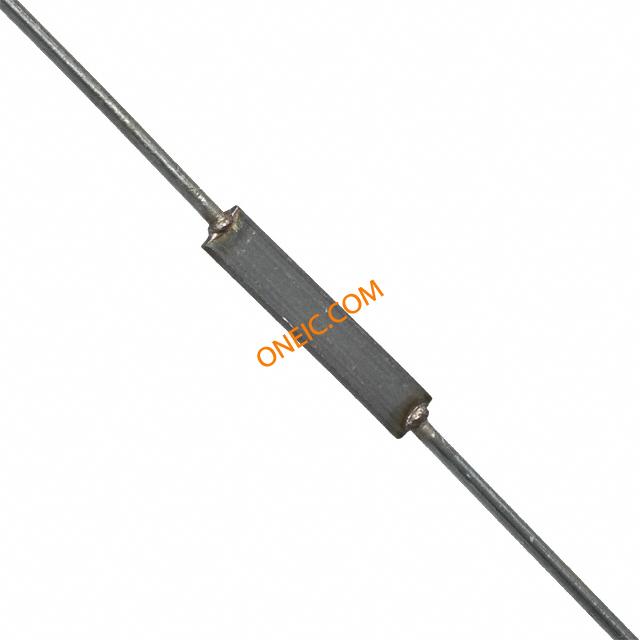

2 615HR010 Current Sense Resistors - Through Hole 1.5watt .01ohm 3% RES 0.01 OHM 1.5W 3% AXIAL Ohmite	10	200: ¥2.856	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	10 mOhms	1.5W	1.5 W	0.01	Bulk	Axial	0.750" L (19.05mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
603HR010 Current Sense Resistors - Through Hole 1/4watt .01ohm 3% RES 0.01 OHM 1/4W 3% AXIAL Res Metal Film 0.01 Ohm 3% 0.25W(1/4W) Conformal AXL Ohmite	10	200: ¥2.856	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	10 mOhms	0.25W, 1/4W	250 mW (1/4 W)	0.01	Bulk	Axial	0.155" L (3.94mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-

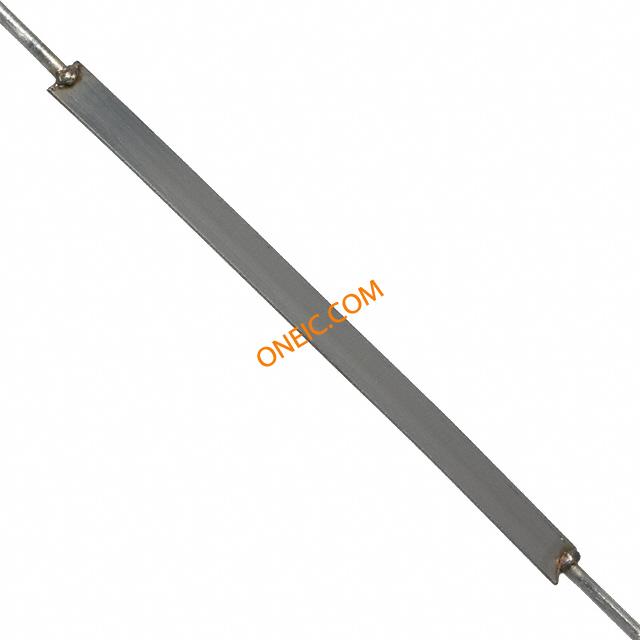

630HR050 Current Sense Resistors - Through Hole 3watt .05ohm 3% RES 0.05 OHM 3W 3% AXIAL Res Metal Film 0.05 Ohm 3% 3W Conformal AXL Thru-Hole Ohmite	10	200: ¥2.856	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	50 mOhms	3W	3 W	0.05	Bulk	Axial	1.664" L (42.27mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
610HR050 Current Sense Resistors - Through Hole 1watt .05ohm 3% RES 0.05 OHM 1W 3% AXIAL Res Metal Film 0.05 Ohm 3% 1W Conformal AXL Ohmite	10	200: ¥2.856	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	50 mOhms	1W	1 W	0.05	Bulk	Axial	0.750" L (19.05mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-

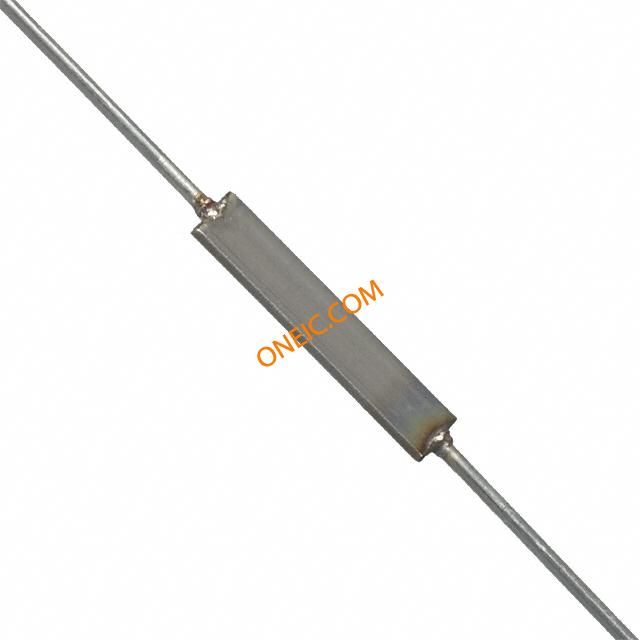

610HR010 Current Sense Resistors - Through Hole 1watt .01ohm 3% RES 0.01 OHM 1W 3% AXIAL Res Metal Film 0.01 Ohm 3% 1W Conformal AXL Ohmite	400	200: ¥2.9716	Metal Element Current Sensing Resistors	Current Sense Resistors - Through Hole	25	1	No RoHS Version Available	±3%	10 mOhms	1W	1 W	0.01	Bulk	Axial	0.630" L (16.00mm)	Axial	2	Axial	Current Sensing Resistor	60	Current Sense, Non-Inductive	Metal Element	- 55 C to + 275 C	100 PPM / C	-	-	-	-	-
