NTE Electronics, Inc.- 机架热管理

NTE Electronics, Inc.（NTE电子公司）是一家领先的电子元器件供应商，总部位于美国新泽西州布卢姆菲尔德。公司成立于1979年，长期以来以向工业、商业和消费电子市场提供高品质替换零件及原厂元器件而著称。其核心业务聚焦于广泛电子元器件的采购与分销，尤其擅长为停产或难以寻找的半导体器件提供交叉互换替代方案。产品线涵盖半导体（晶体管、二极管、晶闸管、集成电路）、继电器、电容器、电阻器、热缩管、连接器以及各类工具与配件。代表性产品系列包括NTE/ECG半导体产品线，提供与主要制造商型号对应的等效替换件，以及成熟的RLY系列机电与固态继电器。电容领域，NEH系列铝电解电容和MLR系列陶瓷圆片电容广受欢迎。凭借全面的交叉互换数据库，NTE帮助工程师和技术人员快速定位兼容替代品，减少设备停机时间。虽然并非传统意义上的半导体制造商，NTE在北美售后电子元器件市场占据重要地位，以可靠质量和广泛供应著称。通过授权分销商网络进行销售，其产品触达维修车间、原始设备制造商及电子爱好者。NTE电子持续扩展产品组合以满足行业需求，同时通过维修延长电子设备寿命，践行可持续发展理念。

机架热管理 - 型号列表

共 11 个型号

制造商零件编号	库存	价格	击穿电压	颜色	硬度	材料（通用）	厚度	封装形式	尺寸/外形	绝缘直径	类型	温度	导热系数	绝缘材料 - 材质	海关税号	重量	RoHS	热阻率	阻抗	螺钉表面处理	连接器颜色	适用产品/相关产品	工作温度	应用细节
TP0011 THERMO-PAD 6IN X 6IN NTE Electronics	824	1: ¥71.1892	4500 VAC	Gray	85 Shore A	Silicone/Fiberglass	0.009 In.	Pre-Cut Sheet	6 L x 6 W In.	5.5	Thermal Pads	-60 to 180 °C	0.9 W/m-K	-	-	-	-	-	-	-	-	-	-	-
3 TP0001 Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thrml Mgmt Access Thermal Pad Gray 6.61°C/W 0.9W/m.K 10Xe13Ohm.cm THERMAL INSULATORS, THERMO PAD, TO-3 Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thermal insulator TO-3, TP0001, NTE NTE Electronics	278	1: ¥18.12	:4.5kV	Gray	85 Shore A	Silicone/Fiberglass	:0.229mm	TO-3	1.65 L x 1.14 W In.	5.5	Thermal Pads	-60 to 180 °C	:0.9W/m.K	:Fibreglass / Silicone Elastomer	85479000	0.002	RoHS Compliant Part	:10ohm-m	:1.45°C/W	-	-	-	-	-
5 TP0010 Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thrml Mgmt Access Thermal Pad Gray 6.61°C/W 0.9W/m.K 10Xe13Ohm.cm THERMAL INSULATORS, THERMO PAD, TO-3PML Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thermal insulator TO-3PML, TP0010, NTE NTE Electronics	4603	19: ¥2.2848	:4.5kV	Gray	85 Shore A	Silicone/Fiberglass	:0.229mm	TO-3PML	1.03 L x 0.81 W In.	5.5	Thermal Pads	-60 to 180 °C	:0.9W/m.K	:Fibreglass / Silicone Elastomer	85469010	0	RoHS Compliant Part	:100000000000ohm-m	-	-	-	-	-	-
5 TP0006 Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thrml Mgmt Access Thermal Pad Gray 6.61°C/W 0.9W/m.K 10Xe13Ohm.cm THERMAL INSULATORS, THERMO PAD, TO-220 Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thermal insulator TO-220, TP0006, NTE NTE Electronics	815	1: ¥7.888	:4.5kV	Gray	85 Shore A	Silicone/Fiberglass	:0.229mm	TO-220	0.75 L x 0.5 W In.	5.5	Thermal Pads	-60 to 180 °C	:0.9W/m.K	:Fibreglass / Silicone Elastomer	85479000	0.005	RoHS Compliant Part	:10ohm-m	:1.45°C/W	-	-	-	-	-
TP0005 Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thrml Mgmt Access Thermal Pad Gray 6.61°C/W 0.9W/m.K 10Xe13Ohm.cm Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thermal insulator TO-218, TP0005, NTE NTE Electronics	19	1: ¥12.104	4500 VAC	Gray	85 Shore A	Silicone/Fiberglass	0.009 In.	TO-218	0.865 L x 0.65 W In.	5.5	Thermal Pads	-60 to 180 °C	0.9 W/m-K	Glass fiber/silicone	-	-	-	-	-	M3	grey	TO-218	-60...+180 °C	-
TP0002 Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thermal insulator TO-66, TP0002, NTE NTE Electronics	81	1: ¥9.316	4500 VAC	Gray	85 Shore A	Silicone/Fiberglass	0.009 In.	TO-66	1.312 L x 0.762 W In.	5.5	Thermal Pads	-60 to 180 °C	0.9 W/m-K	Glass fiber/silicone	-	-	-	-	-	M3	grey	TO-66	-60...+180 °C	-
NTE424 Thrml Mgmt Access Thermal Grease Tube HEAT SINK COMPOUND, NON-SILICONE, 1OZ, TUBE NTE ELECTRONICS	204	1: ¥81.54	-	-	-	-	-	-	-	-	-	-	-	-	39100000	:1oz	-	-	-	-	-	-	-	:Tube
2 TP0004 Thrml Mgmt Access Thermal Pad Gray 6.61°C/W 0.9W/m.K 10Xe13Ohm.cm THERMAL INSULATORS, THERMO PAD, TO-126 Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thermal insulator TO-126, TP0004, NTE NTE ELECTRONICS	14	1: ¥5.712	:4.5kV	Gray	85 Shore A	Silicone/Fiberglass	:0.229mm	TO-126	0.437 L x 0.312 W In.	5.5	Thermal Pads	-60 to 180 °C	:0.9W/m.K	:Fibreglass / Silicone Elastomer	85479000	0.002	RoHS Compliant Part	:10ohm-m	:1.45°C/W	-	-	-	-	-
2 TP0007 THERMAL INSULATORS, THERMO PAD, DO-5 9356522 Thermal insulator t, TP0007, NTE NTE ELECTRONICS	43	1: ¥9.06	:4.5kV	Gray	85 Shore A	Silicone/Fiberglass	:0.229mm	DO-5	0.8 OD x 0.26 ID In.	5.5	Thermal Pads	-60 to 180 °C	:0.9W/m.K	:Fibreglass / Silicone Elastomer	85479000	0	RoHS Compliant Part	:10ohm-m	:1.45°C/W	-	-	-	-	-

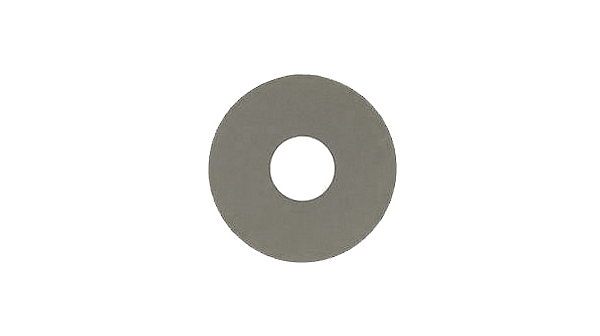

TP0003 Thrml Mgmt Access Thermal Pad Gray 6.61Â°C/W 0.9W/m.K 10Xe13Ohm.cm Thrml Mgmt Access Thermal Pad Gray 6.61°C/W 0.9W/m.K 10Xe13Ohm.cm Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thermal insulator DO-4, TP0003, NTE NTE Electronics	10	1: ¥7.752	4500 VAC	Gray	85 Shore A	Silicone/Fiberglass	0.009 In.	DO-4	0.5 OD x 0.2 ID In.	5.5	Thermal Pads	-60 to 180 °C	0.9 W/m-K	Glass fiber/silicone	-	-	-	-	-	M5	grey	DO-4	-60...+180 °C	-

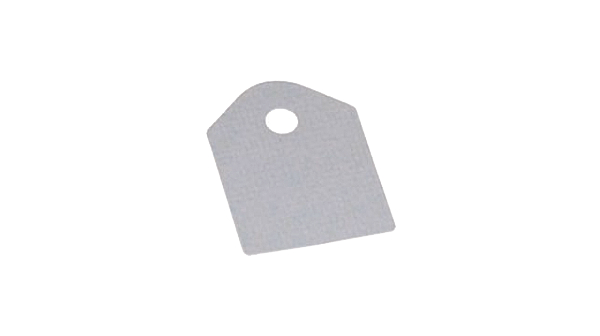

TP0008 Thrml Mgmt Access Thermal Pad Gray 6.61Â°C/W 0.9W/m.K 10Xe13Ohm.cm Thrml Mgmt Access Thermal Pad Gray 6.61°C/W 0.9W/m.K 10Xe13Ohm.cm Theremo Pad; 0.50C/W Thermal Resistance; Silicon/Fibre Glass; Gray Thermal insulator TO-3P, TP0008, NTE NTE Electronics	10	1: ¥19.04	4500 VAC	Gray	85 Shore A	Silicone/Fiberglass	0.009 In.	TO-3P	1.26 L x 0.65 W In.	5.5	Thermal Pads	-60 to 180 °C	0.9 W/m-K	Glass fiber/silicone	-	-	-	-	-	M3	grey	TO-3P	-60...+180 °C	-
