Nkk- 标准拨动开关

日本开闭器工业株式会社（NKK SWITCHES）由大桥重雄于1951年在日本创立，专攻高品质、高可靠性的工业开关研发与制造。公司历经半个多世纪，始终是微型开关和发光开关领域的技术先驱。产品线涵盖钮子开关（M、B、S系列等）、发光按钮开关（UB、LB系列等）、超小型滑动开关（FR系列）、摇头开关、旋转开关、钥匙开关及轻触开关等全系列机电开关。这些开关广泛应用于通信设备、医疗仪器、工业控制、测试测量及航空航天等严苛环境。NKK在全球拥有超过500项专利，多次荣获品质与技术创新奖项，彰显持续创新能力。公司通过ISO 9001和ISO 14001体系认证，确保质量与环境管理双优。凭借遍布全球的客户网络，NKK在微型和发光开关领域建立了市场领导地位，以超长使用寿命和卓越可靠性赢得业界口碑。

标准拨动开关 - 型号列表

共 33 个型号

制造商零件编号	库存	价格	接触电阻	开关功能/额定值	触点额定电流	安装类型	端子类型	执行器长度	触头材料	执行器材料	典型触点布局	机械寿命	工作温度	照明类型	面板开孔形状	面板开孔尺寸（外形）	密封等级
TL22SNAG016G IP65 DPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc Illuminated NKK	10	1: ¥55.896	20mΩ	On-None-On	0.1 A @ 28 V ac/dc	Panel Mount	Solder	11mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65

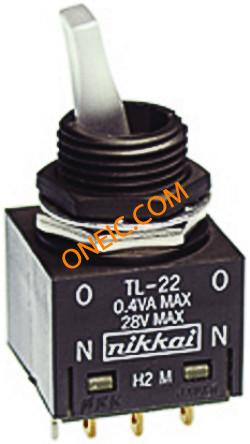

TL22SNAG016F IP65 DPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc Illuminated NKK	467	1: ¥125.4192	20mΩ	On-None-On	0.1 A @ 28 V ac/dc	Panel Mount	Solder	11mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65

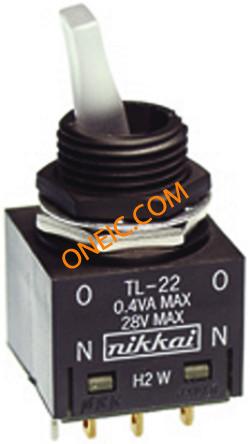

TL22SNAG016B IP65 DPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc Illuminated NKK	10	1: ¥86.496	20mΩ	On-None-On	0.1 A @ 28 V ac/dc	Panel Mount	Solder	11mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65
TL22DNAW016G IP65 DPDT Toggle Switch On-None-On, 6 A @ 12 V dc, 6 A @ 125 V ac Illuminated NKK	10	1: ¥47.60	10mΩ	On-None-On	6 A @ 12 V dc, 6 A @ 125 V ac	Panel Mount	Solder	17.5mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65
TL22DNAW016F IP65 DPDT Toggle Switch On-None-On, 6 A @ 12 V dc, 6 A @ 125 V ac Illuminated NKK	10	1: ¥58.82	10mΩ	On-None-On	6 A @ 12 V dc, 6 A @ 125 V ac	Panel Mount	Solder	17.5mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65

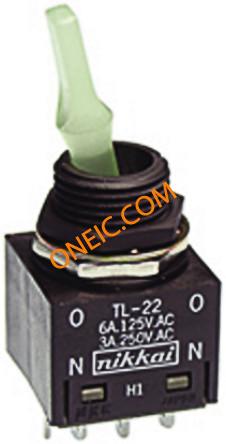

TL22DFAW015F IP65 DPDT Toggle Switch On-None-On, 6 A @ 12 V dc, 6 A @ 125 V ac Illuminated NKK	10	1: ¥66.776	10mΩ	On-None-On	6 A @ 12 V dc, 6 A @ 125 V ac	Panel Mount	Solder	17.5mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65

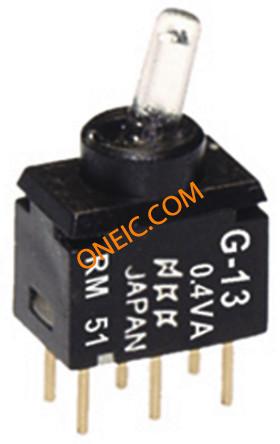

G13JPCF SPDT Toggle Switch On-Off-On, 0.1 A @ 28 V ac/dc NKK	10	1: ¥38.284	80mΩ	On-Off-On	0.1 A @ 28 V ac/dc	PCB	Through Hole	3.8mm	Gold Plated Phosphor Bronze	PA	SPDT	100000Operations	+55°C	-	-	-	-
G12JVC SPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc NKK	10	1: ¥35.972	80mΩ	On-None-On	0.1 A @ 28 V ac/dc	PCB	Through Hole	3.8mm	Gold Plated Phosphor Bronze	PA	SPDT	100000Operations	+55°C	-	-	-	-
G12JHD SPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc Illuminated NKK	10	1: ¥22.168	80mΩ	On-None-On	0.1 A @ 28 V ac/dc	PCB	Through Hole	3.8mm	Gold Plated Phosphor Bronze	PA	SPDT	100000Operations	+55°C	Yes	-	-	-
G12JPC SPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc Illuminated NKK	10	1: ¥26.588	80mΩ	On-None-On	0.1 A @ 28 V ac/dc	PCB	Through Hole	3.8mm	Gold Plated Phosphor Bronze	PA	SPDT	100000Operations	+55°C	Yes	-	-	-
TL22DNAW016B IP65 DPDT Toggle Switch On-None-On, 6 A @ 12 V dc, 6 A @ 125 V ac Illuminated NKK	10	1: ¥77.384	10mΩ	On-None-On	6 A @ 12 V dc, 6 A @ 125 V ac	Panel Mount	Solder	17.5mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65

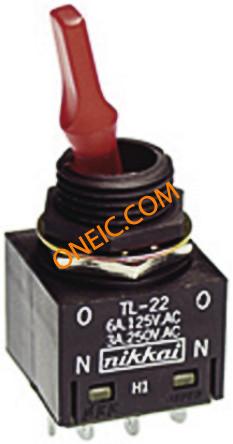

TL22DCAW015C IP65 DPDT Toggle Switch On-None-On, 6 A @ 12 V dc, 6 A @ 125 V ac Illuminated NKK	10	1: ¥37.06	10mΩ	On-None-On	6 A @ 12 V dc, 6 A @ 125 V ac	Panel Mount	Solder	17.5mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65
G13JHCF SPDT Toggle Switch On-Off-On, 0.1 A @ 28 V ac/dc Illuminated NKK	10	1: ¥32.844	80mΩ	On-Off-On	0.1 A @ 28 V ac/dc	PCB	Through Hole	3.8mm	Gold Plated Phosphor Bronze	PA	SPDT	100000Operations	+55°C	Yes	-	-	-

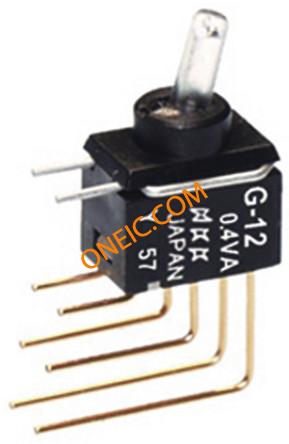

G12JVD SPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc NKK	10	1: ¥38.828	80mΩ	On-None-On	0.1 A @ 28 V ac/dc	PCB	Through Hole	3.8mm	Gold Plated Phosphor Bronze	PA	SPDT	100000Operations	+55°C	-	-	-	-
G12JHCF SPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc Illuminated NKK	10	1: ¥43.52	80mΩ	On-None-On	0.1 A @ 28 V ac/dc	PCB	Through Hole	3.8mm	Gold Plated Phosphor Bronze	PA	SPDT	100000Operations	+55°C	Yes	-	-	-
G12JPD SPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc NKK	10	1: ¥32.368	80mΩ	On-None-On	0.1 A @ 28 V ac/dc	PCB	Through Hole	3.8mm	Gold Plated Phosphor Bronze	PA	SPDT	100000Operations	+55°C	-	-	-	-

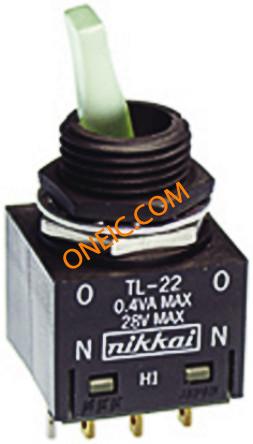

TL22SFAG015F IP65 DPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc Illuminated NKK	10	1: ¥69.088	20mΩ	On-None-On	0.1 A @ 28 V ac/dc	Panel Mount	Solder	11mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65

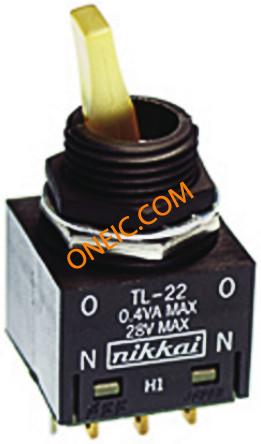

TL22SDAG015D IP65 DPDT Toggle Switch On-None-On, 0.1 A @ 28 V ac/dc Illuminated NKK	10	1: ¥48.96	20mΩ	On-None-On	0.1 A @ 28 V ac/dc	Panel Mount	Solder	11mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65

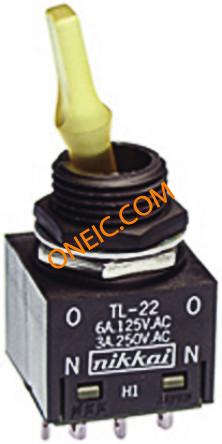

TL22DDAW015D IP65 DPDT Toggle Switch On-None-On, 6 A @ 12 V dc, 6 A @ 125 V ac Illuminated NKK	13	1: ¥130.356	10mΩ	On-None-On	6 A @ 12 V dc, 6 A @ 125 V ac	Panel Mount	Solder	17.5mm	Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)	PC	DPDT	50000Operations	+55°C	Yes	12.5mm	12.5mm	IP65

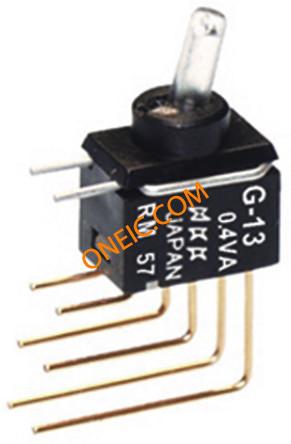

G13JVCF SPDT Toggle Switch On-Off-On, 0.1 A @ 28 V ac/dc Illuminated NKK	10	1: ¥41.344	80mΩ	On-Off-On	0.1 A @ 28 V ac/dc	PCB	Through Hole	3.8mm	Gold Plated Phosphor Bronze	PA	SPDT	100000Operations	+55°C	Yes	-	-	-
