Nichicon Corporation
金属化聚酯薄膜电容器

Nichicon Corporation- 金属化聚酯薄膜电容器

尼吉康株式会社（Nichicon Corporation）创立于1950年，总部位于日本京都，是全球领先的电子元件研发、制造与销售企业，核心业务为电容器及电路产品。公司主要产品线涵盖铝电解电容器、薄膜电容器、导电聚合物电容器等，拥有诸多知名系列，如铝电解电容的UHD、UHW、LGM、GY系列，以及薄膜电容的ECQE系列。尼吉康还开发电源单元、功能模块和定制电路解决方案，将先进的电容技术集成应用于高要求场景。产品重点服务于四大高增长市场：数字家电、汽车及车载设备、变频器机器、信息通信设备。公司始终强调技术、质量、成本与服务的平衡，致力成为客户眼中高价值的供应商。通过遍布全球的开发、生产与销售网络，尼吉康不断增强企业竞争力并提升客户满意度。在铝电解电容器领域，尼吉康稳居全球前三，以高可靠性、长寿命的元件在工业和汽车电源系统中占据重要地位。公司高度重视环保与社会贡献，总部大楼以“先进性、古都的智慧、环境”为理念，采用领先的节能技术。面向未来，尼吉康坚持果断挑战，为实现“No. One, Only One 的企业”目标而不懈奋斗。

金属化聚酯薄膜电容器 - 型号列表

共 773 个型号

制造商零件编号	库存	价格	其他名称	标准包装数量	RoHS	容差	电容	额定电压	包装方式	端接方式	引脚间距	安装类型	封装形式	尺寸/外形	介电材料	安装高度（最大）	系列	应用	产品子类型	工作温度	产品	工厂包装数量	端接样式	产品类别	类型	供电电压	电阻公差	深度	高度	长度	导线线规	连接器间距	功能	宽度	引脚直径	损耗角正切（DF）	引脚样式	引脚数	ESR（等效串联电阻）	欧盟RoHS	电压	高度（最大）	柱间距	总长度	额定交流电压	抗辐射加固	尺寸	直径	结构	安装样式	小外径	失效率	温度系数
4 QXP2G224KRPT Film Capacitors Capacitors Film - CAP .22UF 400V MET PLYPRO RAD CAP FILM 0.22UF 400VDC RADIAL Capacitor Nichicon	470	1: ¥9.044	493-3647	100	Lead free / RoHS Compliant	±10%	0.22µF	160V	Bulk	PC Pins	0.689" (17.50mm)	Through Hole	Radial	0.827" L x 0.362" W (21.00mm x 9.20mm)	Polypropylene (PP)	0.669" (17.00mm)	XP	High Frequency, Switching	High Frequency	-40°C ~ 105°C	Metallized Polypropylene Capacitors	1000	Radial	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 QXT2J333KRPT Film Capacitors Capacitors - CAP .033UF 630V MET POLYPRO RAD CAP FILM 0.033UF 630VDC RADIAL Capacitor Nichicon	479	1: ¥11.764	493-3604	100	Lead free / RoHS Compliant	±10%	0.033µF	300V	Bulk	PC Pins	0.787" (20.00mm)	Through Hole	Radial	0.945" L x 0.303" W (24.00mm x 7.70mm)	Polypropylene (PP)	0.752" (19.10mm)	XT	High Frequency, Switching	High Frequency	-40°C ~ 105°C	-	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QXK2J684KTP Film Capacitors 630volts 0.68uF CAP FILM 0.68UF 630VDC RADIAL Nichicon 0.68μF ±10% 250 V ac, 630 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 680nF 径向聚酯电容器 (PET), ±10%容差, 250 V 交流、630 V 直流 Nichicon	1573	1: ¥14.688	493-3554	100	RoHS Compliant	10 %	0.68 uF	630 V	Bulk	PC Pins	0.886" (22.50mm)	Through Hole	Radial	1.004" L x 0.445" W (25.50mm x 11.30mm)	Polyester	0.831" (21.10mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	250 V ac, 630 V dc	-10%	11.3mm	20.1mm	25.5mm	0.8mm	22.5mm	Y	11.3 mm	0.8 mm	0.8	Straight	2	3000Ω	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QXK2G105KTPTZH Film Capacitors 400volts 1uF CAP FILM 1UF 400VDC RADIAL Film Cap XK(ZH) series 1uF 400V 22.5mm Capacitor QXK Series 400 V 1 uF Radial Through Hole Metallized Polyester Film Capacitor Nichicon XK(ZH) 系列 1μF 径向聚酯电容器 (PET), ±10%容差, 200 V 交流，400 V 直流 Nichicon	132	1: ¥14.824	493-3580	100	RoHS Compliant	10 %	1 uF	400 V	Bulk	PC Pins	0.886" (22.50mm)	Through Hole	Radial	1.024" L x 0.453" W (26.00mm x 11.50mm)	Polyester	0.843" (21.40mm)	XK	High Frequency, Switching	General Purpose	- 40 C to + 105 C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	200 V ac, 400 V dc	-10%	11.5mm	20.4mm	26mm	0.8mm	22.5mm	Y	-	-	-	-	-	3000Ω	-	-	-	-	-	200V	-	-	-	-	-	-	-	-
4 QXP2E105KRPT Film Capacitors 1.0UF 250V 10% CAP FILM 1UF 250VDC RADIAL Capacitor Nichicon	949	1: ¥12.988	493-3637	100	RoHS Compliant	10 %	1 uF	250 V	Bulk	PC Pins	22.5 mm	Through Hole	18.2 mm	26.5 mm W x 9.9 mm L x 18.2 mm H	Polypropylene (PP)	0.776" (19.70mm)	XP	High Frequency, Switching	High Frequency	- 40 C to + 105 C	Metallized Polypropylene Capacitors	-	Radial	Film Capacitors	Radial Leads	-	-	-	-	-	-	-	-	26.5 mm	0.8 mm	0.1	Straight	2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QYX1H152KTP Film Capacitors 50volts 0.0015uF Cap Film 0.0015uF 50V PET 10% (5 X 2.5 X 8.5mm) Radial 3.5mm 85°C CAP FILM 1500PF 50VDC RADIAL Nichicon 1500pF ±10% 50V dc Radial Polyester Film Capacitor Cap Film 0.0015uF 50V PET 10% (5 X 2.5 X 8.5mm) Radial 3.5mm 85C Capacitor Nichicon YX 系列 1.5nF 径向聚酯薄膜电容器, ±10%容差, 50 V 直流 Nichicon	1337	1: ¥2.312	493-3379	100	RoHS Compliant	10 %	1500 pF	50 V	Bulk	PC Pins	0.138" (3.50mm)	Through Hole	Radial	0.197" L x 0.098" W (5.00mm x 2.50mm)	Polyester	0.335" (8.50mm)	YX	General Purpose	General Purpose	-40°C ~ 85°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Foil Type Film Capacitor	50 V dc	+10%	2.5 mm	8.5 mm	5mm	0.5mm	3.5mm	Y	2.5 mm	0.5 mm	0.8	Straight	2	-	Compliant	50VDC	8.5 mm	3.5	5 mm	-	No	5 X 2.5 X 7	Not Required mm	Radial	Through Hole	0.5 mm	Not Required	PET
5 QXK2G334KTP Film Capacitors 400volts 0.33uF CAP FILM 0.33UF 400VDC RADIAL Nichicon 0.33μF ±10% 200 V ac, 400 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 330nF 径向聚酯电容器 (PET), ±10%容差, 200 V 交流，400 V 直流 Nichicon	95	1: ¥8.092	493-3537	100	RoHS Compliant	10 %	0.33 uF	400 V	Bulk	PC Pins	0.591" (15.00mm)	Through Hole	Radial	0.728" L x 0.299" W (18.50mm x 7.60mm)	Polyester	0.563" (14.30mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	200 V ac, 400 V dc	-10%	7.6mm	13.3mm	18.5mm	0.6mm	15mm	Y	7.6 mm	0.6 mm	0.8	Straight	2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QXK2J155KTP Film Capacitors 630volts 1.5uF CAP FILM 1.5UF 630VDC RADIAL Nichicon 1.5μF ±10% 250 V ac, 630 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 1.5μF 径向聚酯电容器 (PET), ±10%容差, 250 V 交流、630 V 直流 Nichicon	121	1: ¥21.216	493-3556	100	RoHS Compliant	10 %	1.5 uF	630 V	Bulk	PC Pins	1.083" (27.50mm)	Through Hole	Radial	1.201" L x 0.583" W (30.50mm x 14.80mm)	Polyester	0.976" (24.80mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	250 V ac, 630 V dc	+10%	14.8mm	23.8mm	30.5mm	0.8mm	27.5mm	Y	12 mm	0.8 mm	0.8	Straight	2	3000Ω	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QXK2G684KTP Film Capacitors 400volts 0.68uF CAP FILM 0.68UF 400VDC RADIAL Nichicon 0.68μF ±10% 200 V ac, 400 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 680nF 径向聚酯电容器 (PET), ±10%容差, 200 V 交流，400 V 直流 Nichicon	461	1: ¥12.376	493-3539	100	RoHS Compliant	10 %	0.68 uF	400 V	Bulk	PC Pins	0.886" (22.50mm)	Through Hole	Radial	1.004" L x 0.284" W (25.50mm x 7.20mm)	Polyester	0.673" (17.10mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	200 V ac, 400 V dc	+10%	7.2mm	16.1mm	25.5mm	0.8mm	22.5mm	Y	7.2 mm	0.8 mm	0.8	Straight	2	3000Ω	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QXK2E475KTP Film Capacitors 250volts 4.7uF CAP FILM 4.7UF 250VDC RADIAL Nichicon 4.7μF ±10% 125 V ac, 250 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 4.7μF 径向聚酯薄膜电容器, ±10%容差, 125 V 交流，250 V 直流 Nichicon	216	1: ¥19.516	493-3525	100	RoHS Compliant	10 %	4.7 uF	250 V	Bulk	PC Pins	0.886" (22.50mm)	Through Hole	Radial	1.004" L x 0.472" W (25.50mm x 12.00mm)	Polyester	0.858" (21.80mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	125 V ac, 250 V dc	-10%	12mm	20.8mm	25.5mm	0.8mm	22.5mm	Y	12 mm	0.8 mm	0.8	Straight	2	3000Ω	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QXK2G223KTP Film Capacitors 400volts 0.022uF CAP FILM 0.022UF 400VDC RADIAL Nichicon 22nF ±10% 200 V ac, 400 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 22nF 径向聚酯电容器 (PET), ±10%容差, 200 V 交流，400 V 直流 Nichicon	625	1: ¥5.984	493-3530	100	RoHS Compliant	10 %	0.022 uF	400 V	Bulk	PC Pins	0.295" (7.50mm)	Through Hole	Radial	0.433" L x 0.169" W (11.00mm x 4.30mm)	Polyester	0.370" (9.40mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	200 V ac, 400 V dc	+10%	4.3mm	8.4mm	11mm	0.6mm	7.5mm	Y	4.3 mm	0.6 mm	0.8	Straight	2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QYX1H333KTP Film Capacitors 50volts 0.033uF CAP FILM 0.033UF 50VDC RADIAL Nichicon 33nF ±10% 50V dc Radial Polyester Film Capacitor Capacitor Nichicon YX 系列 33nF 径向聚酯电容器 (PET), ±10%容差, 50 V 直流 Nichicon	1916	1: ¥3.196	493-3395	100	RoHS Compliant	10 %	0.033 uF	50 V	Bulk	PC Pins	3.5 mm	Through Hole	9 mm	7 mm L x 4 mm Wx 9 mm H	Polyester	0.413" (10.50mm)	YX	General Purpose	General Purpose	-40°C ~ 85°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	-	50 V dc	-10%	4mm	10.5mm	7mm	0.5mm	3.5mm	Y	4 mm	0.5 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QXK2E223KTP Film Capacitors 250volts 0.022uF CAP FILM 0.022UF 250VDC RADIAL Nichicon 22nF ±10% 125 V ac, 250 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 22nF 径向聚酯电容器 (PET), ±10%容差, 125 V 交流，250 V 直流 Nichicon	1654	1: ¥5.984	493-3511	100	RoHS Compliant	10 %	0.022 uF	250 V	Bulk	PC Pins	0.295" (7.50mm)	Through Hole	Radial	0.433" L x 0.173" W (11.00mm x 4.40mm)	Polyester	0.374" (9.50mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	125 V ac, 250 V dc	+10%	4.4mm	8.5mm	11mm	0.6mm	7.5mm	Y	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QXK2G155KTP Film Capacitors 400volts 1.5uF CAP FILM 1.5UF 400VDC RADIAL Nichicon 1.5μF ±10% 200 V ac, 400 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 1.5μF 径向聚酯薄膜电容器, ±10%容差, 200 V 交流，400 V 直流 Nichicon	240	1: ¥14.756	493-3541	100	RoHS Compliant	10 %	1.5 uF	400 V	Bulk	PC Pins	1.083" (27.50mm)	Through Hole	Radial	1.201" L x 0.370" W (30.50mm x 9.40mm)	Polyester	0.768" (19.50mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	200 V ac, 400 V dc	+10%	9.4mm	18.5mm	30.5mm	0.8mm	27.5mm	Y	-	-	-	-	-	3000Ω	-	-	-	-	-	-	-	-	-	-	-	-	-	-

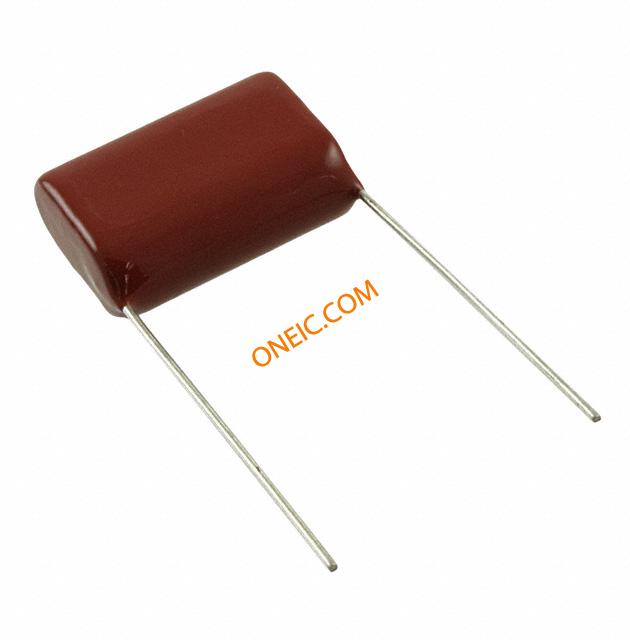

3 QXK2J334KTPTZH Film Capacitors 630volts 0.33uF CAP FILM 0.33UF 630VDC RADIAL Film Cap XK(ZH) series 330nF 630V 22.5mm Capacitor Nichicon	462	1: ¥13.60	493-3591	100	RoHS Compliant	10 %	0.33 uF	630 V	Bulk	PC Pins	0.886" (22.50mm)	Through Hole	Radial	1.024" L x 0.429" W (26.00mm x 10.90mm)	Polyester	0.819" (20.80mm)	XK	High Frequency, Switching	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	-	-	-	-	-	-	-	-	10.9 mm	0.8 mm	0.8	Straight	2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

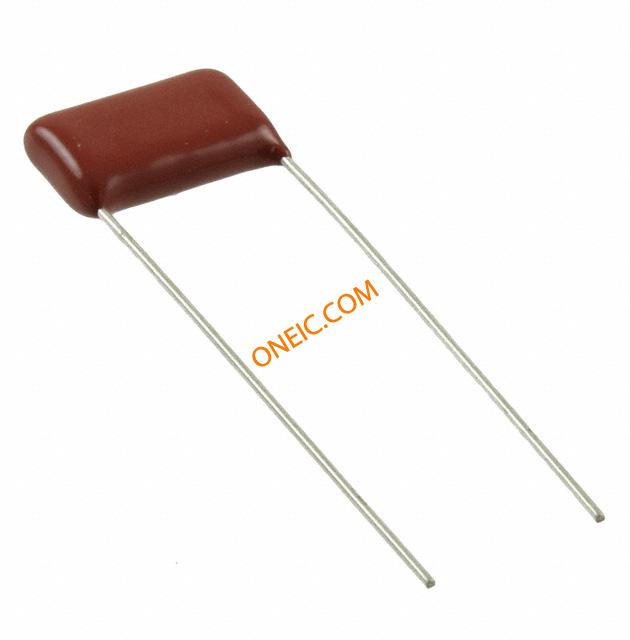

4 QXK2E154KTPTZH Film Capacitors 250volts 0.15uF CAP FILM 0.15UF 250VDC RADIAL Film Cap XK(ZH) series 150nF 250V 12.5mm Capacitor Nichicon XK(ZH) 系列 150nF 径向聚酯电容器 (PET), ±10%容差, 125 V 交流，250 V 直流 Nichicon	580	500: ¥2.852	493-3561	100	RoHS Compliant	10 %	0.15 uF	250 V	Bulk	PC Pins	0.492" (12.50mm)	Through Hole	Radial	0.610" L x 0.217" W (15.50mm x 5.50mm)	Polyester	0.437" (11.10mm)	XK	High Frequency, Switching	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	125 V ac, 250 V dc	-10%	5.5mm	10.1mm	15.5mm	0.6mm	12.5mm	Y	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 QXK2E474KTP Film Capacitors 250volts 0.47uF Cap Film 0.47uF 250V PET 10% (18.5 X 5.5 X 18.5mm) Radial 15mm 105°C CAP FILM 0.47UF 250VDC RADIAL Nichicon 0.47μF ±10% 125 V ac, 250 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 470nF 径向聚酯电容器 (PET), ±10%容差, 125 V 交流，250 V 直流 Nichicon	907	1: ¥7.548	493-3519	100	RoHS Compliant	10 %	0.47 uF	250 V	Bulk	PC Pins	0.591" (15.00mm)	Through Hole	Radial	0.728" L x 0.217" W (18.50mm x 5.50mm)	Polyester	0.543" (13.80mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	125 V ac, 250 V dc	+10%	5.5mm	12.8mm	18.5mm	0.6mm	15mm	Y	5.5 mm	0.6 mm	0.8	Straight	2	3000Ω	Compliant	250VDC\|125VAC	13.3(Max)	15	18.5(Max)	-	-	-	-	-	-	-	-	-
5 QXK2E153KTP Film Capacitors 250volts 0.015uF CAP FILM 0.015UF 250VDC RADIAL Nichicon 15nF ±10% 125 V ac, 250 V dc Radial Polyester Film Capacitor Capacitor Nichicon XK 系列 15nF 径向聚酯电容器 (PET), ±10%容差, 125 V 交流，250 V 直流 Nichicon	4175	1: ¥6.12	493-3510	100	RoHS Compliant	10 %	0.015 uF	250 V	Bulk	PC Pins	0.295" (7.50mm)	Through Hole	Radial	0.433" L x 0.197" W (11.00mm x 5.00mm)	Polyester	0.382" (9.70mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	125 V ac, 250 V dc	-10%	5mm	8.7mm	11mm	0.6mm	7.5mm	Y	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 QXK2J225KTP Film Capacitors 630volts 2.2uF CAP FILM 2.2UF 630VDC RADIAL Nichicon 2.2μF ±10% 250 V ac, 630 V dc Radial Polyester Film Capacitor Capacitor Nichicon	1381	1: ¥24.548	493-3557	100	RoHS Compliant	10 %	2.2 uF	630 V	Bulk	PC Pins	1.083" (27.50mm)	Through Hole	Radial	1.201" L x 0.728" W (30.50mm x 18.50mm)	Polyester	1.142" (29.00mm)	XK	General Purpose	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

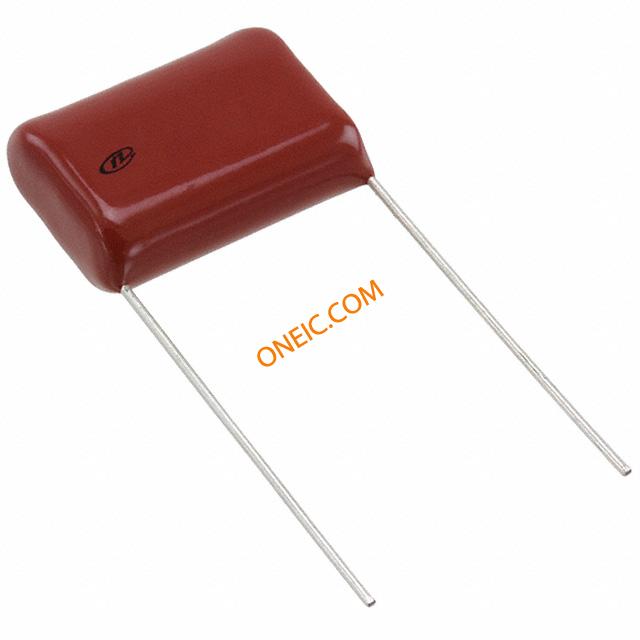

5 QXK2E335KTPTZH Film Capacitors 250volts 3.3uF CAP FILM 3.3UF 250VDC RADIAL Film Cap XK(ZH) series 3.3uF 250V 27.5mm Capacitor Nichicon XK(ZH) 系列 3.3μF 径向聚酯电容器 (PET), ±10%容差, 125 V 交流，250 V 直流 Nichicon	187	1: ¥17.204	493-3569	100	RoHS Compliant	10 %	3.3 uF	250 V	Bulk	PC Pins	1.083" (27.50mm)	Through Hole	Radial	1.220" L x 0.421" W (31.00mm x 10.70mm)	Polyester	0.870" (22.10mm)	XK	High Frequency, Switching	General Purpose	-40°C ~ 105°C	Metallized Polyester Film Capacitors	100	Radial	Film Capacitors	Film Capacitor	125 V ac, 250 V dc	-10%	10.7mm	19.6mm	31mm	0.8mm	27.5mm	Y	10.7 mm	0.8 mm	0.8	Straight	2	3000Ω	-	-	-	-	-	-	-	-	-	-	-	-	-	-
