Neutrik AG- 电源变压器
电源变压器 - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | RoHS | 匝数比 - 初级:次级 | 重量 | 产品 | 安装样式 | 类型 | SVHC | 海关税号 | 阻抗 | 隔离电压 | 初级阻抗（欧姆） | 次级阻抗（欧姆） | 深度 | 宽度 | 高度 | 长度 | 安装类型 | 变压器类型 | 系列 | 最大频率 | 最低频率 | 频率范围 | 标准包装规格 | 产品类别 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Power Transformers 200-10K MIC TRANSF Power Transformers 200:200 Trans Transformer Misc Professional audio transformer with free wires. Audio transformer 1:1Impedance ratio: 200:200Source/load impedance in Ohm: 200/2k, (600/10k)Max. Input level (@ 50 Hz, 1% THD): -3 dBu Applications: general purpose, splitting and XLR inline TRANSFORMER, AUDIO, 1:1 Transformer-audioinput-1:1ratio Input transformer, NTE1, Neutrik Neutrik | 20 | 1: ¥83.572 | RoHS Compliant | 1:1 | 0.176370 oz | Power Transformers | Chassis | Transformers | :No SVHC (20-Jun-2013) | 85043180 | :200/2K | :980mV | :200ohm | :200ohm | :12.5mm | 12.9 mm | 11.5 mm | 11.5 mm | :Chassis | :Audio | :NTE | - | - | - | 1 | Power Transformers |
 Power Transformers 1:3:10 MIC Transformer Misc TRANSFORMER, AUDIO, 1:3:10 Transformer-audioinput-1:3:10ratio Input transformer, NTE10/3, Neutrik Neutrik | 90 | 5: ¥125.2846 | RoHS Compliant | 1:3:10 | 0.211644 oz | Power Transformers | Chassis | Transformers | :No SVHC (20-Jun-2013) | 85043180 | :200/10K | :940mV | :200ohm | :1.8kohm | :12.5mm | 12.9 mm | 11.5 mm | 11.5 mm | :Chassis | :Audio | :NTE | - | - | - | 1 | Power Transformers |
 Power Transformers TRANSFRMER AUD INPUT 1:4 RATIO Audio Transformer 1:4 Chassis Mount Professional audio transformer with free wires. Audio transformer 1:4Impedance ratio: 200:3.2kSource/load impedance in Ohm: 200/10kMax. Input level (@ 50 Hz, 1% THD): -7 dBu Applications: mic input step-up TRANSFORMER, AUDIO, 1:4 Transformer-audioinput-1:4ratio Input transformer, NTE4, Neutrik Neutrik | 86 | 1: ¥90.60 | RoHS Compliant | 1:4 | 0.211644 oz | Line Transformers | Chassis | Line Matching Audio Transformers | :No SVHC (20-Jun-2013) | 85043180 | :200/10K | :1210mV | :200ohm | :3.2kohm | :12.5mm | 12.9 mm | 11.5 mm | 11.5 mm | :Chassis | :Audio | :NTE | - | - | - | - | - |

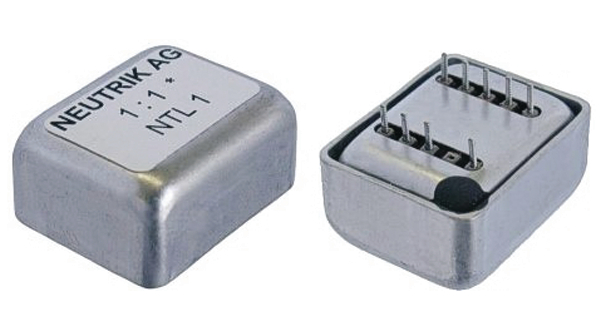

 Professional studio transformer for PCB mount, fully shielded. Studio transformer Line 1:1Impedance ratio: 10k:10kSource/load impedance in Ohm: 600/10kMax. Input level (@ 50 Hz, 1% THD): +19 dBu Applications: line input Power Transformers TRANSFRMER LINE PCB VERT 1:1 RATIO Audio Transformer 1:1 Through Hole Transformer-studioline-PCBV-1:1ratio Input transformer, NTL1, Neutrik Neutrik | 44 | 1: ¥607.02 | RoHS Compliant | 1:1 | 0.670205 oz | Line Transformers | Through Hole | Line Matching Audio Transformers | - | - | - | - | - | - | - | - | - | - | - | - | - | 40 | 30 | 30 Hz...40 kHz | - | - |

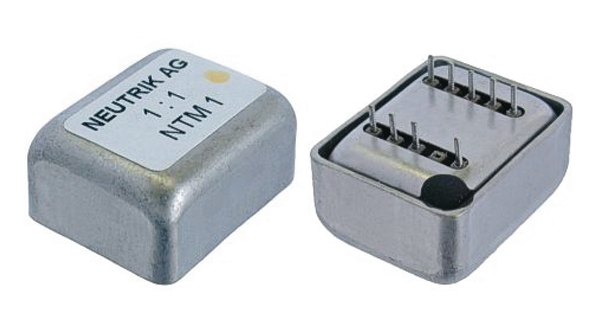

 Professional studio transformer for PCB mount, fully shielded. Studio transformer Mic 1:1Impedance ratio: 200:200Source/load impedance in Ohm: 200/2kMax. Input level (@ 50 Hz, 1% THD): +7 dBu Applications: mic input, splitting Power Transformers TRANSFRMER MIC INPUT PCB VERT 1:1 RATIO Audio Transformer 1:1 Chassis Mount Transformer-studiomicinput-PCBV-1:1ratio Input transformer, NTM1, Neutrik Neutrik | 10 | 1: ¥271.048 | RoHS Compliant | 1 : 1 Mic | 0.670205 oz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 40 | 30 | 30 Hz...40 kHz | - | - |

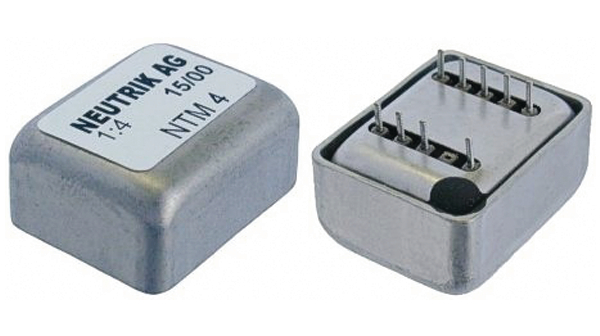

 Audio Transformer 1:4 Through Hole Power Transformers TRANSFRMER MIC INPUT PCB VERT 1:4 RATIO Transformer-studiomicinput-PCBV-1:4ratio Input transformer, NTM4, Neutrik Neutrik | 10 | 1: ¥329.936 | RoHS Compliant | 1 : 4 Mic | 0.670205 oz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 40 | 30 | 30 Hz...40 kHz | - | - |
