工业圆形连接器（扩展）
Neutrik AG- 工业圆形连接器（扩展）
工业圆形连接器（扩展） - 型号列表
共 11 个型号| 制造商零件编号 | 库存 | 价格 | RoHS | 重量 | 产品子类型 | 标题 | 连接器性别 | 连接类型 | Shell | Insert | Contacts | Contact plating | Rated voltage | Contact resistance | Dielectric strength | Insulation resistance | Rated current per contact | Wiring | Wiresize | Locking device | Insertion force | Flammability | 可焊性 | Protection class | Temperature range | 系列 | Cable retention | 产品类别 | 工厂包装数量 | 额定电压 | 最大额定电流 | 连接器类型 - 电压输入 | 包装方式 | 出线方向 | 外壳样式 | 端接方式 | 安装类型 | 接触镀层 | 连接器用途 | 触头材料 | 壳体材料 | 端接样式 | 第一触头极性 | 配接方向 | 触点数 | 工作温度 | 类型 | Strain relief | Cable O.D. | Chassis shape | Mounting direction | 极数 | 额定电流 - 设备输入口 | 保护电压（VP）（2416） | 电缆端类型 | 锁定特性 | 第一连接器极性 | 设计类型 | 连接方式 | 密封等级 | 连接器阻抗 | 方向 | 触头类型 | 连接器类型 | 端接排数 | 静电放电屏蔽 | SVHC | 海关税号 | 颜色 | 连接器颜色 | 位数 | 绝缘材料 - 材质 | 附件类型 | 适用产品/相关产品 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Standard Circular Connector 3P MALE LOCKABLE 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts NSC Series, Latch Lock Conn Circular PIN 3 POS ST Cable Mount 3 Terminal 1 Port The NanoCon® is the smallest lockable 3-pole connector in the world. It offers a robust metal housing, a metal locking device, gold plated contacts and excellent cable retention. Male cable connector, chuck type strain relief and solder contacts. Features & Benefits World's smallest circular lockable multipole connector. Robust metal housing with gold plated contacts. Reliable and versatile in applications like medical equipment, control systems, sensors or audio applications such as miniature and wireless microphones and portable mixers. Pre-mating contact 1. Product Highlights: World's smallest circular lockable multipole connector. Robust metal housing with gold plated contacts. Reliable and versatile in applications like medical equipment, control systems, sensors or audio applications such as miniature and wireless microphones and portable mixers. Pre-mating contact 1. MaleCableConnector,SolderContacts,StrainRelief Cable connector, NanoCon Poles=3, NSC3M, Neutrik Neutrik | 58 | 1: ¥83.436 | RoHS Compliant | 0.211644 oz | Connectors | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | NSC | - | Standard Circular Connector | 10 | 50 V | 2A | Miniature | Bulk | Yes | Plug | Solder | Straight | Gold | Latch Lock | Brass | Copper Tin Lead Zinc Alloy | Crimp | Male | Quick Lock | 3 | +80°C | - | - | - | - | - | 3 | 2 | IP 40 | 3.4 mm | Pusher | Male | Cable plug | 0.2 | IP40 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Circular Metric Connectors THREADED COUPLER M17 X 1 OUTSDE THRED Cable Accessories Thread Adapter ThreadedCoupler-M17x1outsidethread,5/8"27 Neutrik | 60 | 1: ¥57.936 | RoHS Compliant | 0.740753 oz | Accessories | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Threaded Coupler | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

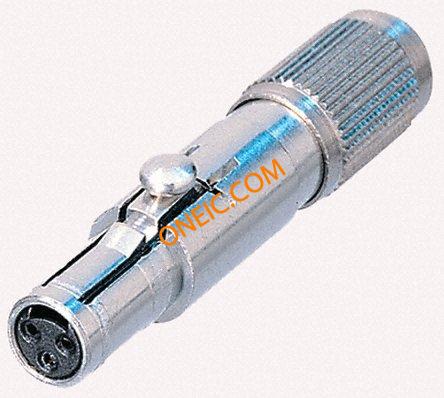

 Standard Circular Connector 3P FEMALE LOCKABLE 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts NSC Series, Latch Lock FemaleCableConnector,SolderContacts,StrainRelief Neutrik NSC 系列 3路 电缆安装 直向 连接器 , 母触点, 闩锁接合 Neutrik | 272 | 1: ¥86.564 | RoHS Compliant | 0.211644 oz | Connectors | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | NSC | - | Standard Circular Connector | 10 | 50 V | 2A | Miniature | Bulk | Yes | Receptacle | Solder | Straight | Gold | Latch Lock | Brass | Brass | Crimp | Female | Quick Lock | 3 | +80°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 微型 | 直 | 母座 | 闩锁 | 焊接 | 是 | - | - | - | - | - | - | - | - |
Circular Metric Connectors BARREL COUPLER 10MM M17X1 Connector Accessories Module Metalized plastic connection module, M 17x1 outside Module-barrelcoupler-10mmlength-M17x1outs Neutrik | 172 | 1: ¥4.5152 | RoHS Compliant | - | Accessories | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Barrel Coupler | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 64 | 1: ¥18.12 | - | 0.008 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :X | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85369010 | :Red | :Red | :1 | :- | :Bushing | :XLR Cable Connectors, Jacks, NE8MC-1 and NE8MC-B-1 Cable Connectors |
Inside Thread 3/8 Inch. 5/8 Inch 27 UNS Outside Thread Circular Metric Connectors THREADED COUPLER 3/8 INTRN 5/8 EXTRN ThreadedCoupler-3/8"internal/5/8"external-a Neutrik | 66 | 1: ¥11.764 | RoHS Compliant | 0.141096 oz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Circular Metric Connectors THREADED COUPLER M17 X 1 OUTSDE THRED ThreadedCoupler-M17x1outsidethread,5/8"27 Neutrik | 10 | 1: ¥47.872 | RoHS Compliant | 0.282192 oz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Neutrik | 21 | 1: ¥191.42 | - | - | - | MSCF12 | female | miniCON | Zinc diecast / Brass (ZnAl4Cu1 / CuZn39Pb3) | Polyamide (PA 6.6) | Bronze (CuSn6) | 0.2 µm AuCo | < 50 V | ≤ 8 mΩ | 1 kVdc | > 0.5 GΩ | 3 A | Solder contacts | 20 AWG | Push-Pull | < 25 N | UL 94 V-0 | Complies with IEC 68-2-20 | IP 5X | -30 °C to +80 °C | - | > 20 N | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Polyacetal (POM) | 3 - 5 mm (grey chuck), 5 - 7 mm (white chuck) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

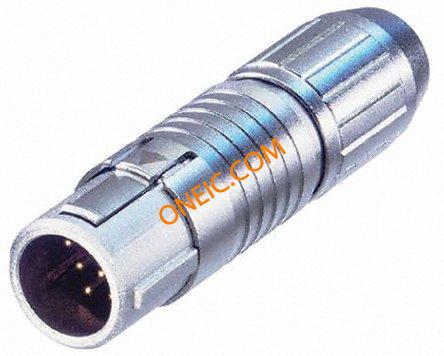

 Neutrik | 110 | 5: ¥179.2725 | - | - | - | MSCM12 | male | miniCON | Zinc diecast / Brass (ZnAl4Cu1 / CuZn39Pb3) | Polyamide (PA 6.6) | Brass (CuZn35Pb2) | 0.2 µm AuCo | < 50 V | ≤ 8 mΩ | 1 kVdc | > 0.5 GΩ | 3 A | Solder contacts | 20 AWG | Push-Pull | < 25 N | UL 94 V-0 | Complies with IEC 68-2-20 | IP 5X | -30 °C to +80 °C | - | > 20 N | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Polyacetal (POM) | 3 - 5 mm (grey chuck), 5 - 7 mm (white chuck) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Neutrik | 83 | 1: ¥78.744 | - | - | - | MRM12 | male | miniCON | Zinc diecast (ZnAl4Cu1) | Polyamide (PA 6.6) | Brass (CuZn35Pb2) | 0.2 µm AuCo | < 50 V | ≤ 8 mΩ | 1 kVdc | > 0.5 GΩ | 3 A | Solder contacts | 20 AWG | Push-Pull | < 25 N | UL 94 V-0 | Complies with IEC 68-2-20 | IP 5X | -30 °C to +80 °C | - | > 20 N | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 14.10 mm | Rear mounting | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Neutrik | 140 | 1: ¥129.744 | - | - | - | MPF12-H | female | miniCON | Zinc diecast (ZnAl4Cu1) | Polyamide (PA 6.6) | Bronze (CuSn6) | 0.2 µm AuCo | < 50 V | ≤ 8 mΩ | 1 kVdc | > 0.5 GΩ | 3 A | Horizontal PCB mount | 20 AWG | Push-Pull | < 25 N | UL 94 V-0 | Complies with IEC 68-2-20 | IP 5X | -30 °C to +80 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 14.10 mm | Rear mounting | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
