Molex, LLC- 磁性模块化连接器

莫仕（Molex, LLC）是全球领先的电子连接器、线缆组件及互连解决方案制造商，总部位于美国伊利诺伊州莱尔市。公司由Frederick Krehbiel于1938年创立，目前业务覆盖汽车、数据通信、消费电子、工业自动化及医疗等多个领域。莫仕拥有业界规模最大的产品组合之一，超过10万种产品，包括标准PCB连接器、先进光纤和定制混合组件。核心产品系列有Mini-Fit、Micro-Fit和Mega-Fit电源连接器，SlimStack板对板系列，以及DuraClik线对板系统。针对高速数据传输，公司提供NearStack和Impact背板连接器，以及丰富的QSFP和SFP收发器产品线。在汽车领域，莫仕供应坚固型USB和以太网连接器，以及电动汽车电源分配模块。公司还生产各种应用工具，如压接钳、压机和插入设备，确保互连系统的可靠装配。莫仕在亚洲、欧洲和美洲均设有工程、开发和制造据点，构建了强大的全球布局。自2013年成为科氏工业集团子公司后，莫仕长期位列全球连接器制造商前三强，与TE Connectivity和Amphenol齐名。凭借在微型化、高速连接和严苛环境解决方案上的持续创新，公司拥有数千项全球专利。

MODELS

磁性模块化连接器 - 型号列表共 905 个型号

制造商零件编号	价格/库存	Type	Gender	Termination Method	Mounting	Body Orientation	Standard Package	Packaging	Number of Ports	Ratings	Tab Direction	Shielding	Mounting Type	Number of Positions/Contacts	Number of Rows	Termination	Connector Type	Contact Finish	Operating Temperature	LED Color	Features	Orientation	Contact Finish Thickness	Housing Material	Contact Material	rohs	Number of Contacts	EU RoHS	Pitch	Category Number	Maximum Current Rating	Contact Plating	Maximum Voltage Rating	Pitch	Housing Color	Number of Loaded Positions	Product Depth	Product Height	Product Length	Industry Aliases	Subcategory	Lead Time	Maximum Contact Resistance	Other Names	Operating Temp Range	Positions Loaded	Contact Resistance Max	Current Rating (Max)	Mounting Style	Product Depth (mm)	Voltage Rating Max	Pitch (mm)	Family	Product Length (mm)	Product Height (mm)
0424109128 Conn RJ-45 F 8 POS 1.02mm Solder ST Thru-Hole 4 Terminal 1 Port Tray Cat 3 molex	询价	RJ-45	F	Solder	Through Hole	Straight	Trays	Tray	1	Cat3	User Selectable	Unshielded	Through Hole	8p4c	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock, Keyed, Panel Stops	Vertical	50µin (1.27µm)	Polyester	Phosphor Bronze	Lead free / RoHS Compliant	8	Compliant	1.02	Cat 3	1.5/Contact	Gold	150VAC	1.02 mm	-	-	-	-	-	42410-9128, 424109128	Connector Telephone and Telecom	45 Days	-	-	-	-	-	-	-	-	-	-	-	-	-
0438601012 Conn RJ-11 F 6 POS 2.04mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3 molex	询价	RJ-11	F	Solder	Through Hole	Right Angle	Trays	Tray	1	Cat3	Up	Shielded, EMI Finger	Through Hole	6p4c (RJ11, RJ14)	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock, Light Pipe	90° Angle (Right)	50µin (1.27µm)	Polyamide	Phosphor Bronze	Lead free / RoHS Compliant	6	Compliant	2.04	Cat 3	1.5/Contact	Gold Over Nickel	150VAC	2.04 mm	Black	4	14.99	13.21	15.75	43860-1012, 438601012	Connector Telephone and Telecom	66 Days	-	-	-	-	-	-	-	-	-	-	-	-	-
0441500012 Conn RJ-45 F 32 POS 2.54mm Solder RA Thru-Hole 32 Terminal 4 Port Tray Cat 5e molex	询价	RJ-45	F	Solder	Through Hole	Right Angle	Trays	Tray	4	Cat5	Down	Shielded, EMI Finger	Through Hole	8p8c (RJ45, Ethernet)	1	Solder	Jack	Gold	-40°C ~ 80°C	Does Not Contain LED	Board Lock	90° Angle (Right)	50µin (1.27µm)	Polyamide	Phosphor Bronze	Lead free / RoHS Compliant	32	Compliant	2.54	Cat 5e	1.5/Contact	Gold Over Nickel	125V	-	Black	32	21.02	14.63	-	-	-	-	20	-	-	-	-	-	-	-	-	-	-	-	-
0441500016 Conn RJ-45 F 64 POS 2.54mm Solder RA Thru-Hole 64 Terminal 8 Port Tray Cat 5e molex	询价	RJ-45	F	Solder	Through Hole	Right Angle	Trays	Tray	8	Cat5	Down	Shielded, EMI Finger	Through Hole	8p8c (RJ45, Ethernet)	1	Solder	Jack	Gold	-40°C ~ 80°C	Does Not Contain LED	Board Lock	90° Angle (Right)	50µin (1.27µm)	Polyamide	Phosphor Bronze	Lead free / RoHS Compliant	64	Compliant	2.54	Cat 5e	1.5/Contact	Gold Over Nickel	150VAC	-	Black	64	21.02	14.63	-	-	-	-	20	-	-	-	-	-	-	-	-	-	-	-	-
0442480010 Conn RJ-11 F 12 POS 1.02mm Solder RA Thru-Hole 8 Terminal 2 Port Tray Cat 3 molex	询价	RJ-11	F	Solder	Through Hole	Right Angle	Trays	Tray	2	Cat3	Up	Unshielded	Through Hole	6p4c (RJ11, RJ14)	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock, Light Pipe	90° Angle (Right)	50µin (1.27µm)	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Phosphor Bronze	Lead free / RoHS Compliant	12	Compliant	1.02	Cat 3	1.5/Contact	Gold	150VAC	1.02 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 0437436001 Conn RJ-11 RCP 6 POS 1.27mm Solder RA SMD 6 Terminal 1 Port Embossed T/R Cat 3 molex	询价	RJ-11	RCP	Solder	Surface Mount	Right Angle	Tape & Reel	Embossed Tape and Reel	1	Cat3	Down	Unshielded	Surface Mount	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Solder	Jack	Gold	-40°C ~ 70°C	Does Not Contain LED	Solder Retention	90° Angle (Right)	50µin (1.27µm)	Polyamide	Phosphor Bronze	Lead free / RoHS Compliant	6	Compliant	1.27	Cat 3	1.5/Contact	Gold Over Nickel	125V	1.27 mm	Black	6	16.89	11.74	18.21	43743-6001, 437436001	Connector Telephone and Telecom	24 Days	10	WM9094CT	-	-	-	-	-	-	-	-	-	-	-
2 0437438101 Conn RJ-45 RCP 8 POS 1.27mm Solder RA SMD 8 Terminal 1 Port Embossed T/R Cat 3 molex	询价	RJ-45	RCP	Solder	Surface Mount	Right Angle	150	Embossed Tape and Reel	1	Cat3	Down	Unshielded	Surface Mount	8p8c (RJ45, Ethernet)	1	Solder	Jack	Gold	-40°C ~ 80°C	Does Not Contain LED	Solder Retention	90° Angle (Right)	50µin (1.27µm)	Polyamide	Phosphor Bronze	Lead free / RoHS Compliant	8	Compliant	1.27	Cat 3	1.5/Contact	Gold Over Nickel	125V	-	Black	8	16.89	11.74	20.24	43743-8101, 437438101	Connector Telephone and Telecom	50 Days	10	WM6469CT	-40C to 80C	8	10 mohm	1.5/Contact A	Surface Mount	16.89 mm	125V	1.27 mm	43743	20.24 mm	11.74 mm
0950097661 Conn Modular Jack F 6 POS 1.27mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3 molex	询价	Modular Jack	F	Solder	Through Hole	Right Angle	Trays	Tray	1	Cat3	Down	Unshielded	Through Hole	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock, Panel Stops	90° Angle (Right)	50µin (1.27µm)	Polyester, Glass Filled	Copper Alloy	Lead free / RoHS Compliant	-	-	-	-	-	-	-	1.27 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

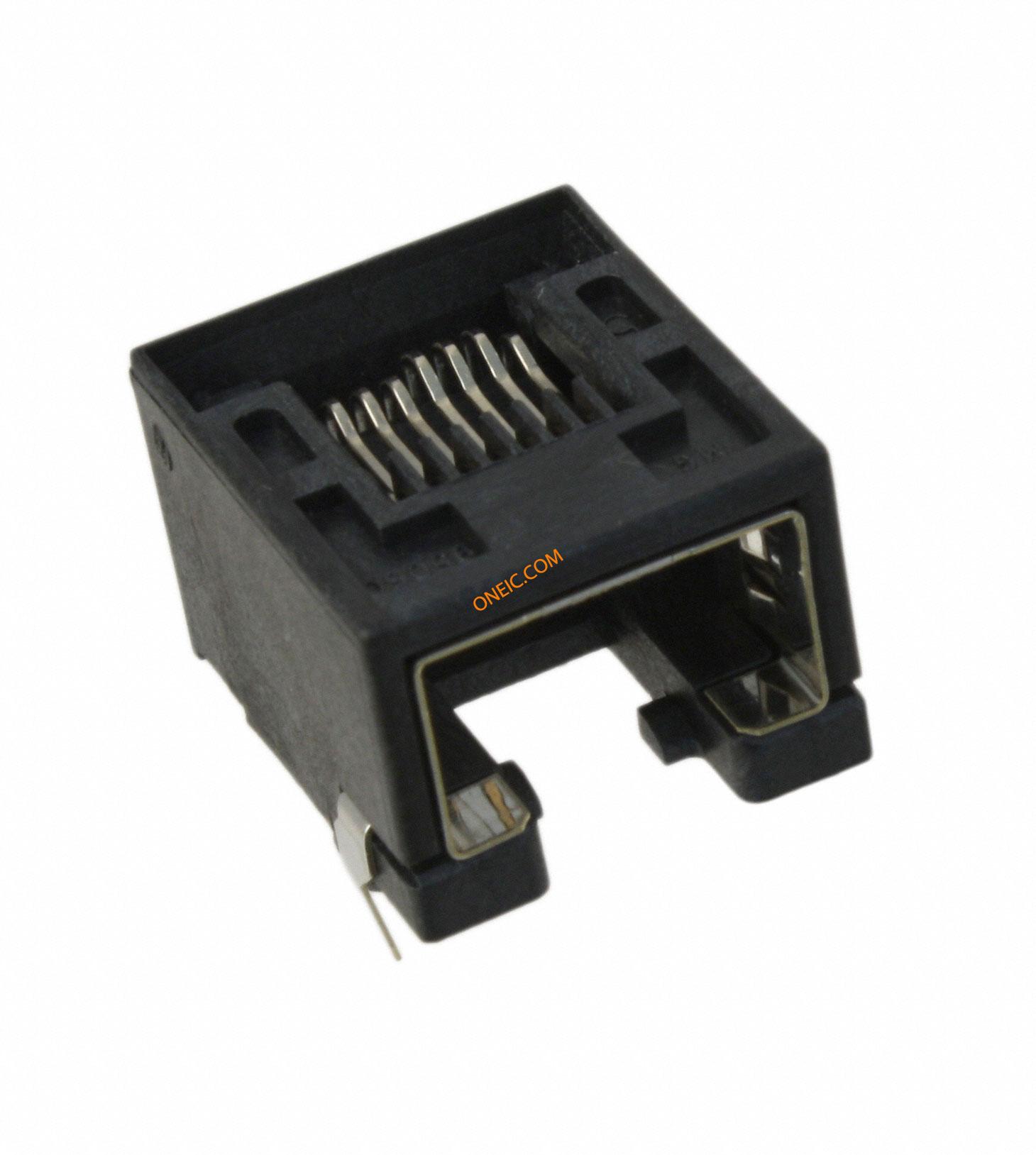

0855045001 Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 5e molex	询价	RJ-45	F	Solder	Through Hole	Right Angle	Trays	Tray	1	Cat5e	Down	Shielded	Through Hole	8p8c (RJ45, Ethernet)	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock	90° Angle (Right)	Flash	Liquid Crystal Polymer	Phosphor Bronze	Lead free / RoHS Compliant	8	Compliant	2.54	Cat 5e	1.5/Contact	Gold Over Nickel	125VAC	2.54 mm	Black	8	18.1	11.5	15.6	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0428788842 Conn RJ-45 F 8 POS 1.02mm Solder ST Thru-Hole 6 Terminal 1 Port Tray Cat 3 molex	询价	RJ-45	F	Solder	Through Hole	Straight	Trays	Tray	1	Cat3	User Selectable	Shielded	Through Hole	8p6c	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock, Keyed	Vertical	50µin (1.27µm)	Polyester, Glass Filled	Phosphor Bronze Alloy	Lead free / RoHS Compliant	8	Compliant	1.02	Cat 3	1.5/Contact	Gold	150VAC	1.02 mm	-	-	-	-	-	42878-8842, 428788842	Connector Telephone and Telecom	45 Days	-	-	-	-	-	-	-	-	-	-	-	-	-
0432028811 Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 10 Terminal 1 Port Tray Cat 3 molex	询价	RJ-45	F	Solder	Through Hole	Right Angle	Trays	Tray	1	Cat4	Down	Shielded, EMI Finger	Through Hole	8p10c	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock	90° Angle (Right)	50µin (1.27µm)	Polyamide	Phosphor Bronze	Lead free / RoHS Compliant	8	Compliant	2.54	Cat 3	1.5/Contact	Gold Over Nickel	125V	2.54 mm	Black	10	18.03	11.58	15.24	-	-	-	10	-	-	-	-	-	-	-	-	-	-	-	-
0432498010 Conn RJ-45 F 8 POS 1.02mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3/Cat 4 molex	询价	RJ-45	F	Solder	Through Hole	Right Angle	Trays	Tray	1	Cat4	Down	Unshielded	Through Hole	8p6c	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock, Panel Stops	90° Angle (Right)	50µin (1.27µm)	Thermoplastic	Phosphor Bronze	Lead free / RoHS Compliant	8	Compliant	1.02	Cat 3/Cat 4	1.5/Contact	Gold	150VAC	1.02 mm	Black	-	-	-	-	43249-8010, 432498010	Connector Telephone and Telecom	52 Days	-	-	-	-	-	-	-	-	-	-	-	-	-
0432498903 Conn RJ-45 F 10 POS 1.27mm Solder RA Thru-Hole 10 Terminal 1 Port Tray Cat 3/Cat 4 molex	询价	RJ-45	F	Solder	Through Hole	Right Angle	Trays	Tray	1	Cat4	Down	Shielded, EMI Finger	Through Hole	8p10c	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock	90° Angle (Right)	50µin (1.27µm)	Thermoplastic	Phosphor Bronze	Lead free / RoHS Compliant	10	Compliant	1.27	Cat 3\|Cat 4	1.5/Contact	Gold	150VAC	1.27 mm	Black	10	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0438600021 Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 8 Terminal 1 Port Tube Cat 3 molex	询价	RJ-45	F	Solder	Through Hole	Right Angle	Trays	Tube	1	Cat3	Up	Unshielded	Through Hole	8p8c (RJ45, Ethernet)	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock, Light Pipe	90° Angle (Right)	50µin (1.27µm)	Polyamide	Phosphor Bronze	Lead free / RoHS Compliant	8	Compliant	2.04	Cat 3	1.5/Contact	Gold Over Nickel	150VAC	2.04 mm	Black	8	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0438600023 Conn RJ-11 F 6 POS 2.04mm Solder RA Thru-Hole 4 Terminal 1 Port Tube Cat 3 molex	询价	RJ-11	F	Solder	Through Hole	Right Angle	Trays	Tube	1	Cat3	Up	Unshielded	Through Hole	6p4c (RJ11, RJ14)	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock, Light Pipe	90° Angle (Right)	50µin (1.27µm)	Polyamide	Phosphor Bronze	Lead free / RoHS Compliant	6	Compliant	2.04	Cat 3	1.5/Contact	Gold Over Nickel	150VAC	2.04 mm	Black	4	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0440500009 Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 5 molex	询价	RJ-45	F	Solder	Through Hole	Right Angle	Trays	Tray	1	Cat5	Down	Shielded, EMI Finger	Through Hole	8p8c (RJ45, Ethernet)	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock	90° Angle (Right)	50µin (1.27µm)	Thermoplastic	Phosphor Bronze	Lead free / RoHS Compliant	8	Compliant	2.54	Cat 5	1.5/Contact	Gold Over Nickel	150VAC	2.54 mm	Black	8	20.57	12.83	15.24	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0442820005 Conn RJ-45 F 8 POS 1.27mm Solder RA SMD 8 Terminal 1 Port Embossed T/R Cat 3 molex	询价	RJ-45	F	Solder	Surface Mount	Right Angle	Tape & Reel	Embossed Tape and Reel	1	Cat3	Down	Shielded, EMI Finger	Surface Mount	8p8c (RJ45, Ethernet)	1	Solder	Jack	Gold	-40°C ~ 70°C	Does Not Contain LED	Board Guide, Solder Retention	90° Angle (Right)	30µin (0.76µm)	Polyamide (PA), Nylon, Glass Filled	Phosphor Bronze	Lead free / RoHS Compliant	8	Compliant	1.27	-	-	-	-	1.27 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0443801017 Conn Telephone/Telecom F 6 POS 2.04mm Solder RA Thru-Hole 6 Terminal 1 Port Cat 3 molex	询价	Telephone/Telecom	F	Solder	Through Hole	Right Angle	Trays	Tray	1	Cat3	Up	Shielded, EMI Finger	Through Hole	6p6c (RJ11, RJ12, RJ14, RJ25)	1	Solder	Jack	Gold	-40°C ~ 80°C	Does Not Contain LED	Board Guide, Light Pipe	90° Angle (Right)	50µin (1.27µm)	Polyamide (PA), Nylon, Glass Filled	Phosphor Bronze	Lead free / RoHS Compliant	6	Compliant	2.04	Cat 3	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0445600003 Conn RJ-45 F 32 POS 2.54mm Solder RA Thru-Hole 32 Terminal 4 Port Tray Cat 5e molex	询价	RJ-45	F	Solder	Through Hole	Right Angle	Trays	Tray	4	Cat5e	Down	Unshielded	Through Hole	8p8c (RJ45, Ethernet)	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Board Lock	90° Angle (Right)	50µin (1.27µm)	Polyamide	Phosphor Bronze	Lead free / RoHS Compliant	32	Compliant	2.54	Cat 5e	1.5/Contact	Gold Over Nickel	150V	2.54 mm	Black	32	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0855135016 Conn RJ-11 F 4 POS 1.27mm Solder ST SMD 4 Terminal 1 Port Embossed T/R Cat 3 molex	询价	RJ-11	F	Solder	Surface Mount	Straight	Tape & Reel	Embossed Tape and Reel	1	Cat3	User Selectable	Unshielded	Surface Mount	4p4c (RJ9, RJ10, RJ22)	1	Solder	Jack	Gold	-40°C ~ 85°C	Does Not Contain LED	Solder Retention	Vertical	Flash	Liquid Crystal Polymer	Brass	Lead free / RoHS Compliant	4	Compliant	1.27	Cat 3	1.5/Contact	Gold Over Nickel	125VAC	1.27 mm	Black	4	15.08	12.7	11.18	-	-	-	20	WM3555CT	-	-	-	-	-	-	-	-	-	-	-
