Microsemi Corporation- 单晶体管解决方案

Microsemi公司成立于1960年，总部位于美国加利福尼亚州亚利索维耶荷，原是一家专注于航空航天、国防、通信、数据中心和工业应用的半导体与系统解决方案领先供应商。公司于2018年被微芯科技（Microchip Technology）收购，其产品组合涵盖高可靠性现场可编程门阵列（FPGA）、片上系统（SoC）、电源管理和模拟混合信号芯片以及精密时序器件。著名的FPGA系列包括SmartFusion2、IGLOO2和PolarFire，具备低功耗、非易失性和抗辐射等特性。在电源管理领域，Microsemi提供以太网供电（PoE）控制器和集成电路，用于管理和调节网络设备的功率。其模拟与混合信号产品线包含运算放大器、电压调节器和用于瞬时电压保护的瞬态电压抑制（TVS）二极管。该公司是航天和军事系统中抗辐射元器件的主要供应商，提供能承受极端环境的器件。Microsemi的时钟与同步解决方案，如频率转换器和抖动衰减器，广泛应用于高速通信网络。凭借高可靠性、安全性和低功耗的独特组合，Microsemi在关键任务应用中建立了良好声誉。其技术现已成为微芯科技广泛产品组合的一部分，进一步拓展至全球市场。

MODELS

单晶体管解决方案 - 型号列表共 88 个型号

制造商零件编号	价格/库存	Package	Type	Pin Count	Maximum Collector Emitter Voltage	Maximum DC Collector Current	Minimum DC Current Gain	Maximum Collector Emitter Saturation Voltage	Operating Temperature	Maximum Power Dissipation	Mounting	Standard Package	Other Names	rohs	Current - Collector (Ic) (Max)	Transistor Type	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max)	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Packaging	Power - Max	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce	Brand	RoHS	Maximum Collector Base Voltage	Package Height	PCB	Series	Maximum DC Collector Current	EU RoHS	Maximum Operating Temperature	Standard Package Name	Package Diameter	Maximum Emitter Base Voltage	Minimum Operating Temperature	Number of Elements per Chip	Maximum Collector Base Voltage	Supplier Package	Screening Level	Maximum Collector Emitter Voltage	Maximum Power Dissipation	Transistor Polarity	Frequency - Transition	Collector-Emitter Saturation Voltage	Emitter- Base Voltage VEBO	Factory Pack Quantity	Collector- Emitter Voltage VCEO Max	Mounting Style	Collector- Base Voltage VCBO	Minimum Operating Temperature	Pd - Power Dissipation	Configuration	Maximum Operating Temperature	Lead Shape	Collector Current (DC)	Collector-Base Voltage	Collector-Emitter Voltage	Emitter-Base Voltage	Power Dissipation	Operating Temp Range	Package Type	Number of Elements	DC Current Gain	Operating Temperature Classification	Rad Hardened	DC Current Gain hFE Max	DC Collector/Base Gain hfe Min	Categoria	Guadagno di corrente DC minimo	Dissipazione massima della potenza	RoHS UE	Tensione di base massima del collettore	Tipo	Nome standard sulla confezione	Tensione massima dell'emittente del collettore	Montaggio	Temperatura d'esercizio minima	Tensione base massima dell'emittente	Massima temperatura d'esercizio	Numero di elementi per chip	Confezione fornitore	Livello di screening	Corrente massima DC del collettore	Numero dei pin	Package Width	Package Length
JANTXV2N2222AL Trans GP BJT NPN 50V 0.8A 3-Pin TO-18 microsemi	询价	3TO-18	NPN	3	50 V	0.8 A	50@0.1mA@10V\|75@1mA@10V\|100@10mA@10V\|100@150mA@10V\|30@500mA@10V	0.3@15mA@150mA\|1@50mA@500mA V	-65 to 200 °C	500 mW	Through Hole	Bulk	1086-3053	Contains lead / RoHS non-compliant	800mA	NPN	*	1V @ 50mA, 500mA	50nA	50V	*	*	500mW	*	100 @ 150mA, 10V	Microsemi	No	75 V	-	-	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JAN2N3501 Trans GP BJT NPN 150V 0.3A 3-Pin TO-39 microsemi	询价	3TO-39	NPN	3	150 V	0.3 A	35@0.1mA@10V\|50@1mA@10V\|75@10mA@10V\|100@150mA@10V\|20@300mA@10V	0.2@1mA@10mA\|0.4@15mA@150mA V	-55 to 200 °C	1000 mW	Through Hole	Bulk	1086-2348	Contains lead / RoHS non-compliant	300mA	NPN	*	400mV @ 15mA, 150mA	10µA (ICBO)	150V	*	*	1W	*	100 @ 150mA, 10V	Microsemi	No	-	6.6(Max)	3	*	0.3	Not Compliant	200	TO-205-AF	9.4(Max)	6	-65	1	150	TO-39	Military	150	1000	NPN	-	200 mV	6 V	100	150 V	Through Hole	150 V	- 65 C	1 W	Single	+ 200 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTX2N3811L Trans GP BJT PNP 60V 0.05A 6-Pin TO-78 microsemi	询价	6TO-78	PNP	6	60 V	0.05 A	75@1uA@5V\|225@10uA@5V\|300@100uA@5V\|300@1mA@5V\|250@10mA@5V	0.2@10uA@100uA\|0.25@100uA@1mA V	-65 to 200 °C	350 mW	Through Hole	Bulk	1086-2713	Contains lead / RoHS non-compliant	50mA	2 PNP (Dual)	Through Hole	250mV @ 100µA, 1mA	10µA (ICBO)	60V	TO-78-6	Bulk	350mW	TO-78-6 Metal Can	300 @ 1mA, 5V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTXV2N3501L Trans GP BJT NPN 150V 0.3A 3-Pin TO-5 microsemi	询价	3TO-5	NPN	3	150 V	0.3 A	35@0.1mA@10V\|50@1mA@10V\|75@10mA@10V\|100@150mA@10V\|20@500mA@10V	0.2@1mA@10mA\|0.4@30mA@300mA V	-65 to 200 °C	1000 mW	Through Hole	Bulk	1086-3078	Contains lead / RoHS non-compliant	300mA	NPN	*	400mV @ 15mA, 150mA	10µA (ICBO)	150V	*	*	1W	*	100 @ 150mA, 10V	Microsemi	No	-	6.6(Max)	3	-	0.3	Not Compliant	200	TO-205-AA	9.4(Max)	6	-65	1	150	TO-5	Military	150	1000	NPN	*	-	-	-	-	-	-	-	-	-	-	Through Hole	0.3 A	150 V	150 V	6 V	1 W	-65C to 200C	TO-5	1	35	Military	No	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

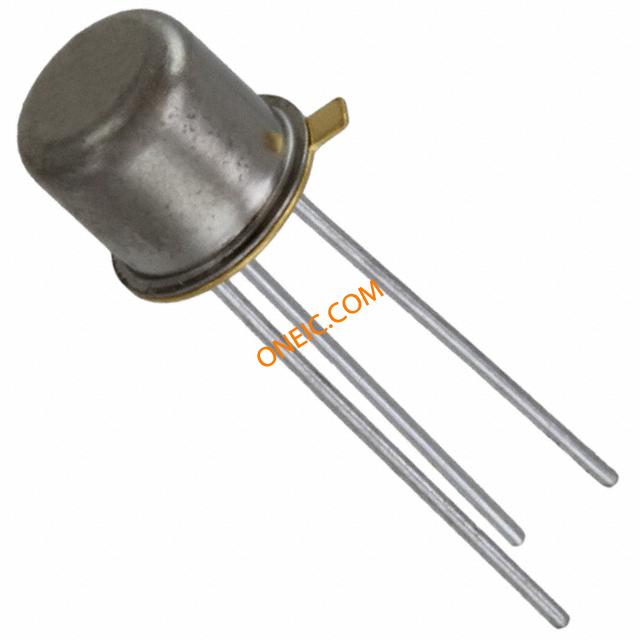

2 JANTX2N2222A Trans GP BJT NPN 50V 0.8A 3-Pin TO-18 microsemi	询价	3TO-18	NPN	3	50 V	0.8 A	50@0.1mA@10V\|75@1mA@10V\|100@10mA@10V\|100@150mA@10V\|30@500mA@10V	0.3@15mA@150mA\|1@50mA@500mA V	-65 to 200 °C	500 mW	Through Hole	Bulk	1086-2675	Contains lead / RoHS non-compliant	800mA	NPN	Through Hole	1V @ 50mA, 500mA	10µA (ICBO)	50V	TO-218	Bulk	500mW	TO-206AA, TO-18-3 Metal Can	100 @ 150mA, 10V	Microsemi	No	75 V	5.33(Max)	3	-	-	-	-	-	5.84(Max)	-	-	-	-	-	-	-	-	NPN	*	1 V	6 V	1	50 V	Through Hole	75 V	- 65 C	500 mW	Single	+ 200 C	-	-	-	-	-	-	-	-	-	-	-	-	325 at 1 mA at 10 VDC	75 at 1 mA at 10 VDC	Bipolar Power	50@0.1mA@10V\|75@1mA@10V\|100@10mA@...	500	Not Compliant	75	NPN	TO-206-AA	50	Through Hole	-65	6	200	1	TO-18	Military	0.8	3	-	-
JANTX2N3439L Trans GP BJT NPN 350V 1A 3-Pin TO-5 microsemi	询价	3TO-5	NPN	3	350 V	1 A	40@20mA@10V\|30@2mA@10V\|10@0.2mA@10V	0.5@4mA@50mA V	-55 to 200 °C	800 mW	Through Hole	Bulk	1086-2696	Contains lead / RoHS non-compliant	1A	NPN	Through Hole	500mV @ 4mA, 50mA	2µA	350V	TO-5	Bulk	800mW	TO-205AA, TO-5-3 Metal Can	40 @ 20mA, 10V	Microsemi	No	450 V	-	-	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JAN2N3810L Trans GP BJT PNP 60V 0.05A 6-Pin TO-78 microsemi	询价	6TO-78	PNP	6	60 V	0.05 A	100@10uA@5V\|150@100uA@5V\|150@1mA@5V\|125@10mA@5V	0.2@10uA@100uA\|0.25@100uA@1mA V	-65 to 200 °C	350 mW	Through Hole	Bulk	1086-2358	Contains lead / RoHS non-compliant	50mA	2 PNP (Dual)	Through Hole	250mV @ 100µA, 1mA	10µA (ICBO)	60V	TO-78-6	Bulk	350mW	TO-78-6 Metal Can	150 @ 1mA, 5V	Microsemi	No	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTX2N3735L Trans GP BJT NPN 40V 1.5A 3-Pin TO-5 microsemi	询价	3TO-5	NPN	3	40 V	1.5 A	35@10mA@1V\|40@150mA@1V\|40@500mA@1V\|20@1A@1.5V\|20@1.5A@5V	0.2@1mA@10mA\|0.3@15mA@150mA\|0.5@50mA@500mA\|0.9@100mA@1A V	-65 to 200 °C	1000 mW	Through Hole	Bulk	1086-2706	Contains lead / RoHS non-compliant	1.5A	NPN	*	900mV @ 100mA, 1A	10µA	40V	*	*	1W	*	20 @ 1A, 1.5V	Microsemi	No	75 V	-	-	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTX2N3501L Trans GP BJT NPN 150V 0.3A 3-Pin TO-5 microsemi	询价	3TO-5	NPN	3	150 V	0.3 A	35@0.1mA@10V\|50@1mA@10V\|75@10mA@10V\|100@150mA@10V\|20@500mA@10V	0.2@1mA@10mA\|0.4@30mA@300mA V	-65 to 200 °C	1000 mW	Through Hole	Bulk	1086-2701	Contains lead / RoHS non-compliant	300mA	NPN	Through Hole	400mV @ 15mA, 150mA	10µA (ICBO)	150V	TO-5	Bulk	1W	TO-5	100 @ 150mA, 10V	Microsemi	No	-	6.6(Max)	3	*	0.3	Not Compliant	200	TO-205-AA	9.4(Max)	6	-65	1	150	TO-5	Military	150	1000	-	-	-	-	-	-	-	-	-	-	-	-	Through Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTX2N3735 Trans GP BJT NPN 40V 1.5A 3-Pin TO-39 microsemi	询价	3TO-39	NPN	3	40 V	1.5 A	35@10mA@1V\|40@150mA@1V\|40@500mA@1V\|20@1A@1.5V\|20@1.5A@5V	0.2@1mA@10mA\|0.3@15mA@150mA\|0.5@50mA@500mA\|0.9@100mA@1A V	-65 to 200 °C	1000 mW	Through Hole	Bulk	1086-2705	Contains lead / RoHS non-compliant	1.5A	NPN	*	900mV @ 100mA, 1A	10µA	40V	*	*	1W	*	20 @ 1A, 1.5V	Microsemi	No	75 V	6.6(Max)	3	*	1.5	Not Compliant	200	TO-205-AF	9.4(Max)	5	-65	1	75	TO-39	Military	40	1000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JAN2N3735 Trans GP BJT NPN 40V 1.5A 3-Pin TO-39 microsemi	询价	3TO-39	NPN	3	40 V	1.5 A	35@10mA@1V\|40@150mA@1V\|40@500mA@1V\|20@1A@1.5V\|20@1.5A@5V	0.2@1mA@10mA\|0.3@15mA@150mA\|0.5@50mA@500mA\|0.9@100mA@1A V	-65 to 200 °C	1000 mW	Through Hole	Bulk	1086-2353	Contains lead / RoHS non-compliant	1.5A	NPN	Through Hole	900mV @ 100mA, 1A	10µA (ICBO)	40V	TO-39	Bulk	1W	TO-205AD, TO-39-3 Metal Can	40 @ 500mA, 1V	Microsemi	No	75 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JAN2N3735L Trans GP BJT NPN 40V 1.5A 3-Pin TO-5 microsemi	询价	3TO-5	NPN	3	40 V	1.5 A	35@10mA@1V\|40@150mA@1V\|40@500mA@1V\|20@1A@1.5V\|20@1.5A@5V	0.2@1mA@10mA\|0.3@15mA@150mA\|0.5@50mA@500mA\|0.9@100mA@1A V	-65 to 200 °C	1000 mW	Through Hole	Bulk	1086-2354	Contains lead / RoHS non-compliant	1.5A	NPN	Through Hole	900mV @ 100mA, 1A	10µA (ICBO)	40V	TO-5	Bulk	1W	TO-205AA, TO-5-3 Metal Can	40 @ 500mA, 1V	Microsemi	No	75 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTXV2N3735 Trans GP BJT NPN 40V 1.5A 3-Pin TO-39 microsemi	询价	3TO-39	NPN	3	40 V	1.5 A	35@10mA@1V\|40@150mA@1V\|40@500mA@1V\|20@1A@1.5V\|20@1.5A@5V	0.2@1mA@10mA\|0.3@15mA@150mA\|0.5@50mA@500mA\|0.9@100mA@1A V	-65 to 200 °C	1000 mW	Through Hole	Bulk	1086-3082	Contains lead / RoHS non-compliant	1.5A	NPN	Through Hole	900mV @ 100mA, 1A	10µA (ICBO)	40V	TO-39	Bulk	1W	TO-205AD, TO-39-3 Metal Can	20 @ 1A, 1.5V	Microsemi	No	75 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTX2N3810 Trans GP BJT PNP 60V 0.05A 6-Pin TO-78 microsemi	询价	6TO-78	PNP	6	60 V	0.05 A	100@10uA@5V\|150@100uA@5V\|150@1mA@5V\|125@10mA@5V	0.2@10uA@100uA\|0.25@100uA@1mA V	-65 to 200 °C	350 mW	Through Hole	Bulk	1086-2709	Contains lead / RoHS non-compliant	50mA	2 PNP (Dual)	Through Hole	250mV @ 100µA, 1mA	100µA (ICBO)	60V	TO-78-6	Bulk	350mW	TO-78-6 Metal Can	150 @ 1mA, 5V	Microsemi	No	-	4.7(Max)	6	-	0.05	Not Compliant	200	TO-78	9.4(Max)	5	-65	2	60	TO-78	Military	60	350	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTXV2N2905AL Trans GP BJT PNP 60V 0.6A 3-Pin TO-5 microsemi	询价	3TO-5	PNP	3	60 V	0.6 A	75@0.1mA@10V\|100@1mA@10V\|100@10mA@10V\|100@150mA@10V\|50@500mA@10V	0.4@15mA@150mA\|1.6@50mA@500mA V	-65 to 200 °C	600 mW	Through Hole	Bulk	1086-3061	Contains lead / RoHS non-compliant	600mA	PNP	Through Hole	1.6V @ 50mA, 500mA	10µA (ICBO)	60V	TO-5	Bulk	800mW	TO-205AA, TO-5-3 Metal Can	100 @ 150mA, 10V	Microsemi	No	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JAN2N3737 Trans GP BJT NPN 40V 1.5A 3-Pin TO-46 microsemi	询价	3TO-46	NPN	3	40 V	1.5 A	35@10mA@1V\|40@150mA@1V\|40@500mA@1V\|20@1A@1.5V\|20@1.5A@5V	0.2@1mA@10mA\|0.3@15mA@150mA\|0.5@50mA@500mA\|0.9@100mA@1A V	-65 to 200 °C	500 mW	Through Hole	Bulk	1086-2355	Contains lead / RoHS non-compliant	1.5A	NPN	Through Hole	900mV @ 100mA, 1A	100µA (ICBO)	40V	TO-46-3	Bulk	500mW	TO-206AB, TO-46-3 Metal Can	20 @ 1A, 1.5V	Microsemi	No	75 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTX2N3737 Trans GP BJT NPN 40V 1.5A 3-Pin TO-46 microsemi	询价	3TO-46	NPN	3	40 V	1.5 A	35@10mA@1V\|40@150mA@1V\|40@500mA@1V\|20@1A@1.5V\|20@1.5A@5V	0.2@1mA@10mA\|0.3@15mA@150mA\|0.5@50mA@500mA\|0.9@100mA@1A V	-65 to 200 °C	500 mW	Through Hole	Bulk	1086-2707	Contains lead / RoHS non-compliant	1.5A	NPN	*	900mV @ 100mA, 1A	10µA	40V	*	*	500mW	*	20 @ 1A, 1.5V	Microsemi	No	75 V	2.7(Max)	3	*	1.5	Not Compliant	200	TO-206-AB	5.84(Max)	5	-65	1	75	TO-46	Military	40	500	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTXV2N2222AUB Trans GP BJT NPN 50V 0.8A 3-Pin UB microsemi	询价	3UB	NPN	3	50 V	0.8 A	50@0.1mA@10V\|75@1mA@10V\|100@10mA@10V\|100@150mA@10V\|30@500mA@10V	0.3@15mA@150mA\|1@50mA@500mA V	-65 to 200 °C	500 mW	Surface Mount	Waffle Pack	1086-3055	Contains lead / RoHS non-compliant	800mA	NPN	*	1V @ 50mA, 500mA	50nA	50V	*	*	500mW	*	100 @ 150mA, 10V	Microsemi	No	75 V	1.42(Max)	3	*	0.8	Not Compliant	200	SMD	-	6	-65	1	75	UB	Military	50	500	NPN	-	300 mVDC	6 VDC	1	50 VDC	SMD/SMT	75 VDC	- 65 C	500 mW	Single	+ 200 C	-	-	-	-	-	-	-	-	-	-	-	-	325 at 1 mA at 10 VDC	75 at 1 mA at 10 VDC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2.74(Max)	3.25(Max)
JANTX2N5682 Trans GP BJT NPN 120V 1A 3-Pin TO-39 microsemi	询价	3TO-39	NPN	3	120 V	1 A	40@0.25A@2V\|20@500mA@2V\|5@1A@2V	0.6@25mA@250mA\|1@50mA@500mA V	-65 to 200 °C	1000 mW	Through Hole	Bulk	1088-1024	Lead free / RoHS Compliant	1A	NPN	Through Hole	1V @ 50mA, 500mA	10µA	120V	TO-39	Bulk	1W	TO-205AD, TO-39-3 Metal Can	40 @ 250mA, 2V	Microsemi	No	-	6.6(Max)	3	-	1	Not Compliant	200	TO-205-AF	9.4(Max)	4	-65	1	120	TO-39	Military	120	1000	NPN	-	-	-	-	-	-	-	-	-	-	-	-	1 A	120 V	120 V	4 V	1 W	-65C to 200C	TO-39	1	40	Military	No	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
JANTXV2N3486A Trans GP BJT PNP 60V 0.6A 3-Pin TO-46 microsemi	询价	3TO-46	PNP	3	60 V	0.6 A	75@0.1mA@10V\|100@1mA@10V\|100@10mA@10V\|100@150mA@10V\|50@500mA@10V	0.4@15mA@150mA V	-55 to 125 °C	400 mW	Through Hole	Bulk	1086-3076	Contains lead / RoHS non-compliant	600mA	NPN	Through Hole	1.6V @ 50mA, 500mA	10µA (ICBO)	60V	TO-46-3	Bulk	400mW	TO-46-3	100 @ 150mA, 10V	Microsemi	No	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

第 1 / 5 页
