Littelfuse, Inc.- AWG 扁平排线

Littelfuse, Inc.（力特）创立于1927年，总部位于美国伊利诺伊州芝加哥市，是全球电路保护、功率控制和传感技术领域的领先企业。公司产品几乎覆盖所有用电市场，包括汽车、工业设备、消费电子和商用车辆等核心领域。其核心产品线以业界最深最广的电路保护器件著称，涵盖汽车用片式保险丝（如ATO、Mini、Maxi系列）、可复位聚合物正温度系数器件（PolySwitch系列）、金属氧化物压敏电阻（MOV）、瞬态电压抑制二极管（SPA及SMBJ系列）以及静电放电保护阵列等。Littelfuse还不断拓展功率半导体业务，提供碳化硅MOSFET、整流器和栅极驱动器，同时拥有应用于汽车行业的机电传感器，如干簧开关和霍尔效应速度传感器。公司已将业务延伸至商用车辆用重型开关、矿用配电中心以及船用发电机控制与保护设备等邻近市场。凭借数十年的技术沉淀和持续研发投入，Littelfuse在全球电路保护市场稳居前列，以可靠性和创新力著称。其产品在高压工业系统到微型消费电子等各类严苛场景中，均对保障安全与性能起着至关重要的作用。公司在全球设有制造、销售和工程服务网络，为多元化客户群提供本地化解决方案。Littelfuse在纳斯达克上市（代码LFUS），通过战略性收购和产品线扩张持续巩固行业地位。

AWG 扁平排线 - 型号列表

共 21 个型号

制造商零件编号	库存	价格	额定电压	宽度	产品	产品类别	标准包装数量	工厂包装数量	RoHS	熔断I²t	响应时间	直流冷态电阻	最大额定电流	最小供电电压	颜色	包装方式	安装类型	安装样式	封装形式	尺寸/外形	端接样式	类型	系列	保险丝尺寸	保险丝类型	产品子类型	认证机构	指示器	电阻	核心类型	阻抗	电容	导体绞线	电缆类型	导线线规	屏蔽类型	电缆长度	连接器颜色	核心数/总线宽度	线规或范围 - AWG	每排/每行位置数	工作温度	外径（标称值）	间距
153.5395.6402 FUSE BF2 32V/1500A DC 400A 200PC Automotive Fuses 32V 1500A DC BF2 400A Littelfuse Inc	10	80: ¥46.784	32V	12 mm	Automotive Fuses	Automotive Fuses	200	200	RoHS Compliant	964000	Slow	0.00013 Ohm	400A	2000A	Violet	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6502 FUSE BF2 32V/1500A DC 500A 200PC Automotive Fuses 32V 1500A DC BF2 500A Littelfuse Inc	10	80: ¥46.784	32V	12 mm	Automotive Fuses	Automotive Fuses	200	200	RoHS Compliant	1449000	Slow	0.00012 Ohm	500A	2000A	Brown	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6301 FUSE BF2 32V/2000A DC 300A 10 PC Automotive Fuses 32V 2000A DC BF2 300A Littelfuse Inc	10	1: ¥57.12	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	486000	Slow	0.00021 Ohm	300A	2000A	Gray	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6171 FUSE BF2 32V/2000A DC 175A 10 PC Automotive Fuses 32V 2000A DC BF2 175A Littelfuse Inc	10	1: ¥57.12	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	154400	Slow	0.00036 Ohm	175A	2000A	Clear	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6221 FUSE BF2 32V/2000A DC 225A 10 PC Automotive Fuses 32V 2000A DC BF2 225A Littelfuse Inc	10	1: ¥63.172	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	236000	Slow	0.00029 Ohm	225A	2000A	Tan	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6251 FUSE BF2 32V/2000A DC 250A 10 PC Automotive Fuses 32V 2000A DC BF2 250A Littelfuse Inc	20	1: ¥57.12	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	292500	Slow	0.00025 Ohm	250A	2000A	Pink	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6201 FUSE BF2 32V/2000A DC 200A 10 PC Automotive Fuses 32V 2000A DC BF2 200A Littelfuse Inc	10	1: ¥57.12	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	288000	Slow	0.00034 Ohm	200A	2000A	Blue	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6151 FUSE BF2 32V/2000A DC 150A 10 PC Automotive Fuses 32V 2000A DC BF2 150A Littelfuse Inc	13	1: ¥57.12	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	113400	Slow	0.00042 Ohm	150A	2000A	Orange	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6121 FUSE BF2 32V/2000A DC 125A 10 PC Automotive Fuses 32V 2000A DC BF2 125A Littelfuse Inc	10	1: ¥57.12	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	118100	Slow	0.00052 Ohm	125A	2000A	Green	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6101 FUSE BF2 32V/2000A DC 100A 10 PC Automotive Fuses 32V 2000A DC BF2 100A Littelfuse Inc	17	1: ¥57.12	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	46800	Slow	0.0007 Ohm	100A	2000A	Yellow	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6401 FUSE BF2 32V/2000A DC 400A Automotive Fuses 32V 2000A DC BF2 400A Littelfuse Inc	10	1: ¥79.968	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	964000	Slow	0.00013 Ohm	400A	2000A	Violet	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
153.5395.6501 FUSE BF2 32V/2000A DC 500A 10 PC Automotive Fuses 32V 2000A DC BF2 500A Littelfuse Inc	20	1: ¥79.968	32V	12 mm	Automotive Fuses	Automotive Fuses	10	10	RoHS Compliant	1449000	Slow	0.00012 Ohm	500A	2000A	Brown	Bulk	Bolt Mount	Stud	Auto Link	2.65" L x 0.642" W x 0.382" H (67.30mm x 16.30mm x 9.70mm)	Bolt Down	BF1 Bolt Down Fuse	153.5395	BF1	Automotive	Bolt Down Fuse	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
142.5395.6102 FUSE BF2 58V/2000A DC 100A Automotive Fuses 58V 2000A DC BF2 100A Littelfuse Inc	10	125: ¥62.56	58V	18.8 mm	Automotive Fuses	Automotive Fuses	200	200	RoHS Compliant	46800	Slow	0.0007 Ohm	100A	1000A	Yellow	Bulk	Bolt Mount	Stud	Auto Link	2.650" L x 0.394" W x 0.366" H (67.30mm x 16.30mm x 9.30mm)	Bolt Down	BF2 Fuse Link	142.5395 BF2	Mega	Automotive	Bolt Down Fuse	cUL	Element Window	700 uOhms	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
142.5395.6202 FUSE BF2 58V/2000A DC 200A Automotive Fuses 58V 2000A DC BF2 200A Littelfuse Inc	10	1: ¥341.1345	58V	18.8 mm	Automotive Fuses	Automotive Fuses	200	200	RoHS Compliant	288000	Slow	0.00034 Ohm	200A	1000A	Blue	Bulk	Bolt Mount	Stud	Auto Link	2.650" L x 0.394" W x 0.366" H (67.30mm x 16.30mm x 9.30mm)	Bolt Down	BF2 Fuse Link	142.5395 BF2	Mega	Automotive	Bolt Down Fuse	cUL	Element Window	340 uOhms	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
142.5395.6172 FUSE BF2 58V/2000A DC 175A Automotive Fuses 58V 2000A DC BF2 175A Littelfuse Inc	10	125: ¥62.56	58V	18.8 mm	Automotive Fuses	Automotive Fuses	200	200	RoHS Compliant	154400	Slow	0.00036 Ohm	175A	1000A	Clear	Bulk	Bolt Mount	Stud	Auto Link	2.650" L x 0.394" W x 0.366" H (67.30mm x 16.30mm x 9.30mm)	Bolt Down	BF2 Fuse Link	142.5395 BF2	Mega	Automotive	Bolt Down Fuse	cUL	Element Window	360 uOhms	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
142.5395.6302 FUSE BF2 58V/2000A DC 300A Automotive Fuses 58V 2000A DC BF4 300A Littelfuse Inc	167	1: ¥101.728	58V	18.8 mm	Automotive Fuses	Automotive Fuses	200	200	RoHS Compliant	486000	Slow	0.00021 Ohm	300A	1000A	Gray	Bulk	Bolt Mount	Stud	Auto Link	2.650" L x 0.394" W x 0.366" H (67.30mm x 16.30mm x 9.30mm)	Bolt Down	BF2 Fuse Link	142.5395 BF2	Mega	Automotive	Bolt Down Fuse	cUL	Element Window	210 uOhms	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

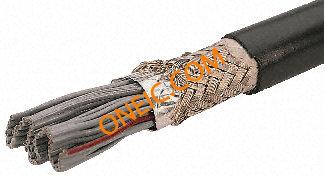

3585/37 Round & flat 37 way ribbon cable,30m Littelfuse, Inc.	-		150 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	7/36	63 Ω	108.2 pF/m	Stranded	Ribbon	28	Screened	30m	Black	7	36 AWG	37	+105°C	0.13mm	-
3585/25 Round & flat 25 way ribbon cable,30m Littelfuse, Inc.	-		300 V	30.48 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	7/36	70 Ω	78.7 pF/m	Stranded	Ribbon	28	Screened	30m	Black	7	36 AWG	25	+105°C	8.64mm	1.27mm

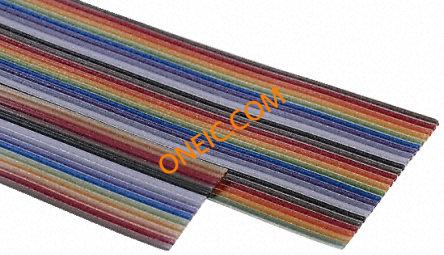

135-2802-350 Speedbloc(R) 50 way IDC ribbon cable,30m Littelfuse, Inc.	-		300 V	63.63 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	7/36	105 Ω	42.64 pF/m	Stranded	Ribbon	28	Unscreened	30m	Black, Blue, Brown, Green, Grey, Orange, Purple, Red, White, Yellow	7	36 AWG	50	+105°C	-	1.27mm
3585/34 Round & flat 34 way ribbon cable,30m Littelfuse, Inc.	-		150 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	7/36	63 Ω	108.2 pF/m	Stranded	Ribbon	28	Screened	30m	Black	7	36 AWG	34	+105°C	0.13mm	-
