Littelfuse, Inc.- 光纤电缆

Littelfuse, Inc.（力特）创立于1927年，总部位于美国伊利诺伊州芝加哥市，是全球电路保护、功率控制和传感技术领域的领先企业。公司产品几乎覆盖所有用电市场，包括汽车、工业设备、消费电子和商用车辆等核心领域。其核心产品线以业界最深最广的电路保护器件著称，涵盖汽车用片式保险丝（如ATO、Mini、Maxi系列）、可复位聚合物正温度系数器件（PolySwitch系列）、金属氧化物压敏电阻（MOV）、瞬态电压抑制二极管（SPA及SMBJ系列）以及静电放电保护阵列等。Littelfuse还不断拓展功率半导体业务，提供碳化硅MOSFET、整流器和栅极驱动器，同时拥有应用于汽车行业的机电传感器，如干簧开关和霍尔效应速度传感器。公司已将业务延伸至商用车辆用重型开关、矿用配电中心以及船用发电机控制与保护设备等邻近市场。凭借数十年的技术沉淀和持续研发投入，Littelfuse在全球电路保护市场稳居前列，以可靠性和创新力著称。其产品在高压工业系统到微型消费电子等各类严苛场景中，均对保障安全与性能起着至关重要的作用。公司在全球设有制造、销售和工程服务网络，为多元化客户群提供本地化解决方案。Littelfuse在纳斯达克上市（代码LFUS），通过战略性收购和产品线扩张持续巩固行业地位。

光纤电缆 - 型号列表

共 17 个型号

制造商零件编号	库存	RoHS	机械寿命	波长	上升时间（典型）	最大传播延迟 @ V, 最大CL	包装方式	工作温度	封装形式	数据速率	最小辐射强度 (Ie) @ If	尺寸/外形	其他规格	供电电压	控制器到传感器最大距离	工厂包装数量	感应角度	其他名称	标准包装数量	空闲电流，典型值 @ 25°C	尺寸	方向	系列	关断	标准	低功耗链路范围	峰值脉冲电流（10/1000µs）	数据速率（最大）	产品类别
ZHX1820TV115THTR Infrared Transceivers SIR Transceiver Littelfuse, Inc.	-	RoHS Compliant	End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.	870 nm	100 ns	100 ns	Reel	+ 85 C	UltraSlim	115.2 Kbit/s	100 mW/sr	9 mm x 3.65 mm x 2.75 mm	1.6 us, 20 us	2.4 V to 5.5 V	1.5 m	2000	20 deg	-	-	-	-	-	-	-	-	-	700 mA	-	-

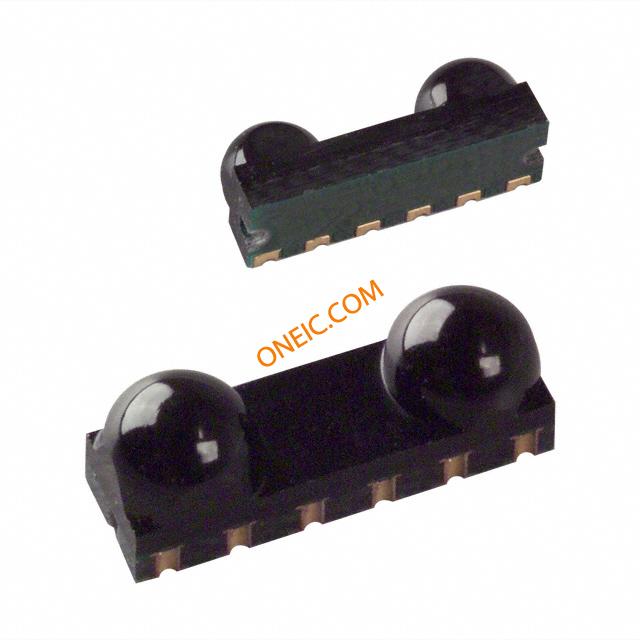

ZHX1820TV115XHTR Infrared Transceivers SIR Transceiver IRDA MODULE 115.2KBPS 6SMD Littelfuse, Inc.	-	RoHS Compliant	End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.	870 nm	100 ns	100 ns	Reel	+ 85 C	UltraSlim	115.2 Kbit/s	100 mW/sr	9 mm x 3.65 mm x 2.75 mm	1.6 us, 20 us	2.4 V to 5.5 V	1.5 m	2000	20 deg	269-3244-1	1	90µA	9.1mm x 3.8mm x 2.7mm	Top View	*	*	IrPHY 1.4	1m	700 mA	-	-
ZHX1201MB115TH Infrared Transceivers U-ZHX1201MB115THTR Littelfuse, Inc.	-	No	Obsolete	870 nm	100 ns	100 ns	Reel	+ 85 C	UltraSlim	0.1152 Mbps	72 mW/sr	8 mm X 3 mm X 2.5 mm	5 us	-	30 cm	-	20 deg	-	-	-	-	-	-	-	-	-	-	115.2 Kbps	-
ZHX1203MB115TH Infrared Transceivers U ZHX1203MB115THTR Littelfuse, Inc.	-	No	Obsolete	870 nm	600 ns, 100 ns	660 ns, 100 ns	Reel	+ 85 C	UltraSlim	0.1152 Mbps	72 mW/sr	7.3 mm X 2.8 mm X 1.9 mm	1.39 us, 1 us	-	30 cm	-	-	-	-	-	-	-	-	-	-	-	-	115.2 Kbps	-

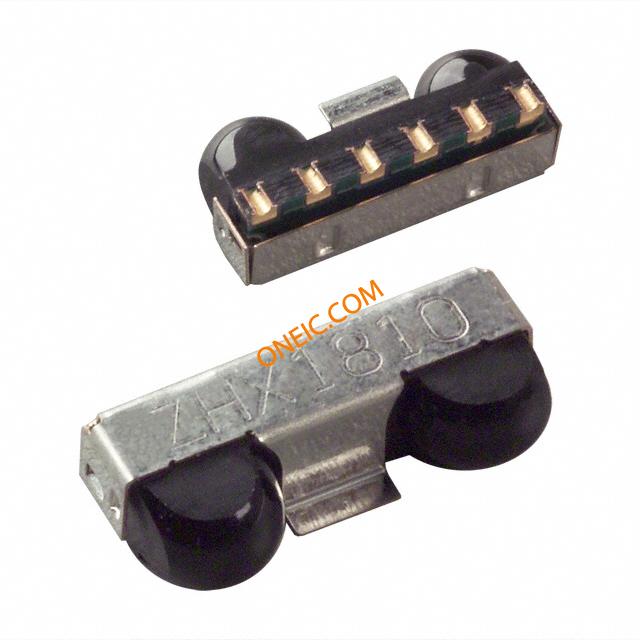

ZHX1810MV115THTR Infrared Transceivers Slimline SIR Transceiver (SlimLine - 9.1 x 3.8 x 2.75 mm) IN T&R IRDA MODULE 115.2KBPS 6SMD Littelfuse, Inc.	-	No	Obsolete	870 nm	100 ns	100 ns	Reel	+ 85 C	UltraSlim	115.2 Kbit/s	100 mW/sr	9.1 mm x 3.8 mm x 2.73 mm	1.6 us, 20 us	2.4 V to 5.5 V	1 m	2000	20 deg	269-3246-1	2,000	90µA	9.1mm x 3.8mm x 2.7mm	Side View	*	*	IrPHY 1.4	1m	700 mA	-	Infrared Transceivers
ZHX1403MA115TH Infrared Transceivers U ZHX1403MA115THTR Littelfuse, Inc.	-	No	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZHX1810MV115TH Infrared Transceivers U-ZHX1810MV115THTR Littelfuse, Inc.	-	No	Obsolete	870 nm	100 ns	100 ns	Reel	+ 85 C	UltraSlim	115.2 Kbit/s	100 mW/sr	9.1 mm x 3.8 mm x 2.73 mm	1.6 us, 20 us	2.4 V to 5.5 V	1 m	-	20 deg	-	-	-	-	-	-	-	-	-	700 mA	-	-
ZHX1203MB115THTR Infrared Transceivers ZHX1203 SIR IrMC TRANSCEIVER (No Listen) (SIR UltraSlim - 7.3 x 2.8 x 1.9 mm) IN T&R IRDA MODULE 115.2KBPS 7SMD Littelfuse, Inc.	-	No	Obsolete	870 nm	100 ns, 600 ns	100 ns, 660 ns	Reel	+ 85 C	UltraSlim	115.2 Kbit/s	72 mW/sr	7.3 mm x 2.8 mm x 1.9 mm	1 us, 1.39 us	2.4 V to 3.6 V	30 cm	3500	-	269-3245-1	3,500	100µA	7.3mm x 2.8mm x 1.9mm	Side View	*	*	IrPHY 1.4	20cm	-	-	Infrared Transceivers
ZHX1820TV115XH Infrared Transceivers U ZHX1820TV115XHTR Littelfuse, Inc.	-	No	Obsolete	870 nm	100 ns	100 ns	Reel	+ 85 C	UltraSlim	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZHX1010MV115TH Infrared Transceivers U ZHX1010MV115THTR Littelfuse, Inc.	-	No	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZHX1820TV115TH Infrared Transceivers U-ZHX1820TV115THTR Littelfuse, Inc.	-	No	Obsolete	870 nm	100 ns	100 ns	Reel	+ 85 C	UltraSlim	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZHX3403MA012THTR Infrared Transceivers IRDA MODULE 1.15MBPS 7SMD Littelfuse, Inc.	-	No	Obsolete	870 nm	600 ns, 50 ns	600 ns, 50 ns	Reel	+ 85 C	UltraSlim	1.152Mbs (MIR)	-	-	-	2.4 V ~ 3.6 V	-	-	-	269-3205-2	3,500	0.1µA	7.3mm x 2.8mm x 1.9mm	Side View	*	*	IrPHY 1.3	30cm	-	-	-
ZHX2010ML040THTR Infrared Transceivers Littelfuse, Inc.	-	No	Obsolete	900 nm	40 ns	40 ns	Reel	+ 85 C	-	-	-	-	-	-	-	2000	-	-	-	-	-	-	-	-	-	-	-	-	-

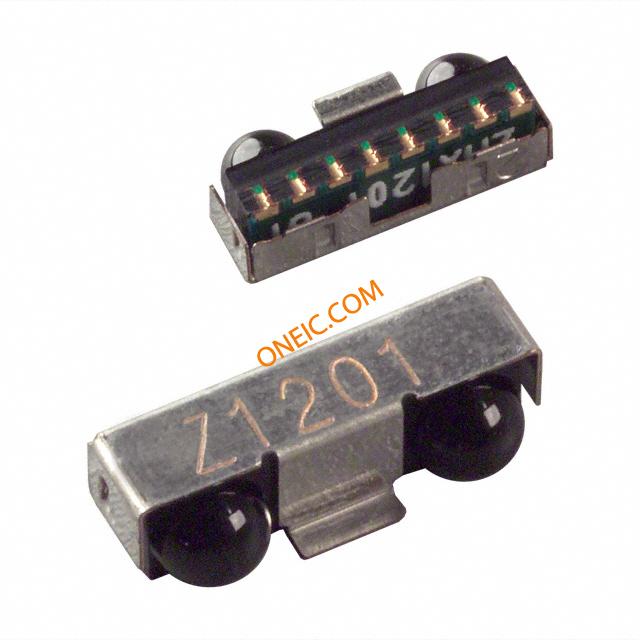

ZHX1201MB115THTR Infrared Transceivers IRDA MODULE 115.2KBPS 8SMD Littelfuse, Inc.	-	No	Obsolete	870 nm	100 ns	100 ns	Reel	+ 85 C	UltraSlim	0.1152 Mbps	72 mW/sr	8 mm X 3 mm X 2.5 mm	5 us	2.4 V ~ 3.6 V	30 cm	-	20 deg	269-3243-1	2,500	100µA	8.0mm x 3.0mm x 2.5mm	Side View	*	*	IrPHY 1.4	20cm	-	115.2 Kbps	-
ZHX1010MV115THTR Infrared Transceivers IRDA MODULE 115.2KBPS 6SMD Littelfuse, Inc.	-	No	Obsolete	875 nm	100 ns	100 ns	Reel	+ 85 C	-	0.1152 Mbps	100 mW/sr	9.9 mm X 3.7 mm X 4 mm	150 us, 1.6 us	2.4 V ~ 5.5 V	100 cm (Min)	2000	20 deg	269-3242-1	2,000	90µA	9.7mm x 3.7mm x 4.0mm	Side View	*	*	-	1m	700 mA	115.2 Kbps	-
ZHX1403MA115THTR Infrared Transceivers ZHX1403 SIR TRANSCEIVER (SIR UltraSlim - 7.3 x 2.8 x 1.9 mm) IN T&R IRDA MODULE 115.2KBPS 7SMD Littelfuse, Inc.	-	No	Obsolete	870 nm	40 ns	40 ns	Reel	+ 85 C	UltraSlim	115.2 Kbit/s	100 mW/sr	7.3 mm x 2.8 mm x 1.9 mm	5 us, 1.6 us	2.4 V to 3.6 V	1 m	3500	-	269-3204-2	3,500	0.1µA	7.3mm x 2.8mm x 1.9mm	Side View	*	*	IrPHY 1.4	1m	-	-	Infrared Transceivers

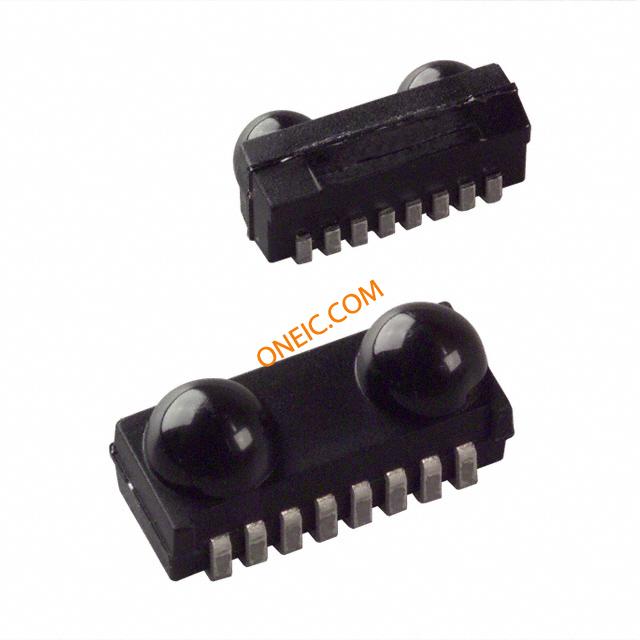

ZHX2022MV040THTR Infrared Transceivers FIR IrDA 4 MBITS IC TXRX ZHX2022 SIDE LOOK 8SMD Littelfuse, Inc.	-	No	Obsolete	900 nm	40 ns	40 ns	Reel	+ 85 C	UltraSlim	0.1152 Mbps	500 mW/sr	9.7 mm X 4.7 mm X 4 mm	1.8 us	2.7 V ~ 5.5 V	-	1000	48 deg	269-3636-2	1,000	2mA	9.7mm x 4.7mm x 4.0mm	Top View	*	*	IrPHY 1.4	-	125 mA	115.2 Kbps	Infrared Transceivers
