KEMET Electronics Corporation- 铝电解电容器
02
MODELS铝电解电容器 - 型号列表共 95 个型号
| 制造商零件编号 | 价格/库存 | Mounting | Capacitance Value | Voltage | Tolerance | Equivalent Series Resistance | Ripple Current | Product Length | Product Height | Product Depth | Operating Temperature | Construction | Standard Package | Product Category | RoHS | Capacitance | Voltage Rating | ESR | Operating Temperature Range | Termination Style | Case Length | Case Width | Case Height | Packaging | Case Code - in | Height | Leakage Current | Package / Case | Product | Series | Factory Pack Quantity | Tradename | rohs | Case Code - mm | Dimensions | Dissipation Factor DF | Product Length | EU RoHS | Maximum Operating Temperature | Leakage Current | Equivalent Series Resistance Type | Product Depth | Equivalent Series Resistance | Product Height | Ripple Current | Type | Product Type | CaseCode | Material,Element | Termination | Voltage,Rating | ESR,TestCondition | Other Names | Product Range | Capacitor Case Style | Capacitance Tolerance | Weight (kg) | Tariff No. | Ripple Current AC | Life Time @ Temperature | Operating Temperature Min | Operating Temperature Max | MSL | SVHC | No. of Pins | Operating Temp Range | Rad Hardened | Failure Rate | Lead Diameter (nom) | Tolerance (+ or -) | DCL | Lead Spacing (nom) | Mounting Style | Product Length (mm) | Product Depth (mm) | Product Height (mm) | Seated Plane Height | Size (mm) | Product Diameter (mm) | External Length / Height | External Width | Tolerance + | Tolerance - | Voltage Rating V DC | 系列 | 容差 | 操作温度 | ESR（等效串联电阻） | 额定电压 | 类型 | 电容 | Tensione | Confezione | Tipo | Montaggio | Valore della capacità | Corrente di dispersione | Tipo di resistenza di serie equivalente | Struttura | Corrente di ripple | Altezza prodotto | Profondità prodotto | Tolleranza | Massima temperatura d'esercizio | Resistenza di serie equivalente | Lunghezza del prodotto | RoHS UE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 A700X107M010ATE010 Cap Aluminum 100uF 10V 20% (7.3 X 4.3 X 4mm) SMD 0.01 Ohm 4700mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 100 uF | 10 Vdc | 20 % | 0.01 Ohm | 4700 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 100 uF | 10 V | 10 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 40 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | 6 | 7.3 | Compliant | 125 | 40@5Min | Extreme Low | 4.3 | 0.01 | 4 | 4700 | Organic | Molded | X | AluminumOrganic | SMT | 10VDC | @+25°C,100kHz | 399-11382-2 | :KEMET - A700 Series | :2917 [7343 Metric] | :± 20% | 0.000001 | 85322200 | :4.7A | :2000 hours @ 125°C | :-55°C | :125°C | :MSL 3 - 168 hours | :No SVHC (20-Jun-2013) | :2 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700D107M006ATE018 Cap Aluminum 100uF 6.3V 20% (7.3 X 4.3 X 2.8mm) SMD 0.018 Ohm 3700mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 100 uF | 6.3 Vdc | 20 % | 0.018 Ohm | 3700 mA | 7.3 mm | 2.8 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 100 uF | 6.3 V | 18 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 3.1 mm | Reel | 2917 | 3.1 mm | 25.2 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 3.1 mm H | 6 | 7.3 | Compliant | 125 | 38@5Min | Extreme Low | 4.3 | 0.018 | 2.8 | 3700 | Organic | Molded | D | AluminumOrganic | SMT | 6.3VDC | @+25°C,100kHz | - | :KEMET - A700 Series | :2917 ^7343 Metric] | :± 20% | 0.002 | 85322200 | - | - | - | - | - | - | :2 | -55C to 125C | No | Not Required | Not Required mm | 20% | 38@5Min uA | Not Required mm | Surface Mount | 7.3 mm | 4.3 mm | 2.8 mm | Not Required mm | 7.3 X 4.3 X 2.8 | Not Required mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700V826M004ATE028 Cap Aluminum 82uF 4V 20% (7.3 X 4.3 X 2mm) SMD 0.028 Ohm 3100mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 82 uF | 4 Vdc | 20 % | 0.028 Ohm | 3100 mA | 7.3 mm | 2(Max) mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 82 uF | 4 V | 28 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 2 mm | Reel | 2917 | 2 mm | 19.7 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 1000 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 2 mm H | 6 | 7.3 | Compliant | 125 | 20@5Min | Extreme Low | 4.3 | 0.028 | 2(Max) | 3100 | Organic | Molded | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700X397M002ATE010 Cap Aluminum 390uF 2V 20% (7.3 X 4.3 X 4mm) SMD 0.01 Ohm 4700mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 390 uF | 2 Vdc | 20 % | 0.01 Ohm | 4700 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 390 uF | 2 V | 10 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 46.8 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | 6 | 7.3 | Compliant | 125 | 396@5Min | Extreme Low | 4.3 | 0.01 | 4 | 4700 | Organic | Molded | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700V336M010ATE028 Cap Aluminum 33uF 10V 20% (7.3 X 4.3 X 2mm) SMD 0.028 Ohm 3100mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 33 uF | 10 Vdc | 20 % | 0.028 Ohm | 3100 mA | 7.3 mm | 2(Max) mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 33 uF | 10 V | 28 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 2 mm | Reel | 2917 | 2 mm | 13.2 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 1000 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 2 mm H | 6 | 7.3 | Compliant | 125 | 108@5Min | Extreme Low | 4.3 | 0.028 | 2(Max) | 3100 | Organic | Molded | V | AluminumOrganic | SMT | 10VDC | @+25°C,100kHz | - | :KEMET - A700 Series | :2917 ^7343 Metric] | :± 20% | 0 | 85322200 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700V476M006ATE028 Cap Aluminum 47uF 6.3V 20% (7.3 X 4.3 X 1.9mm) SMD 0.028 Ohm 3100mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 47 uF | 6.3 Vdc | 20 % | 0.028 Ohm | 3100 mA | 7.3 mm | 1.9 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 47 uF | 6.3 V | 28 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 2 mm | Reel | 2917 | 2 mm | 11.8 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 1000 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 2 mm H | 6 | 7.3 | Compliant | 125 | 18@5Min | Extreme Low | 4.3 | 0.028 | 1.9 | 3100 | Organic | Molded | V | AluminumOrganic | SMT | 6.3VDC | @+25°C,100kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700X277M002ATE015 Cap Aluminum 270uF 2V 20% (7.3 X 4.3 X 4mm) SMD 0.015 Ohm 3900mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 270 uF | 2 Vdc | 20 % | 0.015 Ohm | 3900 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 270 uF | 2 V | 15 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 26.4 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | 6 | 7.3 | Compliant | 125 | 32@5Min | Extreme Low | 4.3 | 0.015 | 4 | 3900 | Organic | Molded | X | AluminumOrganic | SMT | 2VDC | @+25°C,100kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700X157M006ATE015 Cap Aluminum 150uF 6.3V 20% (7.3 X 4.3 X 4mm) SMD 0.015 Ohm 3900mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 150 uF | 6.3 Vdc | 20 % | 0.015 Ohm | 3900 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 150 uF | 6.3 V | 15 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 37.8 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | 6 | 7.3 | Compliant | 125 | 57@5Min | Extreme Low | 4.3 | 0.015 | 4 | 3900 | Organic | Molded | X | AluminumOrganic | SMT | 6.3VDC | - | - | :KEMET - A700 Series | :2917 [7343 Metric] | :± 20% | 0.0005 | 85322200 | :3.9mA | :2000 hours @ 125°C | :-55°C | :125°C | :MSL 3 - 168 hours | :No SVHC (20-Jun-2013) | - | -55C to 125C | No | Not Required | Not Required mm | 20% | 57@5Min uA | Not Required mm | Surface Mount | 7.3 mm | 4.3 mm | 4 mm | Not Required mm | 7.3 X 4.3 X 4 | Not Required mm | :4mm | :4.3mm | :20% | :20% | :6V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700X187M006ATE015 Cap Aluminum 180uF 6.3V 20% (7.3 X 4.3 X 4mm) SMD 0.015 Ohm 3900mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 180 uF | 6.3 Vdc | 20 % | 0.015 Ohm | 3900 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 180 uF | 6.3 V | 15 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 45.4 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | 6 | 7.3 | Compliant | 125 | 68@5Min | Extreme Low | 4.3 | 0.015 | 4 | 3900 | Organic | Molded | X | AluminumOrganic | SMT | 6.3VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700X107M008ATE010 Cap Aluminum 100uF 8V 20% (7.3 X 4.3 X 4mm) SMD 0.01 Ohm 4700mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 100 uF | 8 Vdc | 20 % | 0.01 Ohm | 4700 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 100 uF | 8 V | 10 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 32 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | - | 7.3 | Compliant | 125 | 32@5Min | Extreme Low | 4.3 | 0.01 | 4 | 4700 | Organic | Molded | - | - | - | - | - | 399-11381-2 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700D107M006ATE015 Cap Aluminum 100uF 6.3V 20% (7.3 X 4.3 X 2.8mm) SMD 0.015 Ohm 4100mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 100 uF | 6.3 Vdc | 20 % | 0.015 Ohm | 4100 mA | 7.3 mm | 2.8 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 100 uF | 6.3 V | 15 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 3.1 mm | Reel | 2917 | 3.1 mm | 25.2 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 3.1 mm H | 6 | 7.3 | Compliant | 125 | 38@5Min | Extreme Low | 4.3 | 0.015 | 2.8 | 4100 | Organic | Molded | D | AluminumOrganic | SMT | 6.3VDC | @+25°C,100kHz | - | :KEMET - A700 Series | :2917 [7343 Metric] | :± 20% | 0.0004 | 85322200 | :4.1mA | :2000 hours @ 125°C | :-55°C | :125°C | :MSL 3 - 168 hours | :No SVHC (20-Jun-2013) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :2.8mm | :4.3mm | :20% | :20% | :6V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700D157M004ATE018 Cap Aluminum 150uF 4V 20% (7.3 X 4.3 X 2.8mm) SMD 0.018 Ohm 3700mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 150 uF | 4 Vdc | 20 % | 0.018 Ohm | 3700 mA | 7.3 mm | 2.8 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 150 uF | 4 V | 18 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 3.1 mm | Reel | 2917 | 3.1 mm | 36 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 3.1 mm H | 6 | 7.3 | Compliant | 125 | 36@5Min | Extreme Low | 4.3 | 0.018 | 2.8 | 3700 | Organic | Molded | D | AluminumOrganic | SMT | 4VDC | @+25°C,100kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700X157M010ATE010 Cap Aluminum 150uF 10V 20% (7.3 X 4.3 X 4mm) SMD 0.01 Ohm 4700mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 150 uF | 10 Vdc | 20 % | 0.01 Ohm | 4700 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Cut Tape | Aluminum Organic Polymer Capacitors | RoHS Compliant | 150 uF | 10 V | 10 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 60 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | 6 | 7.3 | Compliant | 125 | 60@5Min | Extreme Low | 4.3 | 0.01 | 4 | 4700 | Organic | Molded | X | AluminumOrganic | SMT | 10VDC | @+25°C,100kHz | 399-11383-2 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

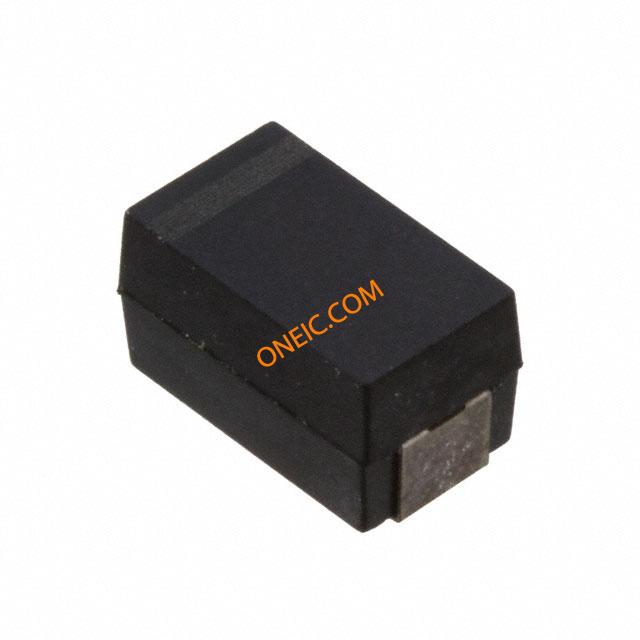

 A700X227M006ATE015 Cap Aluminum 220uF 6.3V 20% (7.3 X 4.3 X 4mm) SMD 0.015 Ohm 3900mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 220 uF | 6.3 Vdc | 20 % | 0.015 Ohm | 3900 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 220 uF | 6.3 V | 15 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4 mm | Plastic Tape and Reel | 2917 | 4 mm | 55 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | * | 500 | AO-Cap | Lead free / RoHS Compliant | - | - | 6 | 7.3 | Compliant | 125 | 83@5Min | Extreme Low | 4.3 | 0.015 | 4 | 3900 | Organic | Molded | - | - | - | - | - | 399-11387-2 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | AO-Cap A700 | ±20% | -55°C ~ 125°C | 15 mOhm | 6.3V | Polymer | 220µF | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700X337M004ATE010 Cap Aluminum 330uF 4V 20% (7.3 X 4.3 X 4mm) SMD 0.01 Ohm 4700mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 330 uF | 4 Vdc | 20 % | 0.01 Ohm | 4700 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 330 uF | 4 V | 10 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 79.2 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | 6 | - | - | - | - | - | - | - | - | - | - | - | X | AluminumOrganic | SMT | 4VDC | @+25°C,100kHz | 399-11388-2 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 4VDC | Plastic Tape and Reel | Organic | Surface Mount | 330uF | 79@5Min | Extreme Low | Flat | 4700 | 4 | 4.3 | 20% | 125 | 0.01 | 7.3 | Compliant |
A700V107M002ATE028 Cap Aluminum 100uF 2V 20% (7.3 X 4.3 X 1.9mm) SMD 0.028 Ohm 3100mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 100 uF | 2 Vdc | 20 % | 0.028 Ohm | 3100 mA | 7.3 mm | 1.9 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 100 uF | 2 V | 28 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 2 mm | Reel | 2917 | 2 mm | 12 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 1000 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 2 mm H | 6 | 7.3 | Compliant | 125 | 12@5Min | Extreme Low | 4.3 | 0.028 | 1.9 | 3100 | Organic | Molded | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700X127M010ATE010 Cap Aluminum 120uF 10V 20% (7.3 X 4.3 X 4mm) SMD 0.01 Ohm 4700mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 120 uF | 10 Vdc | 20 % | 0.01 Ohm | 4700 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 120 uF | 10 V | 10 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 48 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | 6 | 7.3 | Compliant | 125 | 48@5Min | Extreme Low | 4.3 | 0.01 | 4 | 4700 | Organic | Molded | X | AluminumOrganic | SMT | 10VDC | @+25°C,100kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700X337M002ATE015 Cap Aluminum 330uF 2V 20% (7.3 X 4.3 X 4mm) SMD 0.015 Ohm 3900mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 330 uF | 2 Vdc | 20 % | 0.015 Ohm | 3900 mA | 7.3 mm | 4 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 330 uF | 2 V | 15 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 4.3 mm | Reel | 2917 | 4.3 mm | 39.6 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 4.3 mm H | 6 | 7.3 | Compliant | 125 | 40@5Min | Extreme Low | 4.3 | 0.015 | 4 | 3900 | Organic | Molded | X | AluminumOrganic | SMT | 2VDC | @+25°C,100kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700D187M002ATE018 Cap Aluminum 180uF 2V 20% (7.3 X 4.3 X 2.8mm) SMD 0.018 Ohm 3700mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 180 uF | 2 Vdc | 20 % | 0.018 Ohm | 3700 mA | 7.3 mm | 2.8 mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 180 uF | 2 V | 18 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 3.1 mm | Reel | 2917 | 3.1 mm | 21.6 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 500 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 3.1 mm H | 6 | 7.3 | Compliant | 125 | 22@5Min | Extreme Low | 4.3 | 0.018 | 2.8 | 3700 | Organic | Molded | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
A700V686M006ATE028 Cap Aluminum 68uF 6.3V 20% (7.3 X 4.3 X 2mm) SMD 0.028 Ohm 3100mA 125°C Plastic T/R kemet | 询价 | Surface Mount | 68 uF | 6.3 Vdc | 20 % | 0.028 Ohm | 3100 mA | 7.3 mm | 2(Max) mm | 4.3 mm | -55 to 125 °C | Flat | Tape & Reel | Aluminum Organic Polymer Capacitors | RoHS Compliant | 68 uF | 6.3 V | 28 mOhms | - 55 C to + 125 C | SMD/SMT | 7.3 mm | 4.3 mm | 2 mm | Reel | 2917 | 2 mm | 17.1 uA | 2917 (7343 metric) | Organic Polymer Aluminum - SMD Capacitors | A700 | 1000 | AO-CAP | Lead free / RoHS Compliant | 7343 | 7.3 mm L x 4.3 mm W x 2 mm H | 6 | 7.3 | Compliant | 125 | 26@5Min | Extreme Low | 4.3 | 0.028 | 2(Max) | 3100 | Organic | Molded | V | AluminumOrganic | SMT | 6.3VDC | @+25°C,100kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | AO-Cap A700 | ±20% | -55°C ~ 125°C | 28 mOhm | 6.3V | Polymer | 68µF | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 5 页
