JST Mfg. Co., Ltd.- 板对板连接器

JST制造有限公司（JST Mfg. Co., Ltd.）是一家全球性的电子连接器制造商，成立于1957年，总部位于日本大阪。公司在全球设有多个制造基地和销售办事处，提供广泛的互连解决方案。JST专注于高品质的超小型连接器，产品涵盖线对线、线对板、板对板、柔性/扁平电缆连接器以及存储器连接器。其知名的连接器系列包括ZH、PH、XH、SH、EH等，广泛应用于消费电子和汽车电子等领域。此外，JST还生产免焊端子、链式端子、分流器和应用工具，以满足装配需求。所有产品均严格遵循ISO-9001和QS-9000质量管理体系标准制造。公司的工程中心具备从设计开发、原型制造到预生产和电气/环境测试的全套服务能力。JST服务于汽车、工业自动化、电信和家电等多个行业市场。凭借六十余年的技术积累，JST在连接器领域以卓越的可靠性和创新性著称。通过持续的技术投入，JST在全球连接器市场中保持着重要的技术优势地位。

板对板连接器 - 型号列表

共 1,095 个型号

制造商零件编号	库存	价格	其他名称	标准包装数量	RoHS	间距	包装方式	安装类型	连接器类型	接触镀层	排数	位数	产品特性	配接堆叠高度	板面高度	系列	主要用途	输出配置
2 30PS-JMDSS-G-1-TF(LF)(SN) CONN PLUG JMD 30POS SIDE GOLD JST Sales America Inc	4500	1500: ¥4.86	455-1887-1	1	Lead free / RoHS Compliant	0.020" (0.50mm)	Cut Tape (CT)	Surface Mount, Right Angle	Plug, Outer Shroud Contacts	Gold	2	30	Solder Retention	-	-	-	-	-
2 20R-JMDSS-G-1-TF(S)(LF)(SN) CONN RECEPT JMD 20POS GOLD JST Sales America Inc	1500	1500: ¥1.7995	455-1894-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Receptacle, Center Strip Contacts	Gold	2	20	Solder Retention	4.5mm, 5mm, 6mm	0.122" (3.10mm)	-	-	-
2 40P-JMDSS-G-1-TF(LF)(SN) CONN PLUG 40POS TOP 4.5MM GOLD JST Sales America Inc	1667	1: ¥11.152	455-1875-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Plug, Outer Shroud Contacts	Gold	2	40	Solder Retention	4.5mm	-	-	-	-
2 30R-JMDSS-G-1-TF(S)(LF)(SN) CONN RECEPT JMD 30POS GOLD JST Sales America Inc	5945	1: ¥11.22	455-1895-1	1	Lead free / RoHS Compliant	0.020" (0.50mm)	Cut Tape (CT)	Surface Mount	Receptacle, Center Strip Contacts	Gold	2	30	Solder Retention	4.5mm, 5mm, 6mm	0.122" (3.10mm)	-	-	-
2 50P-JMDSS-G-1-TF(S)(LF)(SN) CONN PLUG 50POS TOP 4.5MM GOLD JST Sales America Inc	2385	1: ¥12.648	455-1876-1	1	Lead free / RoHS Compliant	0.020" (0.50mm)	Cut Tape (CT)	Surface Mount	Plug, Outer Shroud Contacts	Gold	2	50	Solder Retention	4.5mm	-	-	-	-
2 40PS-JMDSS-G-1-TF(LF)(SN) CONN PLUG JMD 40POS SIDE GOLD JST Sales America Inc	10	1500: ¥4.4307	455-1888-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount, Right Angle	Plug, Outer Shroud Contacts	Gold	2	40	Solder Retention	-	-	-	-	-
2 40R-JMDSS-G-1-TF(S)(LF)(SN) CONN RECEPT JMD 40POS GOLD JST Sales America Inc	755	1: ¥16.048	455-1896-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Receptacle, Center Strip Contacts	Gold	2	40	Solder Retention	4.5mm, 5mm, 6mm	0.122" (3.10mm)	-	-	-
3 50P6.0-JMDSS-G-1-TF(LF)(SN) CONN PLUG 50POS TOP 6MM GOLD JST Sales America Inc	4500	1500: ¥7.3018	455-1883-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Plug, Outer Shroud Contacts	Gold	2	50	Solder Retention	6mm	-	-	-	-
2 50PS-JMDSS-G-1-TF(LF)(SN) CONN PLUG JMD 50POS SIDE GOLD JST Sales America Inc	1500	1500: ¥7.4208	455-1889-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount, Right Angle	Plug, Outer Shroud Contacts	Gold	2	50	Solder Retention	-	-	JMD	Solder Retention	Surface Mount, Right Angle
2 60PS-JMDSS-G-1-TF(LF)(SN) CONN PLUG JMD 60POS SIDE GOLD JST Sales America Inc	1038	1: ¥14.9124	455-1890-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount, Right Angle	Plug, Outer Shroud Contacts	Gold	2	60	Solder Retention	-	-	-	-	-
2 50R-JMDSS-G-1-TF(S)(LF)(SN) CONN RECEPT JMD 50POS GOLD JST Sales America Inc	7500	1500: ¥8.3817	455-1897-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Receptacle, Center Strip Contacts	Gold	2	50	Solder Retention	4.5mm, 5mm, 6mm	0.122" (3.10mm)	-	-	-
2 60P-JMDSS-G-1-TF(LF)(SN) CONN PLUG 60POS TOP 4.5MM GOLD JST Sales America Inc	20	1: ¥4.165	455-1877-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Plug, Outer Shroud Contacts	Gold	2	60	Solder Retention	4.5mm	-	-	-	-
2 60R-JMDSS-G-1-TF(S)(LF)(SN) CONN RECEPT JMD 60POS GOLD JST Sales America Inc	6577	3: ¥14.7016	455-1898-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Receptacle, Center Strip Contacts	Gold	2	60	Solder Retention	4.5mm, 5mm, 6mm	0.122" (3.10mm)	-	-	-
2 70P-JMDSS-G-1-TF(LF)(SN) CONN PLUG 70POS TOP 4.5MM GOLD JST Sales America Inc	3000	1500: ¥9.5669	455-1878-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Plug, Outer Shroud Contacts	Gold	2	70	Solder Retention	4.5mm	-	-	-	-
2 70PS-JMDSS-G-1-TF(LF)(SN) CONN PLUG JMD 70POS SIDE GOLD JST Sales America Inc	10	1: ¥19.176	455-1891-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount, Right Angle	Plug, Outer Shroud Contacts	Gold	2	70	Solder Retention	-	-	-	-	-
2 70R-JMDSS-G-1-TF(S)(LF)(SN) CONN RECEPT JMD 70POS GOLD JST Sales America Inc	468	1: ¥20.468	455-1899-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Receptacle, Center Strip Contacts	Gold	2	70	Solder Retention	4.5mm, 5mm, 6mm	0.122" (3.10mm)	-	-	-

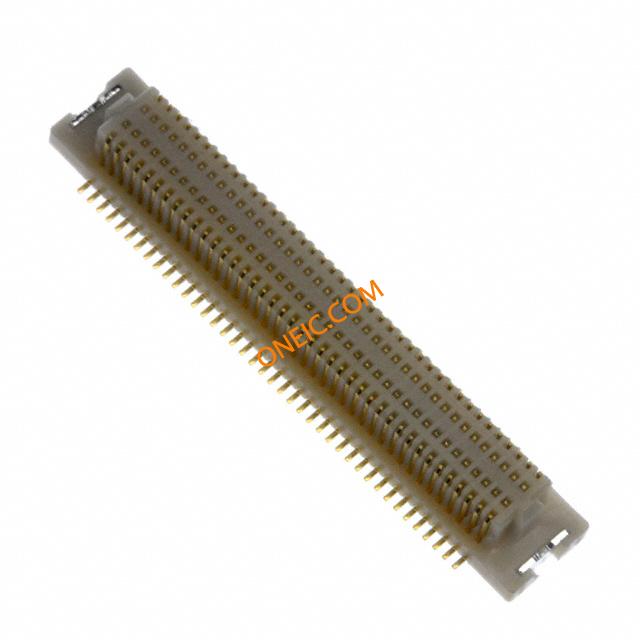

2 80R-JMDSS-G-1-TF(LF)(SN) CONN RECEPT JMD 80POS GOLD JST Sales America Inc	1641	1: ¥20.876	455-1900-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Receptacle, Center Strip Contacts	Gold	2	80	Solder Retention	4.5mm, 5mm, 6mm	0.122" (3.10mm)	-	-	-
2 80PS-JMDSS-G-1-TF(LF)(SN) CONN PLUG JMD 80POS SIDE GOLD JST Sales America Inc	1500	1500: ¥12.7996	455-1892-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount, Right Angle	Plug, Outer Shroud Contacts	Gold	2	80	Solder Retention	-	-	-	-	-

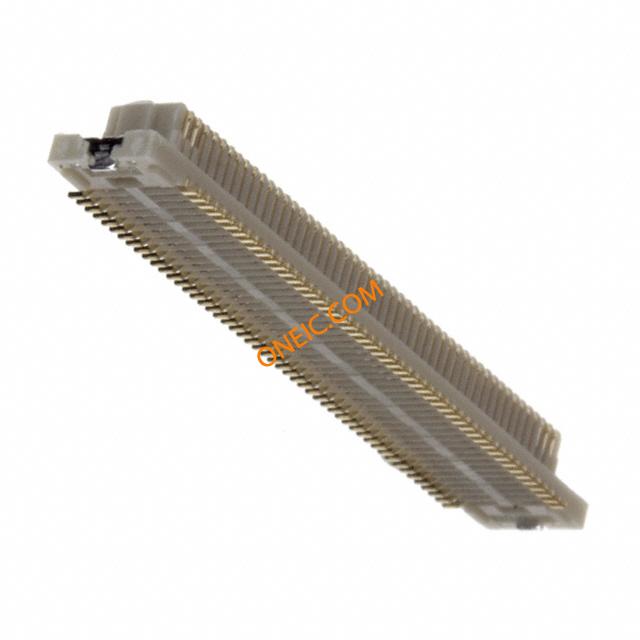

2 100R-JMDSS-G-1-TF(LF)(SN) CONN RECEPT JMD 100POS GOLD JST Sales America Inc	7500	1500: ¥13.4752	455-1901-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Receptacle, Center Strip Contacts	Gold	2	100	Solder Retention	4.5mm, 5mm, 6mm	0.122" (3.10mm)	-	-	-
2 80P-JMDSS-G-1-TF(LF)(SN) CONN PLUG 80POS TOP 4.5MM GOLD JST Sales America Inc	1500	1500: ¥10.6209	455-1879-1	1,500	Lead free / RoHS Compliant	0.020" (0.50mm)	Tape & Reel (TR)	Surface Mount	Plug, Outer Shroud Contacts	Gold	2	80	Solder Retention	4.5mm	-	-	-	-

第 1 / 50 页
