OK Industries Inc.- 单芯电缆

OK Industries Inc. 成立于 1946 年，总部位于美国纽约州扬克斯市，是电信、数据通信和电子行业高端手动工具的领先制造商。公司最初因其用于铜质电话和数据线路安装的创新性绕线工具而获得广泛认可。通过其广受欢迎的 Jonard Tools 品牌部门，OK Industries 提供了广泛的产品组合，包括绕线工具、退绕工具以及用于铜质语音/数据线路的互连工具。针对光纤应用，公司提供光纤剥线钳、切割刀、检测显微镜和连接器组装工具。其他产品线包括电缆剪、压接钳、钳子、插拔工具以及专为现场技术人员和中心机房安装人员设计的测试设备。公司服务于全球客户，在 50 多个国家设有分销网络，被公认为电信手动工具行业的领先者。OK Industries 的工具以其精密性、耐用性和符合国际标准而闻名，确保在关键网络安装中可靠运行。公司持续创新，为 FTTx 和 5G 无线网络等新兴技术开发工具，同时保持对铜缆电信基础设施的支持。凭借对质量和客户服务的坚定承诺，OK Industries 仍然是全球电信和数据通信专业人士的首选。

单芯电缆 - 型号列表

共 34 个型号

制造商零件编号	库存	价格	标准包装数量	颜色	长度	包装方式	导线线规	中心导体直径	护套（绝缘）直径	护套（绝缘）材料	其他名称
KSW30R-0100 WIREWRAP PVDF 30AWG RED 100' WIREWRAP PVDF 30AWG RED 100' OK Industries/Div of Jonard Ind Corp	14	1: ¥166.60	1	Red	100' (30.5m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
R-30R-0050 30-AWG RED 50 FT ROLL SEE827-4043R30R-0050 OK Industries/Div of Jonard Ind Corp	24	1: ¥68.68	1	Red	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
R-30Y-0050 WIRE ROLL REPL 30AWG YELLOW 50' WIRE ROLL REPL 30AWG YELLOW 50' WIRE30AWGYELLOW50FT OK Industries/Div of Jonard Ind Corp	58	1: ¥68.68	1	Yellow	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
R-30-TRI WIRE REPLACEMENT FOR WD-30-TRI WIRE30AWG,RED,WHITE,BLUE50FT OK Industries/Div of Jonard Ind Corp	28	1: ¥137.02	1	Multiple	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
WD-30-B DISPENSER WIRE BLUE W/50' WIRE DISPENSER WIRE BLUE W/50' WIRE OK Industries/Div of Jonard Ind Corp	13	1: ¥146.88	1	Blue	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
KSW30BLK-0100 WIREWRAP PVDF 30AWG BLACK 100' WIREWRAP PVDF 30AWG BLACK 100' OK Industries/Div of Jonard Ind Corp	37	1: ¥166.60	1	Black	100' (30.5m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
KSW30B-0100 WIREWRAP PVDF 30AWG BLUE 100' WIREWRAP PVDF 30AWG BLUE 100' OK Industries/Div of Jonard Ind Corp	68	1: ¥166.60	1	Blue	100' (30.5m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
KSW30Y-0100 WIREWRAP PVDF 30AWG YELLOW 100' WIREWRAP PVDF 30AWG YELLOW 100' WIRE30AWGYELLOW100FTCSW OK Industries/Div of Jonard Ind Corp	22	1: ¥166.60	1	Yellow	100' (30.5m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
KSW30W-0100 WIREWRAP PVDF 30AWG WHITE 100' WIREWRAP PVDF 30AWG WHITE 100' OK Industries/Div of Jonard Ind Corp	20	1: ¥166.60	1	White	100' (30.5m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
WD-30-TRI DISPENSER WIRE TRI W/50'EA WIRE DISPENSER WIRE TRI W/50'EA WIRE BLUE,WHITE,&REDWIREANDDISPENSER OK Industries/Div of Jonard Ind Corp	14	1: ¥242.42	1	Multiple	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
KSW30BLK-1000 WIREWRAP PVDF 30AWG BLACK 1000' WIREWRAP PVDF 30AWG BLACK 1000' WIRE30AWGBLACK1000FTCSW OK Industries/Div of Jonard Ind Corp	17	1: ¥671.50	1	Black	1000' (304.8m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
KSW30W-1000 WIREWRAP PVDF 30AWG WHITE 1000' WIREWRAP PVDF 30AWG WHITE 1000' WIRE30AWGWHITE1000FTCSW OK Industries/Div of Jonard Ind Corp	10	1: ¥671.50	1	White	1000' (304.8m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
KSW30Y-1000 WIREWRAP PVDF 30AWG YELLW 1000' WIREWRAP PVDF 30AWG YELLW 1000' WIRE30AWGYELLOW1000FTCSW OK Industries/Div of Jonard Ind Corp	10	1: ¥671.50	1	Yellow	1000' (304.8m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
KSW30B-1000 WIREWRAP PVDF 30AWG BLUE 1000' WIREWRAP PVDF 30AWG BLUE 1000' WIRE30AWGBLUE1000FTCSW OK Industries/Div of Jonard Ind Corp	10	1: ¥671.50	1	Blue	1000' (304.8m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
R-30B-0050 WIRE ROLL REPL 30AWG BLUE 50' WIRE ROLL REPL 30AWG BLUE 50' OK Industries/Div of Jonard Ind Corp	38	1: ¥68.68	1	Blue	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-
R-30W-0050 30-AWG WHITE 50 FT ROLL WIRE30AWGWHITE50FT OK Industries/Div of Jonard Ind Corp	34	1: ¥68.68	1	White	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-

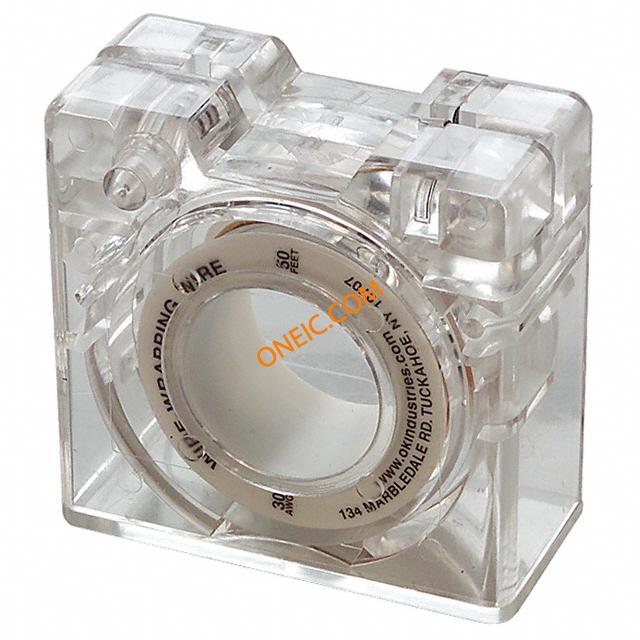

WD-30-W DISPENSER WIRE WHITE W/50' WIRE DISPENSER WIRE WHITE W/50' WIRE WHITEWIREANDDISPENSER OK Industries/Div of Jonard Ind Corp	10	1: ¥146.88	1	White	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-

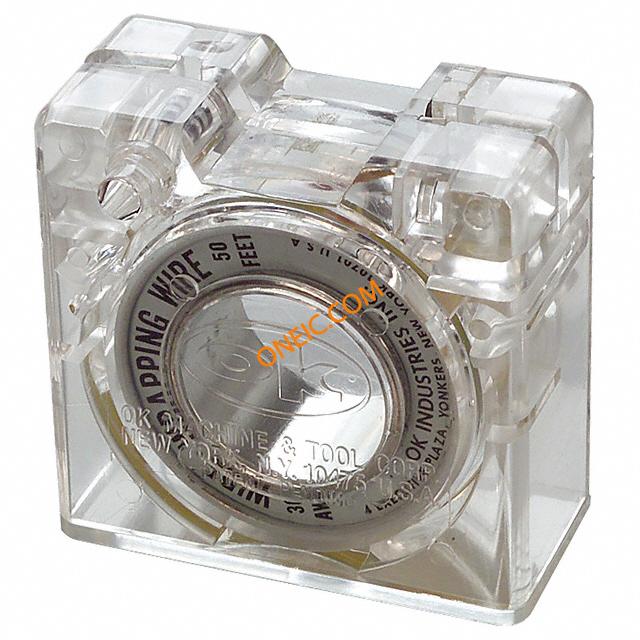

WD-30-Y DISPENSER WIRE YELLOW W/50' WIRE DISPENSER WIRE YELLOW W/50' WIRE YELLOWWIREANDDISPENSER OK Industries/Div of Jonard Ind Corp	11	1: ¥146.88	1	Yellow	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-

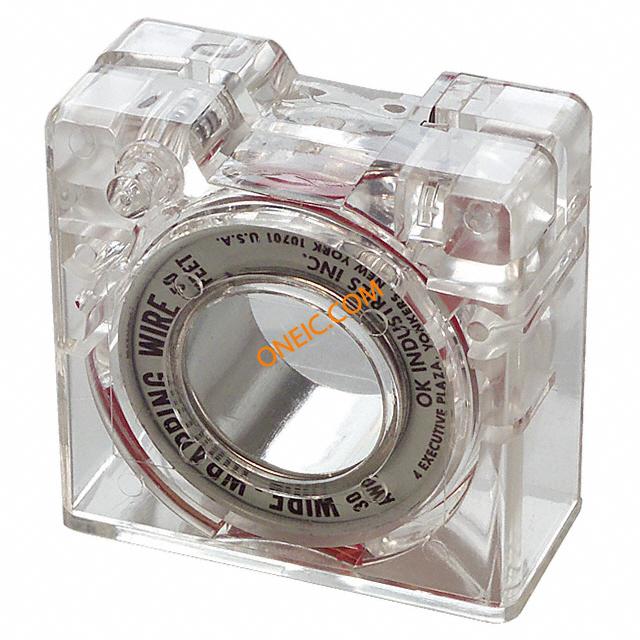

WD-30-R DISPENSER WIRE RED W/50' WIRE DISPENSER WIRE RED W/50' WIRE REDWIREANDDISPENSER OK Industries/Div of Jonard Ind Corp	16	1: ¥146.88	1	Red	50' (15.24m)	Roll	30 AWG	0.010" (0.25mm)	0.019" (0.50mm)	Polyvinylidene Fluoride (PVDF)	-

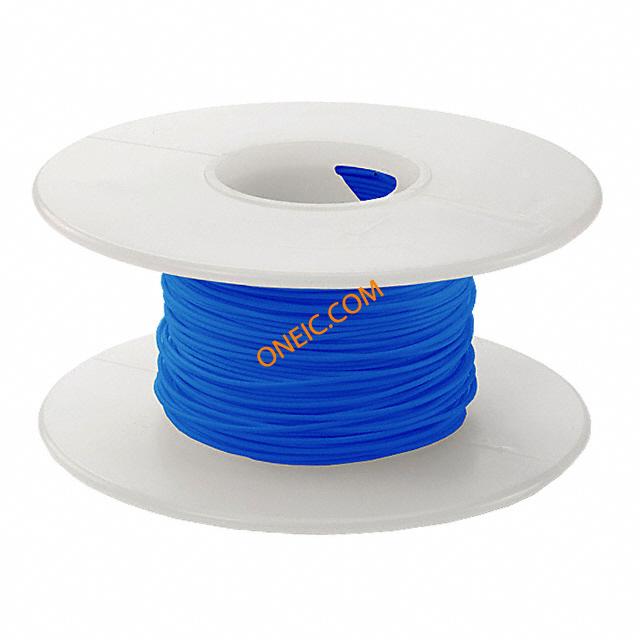

KSW26B-0100 WIREWRAP PVDF 26AWG BLUE 100' WIREWRAP PVDF 26AWG BLUE 100' OK Industries/Div of Jonard Ind Corp	16	1: ¥182.58	1	Blue	100' (30.5m)	Roll	26 AWG	0.016" (0.40mm)	0.027" (0.69mm)	Polyvinylidene Fluoride (PVDF)	Q808597

第 1 / 2 页
