Hirschmann Automation and Control GmbH- 高可靠性矩形连接器

赫思曼自动化控制有限公司（Hirschmann Automation and Control GmbH）是百通（Belden）旗下品牌，工业网络与连接解决方案的领先供应商。公司总部位于德国内卡滕茨林根，1940年创立，拥有悠久的工业通信技术积淀。赫思曼专注于为关键任务应用提供加固型工业以太网交换机、连接器和无线局域网产品。其产品线涵盖MACH、MICE、RS和EAGLE系列管理型交换机，专为严苛环境设计。公司还提供全面的GDM系列工业连接器，以坚固的金属外壳和IP67防护等级著称。赫思曼的无线局域网接入点和客户端模块为工业现场提供可靠的无线连接。此外，赫思曼供应安全设备和网络管理软件，确保无缝集成与网络安全。凭借对可靠性和创新的专注，赫思曼服务于工厂自动化、交通运输、电力公用事业和石油天然气等行业。作为百通集团的一部分，赫思曼共享其强大的研发资源和全球销售网络，在工业网络领域享有高度的市场声誉和技术优势。

高可靠性矩形连接器 - 型号列表

共 12 个型号

制造商零件编号	库存	价格	端接方式	安装类型	额定电压	最大额定电流	颜色	类型	连接器性别	防护等级	连接器类型	端接排数	连接器颜色	系列	二极管类型	极数格式	密封等级	引脚直径	极性	电缆组	尺寸	电缆直径	RoHS	行程角度	触头材料	壳体材料	主要材料	触点数	制造商全称	工作温度	认证机构	材料阻燃等级	引脚长度（针脚）	总长度	典型触点布局	标准	外壳尺寸	SVHC	海关税号	极数	重量	接触镀层	接触件端接	第一连接器安装类型
4 932977100 Female 2P+E DIN 43650 Solenoid Connector GM Series ,Screw Down,Gland Size PG9,IP65,16A,250V ac/dc CONNECTOR,GM209NJBLACK,DINVALVE,TYPEB,2C+GROUND,4-8MMCABLE,(UL) GM 209 NJ black; Cable Socket with central screw M 3 x 35, 2 contacts + PE, PG9, Type B, industrial standard (11 mm) Hirschmann GM系列电磁阀接头 2P+E 插座, 螺钉拧紧安装, 尺寸 PG9, IP65, 额定16A, 250 V 交流/直流 Hirschmann	873	1: ¥17.612	Screw Down	Screw Down	250 Vac / Vdc	16A	Black	CableSocket	Female	IP65	母座	螺钉拧紧	Black	GM	DIN 43650 B	2P+E	IP65	DIN 43650 B	2P+E	PG9	PG9	4.5 → 7mm	RoHS Compliant Part	Straight	Tin	PA	Valve	3	GM	-40to+125°C	CSA,VDE	UL94V-1	5.5mm	51mm	2+Gnd	-	B	-	-	-	-	-	-	-

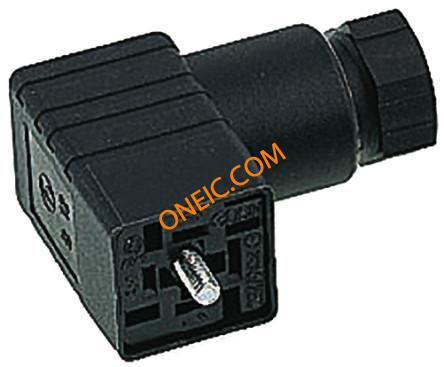

3 933137100 Female 2P+E DIN 43650 Solenoid Connector GDSN Series ,Screw Down,Gland Size PG7,IP65,6A,250V ac/dc CONNECTOR,GDSN207BLACK,VALVE,TYPEC,3C+GROUND,4.5-6MMCABLEOD(UL) GDSN 207 black; Cable Socket with central screw M 2.5 x 27, 2 contacts + PE, PG7, Type C, DIN EN 175 301-803-C Hirschmann GDSN 207系列电磁阀接头 2P+E 插座, 螺钉拧紧安装, 尺寸 PG7, IP65, 额定6A, 250 V 交流/直流 Hirschmann	215	1: ¥14.28	Screw Down	Screw Down	250 V ac/dc	6A	黑色	CONNECTORS	Female	IP65	母座	螺钉拧紧	Black	GDSN	DIN 43650 C	2P+E	IP65	DIN 43650 C	2P+E	PG7	PG7	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 933022100 Female 3P+E DIN 43650 Solenoid Connector GDME Series ,Screw Down,Gland Size PG11,IP65,16A,400V ac CONNECTOR,GDME3011BLACK,VALVE,3C+GROUND,4.5-11MMCABLEDIA. GDME 3011 black; Cable Socket with central screw M 3 x 40, strain relief and transparent cover, possibility to fit electronic inserts, 3 contacts + PE, PG11, Type A, DIN EN 175 301-803-A Hirschmann GDME系列电磁阀接头 3P+E 插座, 螺钉拧紧安装, 尺寸 PG11, IP65, 额定16A, 400 V 交流 Hirschmann	1518	1: ¥38.6512	Screw Down	Screw Down	400 V ac	16A	黑色	Rectangular	Female	IP65	母座	螺钉拧紧	Black	GDME	DIN 43650 A	3P+E	IP65	DIN 43650 A	3P+E	PG11	PG11	4.5 → 11mm	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

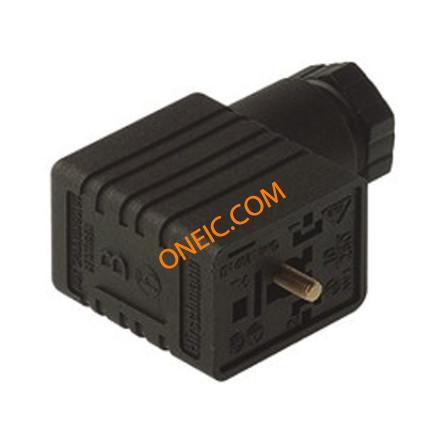

3 932987100 Female 2P+E DIN 43650 Solenoid Connector GMN Series ,Screw Down,Gland Size PG9,IP65,16A,250V ac/dc CONNECTOR,GMN209NJBLACK,VALVE,TYPEB,2C+GROUND,4.5-7MMCABLEOD GMN 209 NJ black; Cable Socket with central screw M 3 x 35, 2 contacts + PE, PG9, Type B, DIN EN 175 301-803-B Hirschmann GMN系列电磁阀接头 2P+E 插座, 螺钉拧紧安装, 尺寸 PG9, IP65, 额定16A, 250 V 交流/直流 Hirschmann	10	1: ¥11.016	Screw Down	Screw Down	250 Vac / Vdc	16A	黑色	CONNECTORS	Female	IP65	母座	螺钉拧紧	Black	GMN	DIN 43650 B	2P+E	IP65	DIN 43650 B	2P+E	PG9	PG9	4.5 → 7mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 933023100 Female 3P+E DIN 43650 Solenoid Connector GDSN Series ,Screw Down,Gland Size PG7,IP65,6A,250V ac/dc CONNECTOR,GDSN307BLACK,DINVALVE,TYPEC,3C+GROUND,3-6.5MMCABLE(UL) GDSN 307 black; Cable Socket with central screw M 2.5 x 27, 3 contacts + PE, PG7, Type C, DIN EN 175 301-803-C Hirschmann GDSN 307系列电磁阀接头 3P+E 插座, 螺钉拧紧安装, 尺寸 PG7, IP65, 额定6A, 250 V 交流/直流 Hirschmann	425	1: ¥16.932	Screw Down	Screw Down	250 Vac / Vdc	6A	Black	CableSocket	Female	IP65	母座	螺钉拧紧	Black	GDSN	DIN 43650 C	3P+E	IP65	DIN 43650 C	3P+E	PG7	PG7	4.5 → 6mm	RoHS Compliant Part	Straight	Tin	PA	Valve	4	GDS	-40to+125°C	CSA,VDE	UL94HB	4mm	38mm	3+Gnd	DINEN175301-803-C	C	-	-	-	-	-	-	-
3 933029100 Female 2P+E DIN 43650 Solenoid Connector GDME Series ,Screw Down,Gland Size PG11,IP65,16A,400V ac CONNECTOR,GDME2011BLACK,VALVE,2C+GROUND,4.5-11MMCABLEDIA,ELECTINSERT GDME 2011 black; Cable Socket with central screw M 3 x 40, strain relief and transparent cover, possibility to fit electronic inserts, 2 contacts + PE, PG11, Type A, DIN EN 175 301-803-A Hirschmann GDME系列电磁阀接头 2P+E 插座, 螺钉拧紧安装, 尺寸 PG11, IP65, 额定16A, 400 V 交流 Hirschmann	10	1: ¥55.012	Screw Down	Screw Down	400 Vac	16A	黑色	Rectangular	Female	IP65	母座	螺钉拧紧	Black	GDME	DIN 43650 A	2P+E	IP65	DIN 43650 A	2P+E	PG11	PG11	4.5 → 11mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

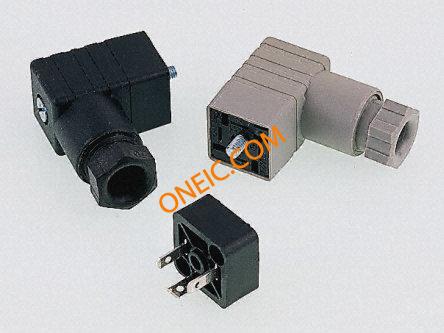

3 933024100 Female 3P+E DIN 43650 Solenoid Connector GDS Series ,Screw Down,Gland Size PG7,IP65,6A,250V ac/dc CONNECTOR,GDS307BLACK,DINVALVE,TYPEC,3C+GROUND,3-6.5MMCABLE(UL) GDS 307 black; Cable Socket with central screw M 3 x 28, 3 contacts + PE, PG7, industrial standard (9.4 mm), Type C Hirschmann	459	1: ¥16.116	Screw Down	Screw Down	250 Vac / Vdc	6A	Black	CableSocket	Female	IP65	-	-	Black	GDS	DIN 43650 C	3P+E	IP65	-	-	PG7	-	4.5 → 6mm	RoHS Compliant Part	Straight	Tin	PA	Valve	4	GDS	-40to+125°C	CSA,VDE	UL94HB	5mm	38mm	3+Gnd	-	C	-	-	-	-	-	-	-

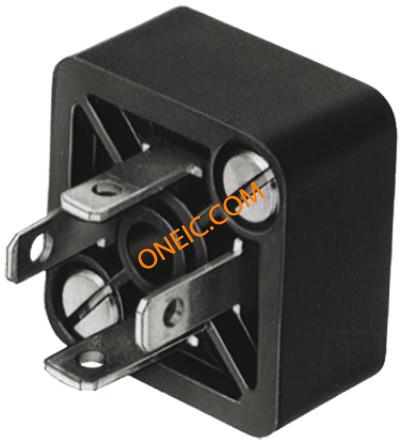

4 933111100 Heavy Duty Power Connector,Panel Mount,6A,250V ac/dc CONNECTOR,GSSNA300BLACK,VALVE,TYPEC,3C+GROUND,SOLDERTERM,APPLIANCE GSSNA 300 black; Appliance connector with central nut and 2 screws M 3 x 8, 3 contacts + PE, industrial standard (9.4 mm), Type C, 6A, 250V RJ45-Rangierfeld, 面板安装, 额定6A, 250 V 交流/直流 Hirschmann	260	1: ¥14.96	Solder	Panel Mount	250 V ac/dc	6A	Black	PanelPlug	-	IP65	-	焊接	-	-	-	-	-	-	-	-	-	-	-	Straight	-	PA	Valve	-	GDS	-40to+125°C	-	-	-	-	-	DINEN175301-803-A	-	-	-	-	-	-	-	-
3 933029106 Female 2P+E DIN 43650 Solenoid Connector GDME Series ,Screw Down,Gland Size PG11,IP65,16A,400V ac CONNECTOR,GDME2011GREY,VALVE,2C+GROUND,4.5-11MMCABLEDIA,ELECTINSERT GDME 2011 grey; Cable Socket with central screw M 3 x 40, strain relief and transparent cover, possibility to fit electronic inserts, 2 contacts + PE, PG11, Type A, DIN EN 175 301-803-A Hirschmann GDME系列电磁阀接头 2P+E 插座, 螺钉拧紧安装, 尺寸 PG11, IP65, 额定16A, 400 V 交流 Hirschmann	10	1: ¥39.644	Screw Down	Screw Down	400 Vac	16A	灰色	Rectangular	Female	IP65	母座	螺钉拧紧	Grey	GDME	DIN 43650 A	2P+E	IP65	DIN 43650 A	2P+E	PG11	PG11	4.5 → 11mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

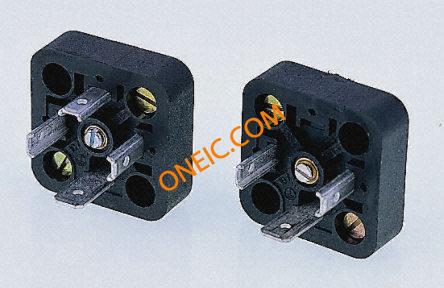

4 932968100 Male 3P+E DIN 43650 Solenoid Connector GSA Series ,Screw Down,IP65,16A,400V ac/dc CONNECTOR,GSA3000N,VALVE,APPLIANCE,3C+GROUND,SOLDERTERMINATION(UL) GSA 3000 N black; Appliance connector with retaining nut, 2 screws M 3 x 10 and 1 screw M 3 x 5, open nut, 3 contacts + PE, Type A construction Hirschmann GSA系列电磁阀接头 3P+E 插头, 螺钉拧紧安装, IP65, 额定16A, 400 V 交流/直流 Hirschmann	182	1: ¥14.552	Screw Down, Solder	Screw Down	400 V ac/dc	16A	Black	PanelPlug	Male	IP65	公插	螺钉拧紧，焊接	Black	GSA	DIN 43650 A	3P+E	IP65	DIN 43650 A	3P+E	-	-	-	RoHS Compliant Part	Straight	Tin	PA	Valve	4	GSA	-40to+125°C	CSA,VDE	UL94V-0	12mm	29.8mm	3+Gnd	DINEN175301-803-A	-	-	-	-	-	-	-	-
4 932967100 Male 2P+E DIN 43650 Solenoid Connector GSA Series ,Screw Down,IP65,16A,400V ac/dc CONNECTOR,GSA2000N,VALVE,APPLIANCE,2C+GROUND,SOLDERTERMINATION(UL) GSA 2000 N black; Appliance connector with retaining nut, 2 screws M 3 x 10 and 1 screw M 3 x 5, open nut, 2 contacts + PE, Type A construction Hirschmann GSA系列电磁阀接头 2P+E 插头, 螺钉拧紧安装, IP65, 额定16A, 400 V 交流/直流 Hirschmann	567	1: ¥8.636	Screw Down, Solder	Screw Down	400 V ac/dc	16A	Black	PanelPlug	Male	IP65	公插	螺钉拧紧，焊接	Black	GSA	DIN 43650 A	2P+E	IP65	DIN 43650 A	2P+E	-	-	-	RoHS Compliant Part	Straight	Tin	PA	Valve	3	GSA	-40to+125°C	CSA,VDE	UL94V-0	12mm	29.8mm	3+Gnd	DINEN175301-803-A	-	-	-	-	-	-	-	-
2417 01 SOCKET, IEEE1394, PANEL, R/A, 6WAY LUMBERG	-		:Solder	:PCB Through Hole	-	-	-	-	:Socket	-	:IEEE 1394	-	-	-	-	-	-	-	-	-	-	-	-	-	:Copper	-	-	:6	-	-	-	-	-	-	-	-	-	:No SVHC (20-Jun-2013)	85369010	:6	0.0025	:Gold	:Through Hole Right Angle	:PCB
