Harwin Inc- 背板连接器（通用型）

Harwin PLC是一家专注于高可靠性互连解决方案的英国制造商，成立于1952年，总部位于英国朴茨茅斯。公司致力于为军事、航空航天、工业、医疗和赛车运动等严苛应用领域设计生产连接器、PCB硬件及电磁兼容屏蔽产品。其核心产品系列包括1.25mm间距的微型Gecko连接器、坚固的Datamate 2mm间距连接器以及单触点高达10A的M300大功率连接器。Harwin还提供丰富的EZ-BoardWare系列，用于板级安装、柔性跳线和测试点。在极端环境中，Harwin器件拥有经过验证的卓越性能，经常应用于卫星、国防系统和一级方程式赛车。凭借超过50年的互连技术积淀，Harwin构建了涵盖制造基地、支持中心和授权分销商的全球网络。公司通过AS9100航空航天认证和军用标准合规彰显其质量承诺。作为高可靠性连接器领域值得信赖的供应商，Harwin在细分市场上稳居头部地位，与Amphenol、ITT Cannon等专业厂商展开竞争。持续投入微型化、创新连接器的研发，使Harwin始终保持在互连市场的前沿位置。

背板连接器（通用型） - 型号列表

共 16 个型号

制造商零件编号	库存	价格	标准包装数量	间距	包装方式	安装类型	连接器类型	排数	位数	最大额定电流	颜色	端接方式	接触镀层	连接器样式	加载位置数	接触镀层厚度	工作温度	材料阻燃等级	额定电压	其他名称	备注

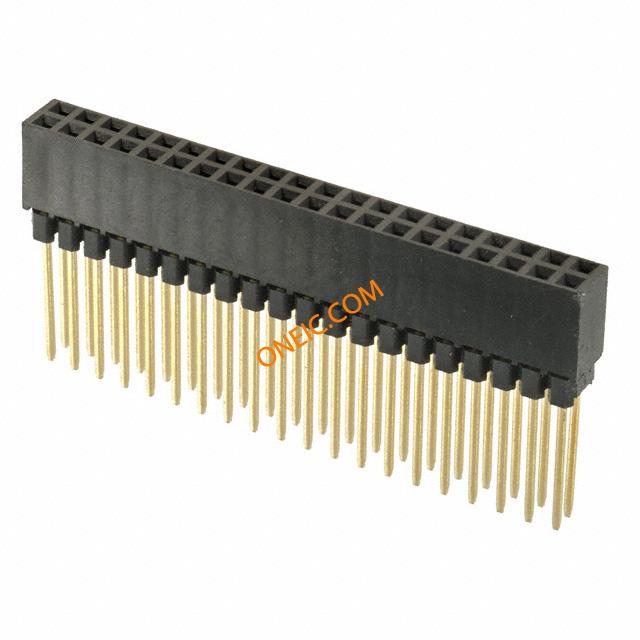

2 M20-6102005 CONN HDR FMALE .100" 40POS AU Harwin Inc	10	1: ¥24.684	11	0.100" (2.54mm)	Tube	Through Hole	Stackthrough, Unkeyed (PC/104)	2	40	3A	Black	Solder	Gold	PC/104	All	3µin (0.08µm)	-55°C ~ 105°C	UL94 V-0	-	952-1419-5	-

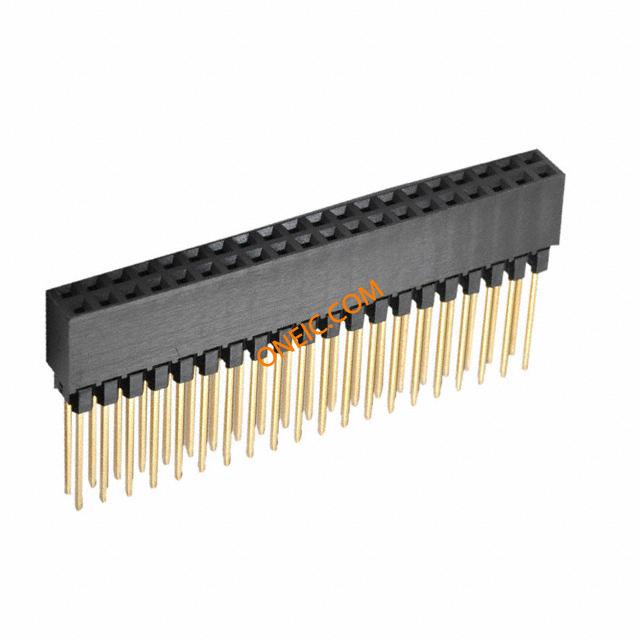

2 M20-6152005 CONN HDR FMALE .100" 40POS AU Harwin Inc	10	1: ¥73.626	11	0.100" (2.54mm)	Tube	Through Hole	Stackthrough, Unkeyed + Organizer (PC/104)	2	40	1A	Black	Press-Fit	Gold	PC/104	All	10µin (0.25µm)	-55°C ~ 105°C	UL94 V-0	-	-	-

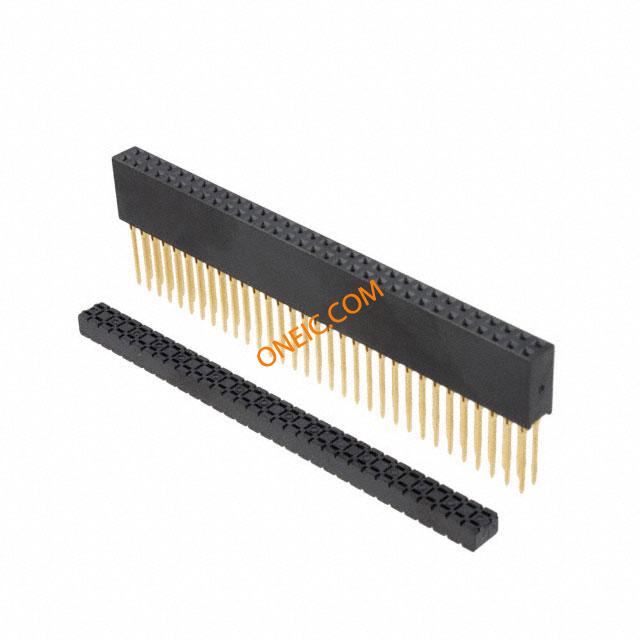

2 M20-6153205 CONN HDR FMALE .100" 64POS AU Harwin Inc	10	1: ¥141.183	1,002	0.100" (2.54mm)	Tube	Through Hole	Stackthrough, Unkeyed + Organizer (PC/104)	2	64	1A	Black	Press-Fit	Gold	PC/104	All	10µin (0.25µm)	-55°C ~ 105°C	UL94 V-0	-	-	-

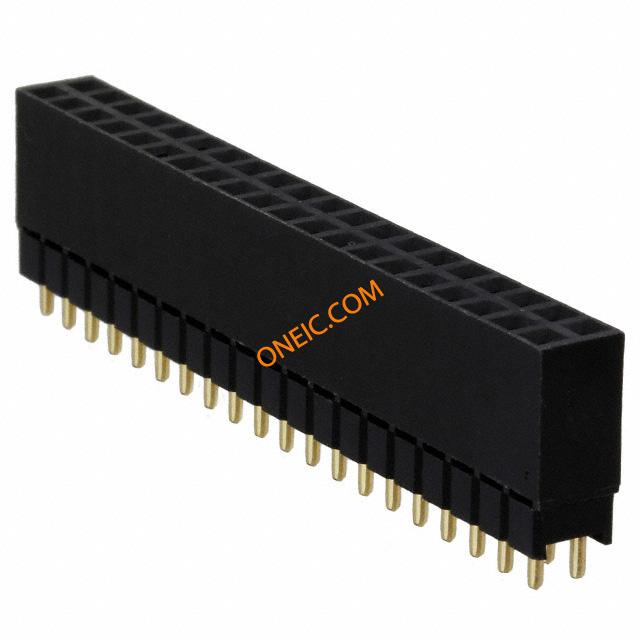

M20-6112045 PC/104 NON-STACKTHROUGH CONN Harwin Inc	237	1: ¥28.90	11	0.100" (2.54mm)	Tube	Through Hole	Non-Stackthrough, Unkeyed (PC/104)	2	40	3A	Black	Solder	Gold	PC/104	All	3µin (0.08µm)	-55°C ~ 105°C	UL94 V-0	-	-	-

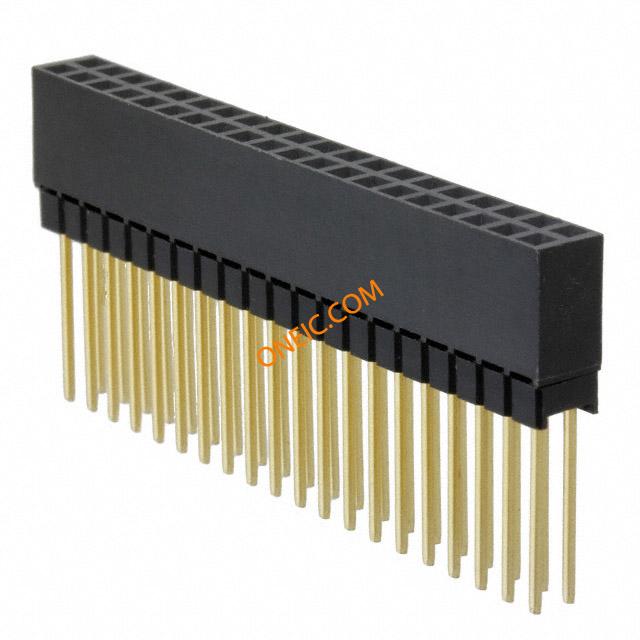

M20-6102045 PC/104 STACKTHROUGH CONNECTOR Harwin Inc	2523	1: ¥32.30	11	0.100" (2.54mm)	Tube	Through Hole	Stackthrough, Unkeyed (PC/104)	2	40	3A	Black	Solder	Gold	PC/104	All	3µin (0.08µm)	-55°C ~ 105°C	UL94 V-0	-	-	-

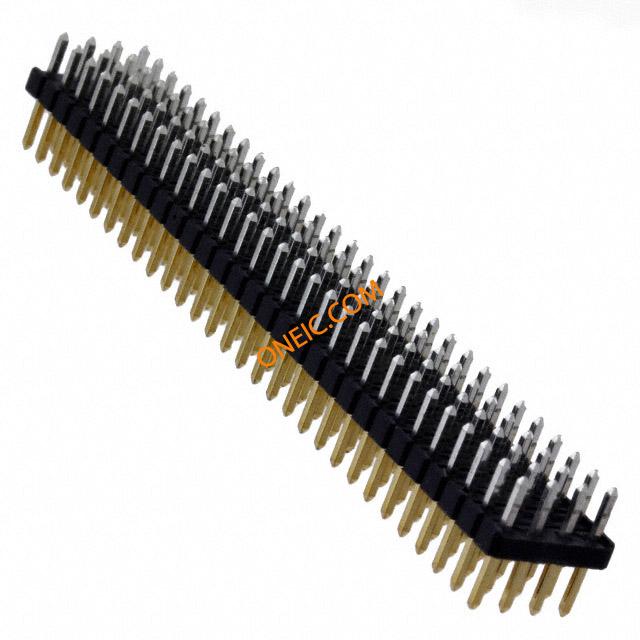

M22-6023042 PC104 PL00 HEADER Harwin Inc	178	1: ¥44.20	9	0.079" (2.00mm)	Tube	Through Hole	Header, Male Pins	4	120	1A	Black	Solder	Gold	PC/104 Plus	All	-	-55°C ~ 105°C	UL94 V-0	-	-	-
M22-6053005 PC104 PLUS S/THRU CONN P/FIT Harwin Inc	10	1008: ¥115.0084	9	0.079" (2.00mm)	Tube	Through Hole	Stackthrough, (PC/104)	2	60	1A	Black	Press-Fit	Gold	PC/104 Plus	All	10µin (0.25µm)	-	-	12V	-	-
M22-6063005 PC/104+ N/S/THRU CONN P/FIT Harwin Inc	10	1008: ¥132.7768	9	0.079" (2.00mm)	Tube	Through Hole	Non-Stackthrough, (PC/104)	4	120	1A	Black	Solder	Gold	PC/104 Plus	All	10µin (0.25µm)	-	-	12V	-	-
M20-6162005 PC/104 N/S/THRU CONN P/FIT Harwin Inc	10	1001: ¥31.6064	11	0.100" (2.54mm)	Tube	Through Hole	Non-Stackthrough, (PC/104)	2	40	1A	Black	Press-Fit	Gold	PC/104	All	10µin (0.25µm)	-55°C ~ 105°C	-	12V	-	-
M22-6033042 PC104 PLUS HEADER RECEPTACLE Harwin Inc	185	1: ¥50.728	9	0.079" (2.00mm)	Tube	Through Hole	Header, Female Sockets	4	120	1A	Black	Solder	Gold	PC/104 Plus	All	-	-55°C ~ 105°C	-	-	-	-
M20-6163205 PC/104 N/S/THRU CONN P/FIT Harwin Inc	10	1002: ¥46.3964	6	0.100" (2.54mm)	Tube	Through Hole	Non-Stackthrough, (PC/104)	2	64	1A	Black	Press-Fit	Gold	PC/104	All	10µin (0.25µm)	-55°C ~ 105°C	-	12V	-	-

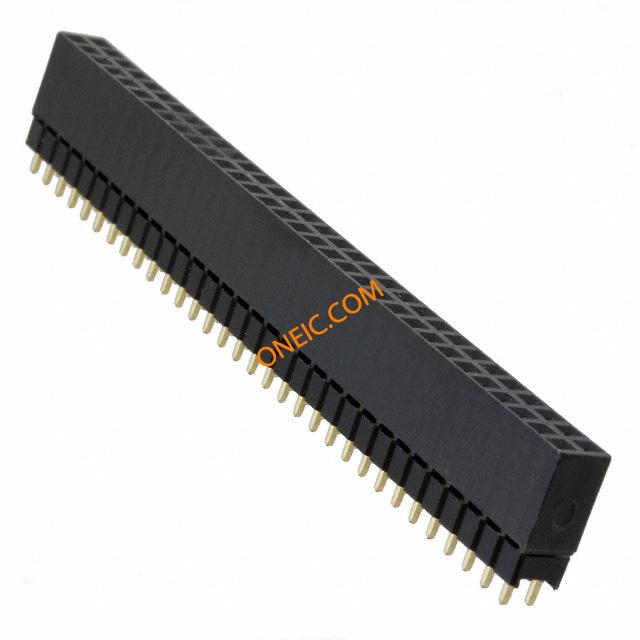

M20-6113245 PC/104 NON-STACKTHROUGH CONN Harwin Inc	10	1: ¥45.8535	7	0.100" (2.54mm)	Tube	Through Hole	Non-Stackthrough, Unkeyed (PC/104)	2	64	3A	Black	Solder	Gold	PC/104	All	3µin (0.08µm)	-55°C ~ 105°C	UL94 V-0	-	-	-
M20-6103245 PC/104 STACKTHROUGH CONNECTOR Harwin Inc	403	1: ¥47.464	7	0.100" (2.54mm)	Tube	Through Hole	Stackthrough, Unkeyed (PC/104)	2	64	3A	Black	Solder	Gold	PC/104	All	3µin (0.08µm)	-55°C ~ 105°C	UL94 V-0	-	-	-

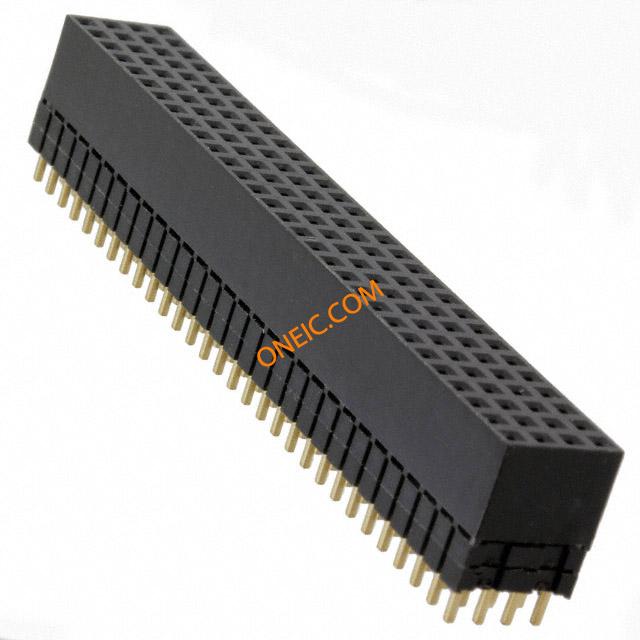

M22-6013005 NON-STACKTHROUGH CONNECTOR GOLD Harwin Inc	1109	1: ¥89.964	9	0.079" (2.00mm)	Tube	Through Hole	Non-Stackthrough, Unkeyed (PC/104)	4	120	1A	Black	Solder	Gold	PC/104 Plus	All	3µin (0.08µm)	-55°C ~ 105°C	UL94 V-0	-	-	-

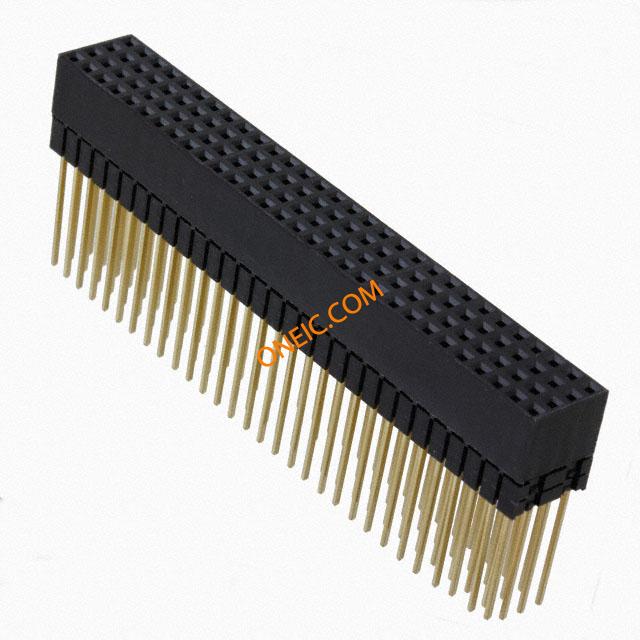

M22-6003005 STACKTHROUGH CONNECTOR 2MM PITCH Harwin Inc	254	1: ¥101.184	9	0.079" (2.00mm)	Tube	Through Hole	Stackthrough, Unkeyed (PC/104)	4	120	1A	Black	Solder	Gold	PC/104 Plus	All	Flash	-55°C ~ 105°C	UL94 V-0	-	-	-

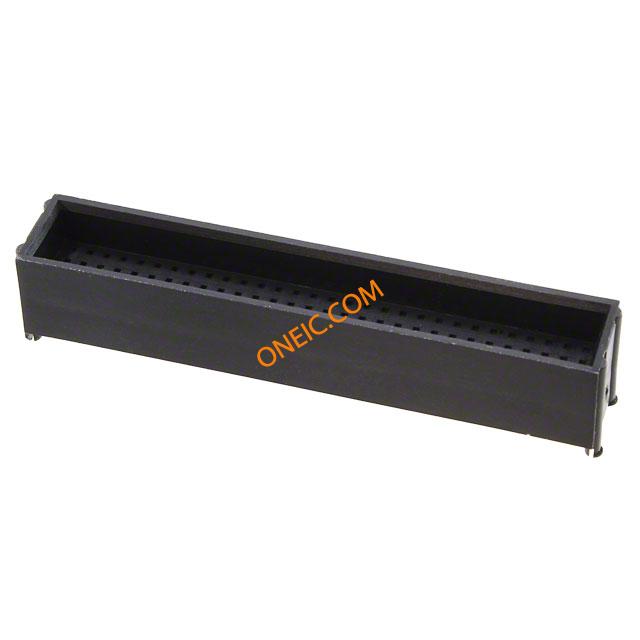

M22-6043098 PC104 PL00 SHROUD Harwin Inc	222	1: ¥21.964	72	0.079" (2.00mm)	Tube	Through Hole	Shroud for Male Pins	4	120	-	-	-	-	-	-	-	-	-	-	-	Contacts Not Provided
