琴键式DIP开关
Grayhill, Inc.- 琴键式DIP开关
琴键式DIP开关 - 型号列表
共 134 个型号| 制造商零件编号 | 库存 | 价格 | 额定电压 | 最大额定电流 | 开关功能/额定值 | 安装类型 | 端子类型 | 按钮样式/尺寸 | 位数 | 开关驱动电平 | 工作温度 | 标准包装数量 | RoHS | 电路 | 触点额定值 @ 电压 | 方向 | 致动器类型 | 执行器水平位置 | 可清洗 | 欧盟RoHS | 密封 | 包装方式 | 柱间距 | 接触镀层 | 触头材料 | 总长度 | 电气寿命 | 机械寿命 | 深度 | 高度 | 其他名称 | 系列 | 执行器距PCB垂直高度 | 电路类型 | 抗辐射加固 | 开关功能 | 直流反向电压（Vr）（最大） | 间距 | 安装样式 | 端接样式 | 转换前位置数 | 交货时间 | 子类别 | 适用产品/相关产品 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch DIP ON OFF SPST 4 Piano 0.15A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R Switch DIP ON OFF SPST 4 Piano 0.15A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R SWITCH DIP PIANO STYLE SMD 4POS grayhill | 1225 | 1: ¥16.456 | 30 V | 0.15@30VDC A | ON OFF | Surface Mount | Gull Wing | Piano | 4 | SPST | -40 to 85 °C | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 12.2 | 2000/Switch | 2000/Switch | 10.77 | 8.57 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Switch DIP ON OFF SPST 6 Piano 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole T/R Switch DIP ON OFF SPST 6 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole T/R SWITCH DIP PIANO STYLE T/H 6POS grayhill | 10 | 15: ¥9.18 | 30 V | 0.15@30VDC A | ON OFF | Through Hole | PC Pins | Piano | 6 | SPST | -40 to 85 °C | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 17.3 | 2000/Switch | 2000/Switch | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

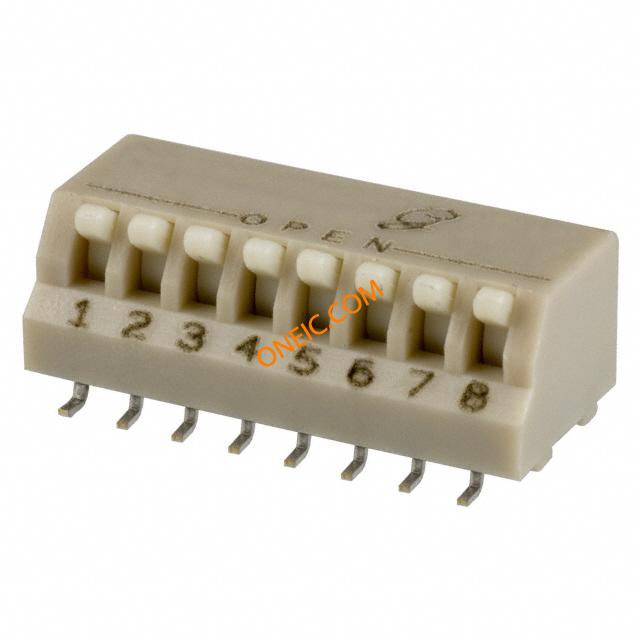

 Switch DIP ON OFF SPST 8 Piano 0.15A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R Switch DIP ON OFF SPST 8 Piano 0.15A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R SWITCH DIP PIANO STYLE 8POS 30V Switch,DIP;8Pos.SPST;Sidetoggle;0.15A,30VDC;Gullwingterm;Tapeseal grayhill | 20 | 1: ¥28.9933 | 30 V | 0.15@30VDC A | ON OFF | Surface Mount | Gull Wing | Piano | 8 | SPST | -40 to 85 °C | Tape & Reel | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 22.4 | 2000/Switch | 2000/Switch | 10.77 | 8.57 | GH7128TR | 76HP | Raised | SPST | - | - | - | - | - | - | - | - | - | - |

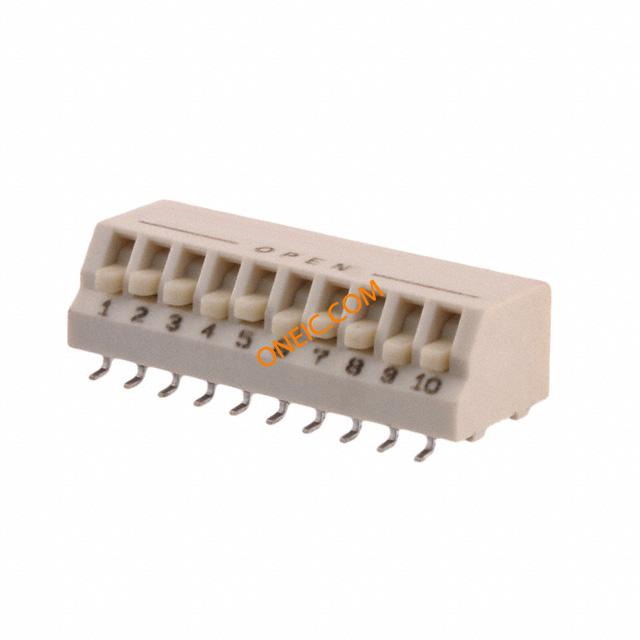

 Switch DIP ON OFF SPST 10 Piano 0.15A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R Switch DIP ON OFF SPST 10 Piano 0.15A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R SW DIP PIANO STYLE 10POS 30V grayhill | 885 | 1: ¥23.936 | 30 V | 0.15@30VDC A | ON OFF | Surface Mount | Gull Wing | Piano | 10 | SPST | -40 to 85 °C | Tape & Reel | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 27.4 | 2000/Switch | 2000/Switch | 10.77 | 8.57 | GH7109TR | 76HP | Raised | SPST | - | - | - | - | - | - | - | - | - | - |

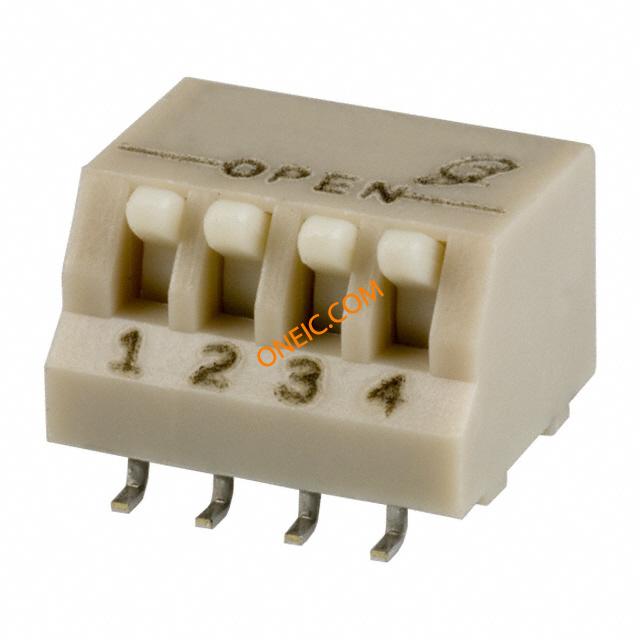

 Switch DIP ON OFF SPST 4 Piano 0.15A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R Switch DIP ON OFF SPST 4 Piano 0.15A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R SWITCH DIP PIANO STYLE 4POS 30V grayhill | 1175 | 1: ¥19.448 | 30 V | 0.15@30VDC A | ON OFF | Surface Mount | Gull Wing | Piano | 4 | SPST | -40 to 85 °C | Tape & Reel | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 12.2 mm | 2000/Switch | 2000 | 10.77 mm | 8.57 mm | GH7126TR | 76HP | Raised | SPST | No | ON OFF | 30V | 2.54 mm | Surface Mount | Gull Wing | 4 | - | - | - |

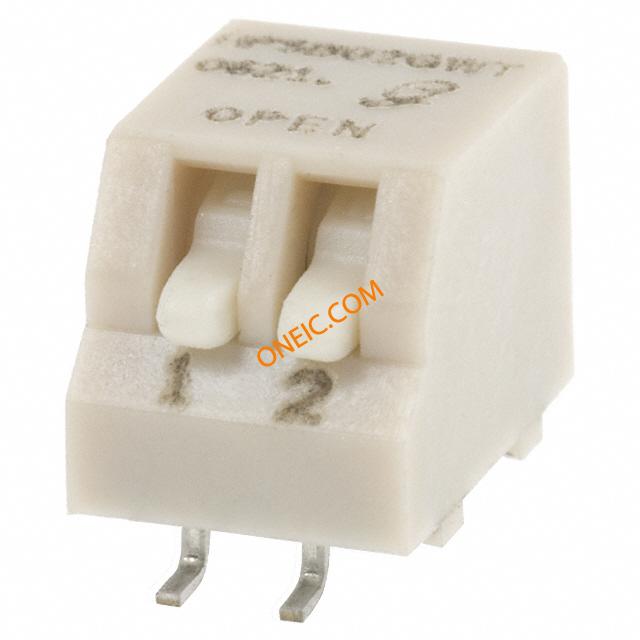

 Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R SWITCH DIP PIANO STYLE 2POS 30V grayhill | 7755 | 1: ¥18.836 | 30 V | 0.15@30VDC A | ON OFF | Surface Mount | Gull Wing | Piano | 2 | SPST | -40 to 85 °C | Tape & Reel | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 7.1 | 2000/Switch | 2000/Switch | 10.77 | 8.57 | GH7125TR | 76HP | Raised | SPST | - | - | - | - | - | - | - | - | - | - |

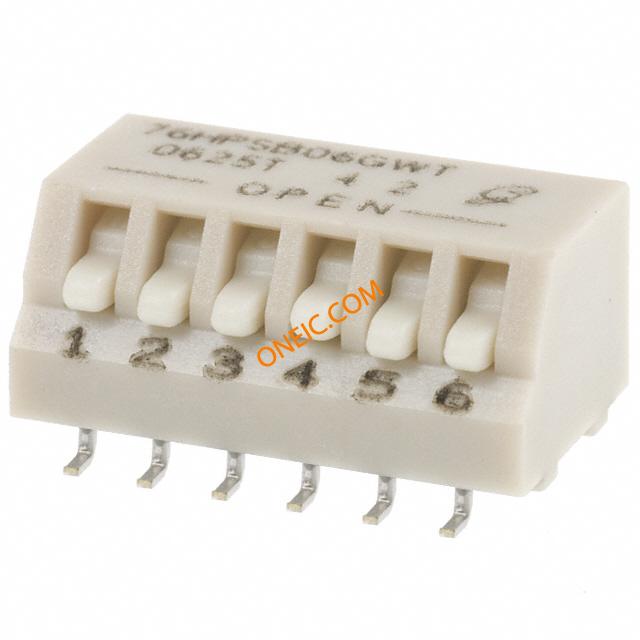

 Switch DIP ON OFF SPST 6 Piano 0.15A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R Switch DIP ON OFF SPST 6 Piano 0.15A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R SWITCH DIP PIANO STYLE 6POS 30V 76HP Series Side Actuated SPST 6 Position Surface Mount DIP Switch grayhill | 2756 | 1: ¥20.536 | 30 V | 0.15@30VDC A | ON OFF | Surface Mount | Gull Wing | Piano | 6 | SPST | -40 to 85 °C | Tape & Reel | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 17.3 | 2000/Switch | 2000/Switch | 10.77 | 8.57 | GH7127TR | 76HP | Raised | SPST | - | - | - | - | - | - | - | - | - | - |
MTG NUT,PLTD GULL WING, 10 POSITION, 30 UI MTGNUTPLTDGULLWING10POSITION30 MTG NUT PLTD GULL WING 10POS grayhill | 10 | 1: ¥394.672 | - | - | - | - | - | - | - | - | - | 1 | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 93W53971 | * | - | - | - | - | - | - | - | - | - | - | - | - |
Switch DIP ON OFF SPST 6 Piano 0.15A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R SWITCH DIP PIANO STYLE SMD 6POS grayhill | 195 | 1: ¥17.476 | 30 V | 0.15@30VDC A | ON OFF | Surface Mount | Gull Wing | Piano | 6 | SPST | -40 to 85 °C | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Switch DIP ON OFF SPST 4 Piano 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole T/R Switch DIP ON OFF SPST 4 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole T/R SWITCH DIP PIANO STYLE T/H 4POS grayhill | 10 | 21: ¥8.364 | 30 V | 0.15@30VDC A | ON OFF | Through Hole | PC Pins | Piano | 4 | SPST | -40 to 85 °C | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 12.2 | 2000/Switch | 2000/Switch | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Switch DIP ON OFF SPST 8 Piano 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole T/R Switch DIP ON OFF SPST 8 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole T/R SWITCH DIP PIANO STYLE T/H 8POS grayhill | 10 | 12: ¥9.86 | 30 V | 0.15@30VDC A | ON OFF | Through Hole | PC Pins | Piano | 8 | SPST | -40 to 85 °C | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 22.4 | 2000/Switch | 2000/Switch | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R SWITCH DIP PIANO STYLE SMD 2POS grayhill | 35 | 4: ¥12.3257 | 30 V | 0.15@30VDC A | ON OFF | Surface Mount | Gull Wing | Piano | 2 | SPST | -40 to 85 °C | Rail / Tube | Lead free / RoHS Compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 7.1 | 2000/Switch | 2000/Switch | 10.77 | 8.57 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC Gull Wing 20000Cycles/SwitchCycles 2.54mm SMD T/R SWITCH DIP PIANO STYLE 2POS SMD Grayhill | - | 30 | 0.15@30VDC | ON OFF | Surface Mount | Gull Wing | Piano | 2 | SPST | 85 | 500 | Contains lead / RoHS non-compliant | SPST | 0.15A @ 30VDC | Side Actuated | Piano | Raised | No | Not Compliant | No | Tape and Reel | 2.54 | Gold/Nickel Barrier | Copper Alloy | 7.1 | 10000/Switch | 20000/Switch | 10.77 | 8.57 | GH1325TR | - | - | - | - | - | - | - | - | - | - | 56 Days | Switch DIP | 76HPSB02GWRT | |
Switch DIP ON OFF SPST 8 Piano 0.15A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R grayhill | - | 30 V | 0.15@30VDC A | ON OFF | Surface Mount | Gull Wing | Piano | 8 | SPST | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Switch DIP ON OFF SPST 6 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube grayhill | - | 30 V | 0.15@30VDC A | ON OFF | Through Hole | PC Pins | Recessed Rocker | 6 | SPST | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Switch DIP ON OFF SPST 8 Raised Rocker 0.15A 30VDC PC Pins 2000Cycle 2.5mm Thru-Hole Tube grayhill | 10 | 86: ¥6.3893 | 30 V | 0.15@30VDC A | ON OFF | Through Hole | PC Pins | Raised Rocker | 8 | SPST | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Switch DIP ON OFF SPST 9 Raised Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube grayhill | - | 30 V | 0.15@30VDC A | ON OFF | Through Hole | PC Pins | Raised Rocker | 9 | SPST | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Switch DIP OFF ON SPST 8 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube grayhill | - | 30 V | 0.15@30VDC A | OFF ON | Through Hole | PC Pins | Recessed Slide | 8 | SPST | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Switch DIP ON OFF SPST 6 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube grayhill | - | 30 V | 0.15@30VDC A | ON OFF | Through Hole | PC Pins | Recessed Slide | 6 | SPST | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Switch DIP ON OFF SPST 4 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R grayhill | - | 30 V | 0.1@6VDC A | ON OFF | Surface Mount | Gull Wing | Recessed Slide | 4 | SPST | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
