Friwo Gerätebau GmbH- 电源模块

Friwo Gerätebau GmbH 是全球知名的电源与充电技术制造商，成立于1971年，总部位于德国奥斯特贝沃恩。公司专注于开发、生产和销售高效可靠的电源解决方案。其核心产品线涵盖插墙式电源、桌面式电源适配器、开放式电源和导轨式电源。Friwo 还提供适用于消费和工业领域的先进电池充电器，以及面向照明系统的 LED 驱动器。该公司凭借广泛的标准与定制电源方案而闻名，服务市场包括医疗、工业自动化、通信和电动交通。Friwo 注重能效并严格遵循国际安全标准，在欧洲和亚洲设有制造基地，确保全球供应链与本地支持。作为欧洲电源行业的重要参与者，Friwo 深受全球原始设备制造商信赖。

电源模块 - 型号列表

共 28 个型号

制造商零件编号	库存	价格	噪声	效率	额定功率	额定电压	电源调整率	负载调整率	输出电流	输出数量	深度	宽度	长度	重量	动作时间	工作温度	最高温度限值	输入连接器	类型	冷却的封装	功率（瓦）	供电电压	最大额定电流	电压负载调整率	包装数量	功能	工作寿命	RoHS	重量（g）

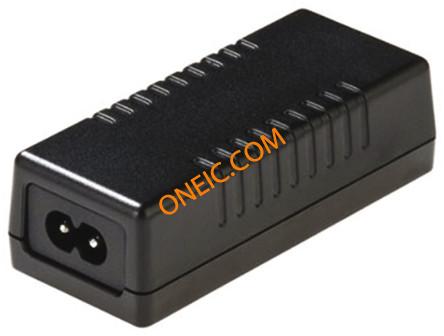

2 DT12 5V Power Adapter, Desk Top,ErP,5V 2A Friwo	277	1: ¥211.2964	200mV Pk-Pk	91%	12W	100 → 240V ac	±0.5%	±5%	2000mA	1	27.5mm	40mm	92mm	135g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	Compliant	-
2 DT12 12V Power Adapter, Desk Top,ErP,12V 1A Friwo	277	1: ¥211.2964	180mV Pk-Pk	91%	12W	100 → 240V ac	±0.5%	±5%	1000mA	1	27.5mm	40mm	92mm	135g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	Compliant	-

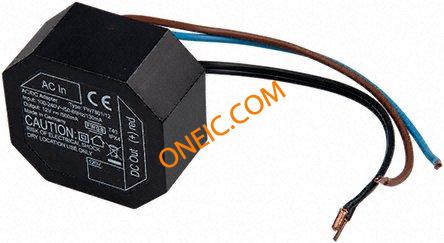

2 UP6 12V Power Supply,Potted IP64,UP6,12V 0.5A Friwo 6W 单输出嵌入式开关模式电源 SMPS , 100 → 240V ac输入, 12V输出, 500mA输出, 75%效能, 密封封装 Friwo	120	1: ¥262.09	300mV Pk-Pk	75%	6W	100 → 240V ac	±0.5%	±5%	500mA	1	25mm	48mm	51mm	95g	200000h	0°C	+40°C	-	-	Encapsulated	75%	12 V	500mA	±5%	密封	Y	200000h	-	-
2 DT12 24V Power Adapter, Desk Top,ErP,24V 0.5A Friwo	277	1: ¥211.2964	300mV Pk-Pk	91%	12W	100 → 240V ac	±0.5%	±5%	500mA	1	27.5mm	40mm	92mm	135g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	Compliant	-

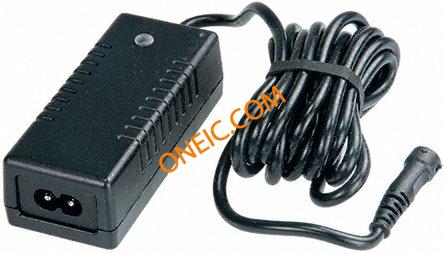

DT12 MEDICAL 12V Power Adapter,Desk Top,Medical,12V 1A Friwo	258	1: ¥227.4736	180mV Pk-Pk	90%	12W	100 → 240V ac	±0.5%	±5%	1000mA	1	27.5mm	40mm	92mm	135g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	-	-
2 UP18 12V Power Supply,Potted IP64,UP18,12V 1.5A Friwo 18W 单输出嵌入式开关模式电源 SMPS , 100 → 240V ac输入, 12V输出, 1.5A输出, 75%效能, 密封封装 Friwo	10	1: ¥341.09	400mV Pk-Pk	75%	18W	100 → 240V ac	±0.5%	±5%	1500mA	1	35mm	48mm	51mm	130g	200000h	0°C	+40°C	-	-	Encapsulated	75%	12 V	1.5A	±5%	密封	Y	200000h	-	-
2 UP6 24V Power Supply,Potted IP64,UP6,24V 0.25A Friwo 6W 单输出嵌入式开关模式电源（SMPS） , 100 → 240V ac输入, 24V输出, 500mA输出, 75%效能, 密封封装 Friwo	252	1: ¥232.1044	300mV Pk-Pk	75%	6W	100 → 240V ac	±0.5%	±5%	500mA	1	25mm	48mm	51mm	95g	200000h	0°C	+40°C	-	-	Encapsulated	75%	24 V	500mA	±5%	密封	Y	200000h	-	-
2 UP18 24V Power Supply,Potted IP64,UP18,24V 0.75A Friwo 18W 单输出嵌入式开关模式电源 SMPS , 100 → 240V ac输入, 24V输出, 750mA输出, 75%效能, 密封封装 Friwo	67	1: ¥364.14	400mV Pk-Pk	75%	18W	100 → 240V ac	±1%	±5%	750mA	1	35mm	48mm	51mm	130g	200000h	0°C	+40°C	-	-	Encapsulated	75%	24 V	750mA	±5%	密封	Y	200000h	-	-
UP12 24V Power Supply,Potted IP64,UP12,24V 0.5A Friwo	265	1: ¥221.4556	±1%	75%	12W	100 → 240V ac	±0.5%	±5%	500mA	1	35mm	48mm	51mm	130g	200000h	0°C	+40°C	-	-	Encapsulated	-	-	-	-	-	-	-	-	-
DT12 MEDICAL 24V Power Adapter,Desk Top,Medical,24V 0.5A Friwo	258	1: ¥227.4736	300mV Pk-Pk	90%	12W	100 → 240V ac	±0.5%	±5%	500mA	1	27.5mm	40mm	92mm	135g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	-	-

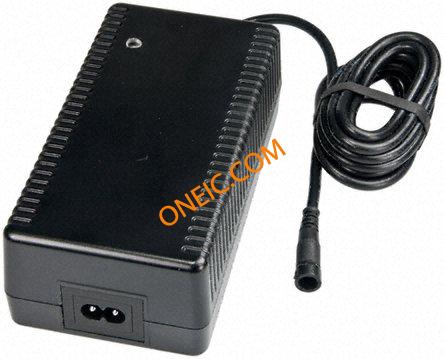

DT80 MEDICAL 24V Power Adapter,Desk Top,Medical,24V 3.3A Friwo	109	1: ¥535.7924	120mV Pk-Pk	90%	80W	100 → 240V ac	±0.5%	±5%	3300mA	1	50mm	79mm	149mm	350g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	-	-
UP12 12V Power Supply,Potted IP64,UP12,12V 1A Friwo	212	1: ¥276.7668	±1%	75%	12W	100 → 240V ac	±0.5%	±5%	1000mA	1	35mm	48mm	51mm	130g	200000h	0°C	+40°C	-	-	Encapsulated	-	-	-	-	-	-	-	-	-

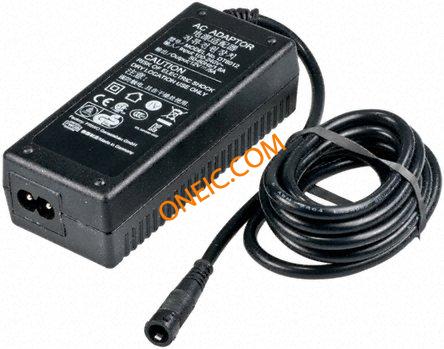

DT60 12V Power Adapter, Desk Top,ErP,12V 5A Friwo	154	1: ¥380.8952	250mV Pk-Pk	91%	60W	100 → 240V ac	±0.5%	±5%	5000mA	1	33mm	49.5mm	114.5mm	135g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	-	-
DT60 24V Power Adapter,Desk Top,ErP,24V 2.5A Friwo	154	1: ¥380.8952	250mV Pk-Pk	91%	60W	100 → 240V ac	±0.5%	±5%	2500mA	1	33mm	49.5mm	114.5mm	135g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	-	-
DT12 MEDICAL 5V Power Adapter,Desk Top,Medical,5V 2A Friwo	258	1: ¥227.4736	120mV Pk-Pk	90%	12W	100 → 240V ac	±0.5%	±5%	2000mA	1	27.5mm	40mm	92mm	135g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	-	-
DT80 MEDICAL 12V Power Adapter,Desk Top,Medical,12V 5.5A Friwo	109	1: ¥535.7924	120mV Pk-Pk	90%	80W	100 → 240V ac	±0.5%	±5%	5500mA	1	50mm	79mm	149mm	350g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	-	-

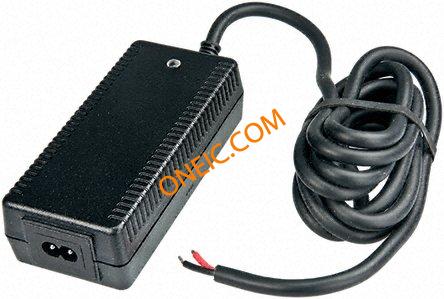

DT50 MEDICAL 24V Power Adapter,Desk Top,Medical,24V 2.2A Friwo	118	1: ¥495.1692	120mV Pk-Pk	90%	50W	100 → 240V ac	±0.5%	±5%	2200mA	1	38.1mm	60mm	130mm	295g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	-	-
DT50 MEDICAL 12V Power Adapter,Desk Top,Medical,12V 3.8A Friwo	118	1: ¥495.1692	120mV Pk-Pk	90%	50W	100 → 240V ac	±0.5%	±5%	3800mA	1	38.1mm	60mm	130mm	295g	200000h	0°C	+40°C	IEC 320-C8	Switch Mode	-	-	-	-	-	-	-	-	-	-
1807704 Order FRIWO Gerätebau GmbH 1807704 (4153-1807704-ND) at . , view product specifications, and order online. Friwo Gerätebau GmbH	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2.00000
1822477 Order FRIWO Gerätebau GmbH 1822477 (4153-1822477-ND) at . , view product specifications, and order online. Friwo Gerätebau GmbH	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2.00000

第 1 / 2 页
