Excelsys Technologies Ltd.- 电源管理IC
03
电源管理IC - 型号列表
共 61 个型号| 制造商零件编号 | 库存 | 价格 | 标准包装数量 | 认证机构 | 效率 | 功率（瓦） | 输出电流 | 输出数量 | 隔离电压 | 最小输入电压 | 重量 | 安装类型 | 尺寸/外形 | 端接样式 | 类型 | 产品特性 | 拓扑 | 额定等级 | 工作温度 | 调光方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

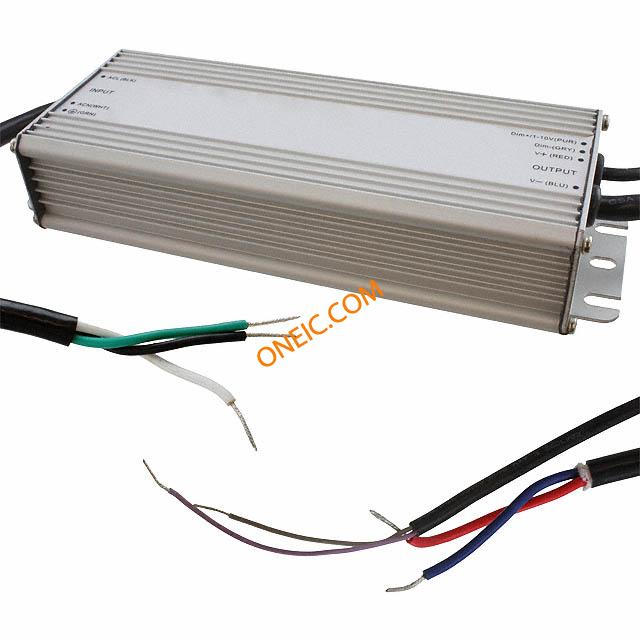

 | 10 | 1: ¥585.072 | 1 | CE, cULus, EN | 92% | 96W | 350mA | 1 | 3.75kV (3750V) | 137 ~ 274 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |

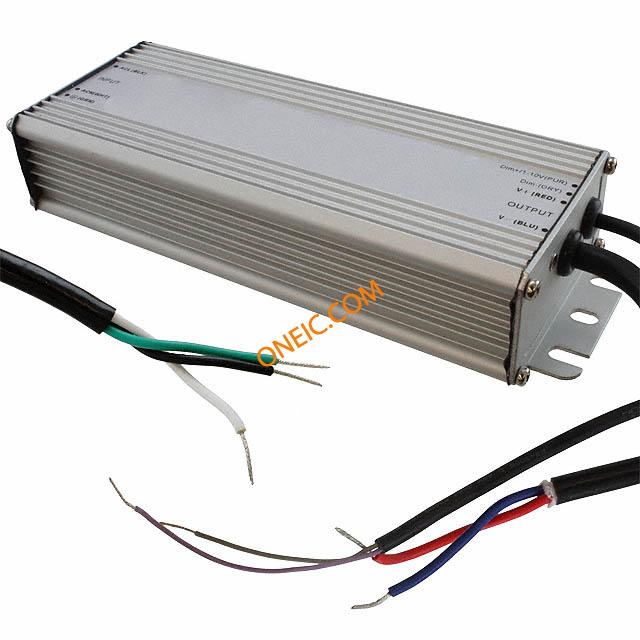

 | 10 | 1: ¥447.032 | 1 | CE, cULus, EN | 92% | 96W | 450mA | 1 | 3.75kV (3750V) | 106 ~ 213 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |

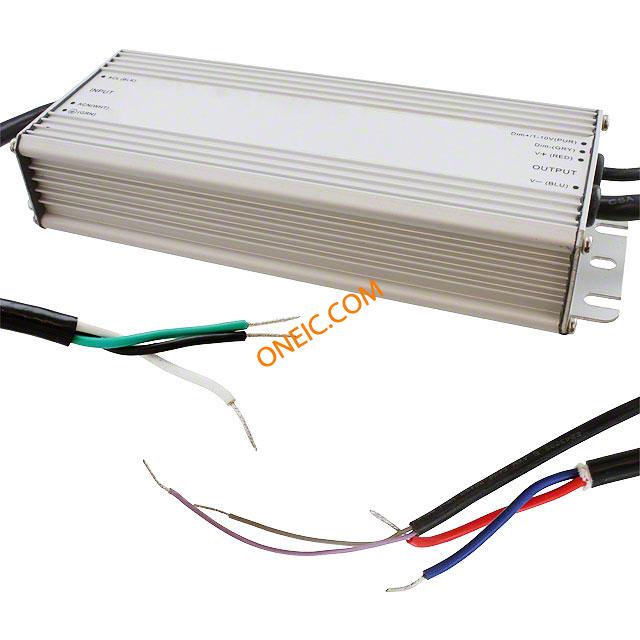

 | 10 | 1: ¥447.032 | 1 | CE, cULus, EN | 91% | 96W | 700mA | 1 | 3.75kV (3750V) | 68 ~ 137 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
 | 10 | 1: ¥447.032 | 1 | CE, cULus, EN | 91% | 96W | 1.05A | 1 | 3.75kV (3750V) | 42 ~ 92 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
 | 10 | 1: ¥447.032 | 1 | CE, cULus, EN | 90% | 96W | 1.4A | 1 | 3.75kV (3750V) | 35 ~ 69 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
 | 10 | 1: ¥476.34 | 1 | CE, cULus, EN | 92% | 96W | 350mA | 1 | 3.75kV (3750V) | 137 ~ 274 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | Analog |
 | 10 | 1: ¥476.34 | 1 | CE, cULus, EN | 92% | 96W | 450mA | 1 | 3.75kV (3750V) | 106 ~ 213 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | Analog |
 | 10 | 10: ¥582.1616 | 1 | CE, cULus, EN | 91% | 96W | 700mA | 1 | 3.75kV (3750V) | 68 ~ 137 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | Analog |

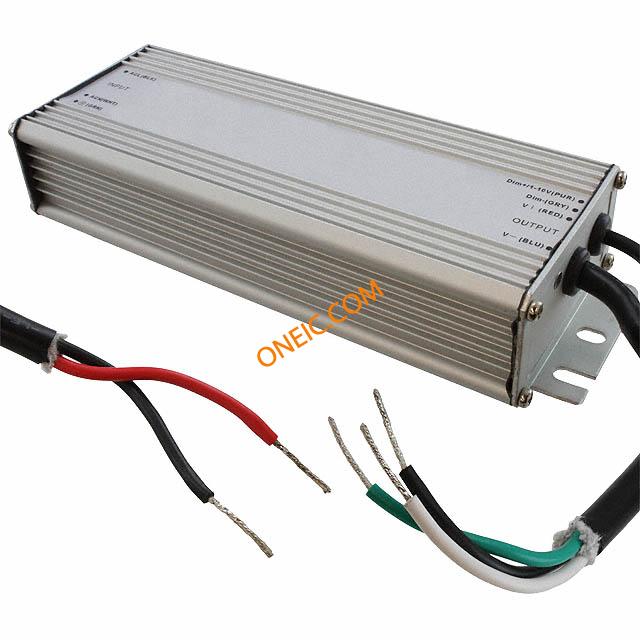

 POWER SUPPLY LED 96W 1050MA DIM LED SUPPLY CC AC/DC 46-92V 1.05A Excelsys Technologies Ltd | 10 | 1: ¥619.752 | 1 | CE, cULus, EN | 91% | 96W | 1.05A | 1 | 3.75kV (3750V) | 46 ~ 92 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | Analog |

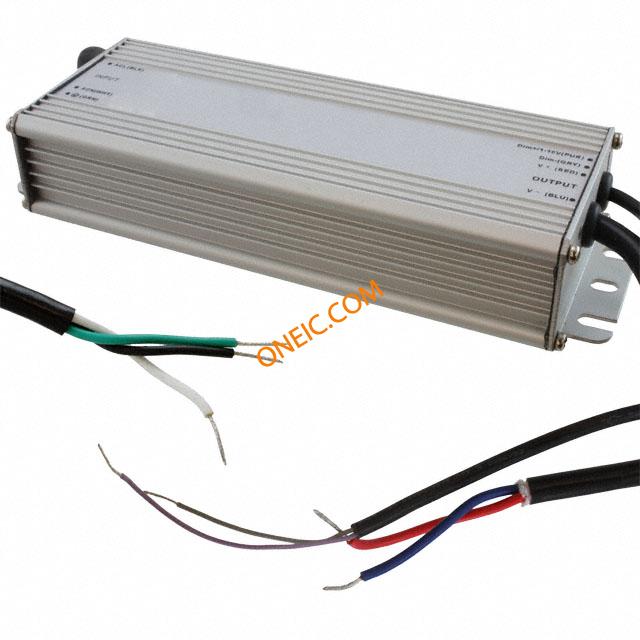

 POWER SUPPLY LED 96W 1400MA DIM LED SUPPLY CC AC/DC 35-69V 1.4A Excelsys Technologies Ltd | 10 | 1: ¥476.34 | 1 | CE, cULus, EN | 90% | 96W | 1.4A | 1 | 3.75kV (3750V) | 35 ~ 69 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | Analog |
 | 10 | 10: ¥585.0516 | 1 | CE, cULus, EN | 90% | 96W | 1.75A | 1 | 3.75kV (3750V) | 27 ~ 54.8 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
| 10 | 10: ¥585.0516 | 1 | CE, cULus, EN | 89% | 96W | 2.1A | 1 | 3.75kV (3750V) | 22 ~ 45.7 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
| 10 | 10: ¥585.0516 | 1 | CE, cULus, EN | 89% | 96W | 2.45A | 1 | 3.75kV (3750V) | 19 ~ 39.1 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
| 10 | 10: ¥585.0516 | 1 | CE, cULus, EN | 89% | 96W | 2.8A | 1 | 3.75kV (3750V) | 17 ~ 34.2 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
| 10 | 10: ¥585.0516 | 1 | CE, cULus, EN | 88% | 96W | 3.15A | 1 | 3.75kV (3750V) | 15 ~ 30.4 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
| 10 | 2: ¥859.282 | 1 | CE, cULus, EN | 88% | 96W | 3.5A | 1 | 3.75kV (3750V) | 13 ~ 27.4 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
| 10 | 10: ¥585.0516 | 1 | CE, cULus, EN | 88% | 96W | 4A | 1 | 3.75kV (3750V) | 12 ~ 24 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | - |
| 10 | 10: ¥619.7248 | 1 | CE, cULus, EN | 90% | 96W | 1.75A | 1 | 3.75kV (3750V) | 27 ~ 54.8 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | Analog |
| 10 | 10: ¥619.7248 | 1 | CE, cULus, EN | 89% | 96W | 2.1A | 1 | 3.75kV (3750V) | 22 ~ 45.7 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | Analog |
| 10 | 10: ¥619.7248 | 1 | CE, cULus, EN | 89% | 96W | 2.45A | 1 | 3.75kV (3750V) | 19 ~ 39.1 V | 1.9 lbs (861.8g) | Chassis Mount | 7.91" L x 2.66" W x 1.46" H (201.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OTP, OVP, SCP | AC DC Converter | IP67 | -35°C ~ 70°C | Analog |
